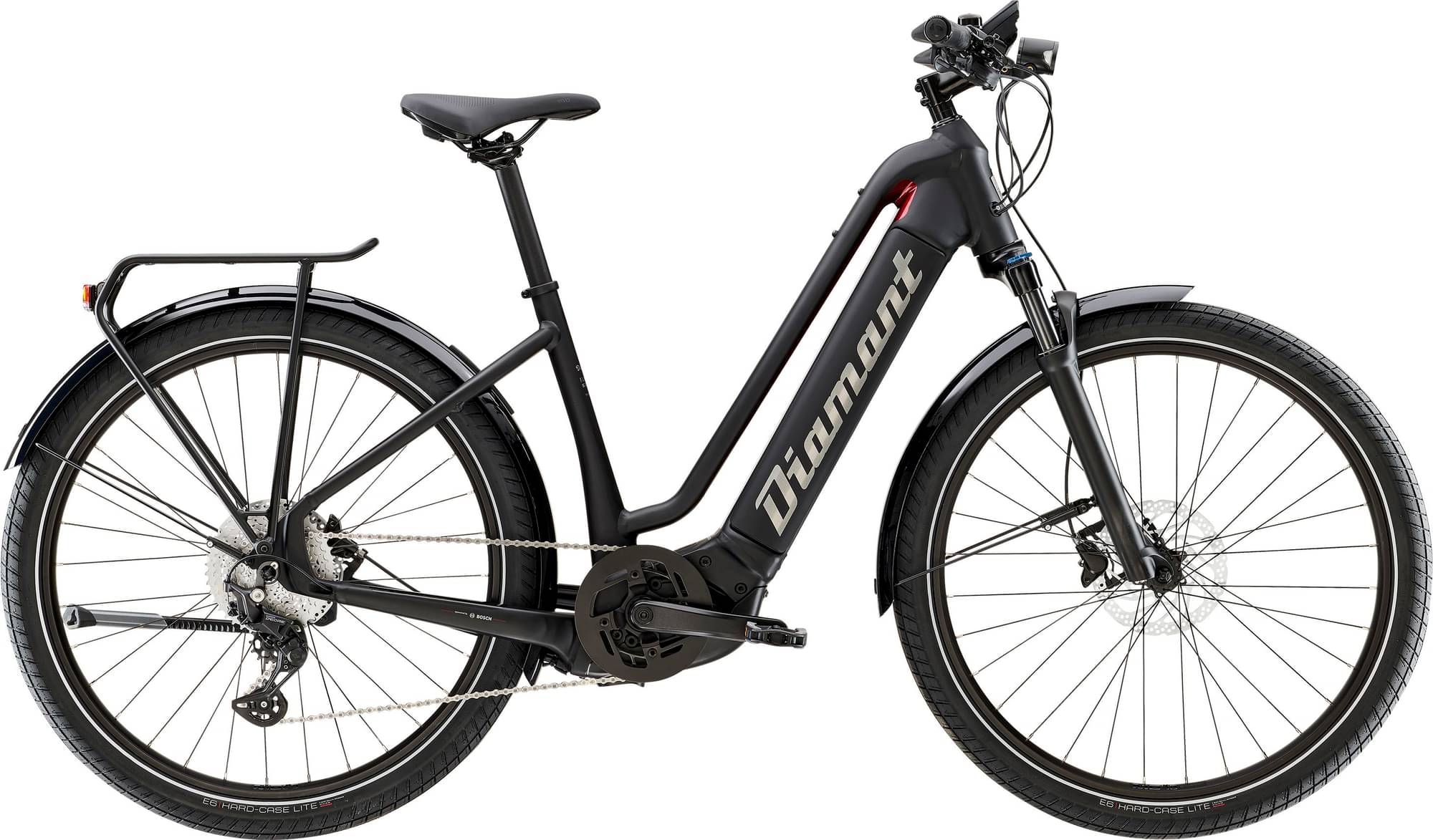

diamant Zouma Deluxe (Einstieg: tief) 2023
2023 E-bike
Estimate price |
4,813$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCR -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 625 Wh, Smart System -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminium, Removable Integrated Battery, interne Zugführung, Motor Armor, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm Schnellspannachse
Suspension Fork
SR Suntour XCR32, Stahlfeder, einstellbare Federvorspannung,
Drivetrain
Rear Derailleur
Shimano Deore M5130, GS, Shadow Plus
Shift Levers
Shimano Deore M5130, 10fach
Cassette
Shimano LG400, 11-43, 10fach
Crank
ProWheel, Aluminium, 170 mm Kurbelarmlänge
Chain
Shimano LG500
Pedals
rutschfeste Aluminiumpedale mit Reflektoren
Wheels
Rims
Alex MD35, passer til Tubeless, 32-Loch, 35 mm Innenweite, Presta-Ventil Shimano TX505, Center Lock-Scheibenaufnahme Shimano Alivio M4050,135 x 5 mm Schnellspannachse
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.40"
Brakes
Brakes
Front: Hydraulische Scheibenbremse Shimano MT200 Shimano RT30, Centerlock-Scheibenaufnahme, 180 mm // Shimano EM300, Centerlock-Scheibenaufnahme, 180 mm
Cockpit
Stem
Bontrager Comp, 31 8 mm, Blendr-kompatibel, 7 Grad, 70 mm Länge
Handlebar
Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 660 mm Breite
Headset
Integrierter FSA-Steuersatz, gedichtetes Patronenlager, 1 1/8" oben, 1,5" unten
Seat
Saddle
Selle Royal Vivo Moderate Ergo mit Royalgel
Seatpost
Bontrager Aluminium, 31,6 mm, 12 mm Versatz, 330 mm Länge
Motor & Battery
Motor
Bosch Performance Line CX, Smart System, Motorgehäuse aus Magnesium, 85 Nm
Battery
Bosch PowerTube 625 Wh, Smart System
Charger
Bosch Standardladegerät 4 A, 230 V, Smart System
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.578 mm | 1.644 mm |
| Front Center | 657 mm | 660 mm | 667 mm |
| Rake | 44 mm | 41 mm | 41 mm |
| Trail | 87 mm | 87 mm | 83 mm |
| Stack | 606 mm | 631 mm | 661 mm |
| Reach | 398 mm | 400 mm | 402 mm |
| Top Tube Length | 583 mm | 593 mm | 604 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 446 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1138 mm | 1141 mm | 1148 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
