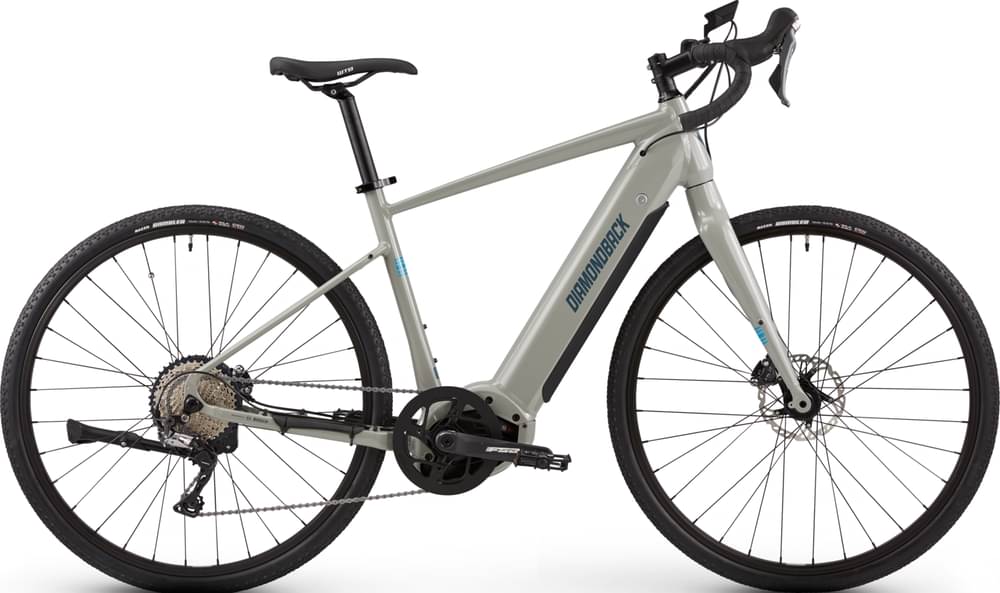

Diamondback Current 2021
2021 E-bike
Estimate price |
4,100$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, FSA -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Formed 6061 T6 Oversize Aluminum Alloy, Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery
Suspension Fork
Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru Axle
Drivetrain
Rear Derailleur
Shimano GRX 11-Speed Long Cage, RD-RX812
Front Derailleur
N/A
Shift Levers
Shimano RX-810
Cassette
Shimano 11-Speed, 11-42
Crank
FSA Forged Alloy for Bosch System
Bottom Bracket
Bosch, press-fit
Chain
KMC x11e EPT, Ebike Specific
Pedals
Wellgo, CR-MO Axle, Alloy Cage
Wheels
Front Hub
JD XQR-15
Rear Hub
Formula, Sealed Bearing, Thru Axle
Rims
Aluminum 700c, Black Anodized, 25mm ID, Disc Specific, 32 Hole
Spokes
Black w/Black Nipples
Tires
Maxxis Rambler, 700x40c
Brakes
Brakes
Shimano RX-810, Hydraulic Disc, Front 180mm Rotor, Rear 160mm Rotor
Brake Levers
Shimano RX-810
Cockpit
Stem
Diamondback Aluminum Alloy, 3d Forged
Handlebar
Aluminum. 480mm on Small, 500mm on Medium and Large
Grips
Velo Tape
Headset
Integrated, Sealed Bearing
Seat
Saddle
WTB Volt Sport
Seatpost
Diamondback Aluminum Alloy, Forged Head, 350mm
Motor & Battery
Motor
Bosch Performance Line Speed, 85Nm Torque, 28mph
Battery
Bosch PowerTube 500
Remote
Bosch Kiox
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 653 mm | 668 mm | 684 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 68 mm |
| Stack | 609 mm | 618 mm | 637 mm |
| Reach | 397 mm | 409 mm | 419 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1100 mm | 1115 mm | 1131 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 790 mm | 823 mm | 853 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Current completes the Diamondback E Current model. Diamondback launched 3 e-bikes of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, this doesn’t mean that if you spend less money on an Endurance e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Diamondback released this model in 2021, its price was 4100$. In conclusion, this e-bike price is 7.89% higher than the price of the average Endurance e-bike.
Current components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Current are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
