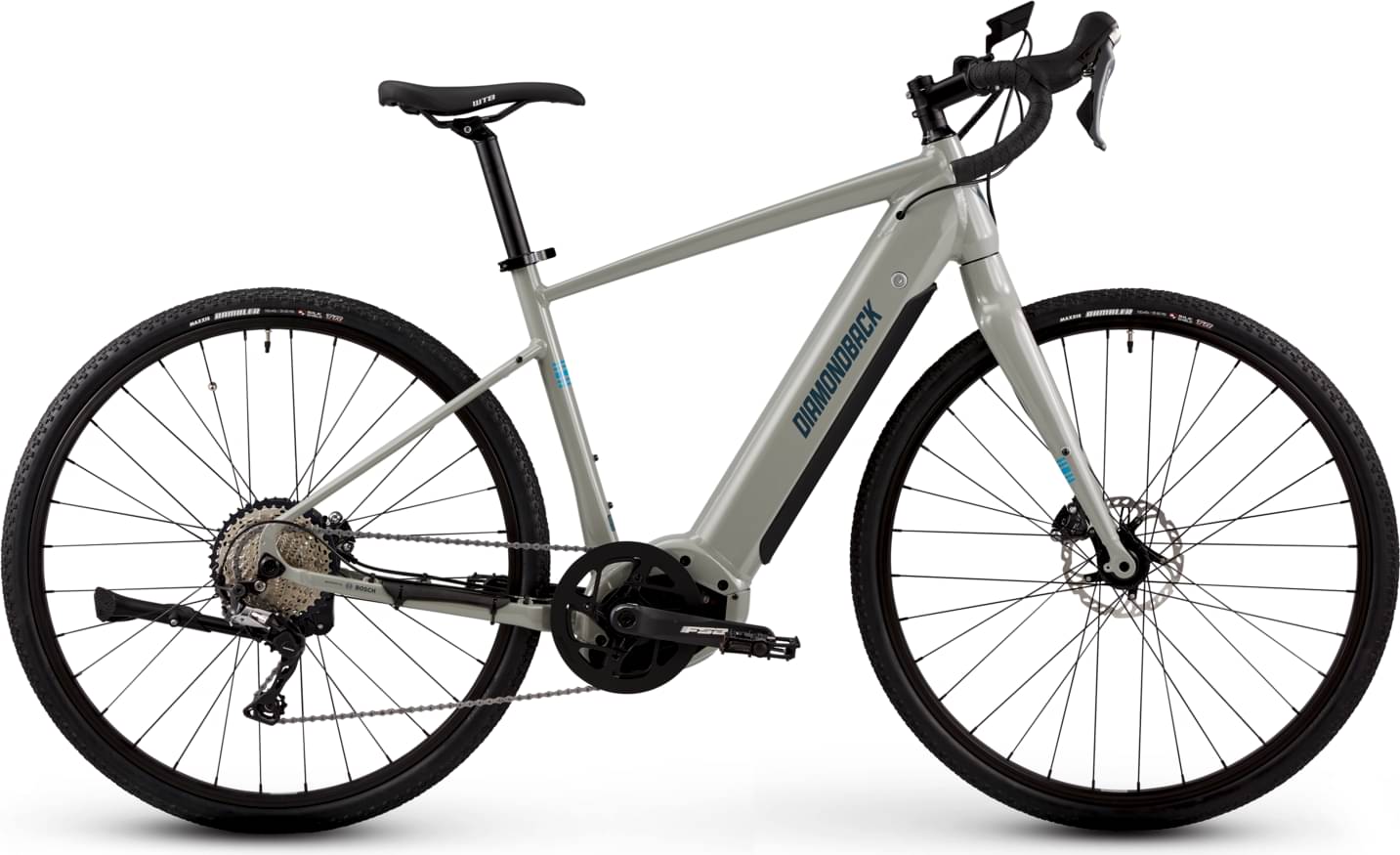

Diamondback Current 2024
2024 E-bike
Estimate price |
4,100$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800 -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Formed 6061 T6 Oversize Aluminum Alloy, Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery
Suspension Fork
Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru Axle
Drivetrain
Rear Derailleur
Shimano GRX 11-Speed Long Cage, RD-RX812
Front Derailleur
N/A
Shift Levers
Shimano RX-810
Cassette
Shimano 11-Speed, 11-42
Crank
FSA Forged Alloy for Bosch System
Bottom Bracket
Bosch, press-fit
Chain
KMC x11e EPT, Ebike Specific
Pedals
Wellgo, CR-MO Axle, Alloy Cage
Wheels
Front Hub
JD XQR-15
Rear Hub
Formula, Sealed Bearing, Thru Axle
Rims
Aluminum 700c, Black Anodized, 25mm ID, Disc Specific, 32 Hole
Spokes
Black w/Black Nipples
Tires
Maxxis Rambler, 700x50c
Brakes
Brakes
Shimano RX-810, Hydraulic Disc, Front 180mm Rotor, Rear 160mm Rotor
Brake Levers
Shimano RX-810
Cockpit
Stem
Diamondback Aluminum Alloy, 3d Forged
Handlebar
Aluminum. 480mm on Small, 500mm on Medium and Large
Grips
Velo Tape
Headset
Integrated, Sealed Bearing
Seat
Saddle
WTB Volt Sport
Seatpost
Diamondback Aluminum Alloy, Forged Head, 350mm
Motor & Battery
Motor
Bosch Performance Line Speed, 85Nm Torque
Battery
Bosch PowerTube 500
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.527 mm | 1.505 mm | 1.514 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 653 mm | 668 mm | 684 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 68 mm |
| Stack | 614 mm | 623 mm | 642 mm |
| Reach | 402 mm | 414 mm | 424 mm |
| Top Tube Length | 590 mm | 605 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1105 mm | 1120 mm | 1136 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 795 mm | 828 mm | 858 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
