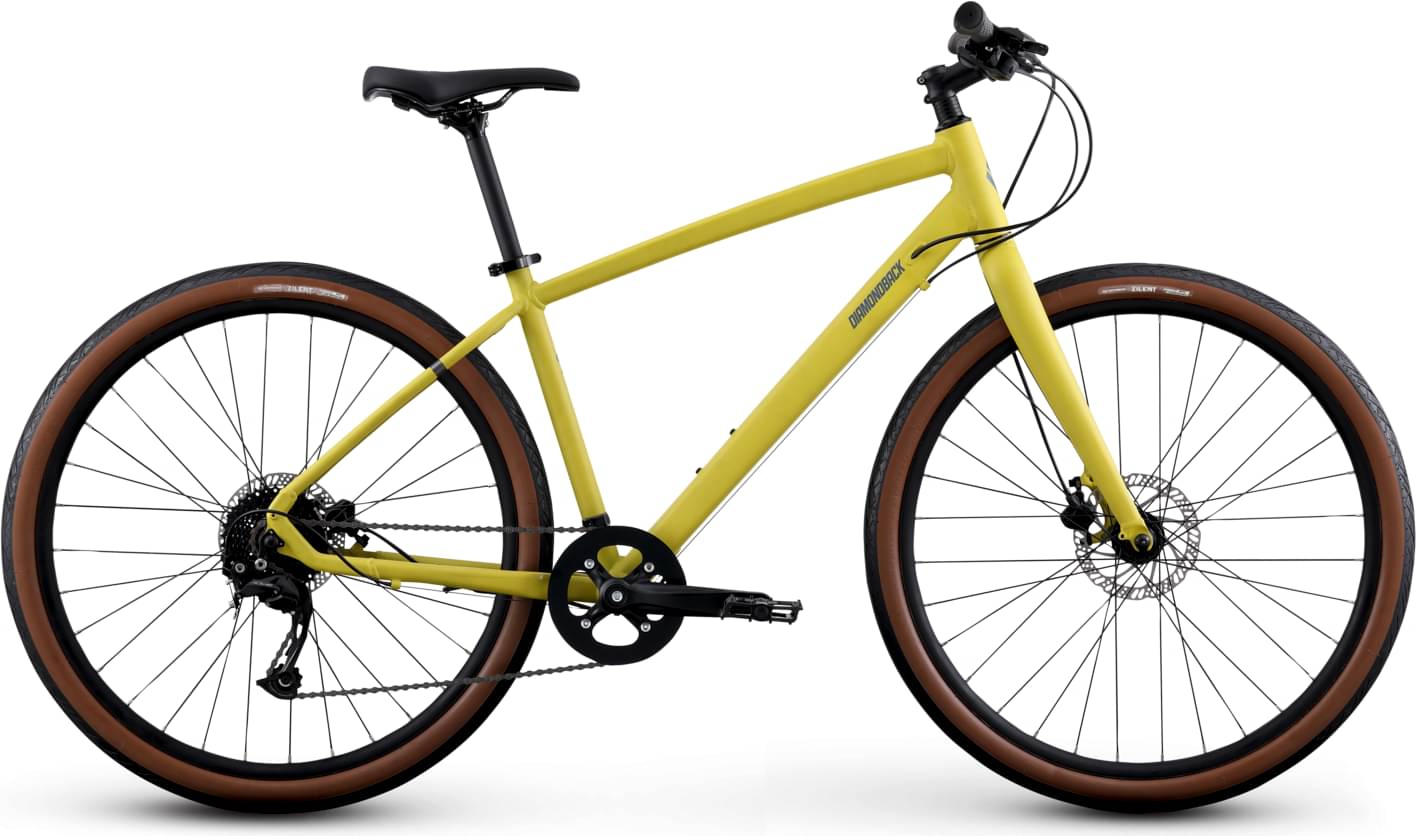

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom Formed AL-6061 Heat Treated Aluminum 27.5 City Sport Geometry
Suspension Fork
Aluminum Blades, with Post Mount Disc
Drivetrain
Rear Derailleur
Shimano Alivio M3100-SGS Shadow
Front Derailleur
N/A
Shift Levers
Shimano Acera M3100 9-Speed Trigger Shifter, Right Side Only
Cassette
Shimano 9 Speed 11-34t Cassette
Crank
Aluminum Forged 3PC 104 BCD, 40t
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC 9sp
Pedals
Aluminum Body, Chromoly Spindle
Wheels
Front Hub
Aluminum Quick Release Disc, 32 Hole
Rear Hub
Aluminum Quick Release Disc, 32 Hole
Rims
Aluminum DDM-5, 32h, 27.5", 28mm Wide Double Wall
Spokes
14g Stainless Steel with Brass Nipples
Tires
Vee Tire Co. Zilent 650x47c, Wire Bead, 30 TPI
Brakes
Brakes
Tektro HD-T275 Hydraulic Disc with 160mm Rotors
Brake Levers
Tektro HD-T275
Cockpit
Stem
3D Forged Aluminum Alloy 35mm Bar Clamp
Handlebar
Aluminum 31.8, 15mm Rise, 680mm Wide
Grips
ERGO Dual Density
Headset
1 1/8" Internal Cartridge Bearing
Seat
Saddle
Urban Warrior Saddle
Seatpost
Aluminum Micro Adjust, 27.2 x 350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.368 mm | 1.398 mm | 1.425 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 627 mm | 658 mm | 674 mm | 691 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 68 mm | 69 mm | 69 mm | 69 mm |
| Stack | 550 mm | 573 mm | 597 mm | 620 mm |
| Reach | 396 mm | 419 mm | 427 mm | 435 mm |
| Top Tube Length | 565 mm | 595 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 195 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1043 mm | 1074 mm | 1090 mm | 1107 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 694 mm | 737 mm | 778 mm | 818 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
