Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Women's Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Replaceable Hanger
Suspension Fork
DB SPF Formed Alloy Gravel Disc w/ 1.5" Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000, 9 Speed
Front Derailleur
Shimano Sora FD-R3000, 31.8 Band Clamp
Shift Levers
Shimano Sora ST-R3000, 2x9 Speed
Cassette
Shimano HG400, 9 Speed Cassette, 11-32T
Crank
FSA Omega Adventure Mega, 46/30T
Bottom Bracket
FSA Mega Exo
Chain
KMC Z99, 9 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
28h Alloy Quick Release
Rear Hub
28h Alloy Quick Release, Cassette
Rims
Diamondback Equation, 28h, Doublewall
Spokes
14g Stainless Steel
Tires
WTB Riddler Comp, 700x37c
Brakes
Brakes
Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Shimano Sora ST-R3000
Cockpit
Stem
HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED Eroica, 7050 Alloy, 16 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
Diamondback Performance Womens Gravel Road
Seatpost
HED Eroica, 6061 Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.48 mm | 1.55 mm | 1.57 mm |
| Front Center | 609 mm | 593 mm | 596 mm | 601 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 42 mm | 75 mm | 64 mm | 62 mm |
| Stack | 448 mm | 549 mm | 567 mm | 584 mm |
| Reach | 375 mm | 372 mm | 366 mm | 371 mm |
| Top Tube Length | 510 mm | 520 mm | 535 mm | 545 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 425 mm | 455 mm | 485 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1034 mm | 1018 mm | 1021 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 699 mm | 723 mm | 749 mm | 774 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

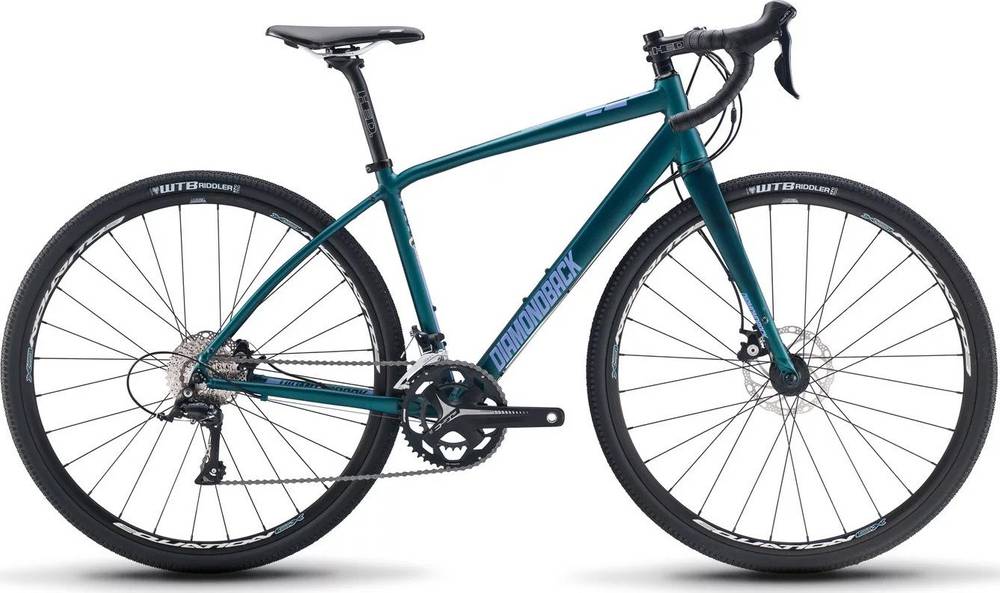

Haanjenn 3 completes the Diamondback Haanjenn model. Diamondback launched 12 bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter bikes average price
According to our math, the average price for a trustworthy Commuter bike is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the Haanjenn 3 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Haanjenn 3 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
