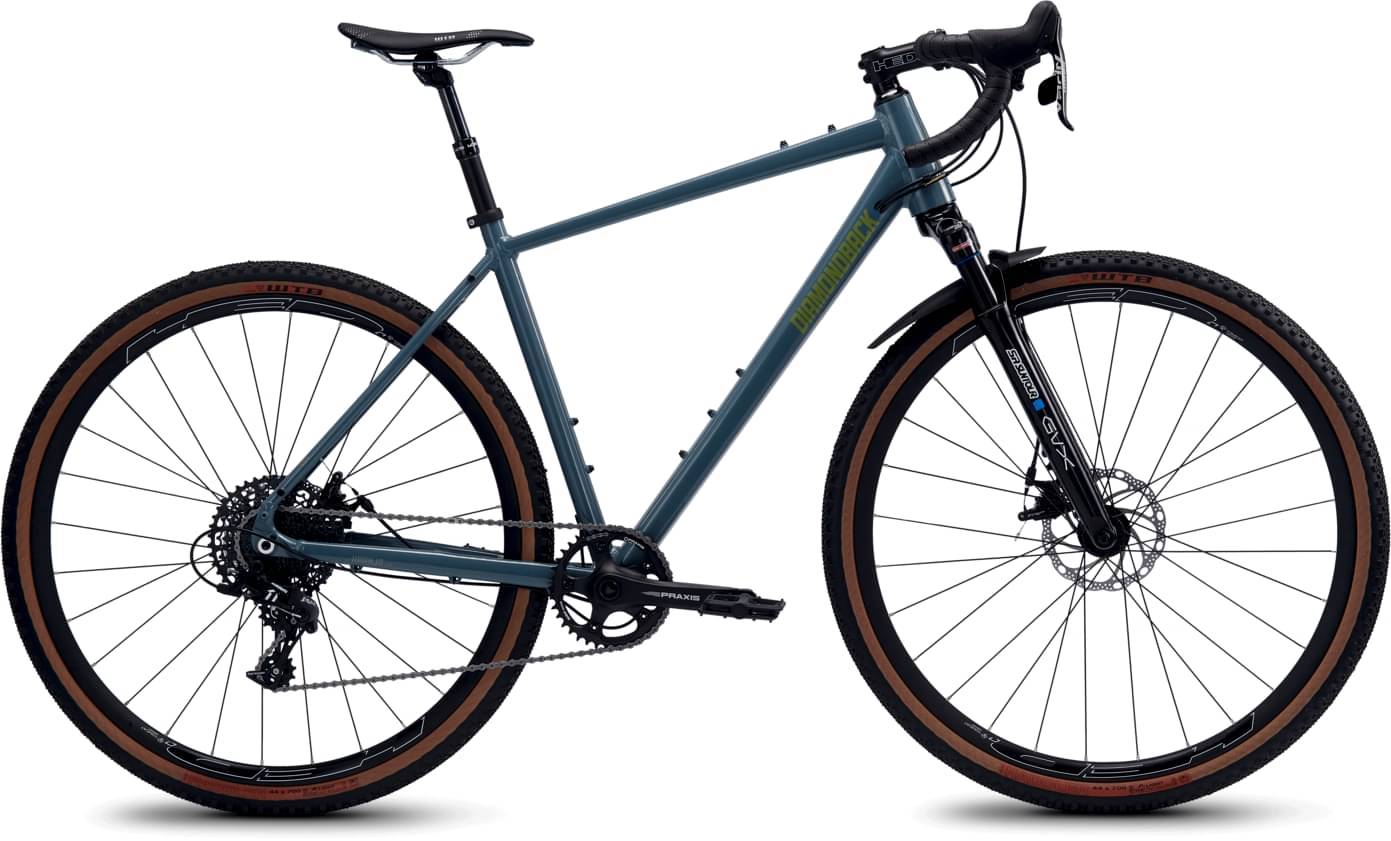

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour GVX
-
Groupset Apex -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Alloy Gravel Frame, Endurance Geometry, Fully Butted 6061-T6 Aluminum Formed Top Tube, Tapered Headtube, Flat Mount Disc, 142x12mm Thru-axle, Top Tube Bag Mounts, w/Replaceable Hanger
Suspension Fork
SR Suntour GVX32, 60mm Travel Suspension Fork, 12mm Thru Axle Drop Outs
Drivetrain
Rear Derailleur
SRAM Apex 1, 1x11 Speed
Shift Levers
SRAM Apex 1, 11 Speed, Double Tap 1x11 Speed, w/Left Dropper Remote Lever
Cassette
SRAM PG-1130 Cassette 11-42T, 11 Speed
Crank
Praxis Alba M24 38T
Bottom Bracket
Praxis M24 BSA
Chain
SRAM PC-1110, 11 Speed
Pedals
DB Resin Gravel Platform
Wheels
Front Hub
28h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
28h Aluminum Sealed Cartridge, Center Lock, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc, 28h, 25mm Internal Width, Taped for Tubeless
Spokes
14 gauge Stainless Steel
Tires
WTB Raddler TCS Light, Dual DNA Compound, Lightweight Tubeless Casing, 700x44c
Brakes
Brakes
TRP Spyre C Flat Mount Mechanical Disc, w/160mm Front / 160mm Rear Rotors
Brake Levers
SRAM Apex 1
Cockpit
Stem
HED, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Gravelier, Cromoly Rail, 142x250
Seatpost
Kind Shock eTENi 27.2 Dropper, 65mm (XS,S,MD) 100mm (L,XL) travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.533 mm | 1.563 mm | 1.602 mm | 1.59 mm |
| Bottom Bracket Height | 278 mm | 278.5 mm | 279.5 mm | 279 mm | 279 mm |
| Front Center | 614 mm | 621 mm | 621 mm | 624 mm | 650 |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 80 mm | 74 mm | 72 mm | 67 mm | 68 mm |
| Stack | 559 mm | 581 mm | 594 mm | 612 mm | 636 mm |
| Reach | 370 mm | 379 mm | 380 mm | 382 mm | 400 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 575 mm | 600 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 450 mm | 500 mm | 535 mm | 565 mm |
| Head Tube Angle | 69 ° | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 185 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1038 mm | 1045 mm | 1045 mm | 1049 mm | 1075 mm |
| Bottom Bracket Drop | 75 mm | 74 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 688 mm | 743 mm | 780 mm | 808 mm | 837 mm |
| Front Travel | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
