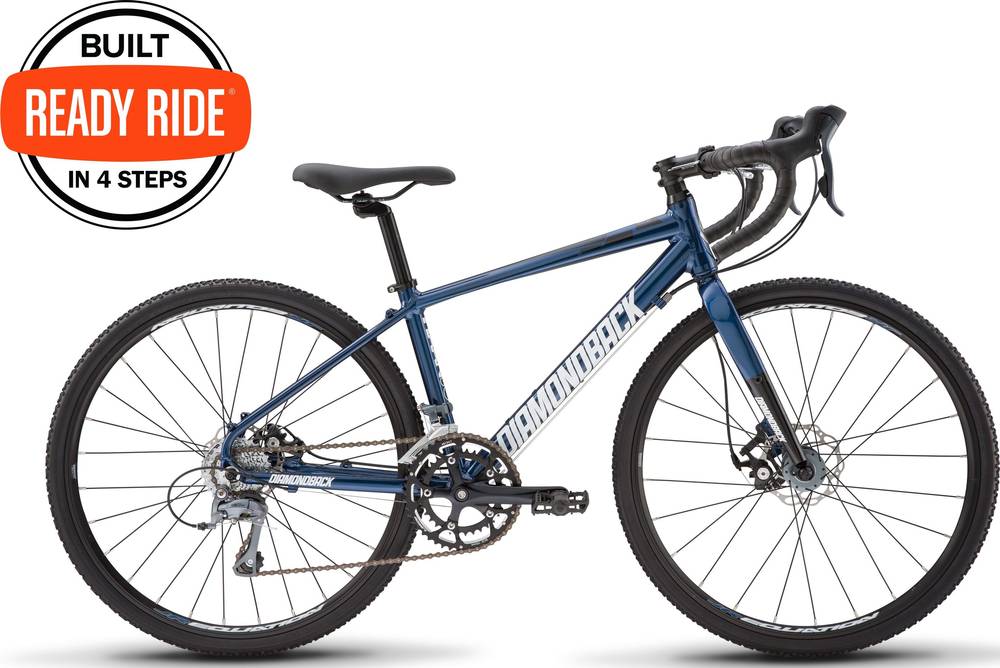

Diamondback Haanjo Trail 24 2016
2016 Youth
Estimate price |
399$
Weight | 9.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminum Alloy Jr. Frame, Hydroformed Top Tube, Disc Tabs, Rack Ready
Suspension Fork
DB Jr. Aluminum Alloy Urban Fork, Disc Specific, 1 1/8" Steel Steerer
Drivetrain
Rear Derailleur
Shimano Claris, 8 spd
Front Derailleur
Shimano Claris, top pull, 31.8
Shift Levers
Shimano Claris
Cassette
Shimano HG51 8spd 11-28t
Crank
155mm Alloy Arm, 34/46T, Alloy Big Ring
Bottom Bracket
Square Taper - 5pc
Chain
KMC HG50
Pedals
Resin Platform
Wheels
Front Hub
32h Semi-Sealed Alloy w/ CNC Disc Mount
Rear Hub
32h Semi-Sealed Alloy Cassette w/ CNC Disc mount
Rims
DB Equation R 24"
Spokes
14g
Tires
Kenda K-161 Kross Cyclo, 24x1 3/8" (37-540)
Brakes
Brakes
Tektro Mira Mechanical Disc w/ 140mm Rotors
Brake Levers
Shimano Claris
Cockpit
Stem
DB 3D Forged 7° 31.8mm, 60mm Reach
Handlebar
DB Jr. Alloy Flaro Road Bar, 400mm Wide, 31.8 Bar Bore
Grips
Cork Tape w/ Gel
Headset
Threadless 1 1/8"
Seat
Saddle
Jr. Equip Saddle
Seatpost
Alloy Micro Adjust 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
About this model
Haanjo Trail 24 is part of the Diamondback Haanjo model. There are 60 bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Road bikes
Our math shows that the average cost of a dependable Road bike is 365$. However, even if your budget is less than the average, you might still be able to get a top-quality Road bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Diamondback Haanjo Trail 24 price was 399$. If we compare this with the average Road bike cost we notice that the price is 9.32% more expensive.
Road bikes average weight
Road bikes weigh an average of 11.29 kg (24.89 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, Haanjo Trail 24 has a weight of 9.75 kg (21.5 lbs). In other words, this model is 15.79% lighter than the average Road bike.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Haanjo Trail 24 are the 24″ aluminum type. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Haanjo Trail 24 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
