Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset X3, X4 -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Butted Alloy for 27.5", 1 1/8" Head Tube, Formed Top and Down Tube, w/ Integrated Disc Brake Tabs, Progressive Geometry, Internal Dropper Ready
Suspension Fork
SR Suntour XCM 120mm Travel, 30mm Stanchions, Coil Spring w/ Preload Adjust
Drivetrain
Rear Derailleur
SRAM X3, 8 Speed
Front Derailleur
Full ISCG-05 Chain Guide w/ Roller
Shift Levers
SRAM X4 8 Speed
Cassette
SRAM PG820, 8 Speed, 11-32T
Crank
Alloy Arm w/ 30T Steel "Narrow Wide" Single Ring
Bottom Bracket
Sealed Cartridge
Chain
KMC Z82, 8 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount
Rear Hub
32h Alloy Cassette w/ CNC Disc mount
Rims
32h Diamondback SL-27.5 Doublewall
Spokes
14g Stainless Steel
Tires
WTB Vigilante, 27.5 x 2.3"
Brakes
Brakes
Tektro Aries Mechanical Disc, w/ 160mm Rotors
Brake Levers
Tektro 2 Finger Alloy Linear w/ Reach Adjust
Cockpit
Stem
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
Handlebar
Diamondback, 750mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
New DB "Flanged" 135mm Silcone
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Sync'r Saddle
Seatpost
Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.427 mm | 1.421 mm | 1.419 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 661 mm | 687 mm | 709 mm | 731 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 97 mm | 98 mm | 98 mm | 98 mm |
| Stack | 577 mm | 595 mm | 614 mm | 633 mm |
| Reach | 398 mm | 417 mm | 432 mm | 446 mm |
| Top Tube Length | 575 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1087 mm | 1113 mm | 1135 mm | 1157 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 728 mm | 769 mm | 799 mm | 830 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

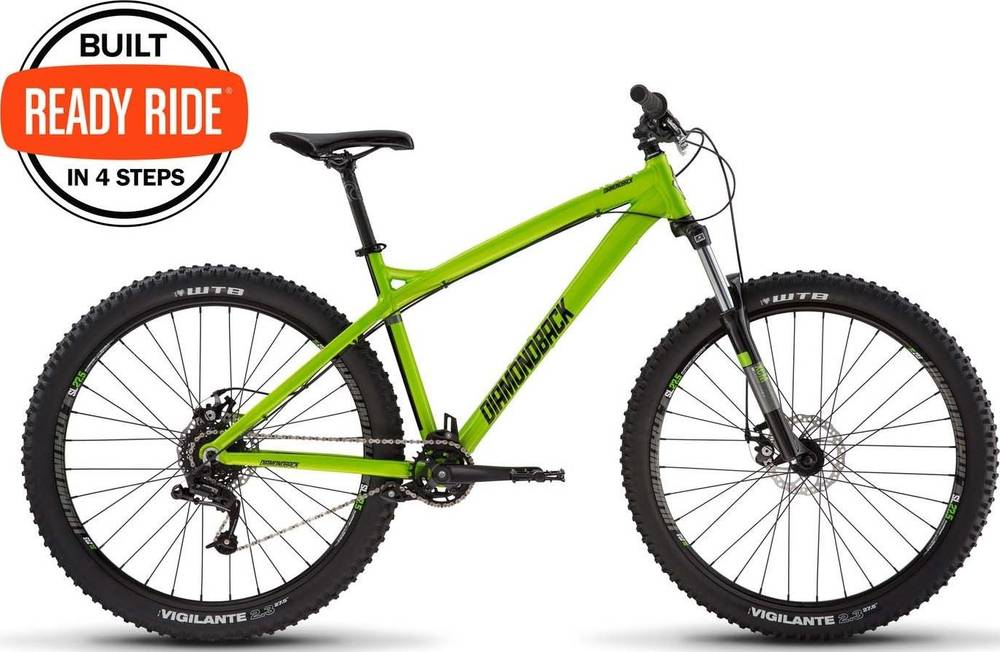

Hook is a Diamondback Hook model. There are 9 bikes that carry this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Diamondback Hook price was 649$. Doing a quick comparison, we notice that Hook price is 325.58% smaller than the average cost of a Trail bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Hook components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Hook bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hook comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Hook comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
