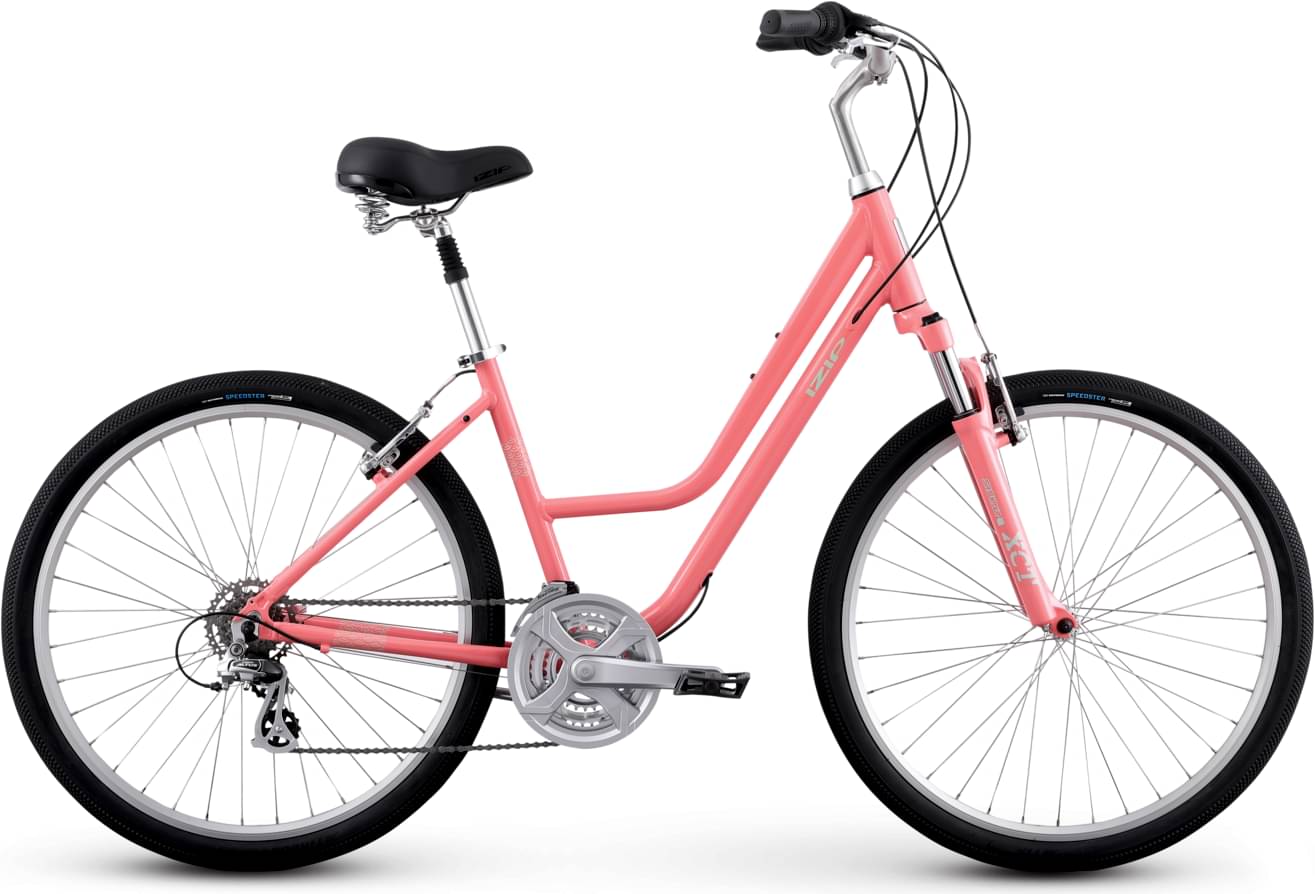

Diamondback IZIP – Zest Step Thru 2024
2024 Urban
Estimate price |
765$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCT
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom AL-6061 Aluminum Alloy with "True Comfort" Geometry
Suspension Fork
SR Suntour XCT, 80mm travel
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY510
Shift Levers
Shimano Revo Shift SL-RS35 7spd / 3spd
Cassette
DMP LY-1007CHJ, 7-spd Wide Range (14-34t)
Crank
Prowheel 48/38/28t
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC Z7
Pedals
IZIP Comfort Platform
Wheels
Front Hub
Formula Alloy Quick Release 36h
Rear Hub
Formula Alloy Quick Release 36h
Rims
DBM-2 Alloy Double Wall, 27.5"
Spokes
14g Stainless Steel, w/ Brass Nipples
Tires
Vee Tire Co. Speedster, 27.5x1.95
Brakes
Brakes
Tektro 855AL Alloy V-Brake
Brake Levers
Tektro RS374A Alloy 4-finger
Cockpit
Stem
Alloy Quill 25.4, 80mm Extension, 30 Deg Rise
Handlebar
Steel Comfort Width: 640mm Rise: 50mm
Grips
IZIP Comfort Grip
Headset
Threaded 1-1/8"
Seat
Saddle
IZIP Comfort Plush
Seatpost
Alloy Micro Adjust Suspension 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.645 mm | 1.636 mm |
| Bottom Bracket Height | 285 mm | 285 mm |
| Front Center | 632 mm | 642 mm |
| Rake | 50 mm | 50 mm |
| Trail | 59 mm | 63 mm |
| Stack | 617 mm | 630 mm |
| Reach | 375 mm | 385 mm |
| Top Tube Length | 575 mm | 590 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 450 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 145 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1079 mm | 1089 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 490 mm | 520 mm |
| Front Travel | 80 mm | 80 mm |
| Wheels | 650 | 650 |
