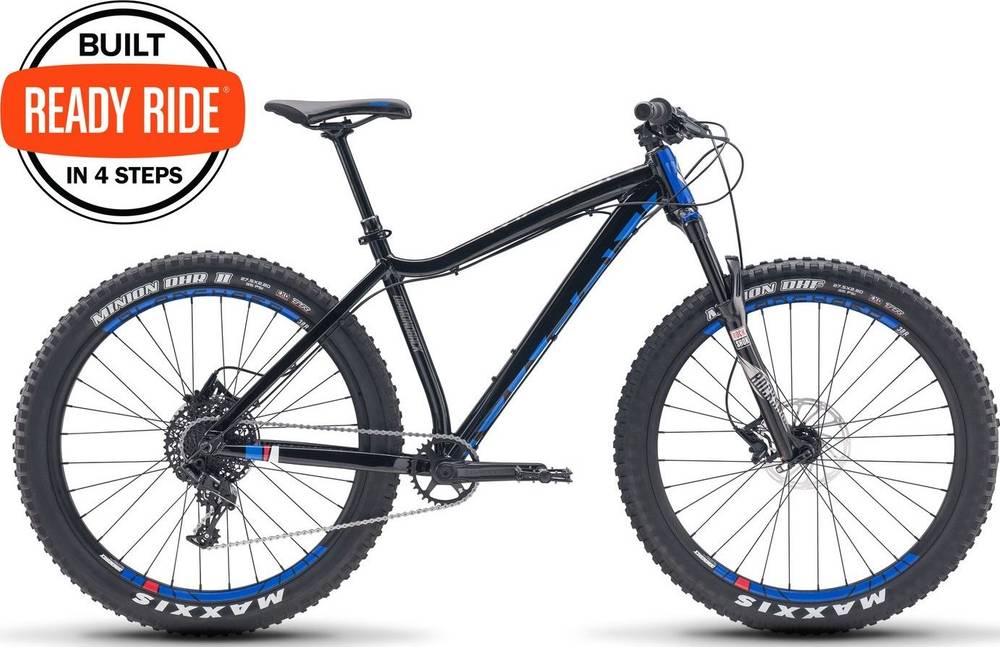

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Judy Gold RL
-
Groupset NX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mason 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, ISCG-05 Tabs, 148x12mm Boost Dropouts, w/ Replaceable Hanger
Suspension Fork
Rockshox Judy Gold RL, 120mm Travel, Solo Air Spring, External Rebound Adjust w/ Turnkey Lockout, Magnesium Lowers, Alloy 1.5" Tapered Steerer Tube, Boost 110x15mm Thru-axle
Drivetrain
Rear Derailleur
SRAM NX X-Horizon, 11 Speed
Shift Levers
SRAM NX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
Raceface Æffect Cinch w/ Steel 30T "Narrow Wide"
Bottom Bracket
Raceface Outboard Bearing
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 2 Sealed Cartridge Bearing, for SRAM XD w/ CNC Disc Mount
Rims
Diamondback Blanchard 38R, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Maxxis Minion DHF 27.5x2.8" EXO, TLR, Folding / Maxxis Minion DHR 27.5x2.8" EXO, TLR, Folding
Brakes
Brakes
SRAM Level T Hydraulic Disc, w/ 180mm Front / Rear Centerline Rotors
Brake Levers
SRAM Level Hydraulic Levers w/ Tooled Reach Adjust
Cockpit
Stem
DB35 Alloy, 60mm, 35mm Bar Bore
Handlebar
DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
New DB "Flanged" Lock-on, 135mm Silcone
Headset
FSA NO.57, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Race M-series Saddle
Seatpost
JD 7075 Alloy Internal Dropper, w/ 1x Lever, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 655 mm | 697 mm | 715 mm | 734 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 113 mm | 89 mm | 88 mm | 89 mm |
| Stack | 599 mm | 599 mm | 599 mm | 599 mm |
| Reach | 395 mm | 413 mm | 430 mm | 450 mm |
| Top Tube Length | 565 mm | 580 mm | 609 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 395 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1084 mm | 1126 mm | 1144 mm | 1163 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 749 mm | 753 mm | 772 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mason 2 is part of the Diamondback Mason model. 15 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2018 and its price was 1299$. In conclusion, this bike price is 112.63% smaller than the price of the average Trail bike.
Overview of components
Fork
The RockShox Judy Gold RL is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Mason 2 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Mason 2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Diamondback Mason 2 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
