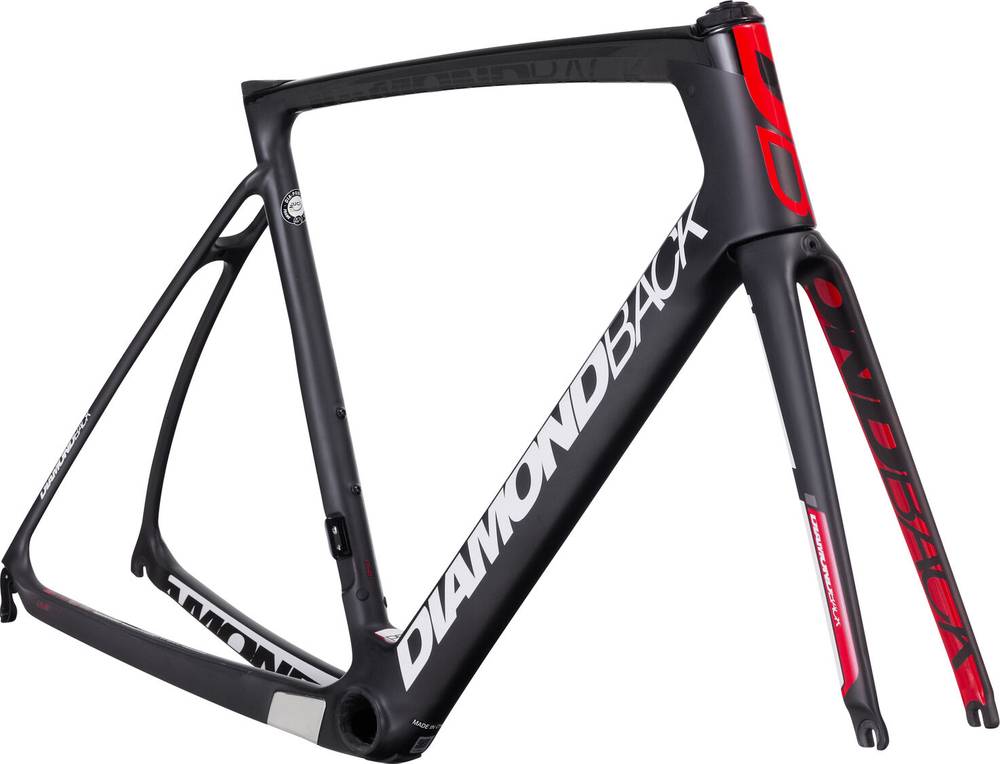

Diamondback Podium Team Frame Set 2020
2020 Road
Estimate price |
1,950$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB AMMP+ Carbon Technology, Specific Modulous, Monocoque Competition Road Frame, UCI Certified, Di2/EPS Compatible Internal Cable Routing, Carbon Drop Outs, w/ Taper Headtube & Press-Fit 30 BB
Suspension Fork
DBR AmmP+ Carbon Competition Road Fork, Carbon Drop Outs, w/ 1.5" Taper Carbon Steerer Tube, Continuous Fiber Technology (CFT)
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXL |
|---|---|
| Stack Reach Ratio | 1.5 mm |
| Bottom Bracket Height | 268 mm |
| Front Center | 613 mm |
| Rake | 45 mm |
| Trail | 59 mm |
| Stack | 603 mm |
| Reach | 402 mm |
| Top Tube Length | 590 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 570 mm |
| Head Tube Angle | 73 ° |
| Head Tube Length | 205 mm |
| Chainstay Length | 405 mm |
| Wheelbase | 1009 mm |
| Bottom Bracket Drop | 67 mm |
| Standover Height | 828 mm |
| Wheels | 700 |
About this model
Podium Team Frame Set belongs to the Diamondback Podium model. There are 13 frames that carry this model name.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Road frames average price
If you want an acceptable General Road frame you should know that the average price is 2445$. However, even though the average price of a General Road frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1950$. Comparing the average cost of a General Road frame to this one, you will see that Podium Team Frame Set price is 25.38% lower.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
