Bike details
Overview
Key information split into simple groups.

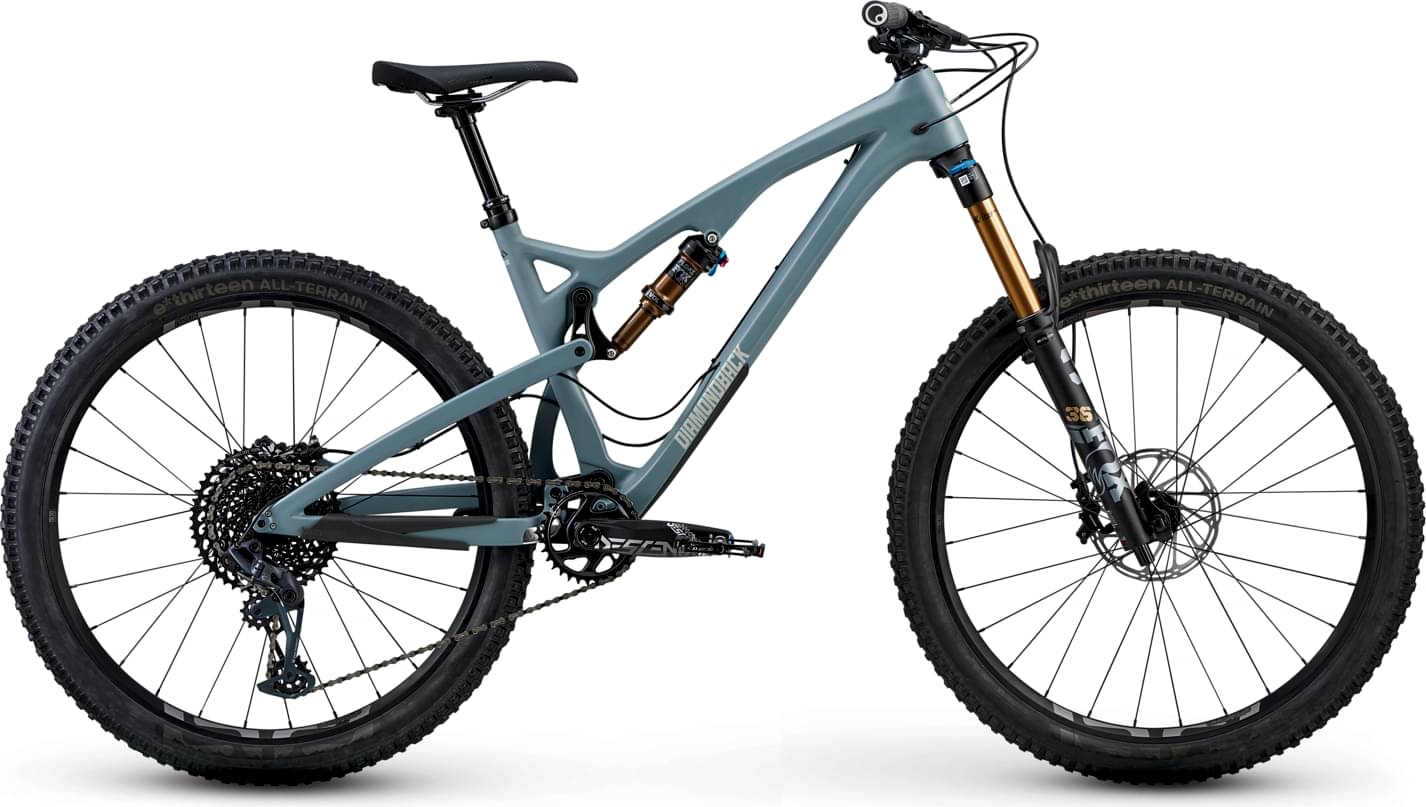

Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
Suspension Fork
Fox 36 Factory Float, 27.5", 150mm Travel, GRIP2, 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock
Fox Factory Float DPS, 3 Position Lever w/Open Mode Adjust, EVOL LV, 200x57mm, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 Speed
Front Derailleur
MRP XCG V2 Aluminum Bash Guard, 32T, ISCG-05
Shift Levers
SRAM GX Eagle, 12 Speed
Cassette
SRAM XG-1275 Eagle, 12 Speed, 10-50T
Crank
SRAM Descendant 7K Eagle w/32T Direct Mount
Bottom Bracket
SRAM DUB Outboard Bearing
Chain
SRAM GX Eagle, 12 Speed
Pedals
DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
Wheels
Front Hub
Novatec XD641, 28h Aluminum110x15mm Boost Thru-axle, Sealed Cartridge Bearing
Rear Hub
Novatec XD642, 28h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/CNC Disc Mount, XD Cassette Body
Rims
E*Thirteen LG1 EN Plus, w/TRS Plus Aluminum 27.5", 30mm internal width, 28h, Taped for Tubeless
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
E*Thirteen TRS Race All-Terrain, Tubeless Ready, 27.5x2.4"
Brakes
Brakes
SRAM G2 RS, 4 Piston, Hydraulic Disc, w/180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM G2 RS
Cockpit
Stem
Factor Components F355, 35mm Reach, 35mm Bar Bore
Handlebar
Race Face Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Volt Chromoly SL
Seatpost
KS Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.392 mm | 1.337 mm | 1.294 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 708 mm | 735 mm | 761 mm | 788 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 111 mm | 110 mm | 109 mm |
| Stack | 584 mm | 597 mm | 603 mm | 612 mm |
| Reach | 406 mm | 429 mm | 451 mm | 473 mm |
| Top Tube Length | 585 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1133 mm | 1160 mm | 1186 mm | 1213 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 739 mm | 740 mm | 743 mm | 749 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
