Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 130mm -
Travel Rear 110mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

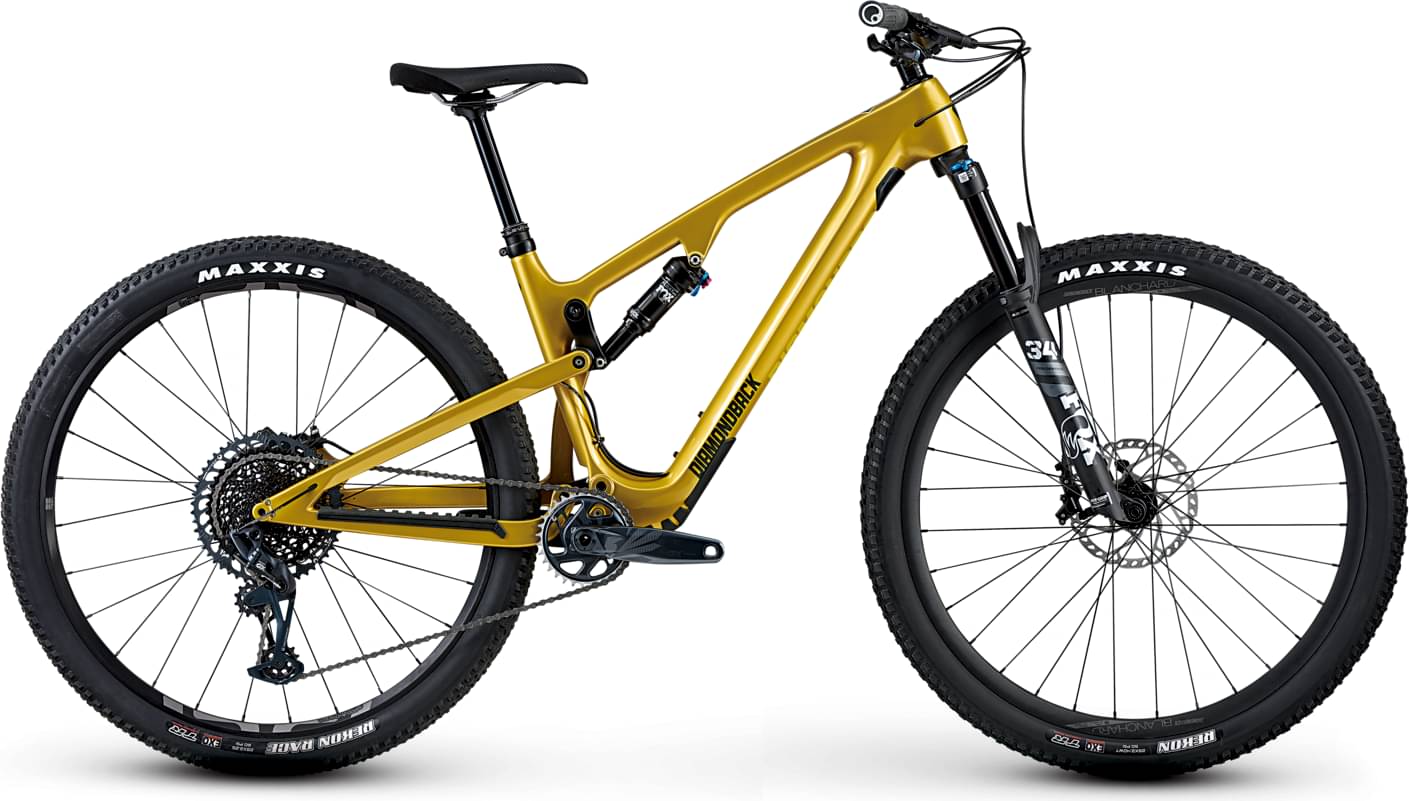

Carbon Yowie 29, Monocoque Carbon Front and Rear Triangle, 110mm Travel, Level Link Suspension Platform, Press-Fit, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
Suspension Fork
Fox 34 Performance Float Grip 3, 130mm of Travel
Rear Shock
Fox DPS Performance Elite Float
Drivetrain
Rear Derailleur
SRAM GX Eagle. 12 Speed, Long Cage
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG-1275, 12 Speed, 10-52 Tooth
Crank
SRAM GX Eagle
Bottom Bracket
SRAM DUB PF30
Chain
SRAM NX Eagle
Pedals
DB Aluminum Platform w/Replaceable Pins
Wheels
Front Hub
Novatec D791SB-B15, 28h Aluminum110x15mm Boost Thru-axle, Sealed Cartridge Bearing
Rear Hub
Novatec D902SB-B12-S11, 28h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/CNC Disc Mount, XD Cassette Body
Rims
E*Thirteen TRS Plus, w/TRS Plus Aluminum 27.5", Taped for Tubeless, 27mm internal width, 28h
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
Maxxis Rekon 29x2.4" Front / Rekon Race 29x2.25" Rear, both Tubeless Ready
Brakes
Brakes
SRAM G2 R
Brake Levers
SRAM G2 R
Cockpit
Stem
DB35 Aluminum 35mm Reach, 35mm Bar Bore
Handlebar
DB35 Aluminum 780mm Wide, 20mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA IS-2/42/ACB
Seat
Saddle
WTB Volt Chromoly SL
Seatpost
KS LEV Integra Internal Dropper, w/SouthPaw Remote, 31.6mm, TRAVEL XS- 100MM, S - 125MM, MED - 150MM, L - 175MM, XL -175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.362 mm | 1.323 mm | 1.288 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 720 mm | 744 mm | 767 mm | 791 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 109 mm | 110 mm | 110 mm |
| Stack | 604 mm | 613 mm | 622 mm | 631 mm |
| Reach | 430 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 592 mm | 617 mm | 637 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 383 mm | 410 mm | 460 mm | 485 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1152 mm | 1176 mm | 1199 mm | 1223 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 730 mm | 730 mm | 738 mm | 740 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
