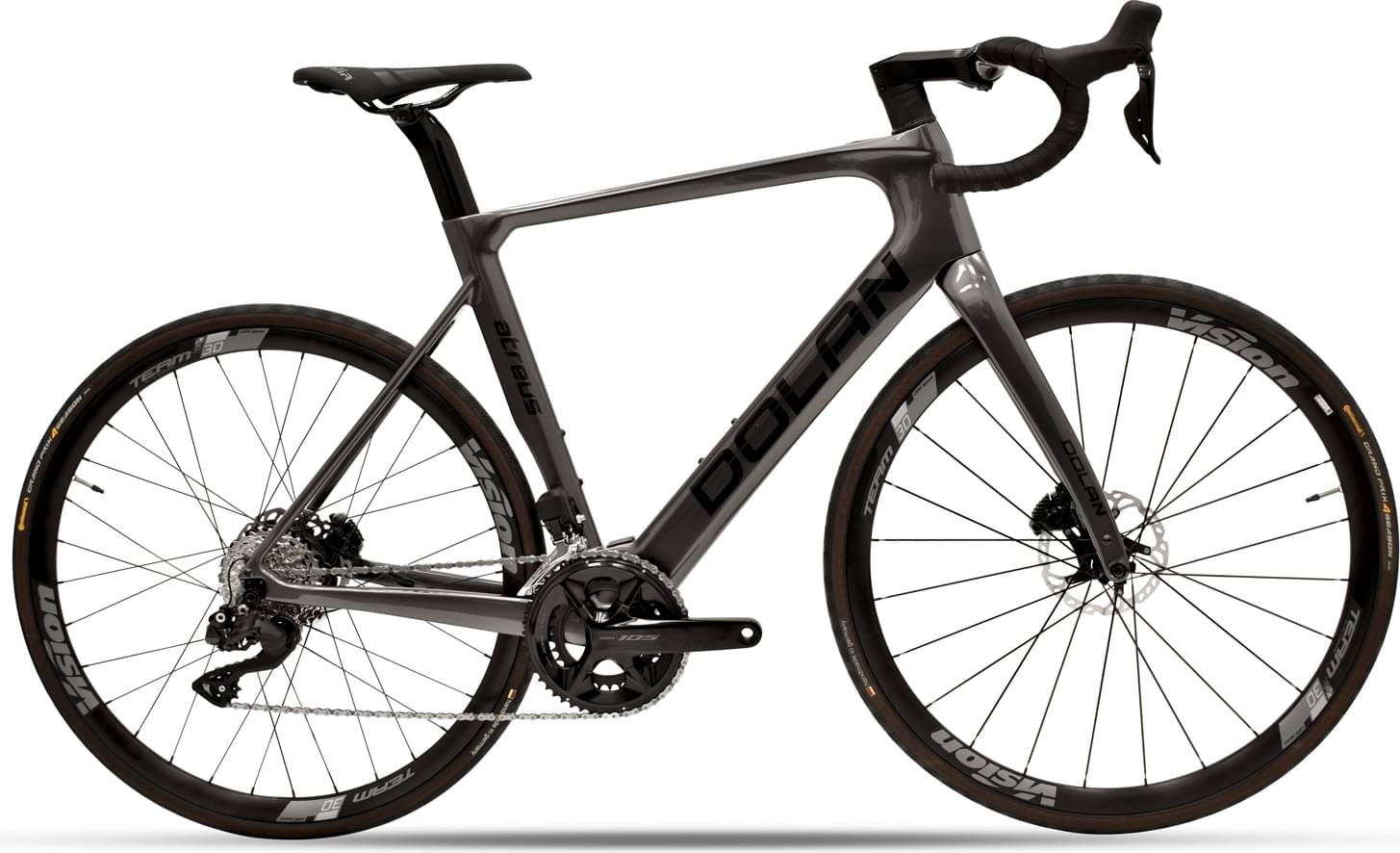

dolan Atreus Carbon Road e-Bike – Shimano-12s-105 R7120 2024
2024 E-bike
Estimate price |
4,131$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Atreus Carbon E-Frame - SML
Suspension Fork
Atreus Carbon Disc Road Fork
Drivetrain
Rear Derailleur
105 RD-R7100 12s Rear Derailleur - Medium Cage GS
Front Derailleur
105 FD-R7100 Brazed-On 12s Front Derailleur
Cassette
Shimano 105 R7100 12Spd Cassette - 11/34
Crank
105-R7100 12s Chainset - 170mm 50/34T
Chain
Shimano CN-M6100 114 LINKS 12SPD Quick-Link Chain
Pedals
None-Fitted
Wheels
Rims
Vision Team 30 Aluminium Disc/FSA System-Battery/Charge-Kit
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Front Brake (Right Position)
Cockpit
Stem
Deda Zero 1 (7cm) Stem
Handlebar
Deda Zero RHM 01 (Alloy) (38cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Atreus Carbon Aero Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.448 mm | 1.493 mm | 1.529 mm |
| Stack | 538.7 mm | 562.7 mm | 590.3 mm |
| Reach | 372 mm | 377 mm | 386 mm |
| Top Tube Length | 529.5 mm | 549 mm | 569.9 mm |
| Seat Tube Angle | 73.7 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 465 mm | 492 mm | 532 mm |
| Head Tube Angle | 70.7 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 133.4 mm | 155 mm | 159.1 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
