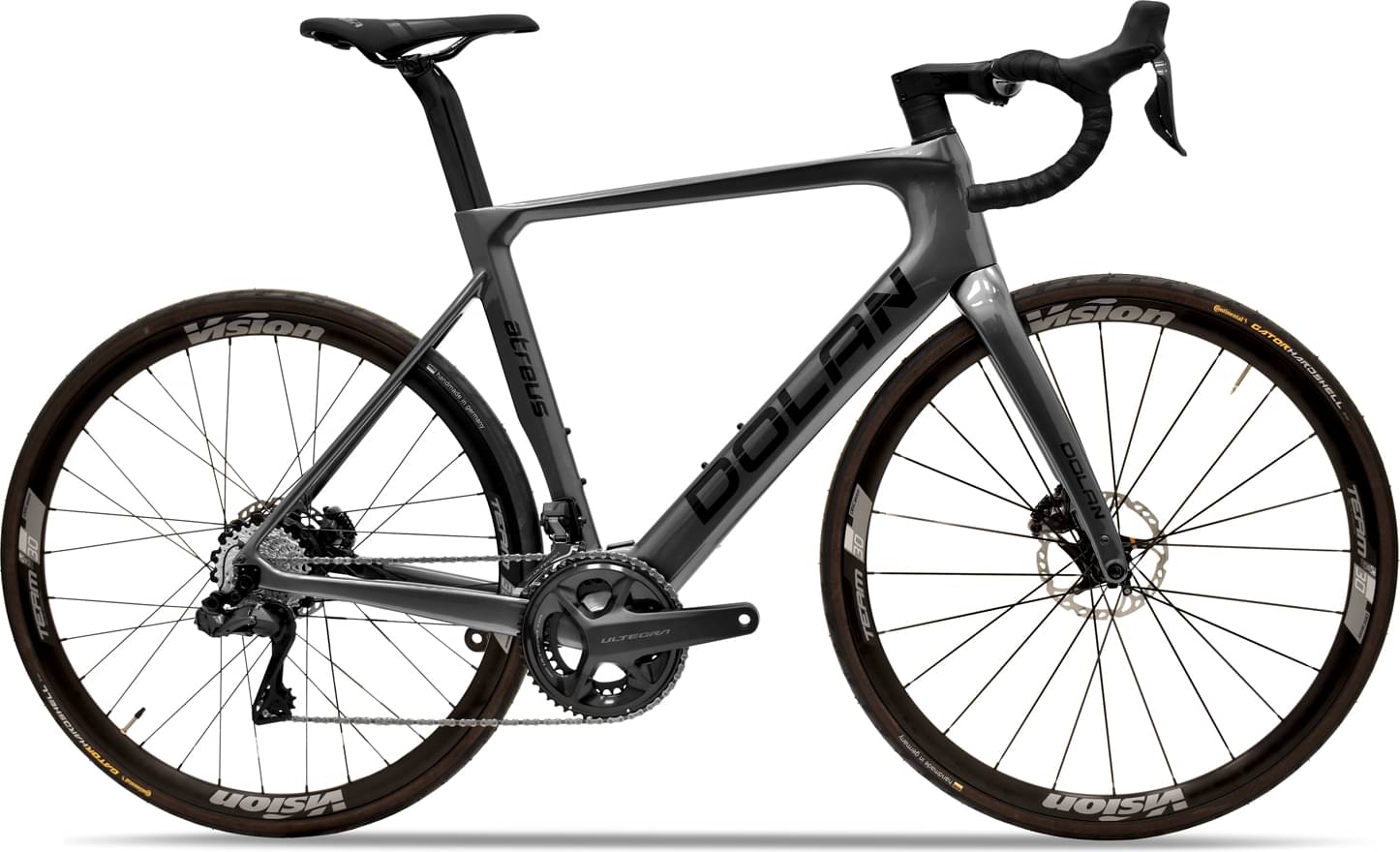

dolan Atreus Carbon Road FSA e-Bike – Shimano Dura-Ace R9270-Di2-12SPD 2024
2024 E-bike
Estimate price |
8,941$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Atreus Carbon E-Frame - SML
Suspension Fork
Atreus Carbon Disc Road Fork
Drivetrain
Rear Derailleur
Dura-Ace R9250 12-SPD - Rear Derailleur
Front Derailleur
Dura-Ace R9250 Di2 Brazed-On 12-SPD - Front Derailleur
Cassette
Dura-Ace R9200 12spd Cassette - 11/30
Crank
Dura-Ace FC R9200 Chainset -170mm - 50/34
Chain
Shimano CN-M8100 XT/Ultegra Chain 12 Speed (With Quick Link)
Pedals
None-Fitted
Wheels
Rims
Vision Team 30 Aluminium Disc/FSA System-Battery/Charge-Kit
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Shimano Dura-Ace R9270 Disc Brake Calipers
Cockpit
Stem
Deda Superbox Stem - (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Atreus Carbon Aero Seatpost
Motor & Battery
Charger
Shimano EC300-Charger-1700MM-USB
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.448 mm | 1.493 mm | 1.529 mm |
| Stack | 538.7 mm | 562.7 mm | 590.3 mm |
| Reach | 372 mm | 377 mm | 386 mm |
| Top Tube Length | 529.5 mm | 549 mm | 569.9 mm |
| Seat Tube Angle | 73.7 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 465 mm | 492 mm | 532 mm |
| Head Tube Angle | 70.7 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 133.4 mm | 155 mm | 159.1 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
