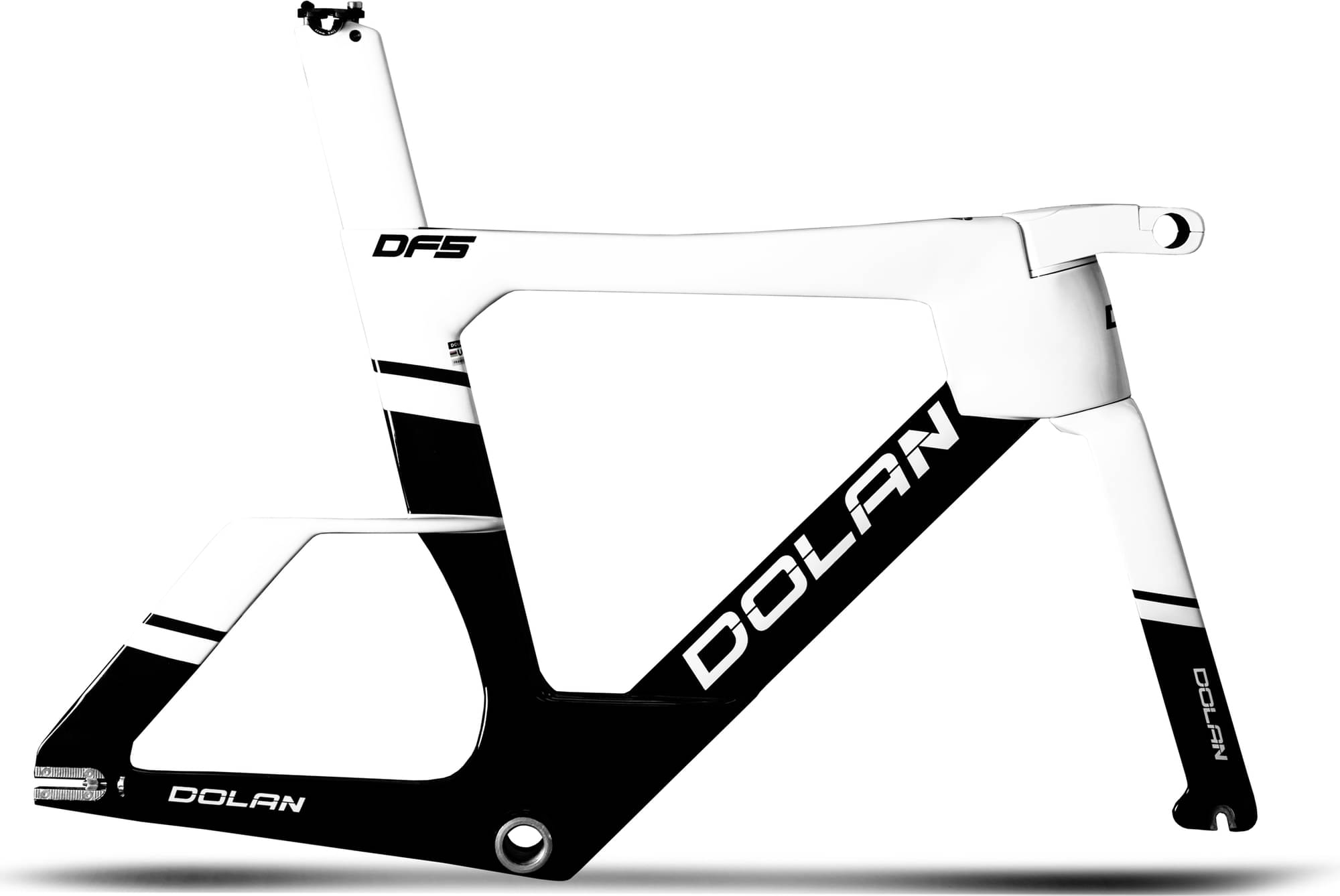

dolan DF5 Carbon Track Frameset 2024
2024 Road
Estimate price |
5,418$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DF5 Carbon Track Frame - (51.5cm) (Pre Order Arriving Wk 4 March)
Suspension Fork
Dolan DF5 Aero Carbon Track Fork
Drivetrain
Bottom Bracket
68mm/BSA Threaded
Cockpit
Stem
None-STM-Fitted
Handlebar
None-Fitted
Seat
Seatpost
DF5 Carbon Aero Seatpost - 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51.5cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.226 mm | 1.212 mm | 1.184 mm | 1.159 mm | 1.168 mm | 1.203 mm |
| Stack | 475.3 mm | 484.9 mm | 494.5 mm | 504.1 mm | 524.7 mm | 545.5 mm |
| Reach | 387.6 mm | 400.1 mm | 417.5 mm | 435 mm | 449.4 mm | 453.6 mm |
| Top Tube Length | 515 mm | 530 mm | 550 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 74 ° |
| Seat Tube Length | 492.1 mm | 521.1 mm | 531 mm | 541 mm | 562.3 mm | 586.5 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73.5 ° | 74 ° | 74.5 ° | 75 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm | 140 mm | 160 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
