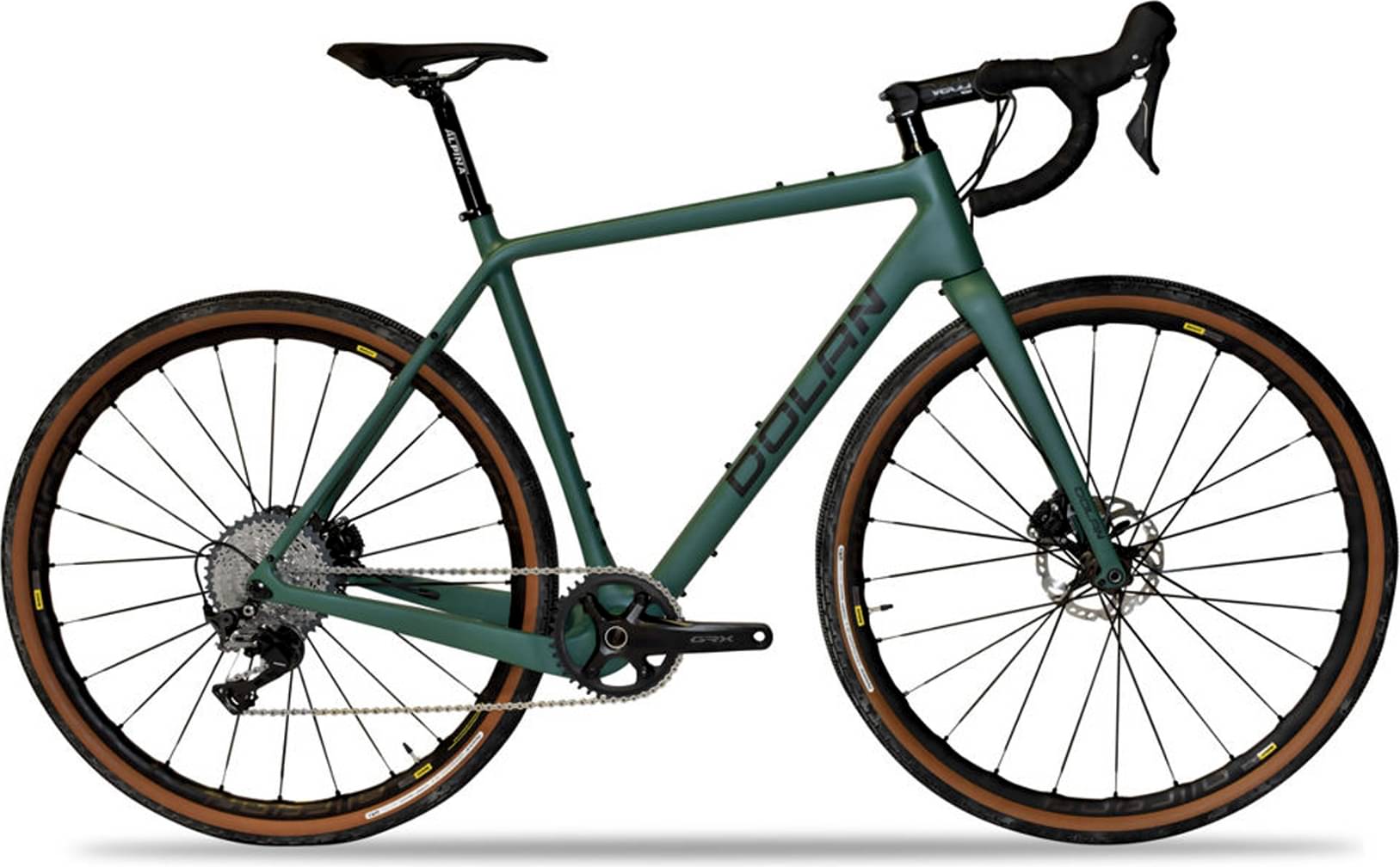

dolan GXC Carbon Disc Gravel Bike – Shimano Ultegra R8020 HDR 2024
2024 Road
Estimate price |
3,250$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 167cm
SM
162cm - 172cm
MD
172cm - 180cm
LG
177cm - 187cm
XL
185cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dolan GXC Carbon Gravel Frame(X-SML)
Suspension Fork
Alpina Carbon Disc Fork
Drivetrain
Rear Derailleur
Ultegra RD-R8000 11-SPD - 34T - Rear Derailleur
Front Derailleur
Ultegra FD-R8000 11-SPD Brazed-On - Front Derailleur
Shift Levers
Shimano Ultegra ST-R8020-Shift-Levers
Cassette
Ultegra R8000 11 Speed Cassette - 11/28
Crank
Ultegra R8000 Chainset - 170mm-50/34
Bottom Bracket
BB86
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Vittoria Randonneur Tech Rigid BLK Tyre (32-622-700x32c)
Brakes
Brakes
Shimano Ultegra BR-R8070-Brake-Calipers
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.514 mm | 1.542 mm | 1.558 mm | 1.59 mm | 1.544 mm |
| Stack | 541 mm | 560 mm | 572 mm | 592 mm | 609 mm | 624 mm |
| Reach | 366 mm | 370 mm | 371 mm | 380 mm | 383 mm | 404.2 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 560 mm | 575 mm | 595 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 72.5 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 162 cm | 172 cm | 177 cm | 185 cm | cm |
| Rider Max Height | 167 cm | 172 cm | 180 cm | 187 cm | 192 cm | cm |
