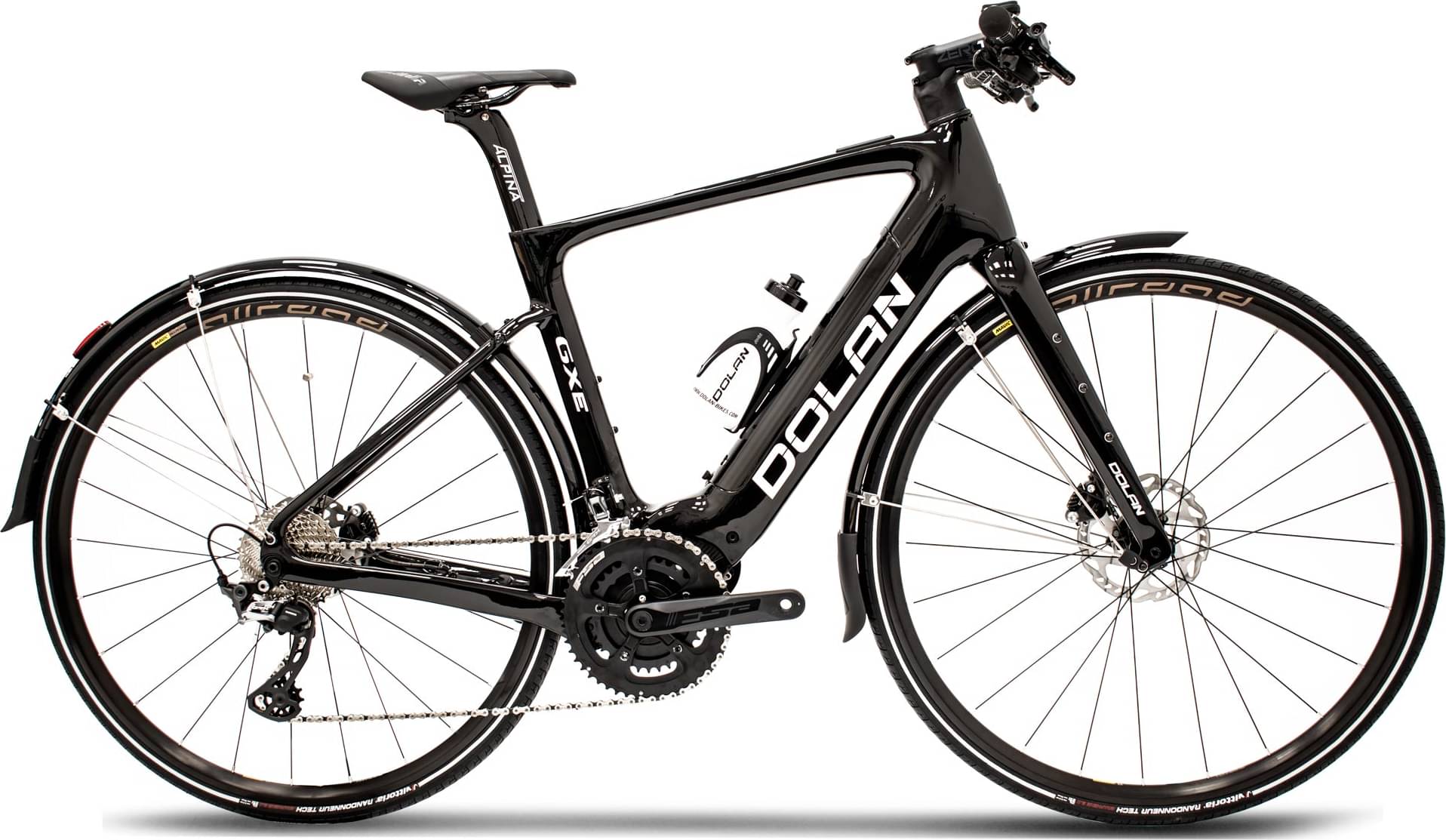

dolan GXE Carbon Road Flat Bar Polini e-Bike – Shimano 12s 105 R7120 2024
2024 E-bike
Estimate price |
6,638$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Motor Polini mid-drive -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dolan GXE Carbon e-Frame(X-SML)
Suspension Fork
GXE Axle Kit - Frame/Fork
Drivetrain
Rear Derailleur
105 RD-R7100 12s Rear Derailleur - Medium Cage GS
Front Derailleur
105 FD-R7100 Brazed-On 12s Front Derailleur
Shift Levers
SHIMANO 105 SL-RS700 Shift Lever Flat Bar Road 2x11
Cassette
Shimano 105 R7100 12Spd Cassette - 11/34
Crank
Fsa-ck-746-2/is-Chainset-170mm/50-34
Bottom Bracket
BB72
Chain
Shimano CN-M6100 114 LINKS 12SPD Quick-Link Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (32-622-700x32c)
Brakes
Brakes
Shimano 105 BR-R7170F / BR-R7170R Front/Rear Disc Brake Calipers
Cockpit
Stem
Deda Zero 1 (8cm) Stem
Handlebar
Alpina Flat Handlebars
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Dolan GXE Carbon Aero Seatpost
Motor & Battery
Motor
Polini E-P3+ Motor / Evo Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.481 mm | 1.542 mm | 1.55 mm | 1.578 mm |
| Stack | 538 mm | 556 mm | 570.6 mm | 589 mm | 606 mm |
| Reach | 375.5 mm | 375.5 mm | 370.1 mm | 380 mm | 384 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 70.5 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 160 mm | 180 mm | 200 mm |
| Wheelbase | 1024 mm | 1026 mm | 1031 mm | 1036 mm | 1042 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
