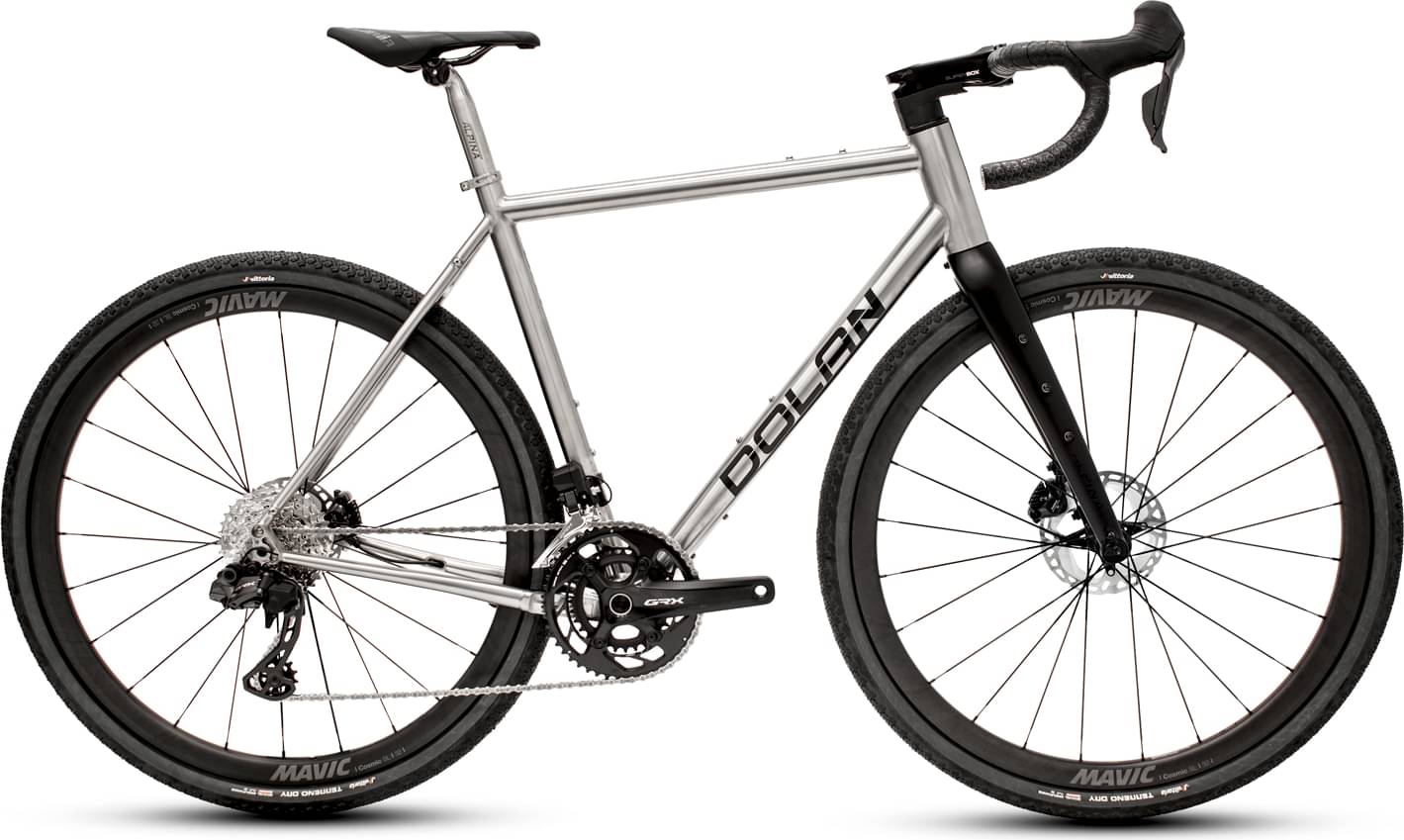

dolan GXT Titanium Gravel Disc Bike – Shimano GRX RX825 DI2 – 2×12 2024
2024 Road
Estimate price |
5,084$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset GRX 800, GRX Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
12cm - 162cm
SM
165cm - 170cm
MD
172cm - 177cm
LG
180cm - 188cm
XL
190cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GXT Titanium Disc Gravel Frame
Suspension Fork
Alpina AG (Internal) Carbon Disc Gravel Fork
Drivetrain
Rear Derailleur
GRX RD-RX825-DI2 - (11-36T) Rear Derailleur - 2x12
Front Derailleur
GRX FD-RX825-Di2 Brazed-on 12s - Front Derailleur
Cassette
Ultegra CS R8100 12spd Cassette - 11/30
Crank
GRX RX820-2 2x12 Chainset-170mm - 48-31T
Bottom Bracket
Tthreaded
Chain
Shimano CN-M6100 12spd Chain (With Quick Link)
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Vittoria Randonneur Tech Rigid BLK Tyre (32-622-700x32c)
Brakes
Brakes
Front Brake (Right Position)
Cockpit
Stem
Deda Superbox Stem - (7cm)
Handlebar
Deda Zero RHM 01 (Alloy) (38cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Alpina 31.6mm Matt Setback Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.483 mm | 1.502 mm | 1.522 mm | 1.535 mm |
| Stack | 533.9 mm | 556.6 mm | 566 mm | 586.9 mm | 606 mm |
| Reach | 371.9 mm | 375.4 mm | 376.9 mm | 385.6 mm | 394.7 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 12 cm | 165 cm | 172 cm | 180 cm | 190 cm |
| Rider Max Height | 162 cm | 170 cm | 177 cm | 188 cm | 198 cm |
