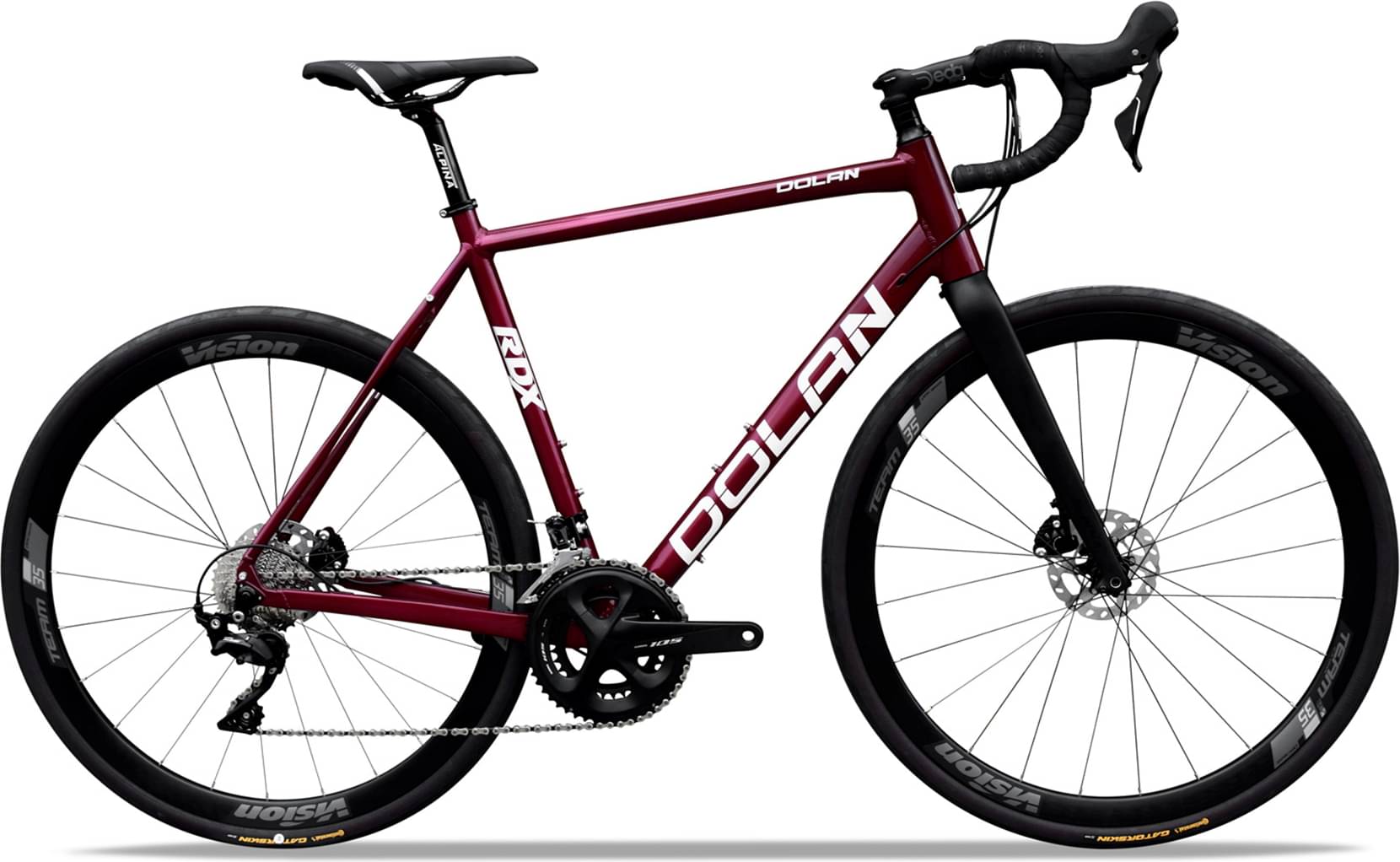

dolan RDX Aluminium Disc Bike – Shimano 105 R7020 2024
2024 Road
Estimate price |
2,166$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 167cm
SM
162cm - 174cm
MD
171cm - 180cm
LG
177cm - 187cm
XL
185cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RDX Aluminium Disc Frame
Suspension Fork
Alpina Carbon Disc Fork
Drivetrain
Rear Derailleur
105 RD-R7000 Rear Derailleur - 11 Speed - Medium Cage GS
Front Derailleur
105 FD-R7000 Front Derailleur - 11 Speed / Braze On
Cassette
Shimano 105 R7000 Cassette - 11/28
Crank
Shimano 105-R7000 Chainset - 170mm-50/34
Bottom Bracket
Press Fit
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.49 mm | 1.509 mm | 1.53 mm | 1.543 mm |
| Stack | 535.9 mm | 558.7 mm | 568.1 mm | 589 mm | 608.1 mm |
| Reach | 376.4 mm | 375 mm | 376.4 mm | 384.9 mm | 394.2 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 162 cm | 171 cm | 177 cm | 185 cm |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 187 cm | 192 cm |
