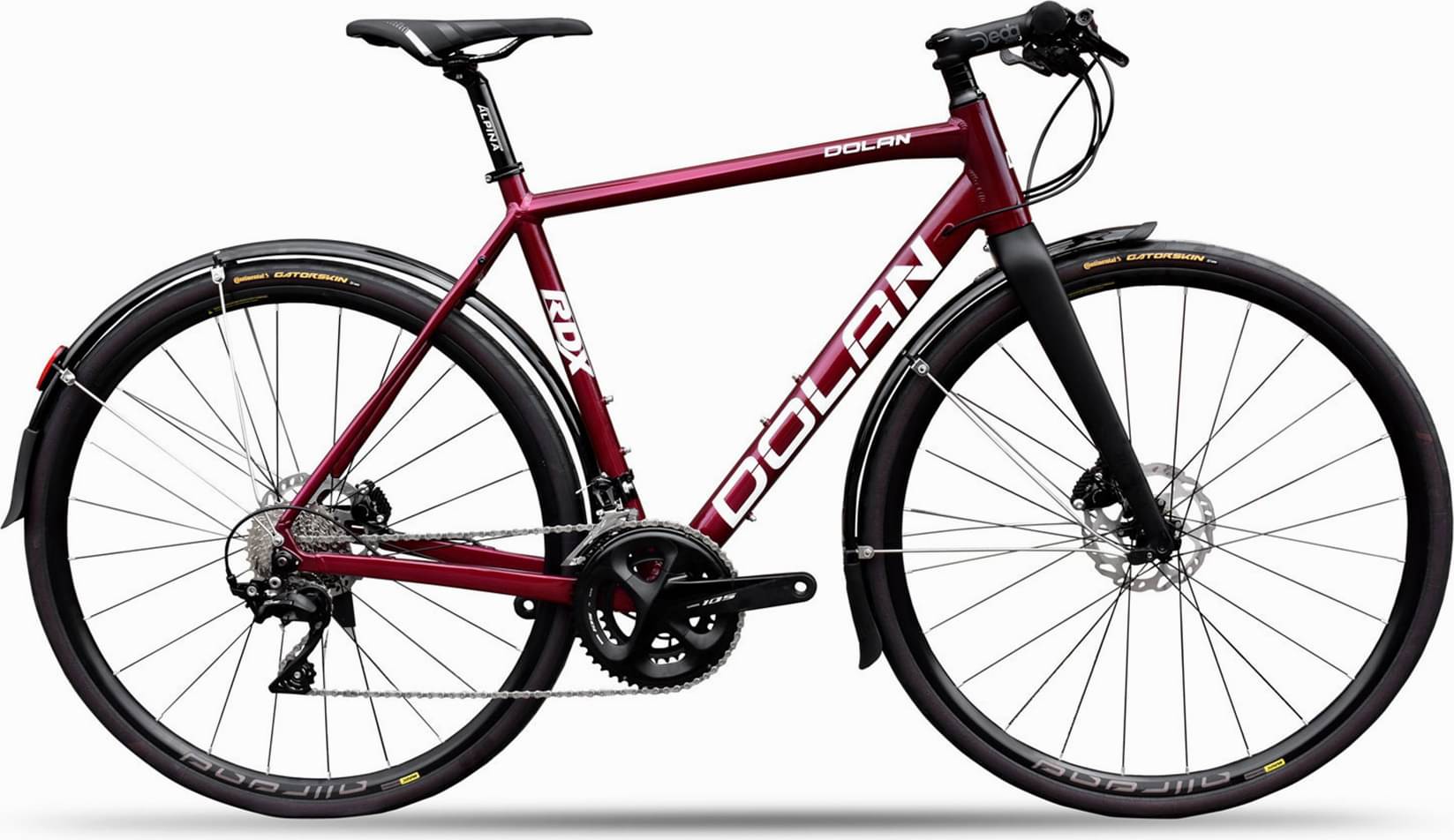

dolan RDX Aluminium Disc Bike – Shimano 105 R7020 Flat-Handlebar 2024
2024 Road
Estimate price |
2,166$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RDX Aluminium Disc Frame
Suspension Fork
Alpina Carbon Disc Fork
Drivetrain
Rear Derailleur
105 RD-R7000 Rear Derailleur - 11 Speed - Medium Cage GS
Front Derailleur
105 FD-R7000 Front Derailleur - 11 Speed / Braze On
Shift Levers
Shimano SL-RS700 Rapidfire Plus shift lever
Cassette
Shimano 105 R7000 Cassette - 11/28
Crank
Shimano 105-R7000 Chainset - 170mm-50/34
Bottom Bracket
Press Fit
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Shimano BL-RS600 Hydraulic Disc Brake Lever 3-finger
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Alpina Flat Handlebars
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.49 mm | 1.509 mm | 1.53 mm | 1.543 mm |
| Stack | 535.9 mm | 558.7 mm | 568.1 mm | 589 mm | 608.1 mm |
| Reach | 376.4 mm | 375 mm | 376.4 mm | 384.9 mm | 394.2 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
