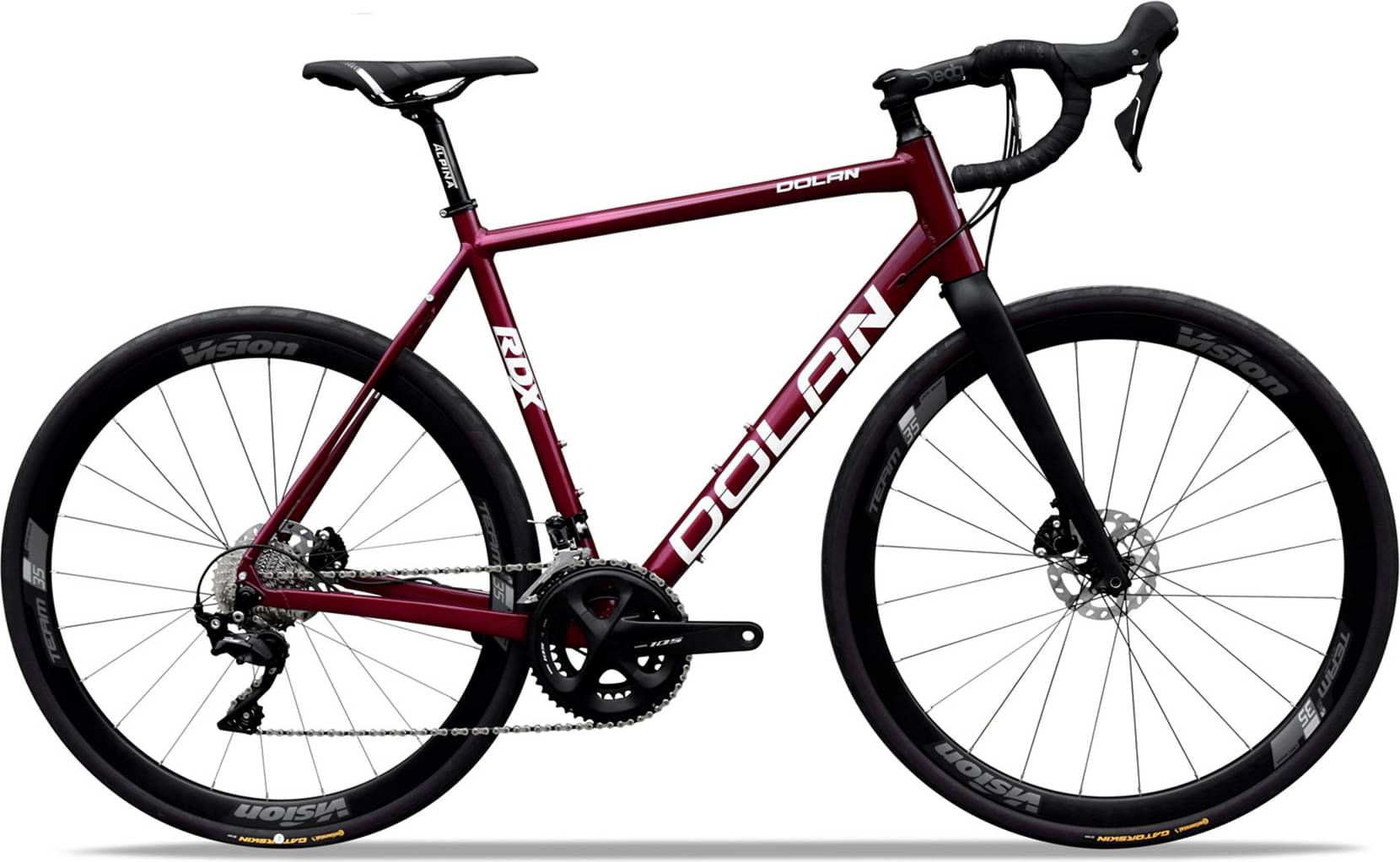

dolan RDX Aluminium Disc Bike – Shimano 12s 105 R7170 Di2 2024
2024 Road
Estimate price |
3,115$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RDX Aluminium Disc Frame
Suspension Fork
Alpina Carbon Disc Fork
Drivetrain
Rear Derailleur
105 R7150 Di2 12s Rear Derailleur
Front Derailleur
105 R7150 Di2 Brazed-On 12s Front Derailleur
Cassette
Shimano 105 R7100 12Spd Cassette - 11/34
Crank
105-R7100 12s Chainset - 170mm 50/34T
Bottom Bracket
Press Fit
Chain
Shimano CN-M6100 114 LINKS 12SPD Quick-Link Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Shimano 105 BR-R7170F / BR-R7170R Front/Rear Disc Brake Calipers
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Setback)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.49 mm | 1.509 mm | 1.53 mm | 1.543 mm |
| Stack | 535.9 mm | 558.7 mm | 568.1 mm | 589 mm | 608.1 mm |
| Reach | 376.4 mm | 375 mm | 376.4 mm | 384.9 mm | 394.2 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
