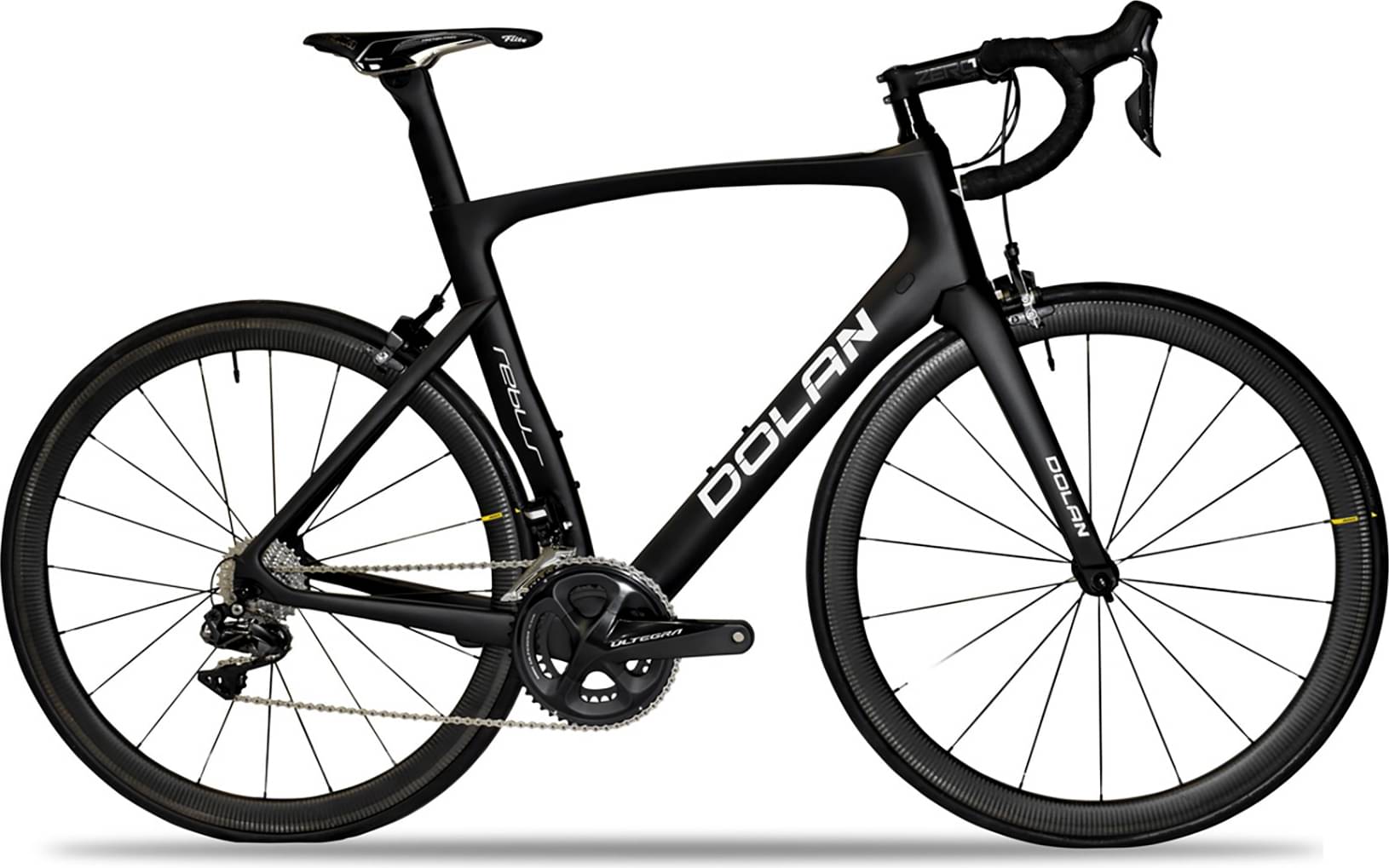

dolan Rebus Carbon Road Bike – Shimano Dura-Ace R9250 DI2-12SPD 2024
2024 Road
Estimate price |
7,180$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rebus Carbon Road Frame - SML
Suspension Fork
Rebus Carbon Fork
Drivetrain
Rear Derailleur
Dura-Ace R9250 12-SPD - Rear Derailleur
Front Derailleur
Dura-Ace R9250 Di2 Brazed-On 12-SPD - Front Derailleur
Cassette
Dura-Ace R9200 12spd Cassette - 11/30
Crank
Dura-Ace FC R9200 Chainset -170mm - 50/34
Bottom Bracket
BB86
Chain
Shimano CN-M8100 XT/Ultegra Chain 12 Speed (With Quick Link)
Pedals
None-Fitted
Wheels
Rims
Mavic Ksyrium SL Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Rim
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Rebus Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.387 mm | 1.446 mm | 1.489 mm | 1.501 mm |
| Stack | 521.1 mm | 551.5 mm | 578.7 mm | 602.7 mm |
| Reach | 375.6 mm | 381.5 mm | 388.6 mm | 401.5 mm |
| Top Tube Length | 525 mm | 544.9 mm | 560 mm | 580.4 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 499.7 mm | 540 mm | 569.6 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 120 mm | 150 mm | 175 mm | 200 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
