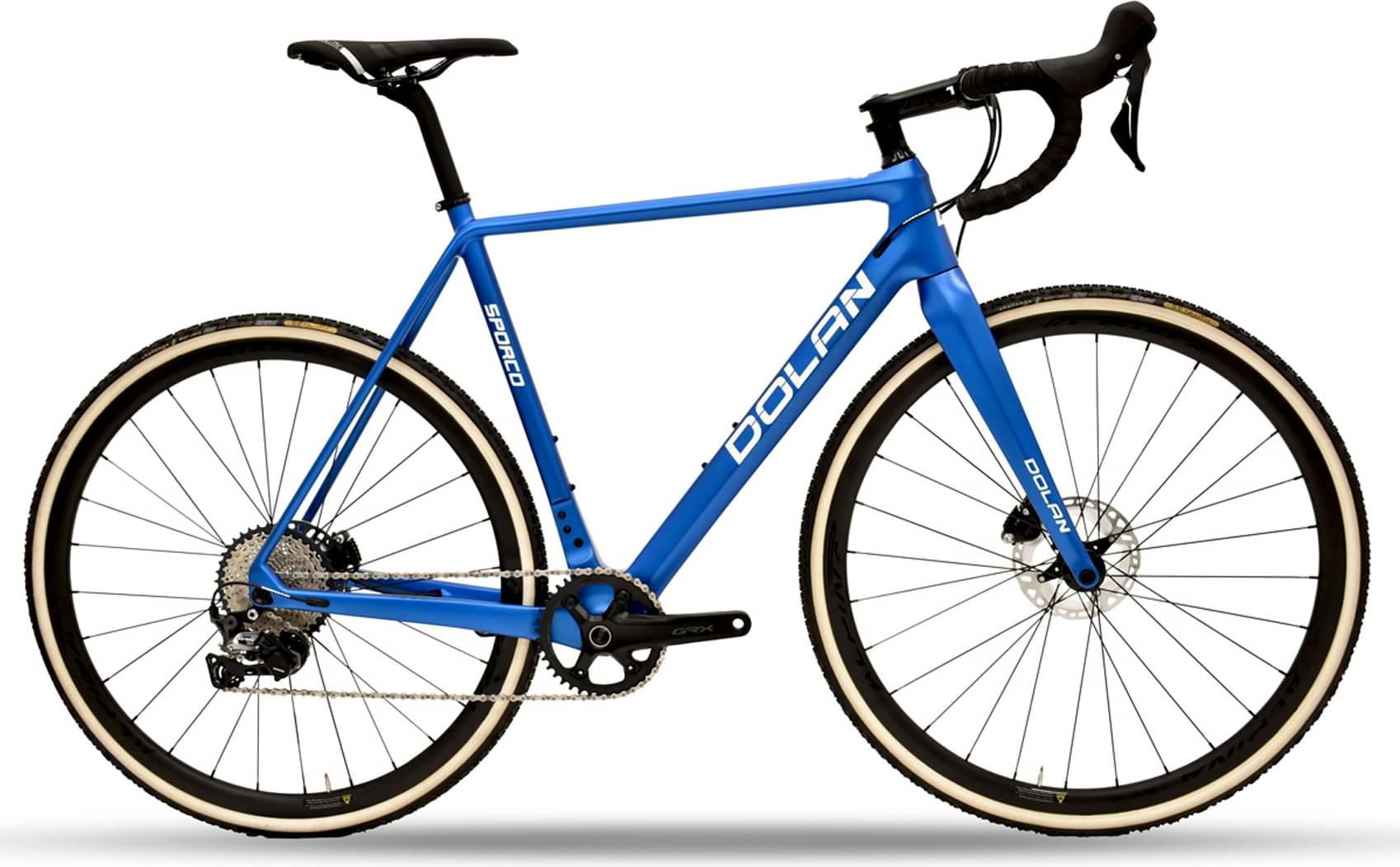

dolan Sporco Carbon Disc Cyclocross Bike – Shimano GRX RX825 DI2 – 2×12 2024
2024 Road
Estimate price |
4,829$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Groupset GRX 800, GRX Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sporco Frame - (LRG)
Suspension Fork
Dolan Sporco Disc Fork - (Matt-Electric-Blue)
Drivetrain
Rear Derailleur
GRX RD-RX825-DI2 - (11-36T) Rear Derailleur - 2x12
Front Derailleur
GRX FD-RX825-Di2 Brazed-on 12s - Front Derailleur
Cassette
Ultegra CS R8100 12spd Cassette - 11/30
Crank
GRX RX820-2 2x12 Chainset-170mm - 48-31T
Bottom Bracket
BB86
Chain
Shimano CN-M6100 12spd Chain (With Quick Link)
Pedals
None-Fitted
Wheels
Rims
Mavic Allroad Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (28-622-700x28c)
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Zero (7cm) Stem
Handlebar
Deda Zero RHM Black on Black (Alloy) Handlebars (42cm - Outside-Outside)
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Alpina 27.2mm Aluminium Seatpost (350mm Inline)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.393 mm | 1.45 mm | 1.467 mm | 1.485 mm | 1.519 mm |
| Stack | 518.2 mm | 529.5 mm | 554 mm | 566.4 mm | 580.6 mm | 604.4 mm |
| Reach | 375 mm | 380 mm | 382 mm | 386 mm | 391 mm | 398 mm |
| Top Tube Length | 509 mm | 527 mm | 541 mm | 559 mm | 568.5 mm | 582.2 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 110 mm | 135 mm | 145 mm | 160 mm | 185 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
