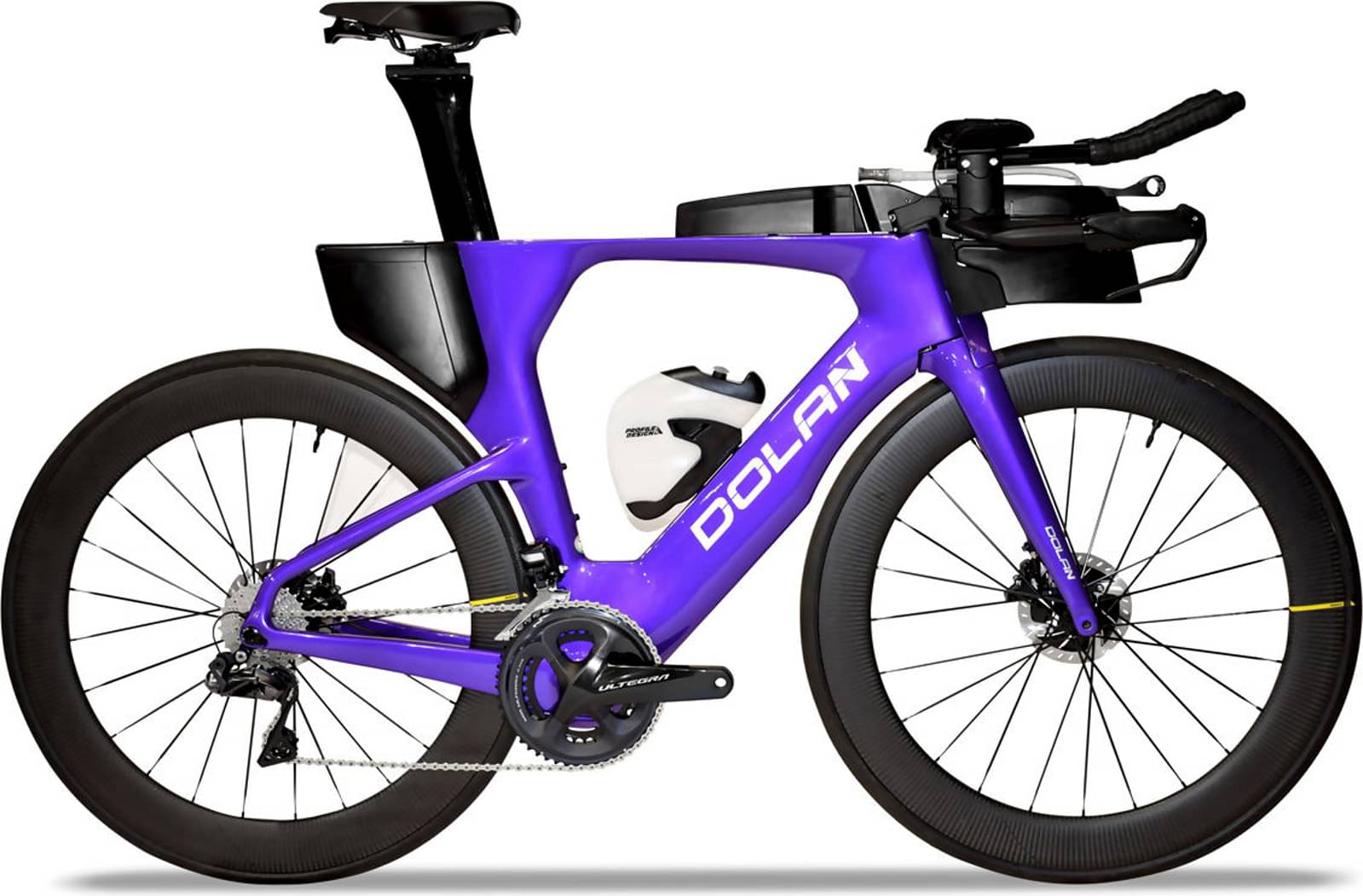

dolan TR1 Triathlon Disc Carbon Bike – Shimano Ultegra R8020 2024
2024 Road
Estimate price |
4,673$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
173cm - 180cm
LG
178cm - 190cm
XL
188cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR1 Carbon TT Disc Frame - (Purple/Silver) (Pre Order Arriving Wk 4 May)
Suspension Fork
DolanTR1 Carbon Disc Fork - (Purple/Silver)
Drivetrain
Rear Derailleur
Ultegra RD-R8000 11-SPD - 34T - Rear Derailleur
Front Derailleur
Ultegra FD-R8000 11-SPD Brazed-On - Front Derailleur
Shift Levers
Shimano Dura-Ace SL-BSR1 Bar End Shifter
Cassette
Ultegra R8000 11 Speed Cassette - 11/28
Crank
Ultegra R8000 Chainset - 170mm-50/34
Bottom Bracket
DUB
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Ksyrium 30 Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
Alpina Carbon TT Handlebars
Seat
Saddle
Sella Italia Watt SF Triathlon TM Saddle
Seatpost
TR1 Adjustable Carbon Seatpost - (Black)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.367 mm | 1.345 mm | 1.341 mm | 1.326 mm |
| Front Center | 570 mm | 586 mm | 609 mm | 636 mm |
| Stack | 499 mm | 518 mm | 543 mm | 569 mm |
| Reach | 365 mm | 385 mm | 405 mm | 429 mm |
| Top Tube Length | 480 mm | 505 mm | 530 mm | 560 mm |
| Seat Tube Length | 505 mm | 525 mm | 549 mm | 577 mm |
| Head Tube Angle | 70.3 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 100 mm | 115 mm | 140 mm | 165 mm |
| Chainstay Length | 395 mm | 395 mm | 395 mm | 395 mm |
| Wheelbase | 954 mm | 970 mm | 993 mm | 1021 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 173 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 201 cm |
