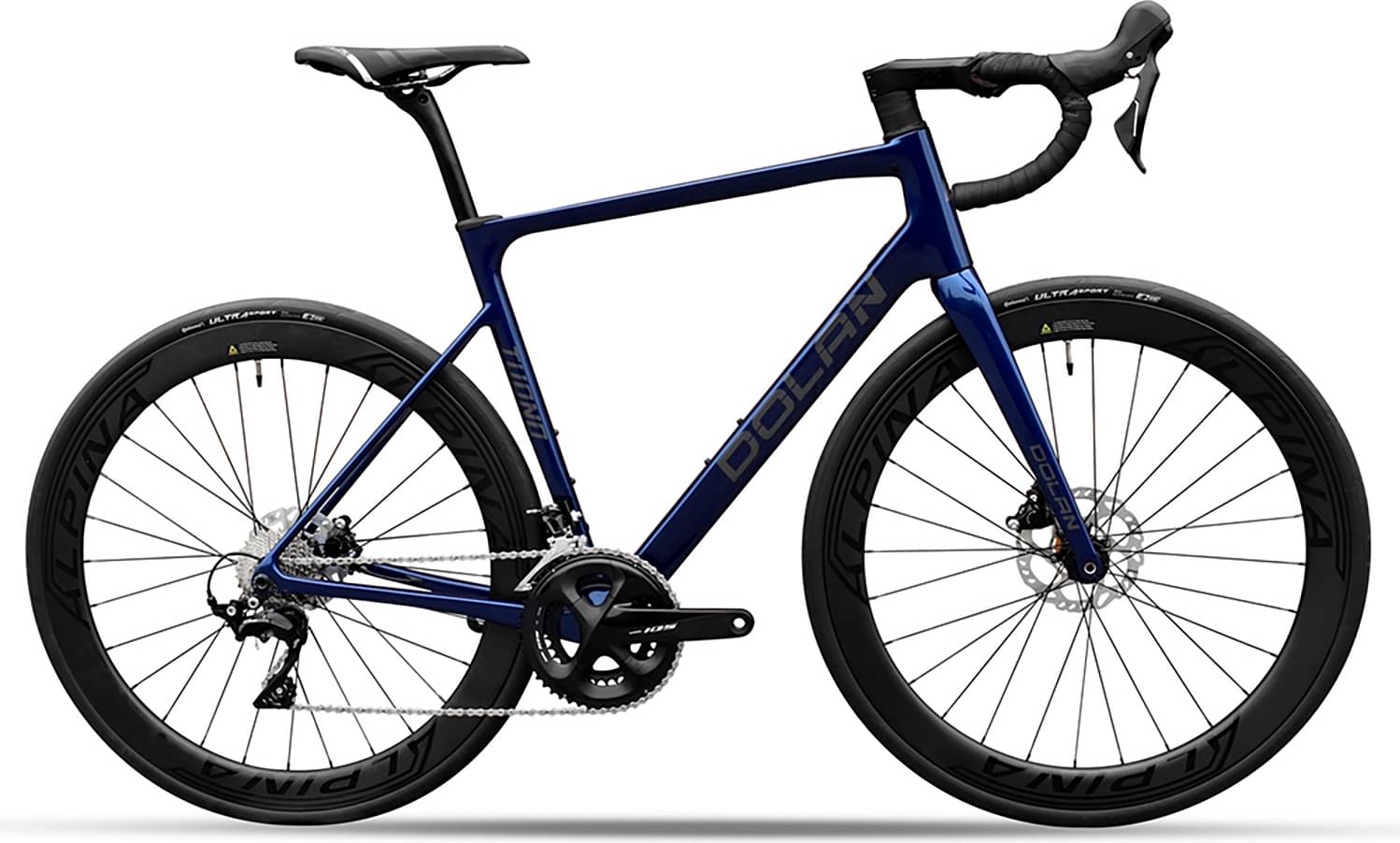

dolan Tuono Carbon Disc Road Bike – Shimano 105 R7020 2024
2024 Road
Estimate price |
3,047$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 160cm
SM
162cm - 170cm
MD
172cm - 177cm
LG
180cm - 185cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuono Disc Carbon Frame - (X-SML)
Suspension Fork
Tuono Disc Carbon Fork
Drivetrain
Rear Derailleur
105 RD-R7000 Rear Derailleur - 11 Speed - Medium Cage GS
Front Derailleur
105 FD-R7000 Front Derailleur - 11 Speed / Braze On
Cassette
Shimano 105 R7000 Cassette - 11/28
Crank
Shimano 105-R7000 Chainset - 170mm-50/34
Bottom Bracket
Press Fit
Chain
KMC X11 11spd Chain
Pedals
None-Fitted
Wheels
Rims
Mavic Aksium Disc Wheelset
Tires
Vittoria Zaffiro V Rigid BLK Tyre (25-622-700x25c)
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Deda Superbox Stem - (9cm)
Handlebar
Deda RHM Superzero (Alloy) (40cm - Outside-Outside) Handlebars
Seat
Saddle
Selle Italia X3 Boost Flow Saddle
Seatpost
Tuono Disc Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.474 mm | 1.5 mm | 1.531 mm | 1.554 mm |
| Front Center | 585.9 mm | 587.6 mm | 594.5 mm | 594.5 mm | 608.8 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 531.8 mm | 552.1 mm | 571.1 mm | 589.6 mm | 610.6 mm |
| Reach | 371.2 mm | 374.5 mm | 380.8 mm | 385 mm | 392.9 mm |
| Top Tube Length | 516 mm | 530 mm | 546 mm | 560 mm | 580 mm |
| Seat Tube Angle | 74.8 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.8 ° | 71.7 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 138 mm | 157 mm | 172 mm | 195 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 989 mm | 991 mm | 998 mm | 998 mm | 1012 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 180 cm | 188 cm |
| Rider Max Height | 160 cm | 170 cm | 177 cm | 185 cm | 195 cm |
