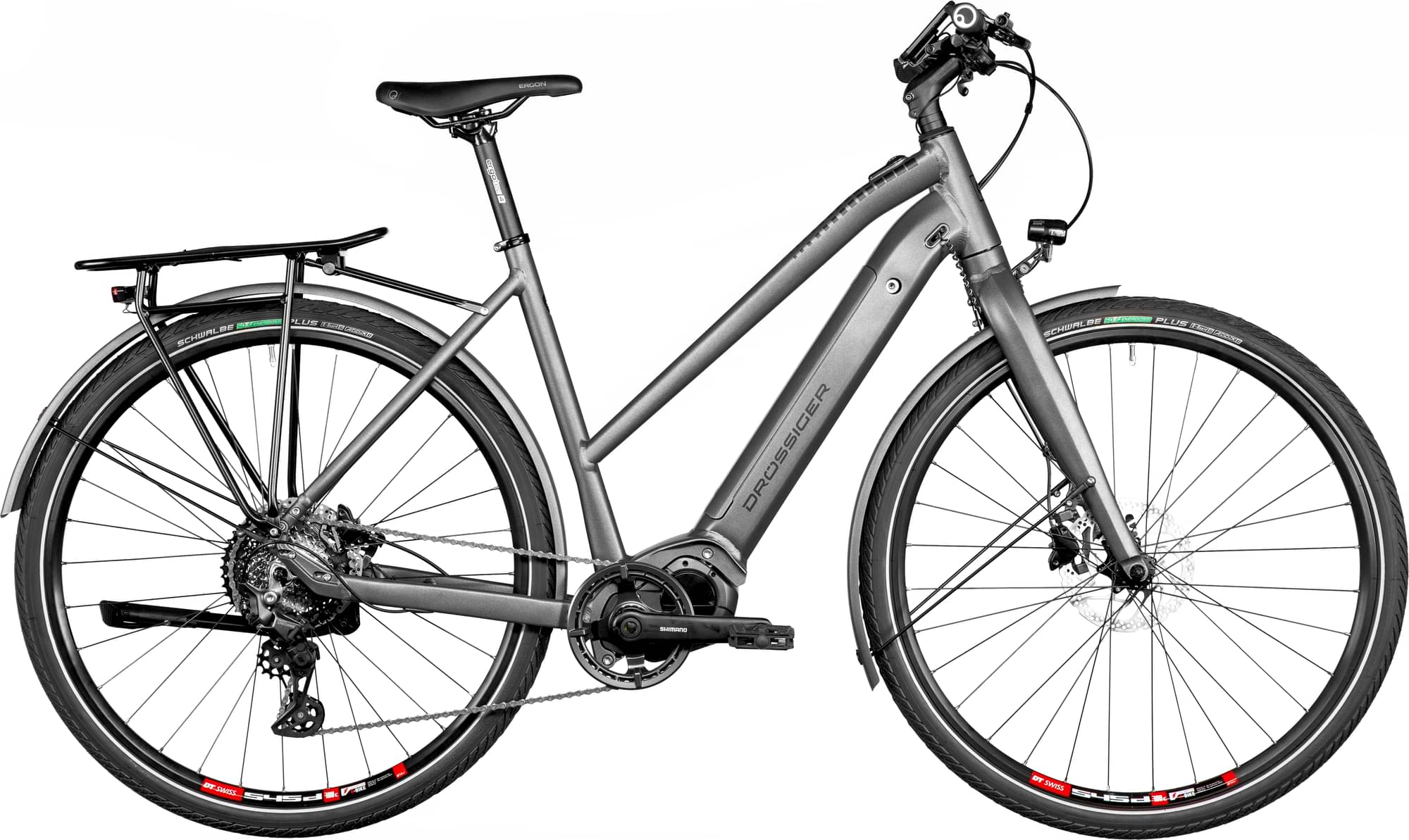

drossiger Drössiger City-E Sport Trapez 2 2024
2024 E-bike
Estimate price |
4,769$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-EN805 504Wh Intube -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR-Lite Intube trapeze
Suspension Fork
TR-Lite 2.0E aluminum
Drivetrain
Rear Derailleur
Shimano Deore RD-M5130 Linkglide 10-speed
Cassette
Shimano Linkglide 10-speed 11-43
Crank
Shimano FC-EM600
Chain
KMC e11
Pedals
M-Wave Steady Urban Griptape
Wheels
Rims
DT Swiss 545d 28" / Shimano Acera HB-M3050 9x100 QR black / DT Swiss Factory 2.0 black
Tires
Schwalbe Energizer Plus 47-622 extra pannensicher
Brakes
Brakes
Front: Shimano MT201, Rear: Shimano MT201
Cockpit
Stem
Ergotec Charisma 20°
Handlebar
Ergotec riser 720mm x 15mm x 9°
Seat
Saddle
Ergon ST10 trekking
Seatpost
Ergotec Atar
Motor & Battery
Motor
Shimano DU-EP600 mid-motor, 85Nm
Battery
Shimano BT-EN805 504Wh Intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.624 mm | 1.621 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm |
| Front Center | 653 mm | 664 mm | 675 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 631 mm | 640 mm | 650 |
| Reach | 387 mm | 394 mm | 401 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1109 mm | 1120 mm | 1131 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Front Travel | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
