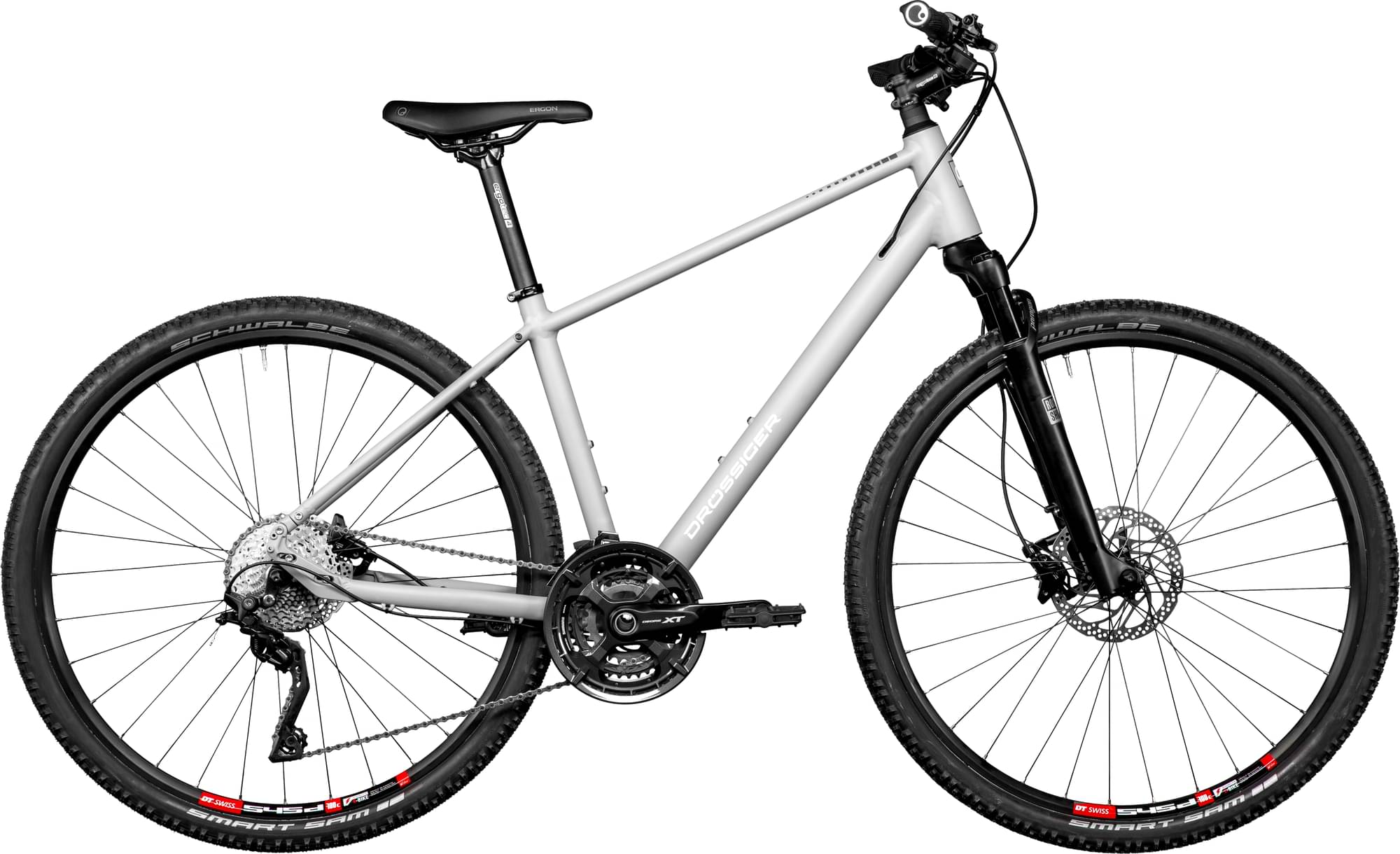

drossiger Drössiger Cross Diamant 1 2024
2024 Road
Estimate price |
1,860$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR-Lite Diamond
Suspension Fork
Rock Shox Paragon Gold RL 65mm with lockout
Drivetrain
Rear Derailleur
Shimano XT Trekking RD-T8000 10-speed
Front Derailleur
Shimano XT Trekking FD-T8000 3x10
Cassette
Shimano Deore CS-HG50 11-36 10-speed
Crank
Shimano XT FC-T8000 48-36-26T
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Pedals
VP Components Trekking
Wheels
Rims
DT Swiss 545d 28" / Shimano XT HB-M8000 9x100 QR / DT Swiss Competition 2.0-1.8-2.0
Tires
Schwalbe Smart Sam 47-622 Performance Addix
Brakes
Brakes
Front: Shimano MT410, Rear: Shimano MT410
Cockpit
Stem
Ergotec Shark 7°
Handlebar
Ergotec Ergo XL Riser 680mm x 30mm x 14°
Seat
Saddle
Ergon ST10 trekking
Seatpost
Ergotec Atar
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 49cm | 53cm | 57cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.575 mm | 1.572 mm | 1.533 mm | 1.559 mm | 1.521 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 643 mm | 654 mm | 664 mm | 675 mm | 686 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm | 81 mm |
| Stack | 611 mm | 621 mm | 621 mm | 639 mm | 639 mm |
| Reach | 388 mm | 395 mm | 405 mm | 410 mm | 420 mm |
| Top Tube Length | 575 mm | 585 mm | 595 mm | 605 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm | 570 mm | 610 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1081 mm | 1092 mm | 1102 mm | 1113 mm | 1124 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
