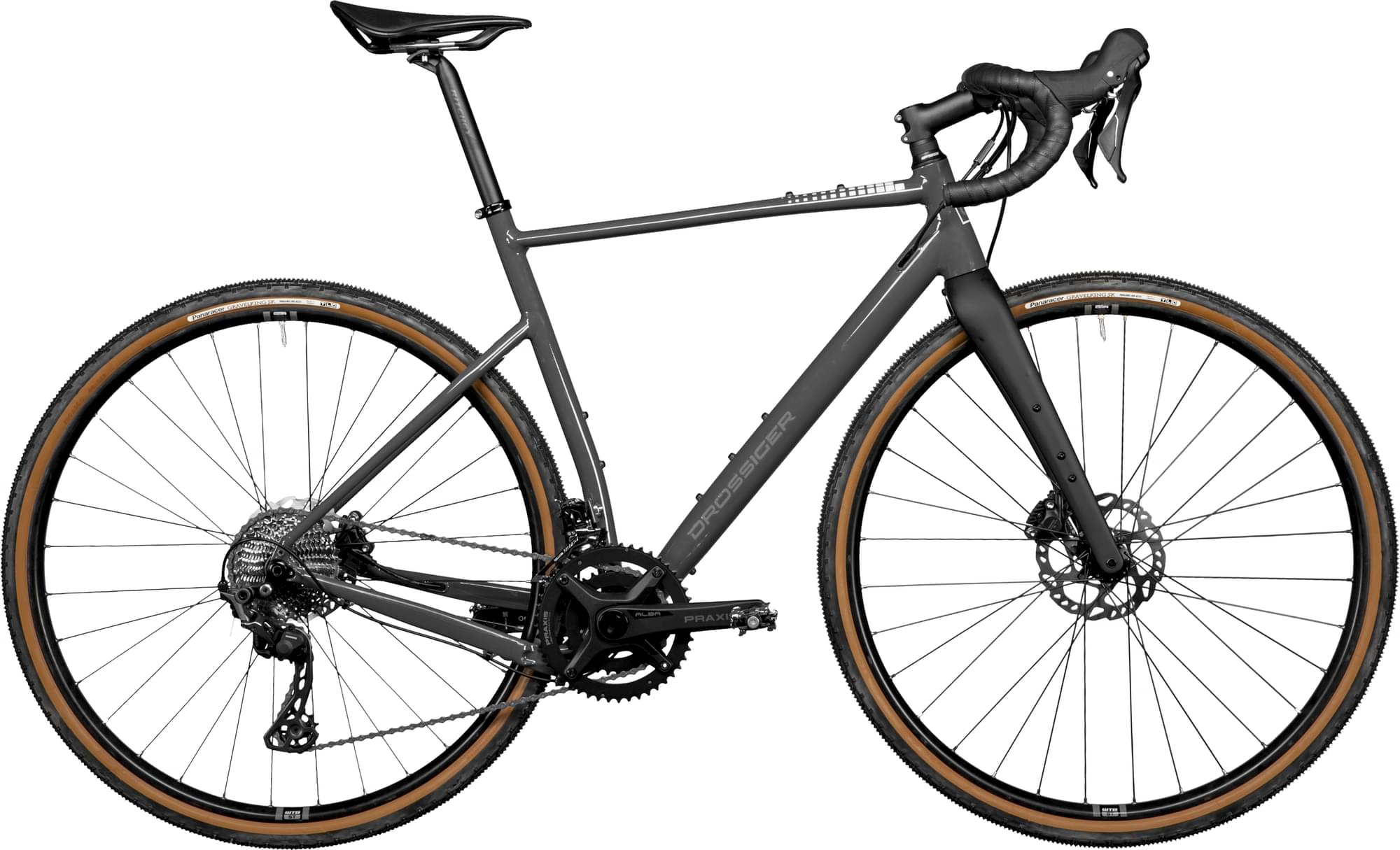

drossiger Drössiger Gravel Pit 2 2024
2024 Road
Estimate price |
2,558$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
G-SLT aluminum
Suspension Fork
G-CST 1.0 Gravel Full Carbon
Drivetrain
Rear Derailleur
Shimano GRX RD-RX822-SGS 12-speed
Front Derailleur
-
Cassette
Shimano Deore CS-M6100 10-51T 12-speed
Crank
Shimano GRX FC-RX610 1x12 40T
Chain
Shimano Deore CN-M6100 12-speed
Pedals
without
Wheels
Rims
DT Swiss G1800 28" system wheel
Tires
Panaracer Gravelking SK 40-622 TLC foldable
Brakes
Brakes
Front: BR-RX400, Rear: BR-RX400
Cockpit
Stem
Ritchey Comp 4-Axis
Handlebar
Ritchey Comp ErgoMax Gravel Riser
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
Ritchey Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.421 mm | 1.432 mm | 1.452 mm | 1.466 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 580 mm | 594 mm | 603 mm | 623 mm | 642 mm |
| Rake | 53 mm | 53 mm | 52 mm | 53 mm | 53 mm |
| Trail | 67 mm | 64 mm | 59 mm | 58 mm | 58 mm |
| Stack | 512 mm | 533 mm | 554 mm | 578 mm | 601 mm |
| Reach | 363 mm | 375 mm | 387 mm | 398 mm | 410 mm |
| Top Tube Length | 520 mm | 538 mm | 556 mm | 575 mm | 594 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 165 mm | 190 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 979 mm | 993 mm | 1003 mm | 1023 mm | 1042 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
