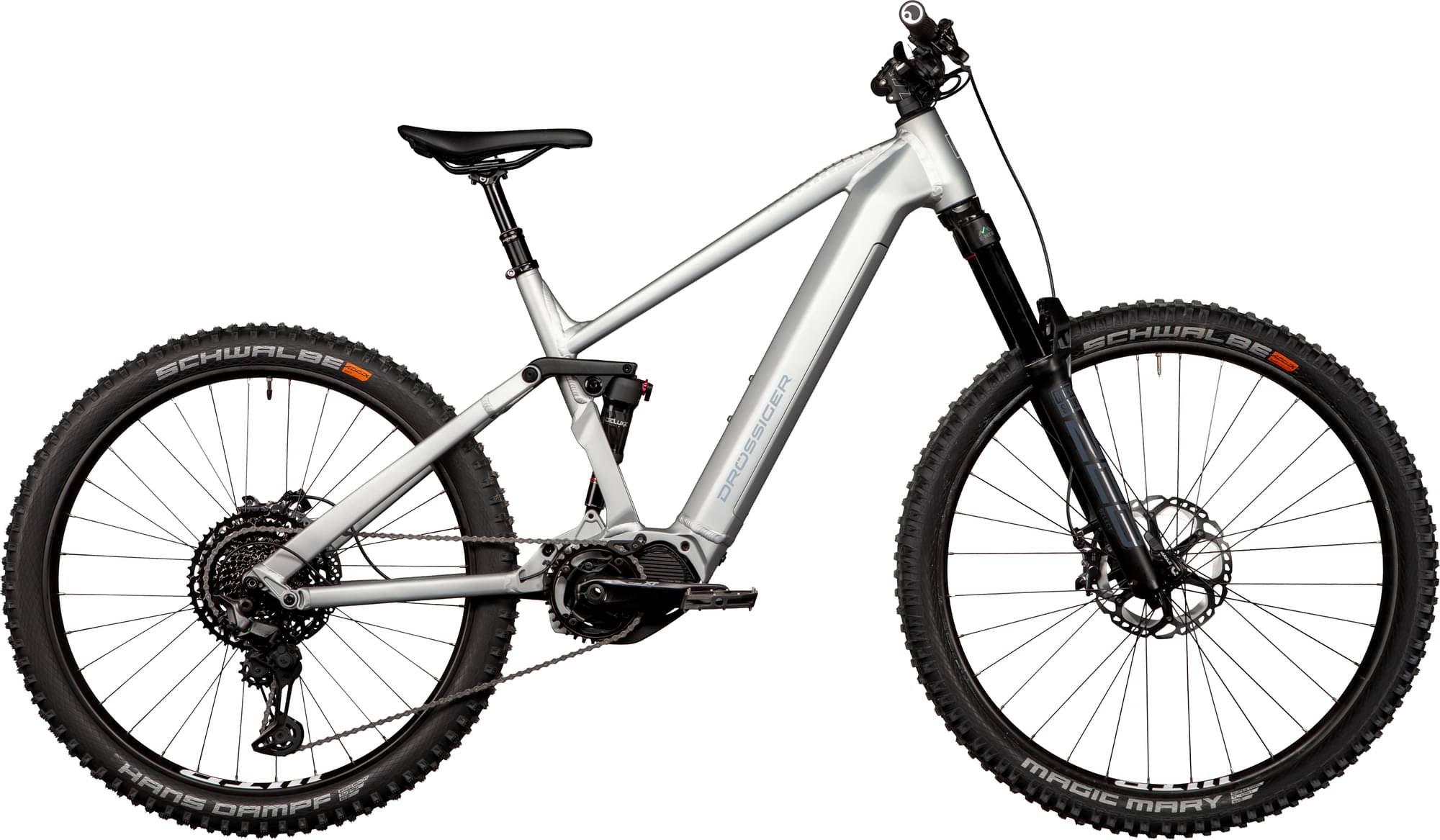

drossiger Drössiger One-E 1 2024
2024 E-bike
Estimate price |
7,328$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 155mm -
Fork RockShox ZEB Select+
-
Groupset XT -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Battery Shimano BT-EN806 630Wh Intube -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
One.E Intube / 155mm
Suspension Fork
Rock Shox ZEB Select+ 160mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8130 Linkglide 11-speed
Cassette
Shimano Cues CS-LG400 Linkglide 11-speed 11-50
Crank
Shimano XT FC-M8150
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e11
Pedals
without
Wheels
Rims
DT Swiss H1900-30 29" system impeller
Tires
Schwalbe Magic Mary 29 x 2.4 Evolution Super Trail Addix Soft
Brakes
Brakes
Front: Shimano XT M8120 4-piston, Rear: Shimano XT M8120 4-piston
Cockpit
Stem
Ritchey Comp Trail
Handlebar
Ritchey Trail Riser E-Logic 780mm x 20mm x 9°
Seat
Saddle
Ergon SM10 Sport
Seatpost
BikeYoke Divine Dropper 160mm
Motor & Battery
Motor
Shimano DU-EP801 mid-motor, 85Nm
Battery
Shimano BT-EN806 630Wh Intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.389 mm | 1.342 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm |
| Front Center | 771 mm | 794 mm | 816 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm |
| Stack | 634 mm | 639 mm | 644 mm |
| Reach | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1234 mm | 1257 mm | 1279 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Front Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
