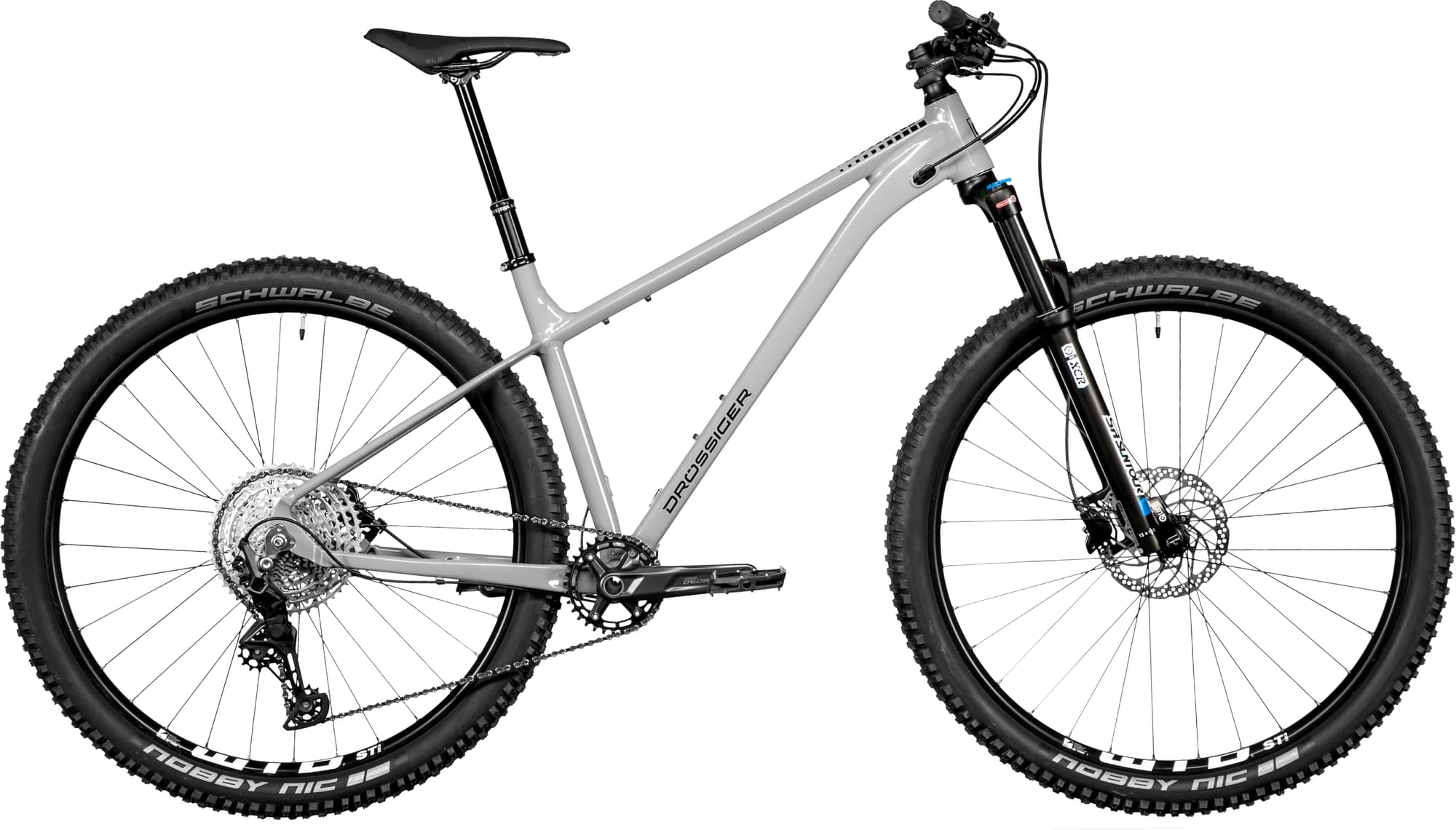

drossiger Drössiger Ride 29 2 2024
2024 Mountain
Estimate price |
1,744$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
H Lite 29
Suspension Fork
Rock Shox Recon Silver RL 120mm with lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12-speed
Cassette
Shimano Deore CS-M6100 10-51T 12-speed
Crank
Shimano FC-MT511 32T
Chain
Shimano Deore CN-M6100
Pedals
without
Wheels
Rims
WTB ST i23 29" / Shimano HB-TC500-15-B Centerlock 15x110 TA 32L front / DT Swiss Factory 2.0 black
Tires
Schwalbe Nobby Nic 29 x 2.4 Performance Addix foldable
Brakes
Brakes
Front: Shimano MT410, Rear: Shimano MT410
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 Risers 760mm x 20mm
Seat
Saddle
Selle Italia Model Y Manganese
Seatpost
Race Face Ride XC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.438 mm | 1.354 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 727 mm | 747 mm | 771 mm |
| Rake | 42 mm | 56 mm | 42 mm |
| Trail | 110 mm | 95 mm | 110 mm |
| Stack | 640 mm | 640 mm | 650 |
| Reach | 440 mm | 445 mm | 480 mm |
| Top Tube Length | 624 mm | 644 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1159 mm | 1179 mm | 1203 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Front Travel | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
