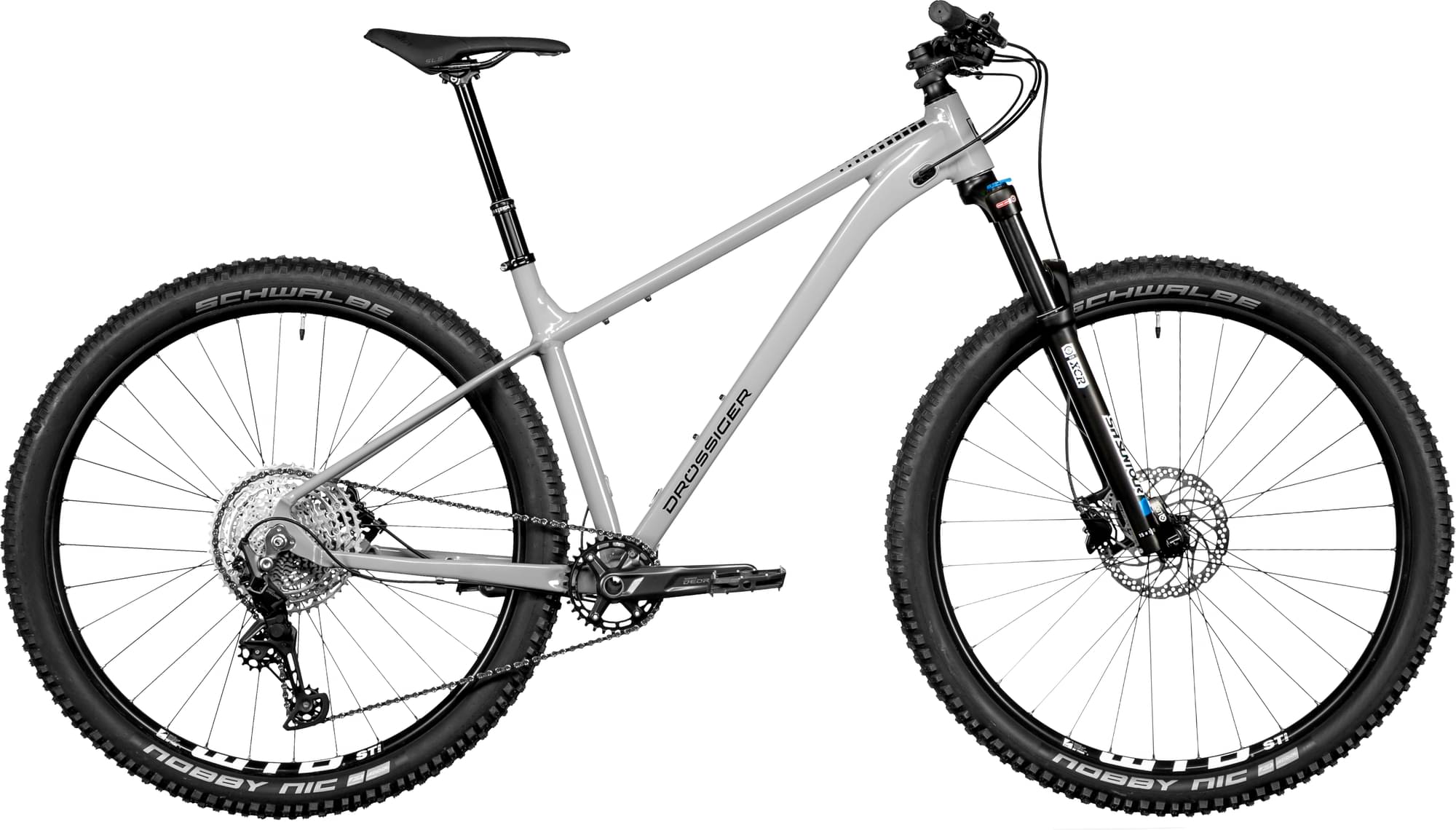

drossiger Drössiger Ride 3 650B 2024
2024 Mountain
Estimate price |
1,279$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
H Lite 650B
Suspension Fork
Suntour XCR32 Air LOR 120mm with lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100 11-speed
Cassette
Shimano Deore CS-M5100 11-51T 11-speed
Crank
Shimano Deore FC-M5100-1 32T
Chain
KMC X11
Pedals
without
Wheels
Rims
WTB ST i23 27.5" / Shimano HB-TC500-15-B Centerlock 15x110 TA 32L front / DT Swiss Factory 2.0 black
Tires
Schwalbe Nobby Nic 27.5 x 2.25 Performance Addix
Brakes
Brakes
Front: Shimano MT201, Rear: Shimano MT201
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 Risers 760mm x 20mm
Seat
Saddle
Selle Italia Model Y Manganese
Seatpost
Race Face Ride XC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.505 mm | 1.433 mm |
| Bottom Bracket Height | 310 mm | 310 mm |
| Front Center | 669 mm | 689 mm |
| Rake | 37 mm | 37 mm |
| Trail | 107 mm | 107 mm |
| Stack | 602 mm | 602 mm |
| Reach | 400 mm | 420 mm |
| Top Tube Length | 573 mm | 593 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 420 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm |
| Chainstay Length | 430 mm | 430 mm |
| Wheelbase | 1093 mm | 1113 mm |
| Bottom Bracket Drop | 55 mm | 55 mm |
| Front Travel | 120 mm | 120 mm |
| Wheels | 27" | 27" |
