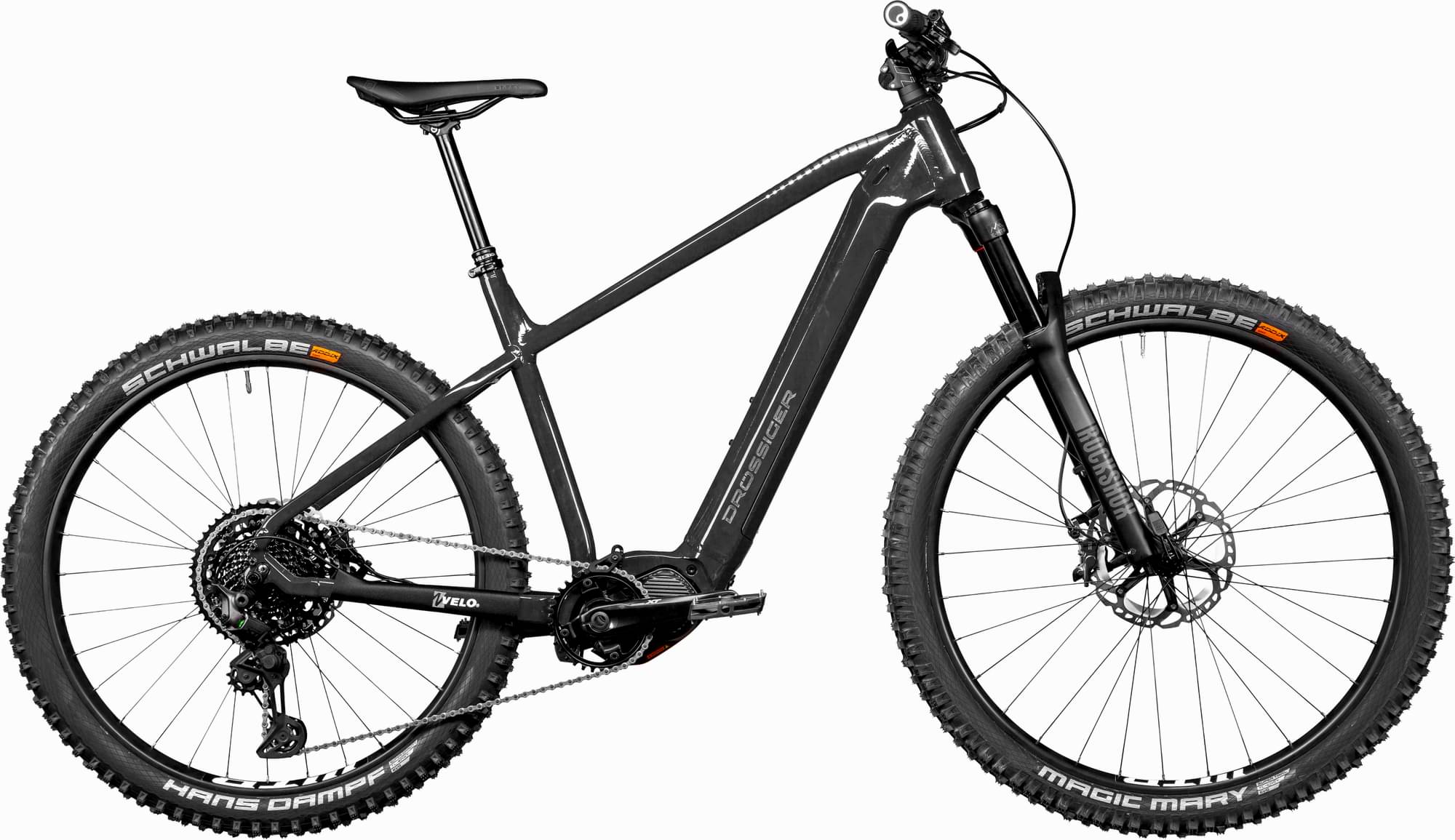

drossiger Drössiger Ride-E 3 2024
2024 E-bike
Estimate price |
5,118$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-EN806 630Wh Intube -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 175cm
MD
170cm - 185cm
LG
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ride.E Intube
Suspension Fork
Suntour XCR34 Air LOR 120mm with lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100 11-speed
Cassette
Shimano Deore CS-M5100 11-51T 11-speed
Crank
Shimano FC-EM600
Chain
KMC e11
Pedals
without
Wheels
Rims
WTB ST i30 29" / Shimano HB-MT400-B 15x110 TA black / DT Swiss Factory 2.0 black
Tires
Schwalbe Nobby Nic 29 x 2.4 Performance Addix foldable
Brakes
Brakes
Front: Shimano MT201, Rear: Shimano MT201
Cockpit
Stem
Ritchey Comp Trail
Handlebar
Ritchey Trail Riser E-Logic 780mm x 20mm x 9°
Seat
Saddle
Selle Italia Model Y Manganese
Seatpost
Ritchey Comp Trail
Motor & Battery
Motor
Shimano DU-EP600 mid-motor, 85Nm
Battery
Shimano BT-EN806 630Wh Intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.505 mm | 1.482 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Front Center | 727 mm | 739 mm | 751 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 97 mm | 97 mm | 97 mm |
| Stack | 658 mm | 662 mm | 667 mm |
| Reach | 430 mm | 440 mm | 450 mm |
| Top Tube Length | 618 mm | 630 mm | 641 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1178 mm | 1190 mm | 1202 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm |
