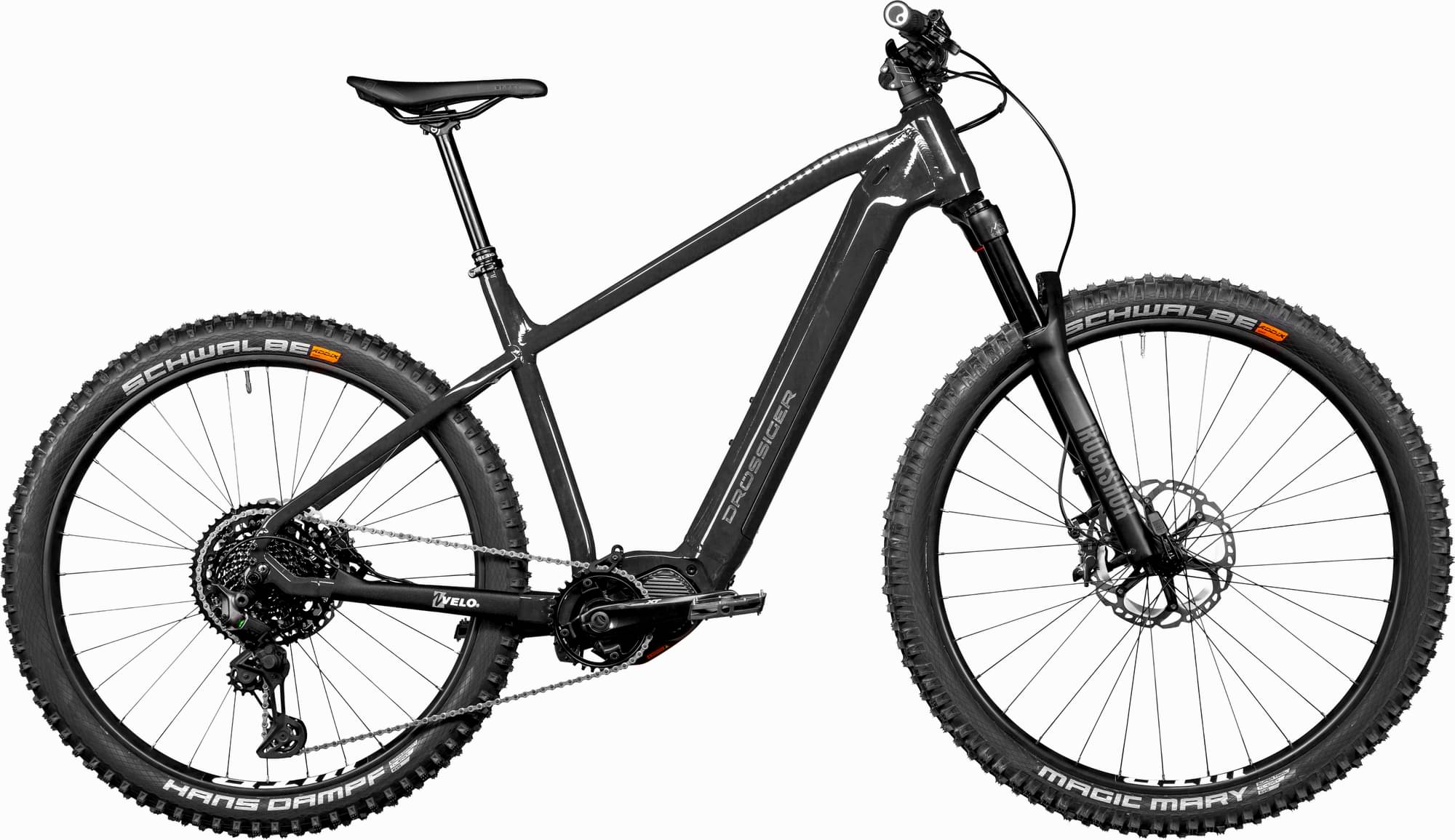

drossiger Drössiger Ride-E Diamant 3 2024
2024 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-EN806 630Wh Intube -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 175cm
MD
170cm - 185cm
LG
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ride.E Intube Diamond
Suspension Fork
Suntour XCR34 Air LOR 120mm with lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100 11-speed
Cassette
Shimano Deore CS-M5100 11-51T 11-speed
Crank
Shimano FC-EM600
Chain
KMC e11
Pedals
without
Wheels
Rims
WTB ST i30 29" / Shimano HB-TC500-15-B Centerlock 15x110 TA 32L front / DT Swiss Factory 2.0 black
Tires
Schwalbe Nobby Nic 29 x 2.4 Performance Addix foldable
Brakes
Brakes
Front: Shimano Deore M4100, Rear: Shimano Deore M4100
Cockpit
Stem
Ritchey Comp Trail
Handlebar
Ritchey Trail Riser E-Logic 780mm x 20mm x 9°
Seat
Saddle
Selle Italia Model Y Manganese
Seatpost
Ritchey Comp Trail
Motor & Battery
Motor
Shimano DU-EP600 mid-motor, 85Nm
Battery
Shimano BT-EN806 630Wh Intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.505 mm | 1.482 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Front Center | 727 mm | 739 mm | 751 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 97 mm | 97 mm | 97 mm |
| Stack | 658 mm | 662 mm | 667 mm |
| Reach | 430 mm | 440 mm | 450 mm |
| Top Tube Length | 618 mm | 630 mm | 641 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1178 mm | 1190 mm | 1202 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm |
