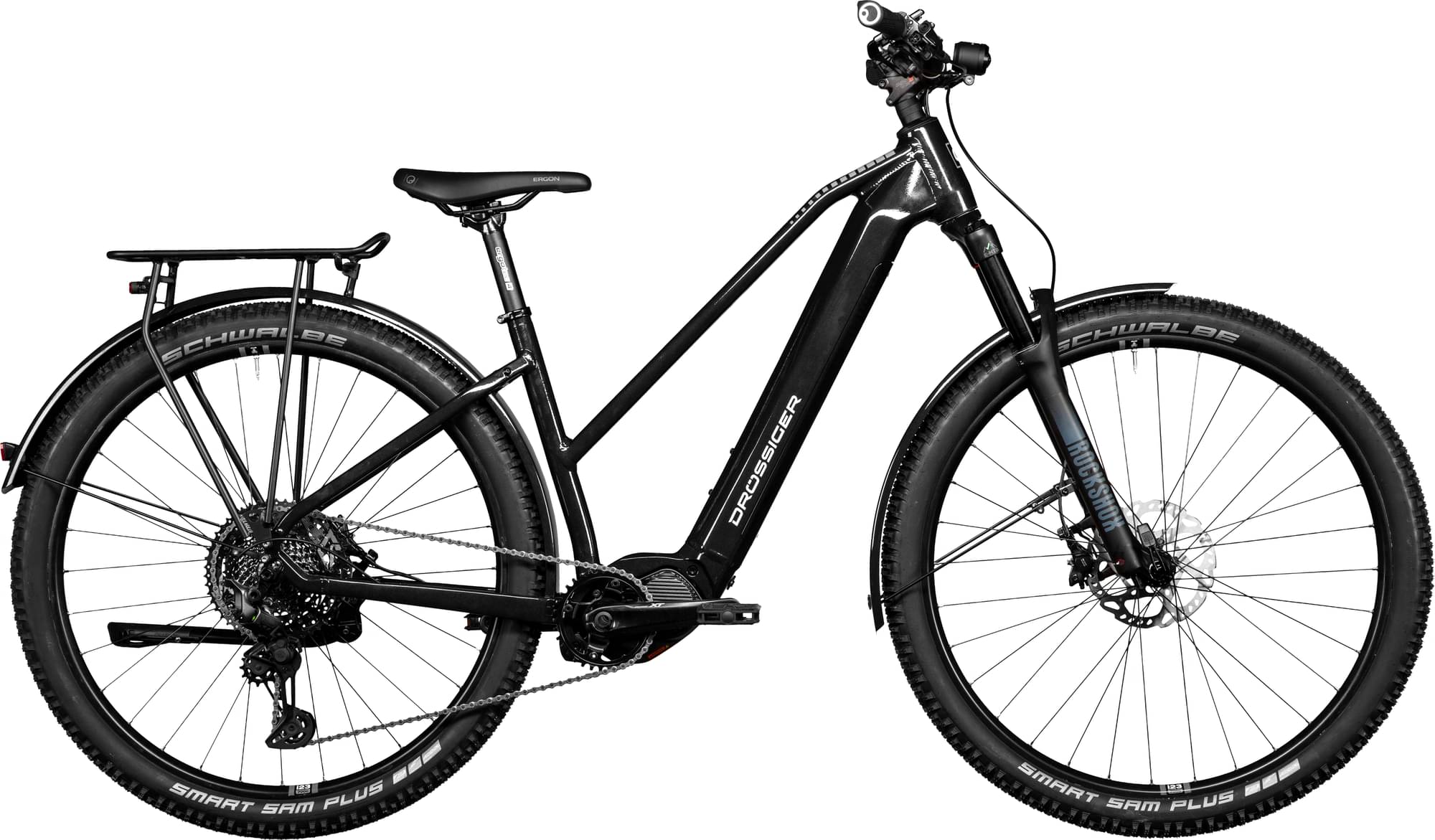

drossiger Drössiger Ride-E SUV Lady 1 2024
2024 E-bike
Estimate price |
6,397$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor Shimano 85Nm mid-drive -
Battery Shimano BT-EN806 630Wh Intube -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 175cm
MD
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ride.E Intube trapeze
Suspension Fork
Rock Shox 35 Gold RL 120mm with lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8130 Linkglide 11-speed
Cassette
Shimano Linkglide 11-speed 11-50
Crank
Shimano XT FC-M8150
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e11
Pedals
M-Wave Steady Urban Griptape
Wheels
Rims
WTB rim ST i23 29" / Shimano XT HB-M8010-B 15x110 TA black / DT Swiss Factory 2.0 black
Tires
Schwalbe Smart Sam PLUS 57-622 Performance extra pannensicher
Brakes
Brakes
Front: Shimano XT T8100, Rear: Shimano XT T8100
Cockpit
Stem
Ergotec Piranha
Handlebar
Ergotec Riser 30 780mm x 30mm x 12°
Seat
Saddle
Ergon ST10 trekking
Seatpost
Ergotec Atar
Motor & Battery
Motor
Shimano DU-EP801 mid-motor, 85Nm
Battery
Shimano BT-EN806 630Wh Intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.505 mm |
| Bottom Bracket Height | 285 mm | 285 mm |
| Front Center | 727 mm | 739 mm |
| Rake | 46 mm | 46 mm |
| Trail | 97 mm | 97 mm |
| Stack | 658 mm | 662 mm |
| Reach | 430 mm | 440 mm |
| Top Tube Length | 618 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 125 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1178 mm | 1190 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 160 cm | 170 cm |
| Rider Max Height | 175 cm | 185 cm |
