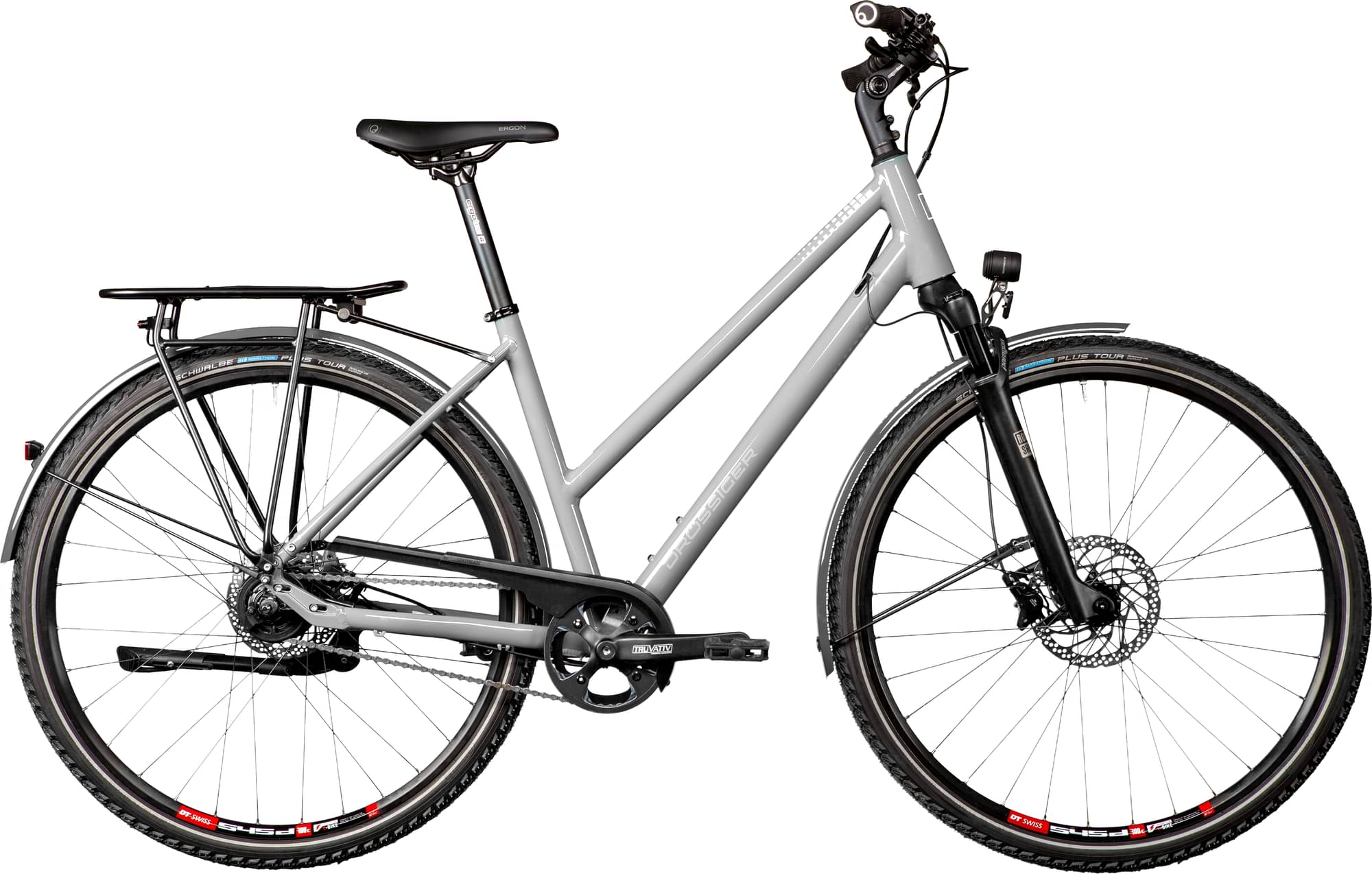

drossiger Drössiger Trekking Comfort Trapez 2 2024
2024 Urban
Estimate price |
1,395$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Truvativ -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR-Lite trapeze
Suspension Fork
Suntour NEX-E25 NLO 63mm with lockout
Drivetrain
Cassette
Shimano Nexus SM-GEAR 22T.
Crank
Truvativ E400 38Z.
Chain
KMC X9
Pedals
M-Wave Steady Urban Griptape
Wheels
Rims
DT Swiss 545d 28" / Shimano hub dynamo DH-3D37 Centerlock / DT Swiss Factory 2.0
Tires
Schwalbe Road Cruiser 42-622 K-Guard Reflex
Brakes
Brakes
Front: Shimano MT201, Rear: Shimano MT201
Cockpit
Stem
Ergotec Sepia XL ahead 50, angle adjustable
Handlebar
Ergotec Ergo XL Riser 680mm x 30mm x 14°
Seat
Saddle
Ergon ST10 trekking
Seatpost
Ergotec Atar
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm |
|---|---|---|---|
| Stack Reach Ratio | 1.595 mm | 1.592 mm | 1.587 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Front Center | 638 mm | 649 mm | 660 mm |
| Rake | 43 mm | 43 mm | 44 mm |
| Trail | 85 mm | 85 mm | 84 mm |
| Stack | 611 mm | 621 mm | 630 mm |
| Reach | 383 mm | 390 mm | 397 mm |
| Top Tube Length | 570 mm | 580 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1076 mm | 1087 mm | 1098 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
