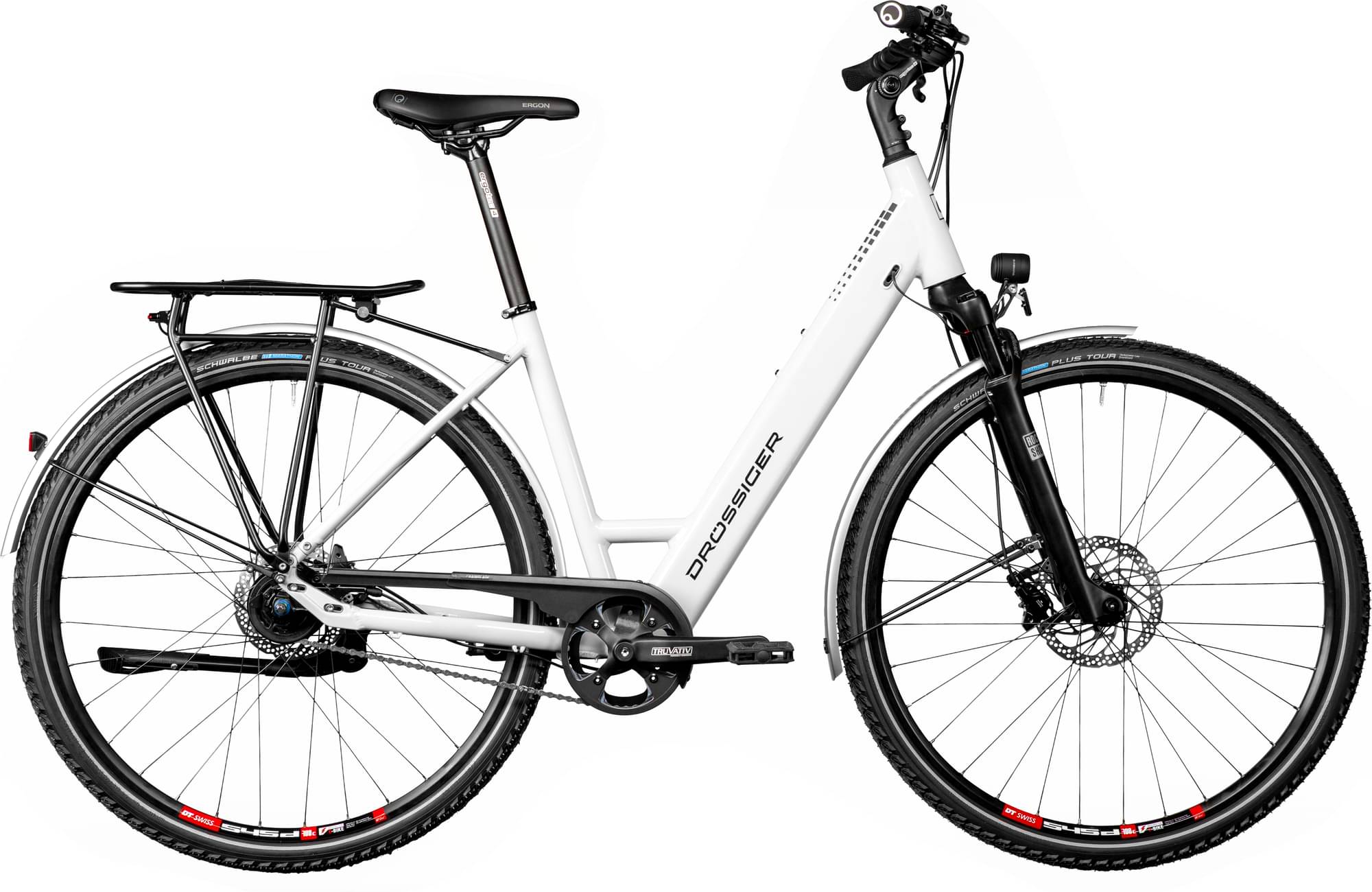

drossiger Drössiger Trekking Comfort Wave 1 2024
2024 Urban
Estimate price |
2,209$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset Truvativ -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR Lite Wave
Suspension Fork
Rock Shox Paragon Gold RL 65mm with lockout
Drivetrain
Cassette
Shimano Alfine CS-S500 20T.
Crank
Truvativ E400 38Z.
Chain
KMC X9
Pedals
M-Wave Steady Urban Griptape
Wheels
Rims
DT Swiss 545d 28" / Shutter Precision PL-8 Centerlock / DT Swiss Competition 2.0-1.8-2.0
Tires
Schwalbe Marathon Plus Tour 42-622 extra pannensicher
Brakes
Brakes
Front: Shimano MT410, Rear: Shimano MT410
Cockpit
Stem
Ergotec Sepia XL ahead 50, angle adjustable
Handlebar
Ergotec Ergo XL Riser 680mm x 30mm x 14°
Seat
Saddle
Ergon ST10 trekking
Seatpost
Ergotec Atar
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm |
|---|---|---|---|
| Stack Reach Ratio | 1.595 mm | 1.592 mm | 1.587 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Front Center | 638 mm | 649 mm | 660 mm |
| Rake | 43 mm | 43 mm | 44 mm |
| Trail | 85 mm | 85 mm | 84 mm |
| Stack | 611 mm | 621 mm | 630 mm |
| Reach | 383 mm | 390 mm | 397 mm |
| Top Tube Length | 570 mm | 580 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1076 mm | 1087 mm | 1098 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
