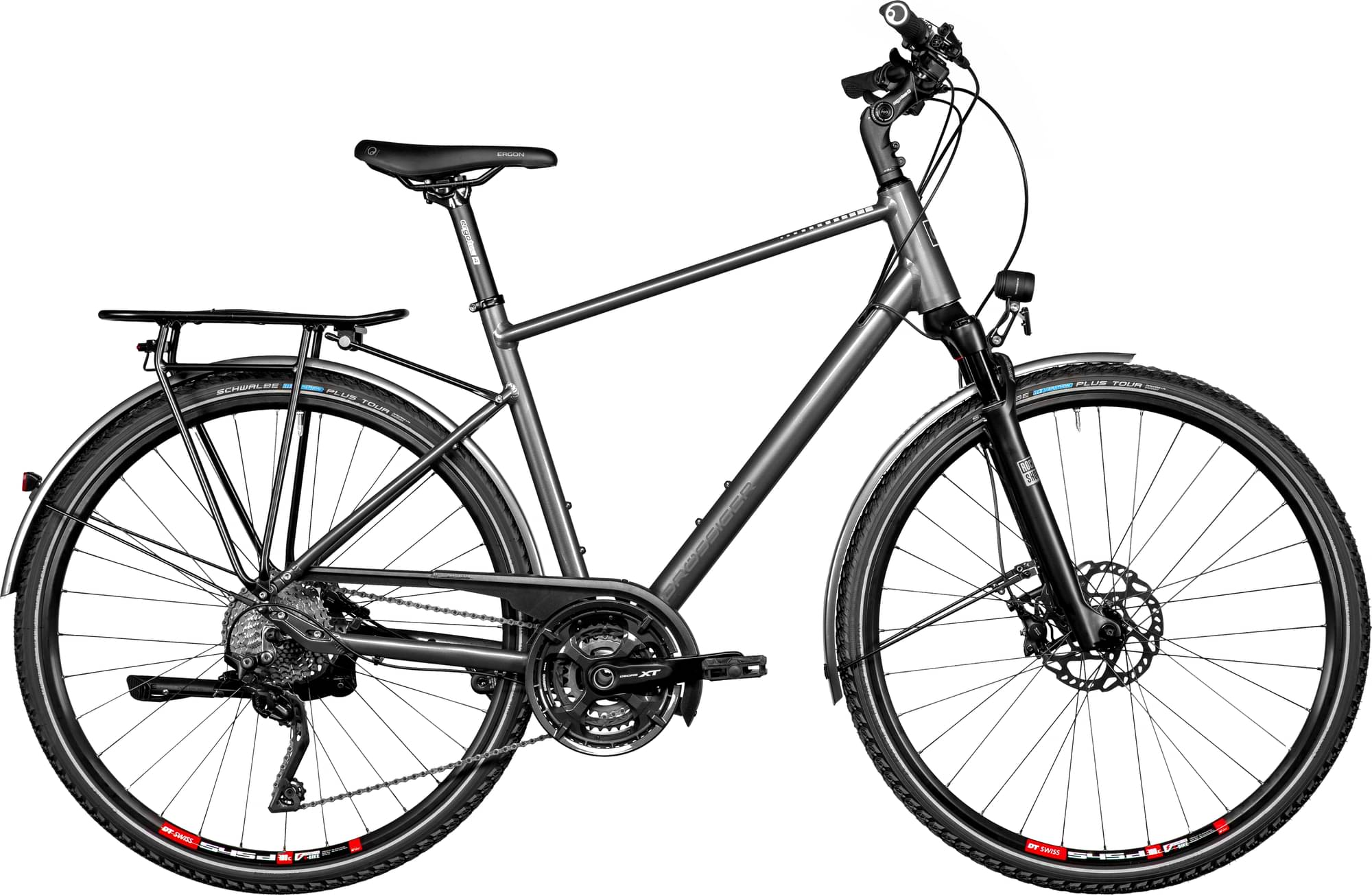

drossiger Drössiger Trekking Diamant 3 2024
2024 Urban
Estimate price |
1,162$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR-Lite Diamond
Suspension Fork
Suntour NEX-E25 NLO 63mm with lockout
Drivetrain
Rear Derailleur
Shimano Acera Trekking RD-T3000 9-speed
Front Derailleur
Shimano Acera Trekking FD-T3000 3x9
Cassette
Shimano CS-HG201 11-34 9-speed
Crank
Shimano Acera FC-T3010 48-36-26T
Chain
KMC X9
Pedals
M-Wave Steady Urban Griptape
Wheels
Rims
DT Swiss 545d 28" / Shimano hub dynamo DH-3D37 Centerlock black / DT Swiss Factory 2.0 black
Tires
Schwalbe Road Cruiser 42-622 K-Guard Reflex
Brakes
Brakes
Front: Shimano MT201, Rear: Shimano MT201
Cockpit
Stem
Ergotec Sepia XL ahead 50, angle adjustable
Handlebar
Ergotec Ergo XL Riser 680mm x 30mm x 14°
Seat
Saddle
Ergon ST10 trekking
Seatpost
Ergotec Atar
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 49cm | 53cm | 57cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.575 mm | 1.572 mm | 1.533 mm | 1.559 mm | 1.521 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 643 mm | 654 mm | 664 mm | 675 mm | 686 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm | 84 mm |
| Stack | 611 mm | 621 mm | 621 mm | 639 mm | 639 mm |
| Reach | 388 mm | 395 mm | 405 mm | 410 mm | 420 mm |
| Top Tube Length | 575 mm | 585 mm | 595 mm | 605 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm | 570 mm | 610 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1081 mm | 1092 mm | 1102 mm | 1113 mm | 1124 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
