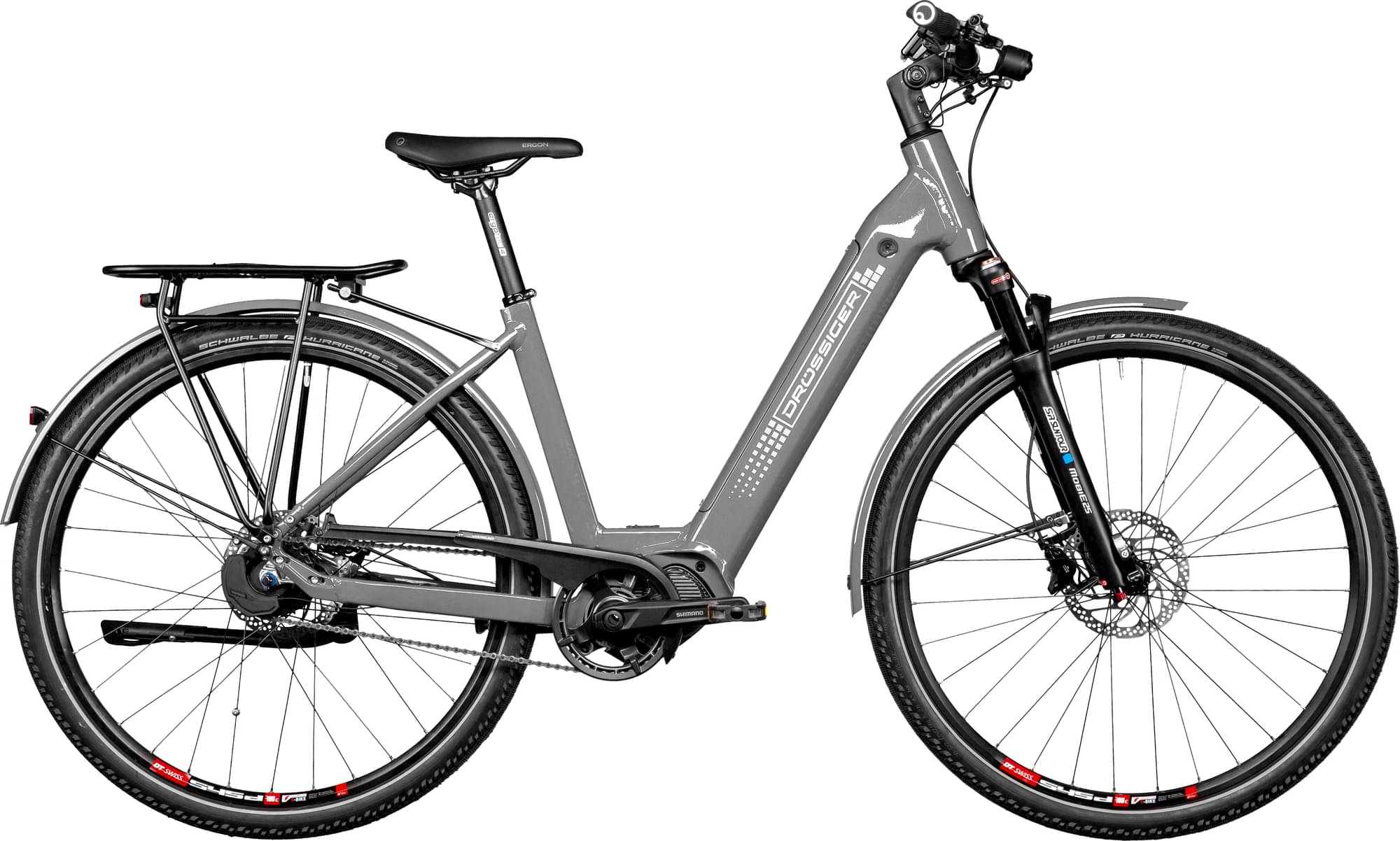

drossiger Drössiger Trekking-E Comfort Wave 1 2024
2024 E-bike
Estimate price |
5,990$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 85Nm mid-drive -
Battery Shimano BT-EN806 630Wh Intube -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR-Lite Intube Wave
Suspension Fork
Suntour Mobie E25 Air 63mm with lockout
Drivetrain
Cassette
Shimano Nexus CS-C7000 27T.
Crank
Shimano FC-EM600
Chain
KMC X9
Pedals
M-Wave Steady Urban Griptape
Wheels
Rims
DT Swiss 545d 28" / Shimano HB-MT400 15x100 TA black / DT Swiss Factory 2.0 black
Tires
Schwalbe Hurricane Double Defense 29x2.0 Performance GreenGuard
Brakes
Brakes
Front: Shimano MT410, Rear: Shimano MT410
Cockpit
Stem
Ergotec Sepia XL ahead 50, angle adjustable
Handlebar
Ergotec Ergo XXL-i Riser 700mm x 30mm x 16°
Seat
Saddle
Ergon ST10 trekking
Seatpost
Ergotec Atar
Motor & Battery
Motor
Shimano DU-EP801 mid-motor, 85Nm
Battery
Shimano BT-EN806 630Wh Intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.527 mm | 1.515 mm | 1.481 mm | 1.448 mm |
| Front Center | 689 mm | 703 mm | 713 mm | 723 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 640 mm | 650 | 650 | 650 |
| Reach | 419 mm | 429 mm | 439 mm | 449 mm |
| Top Tube Length | 603 mm | 616 mm | 626 mm | 636 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1145 mm | 1159 mm | 1169 mm | 1179 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
