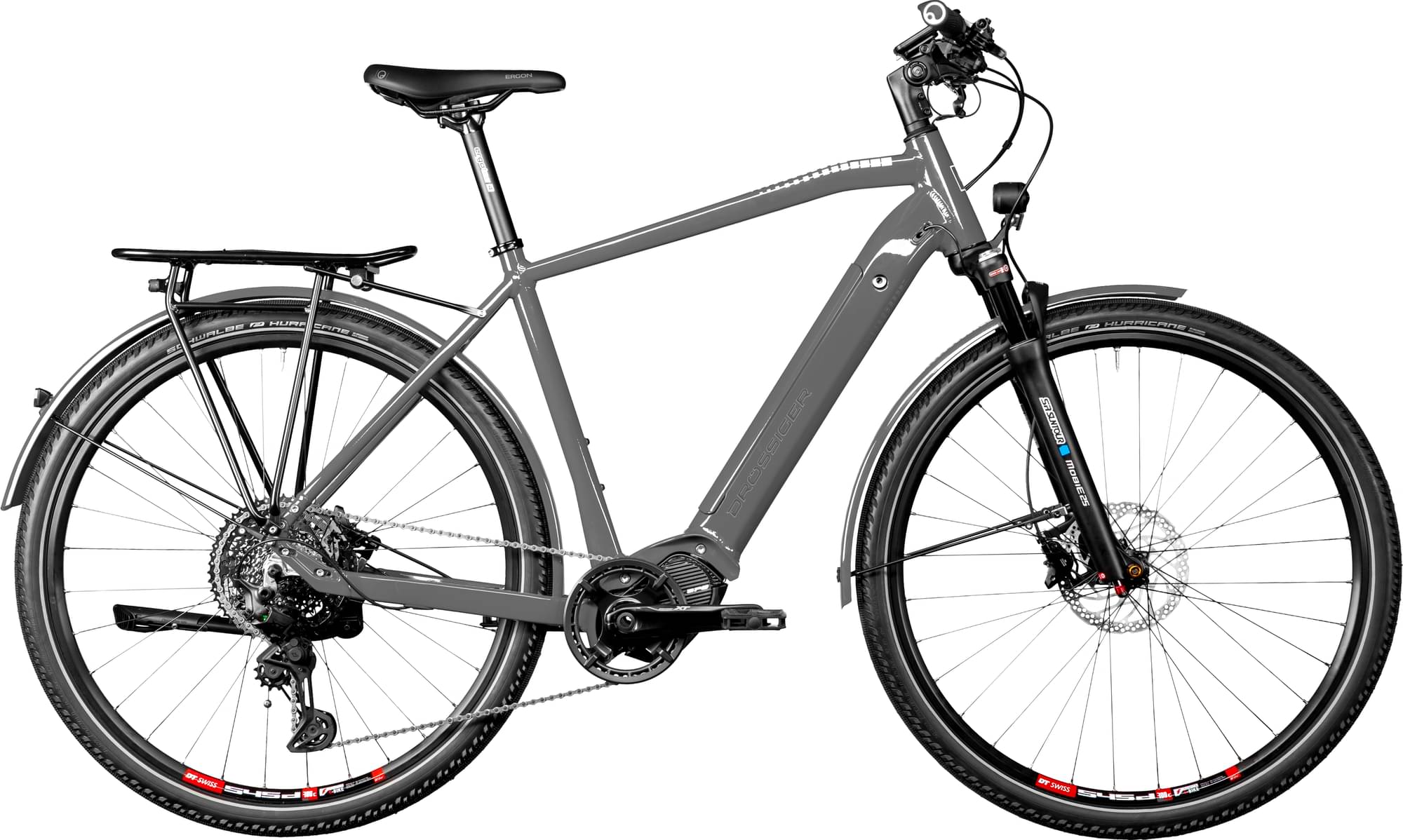

drossiger Drössiger Trekking-E Diamant 2 2024
2024 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork Suntour MOBIE
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-EN806 630Wh Intube -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR-Lite Intube Diamond
Suspension Fork
Suntour Mobie A32 Coil 75mm with lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5130 Linkglide 10-speed
Cassette
Shimano Cues CS-LG400 Linkglide 10-speed 11-43
Crank
Shimano FC-EM600
Chain
KMC e11
Pedals
M-Wave Steady Urban Griptape
Wheels
Rims
DT Swiss rim U623 29" / Shimano HB-TC500-15 Centerlock 15x100 TA 32L front / DT Swiss Factory 2.0 black
Tires
Schwalbe Hurricane Double Defense 29x2,0 Performance GreenGuard, extra pannensicher
Brakes
Brakes
Front: Shimano MT201, Rear: Shimano MT201
Cockpit
Stem
Ergotec Sepia XL ahead 50, angle adjustable
Handlebar
Ergotec Ergo XXL-i Riser 700mm x 30mm x 16°
Seat
Saddle
Ergon ST10 trekking
Seatpost
Ergotec Atar
Motor & Battery
Motor
Shimano DU-EP600 mid-motor, 85Nm
Battery
Shimano BT-EN806 630Wh Intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 57cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.562 mm | 1.584 mm | 1.582 mm | 1.554 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 663 mm | 674 mm | 685 mm | 700 |
| Rake | 37 mm | 44 mm | 44 mm | 43 mm |
| Trail | 94 mm | 87 mm | 87 mm | 88 mm |
| Stack | 631 mm | 640 mm | 650 | 659 mm |
| Reach | 404 mm | 404 mm | 411 mm | 424 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 530 mm | 570 mm | 610 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1119 mm | 1130 mm | 1141 mm | 1156 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Front Travel | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
