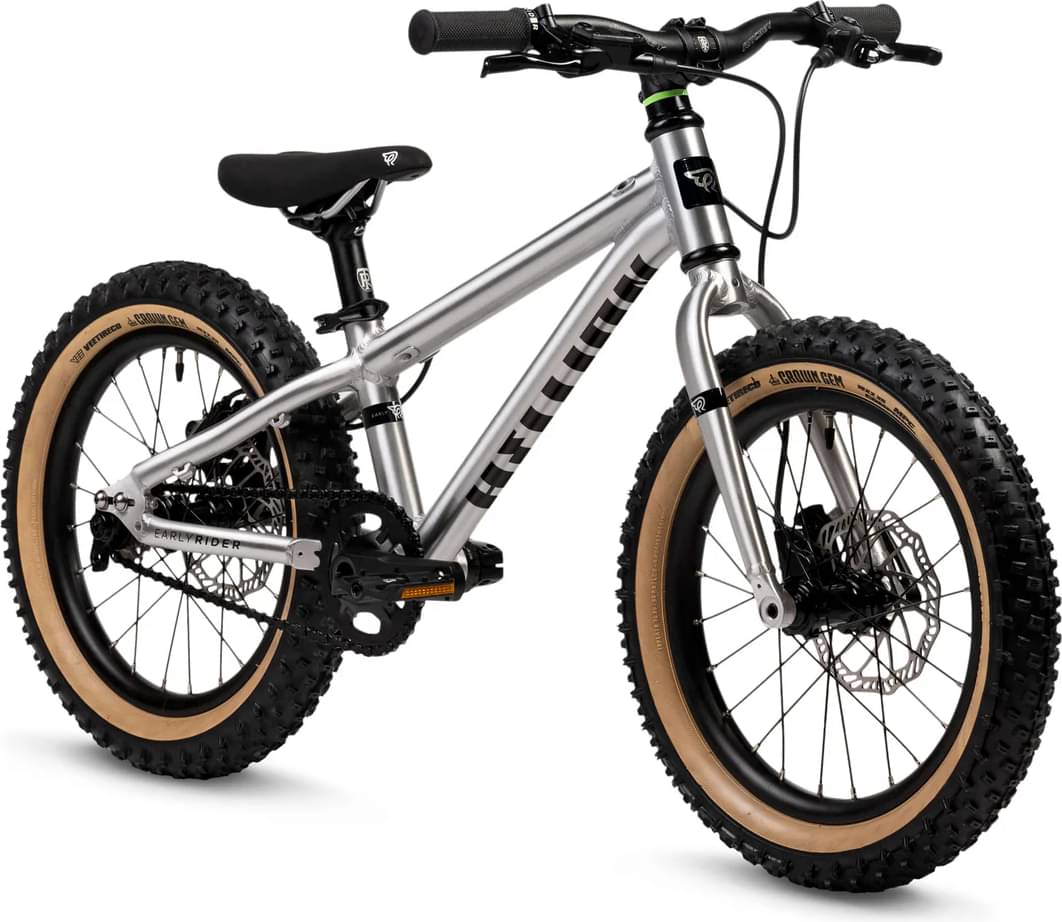

Early Rider Hellion 16 2024
2024 Youth
Estimate price |
930$
Weight | 6.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRIPLE BUTTED AL6061 INTERNAL CABLING, FORGED D/OUTS
Suspension Fork
RIGID DISC AL6061, 12MM THRU AXLE, FORGED D/OUTS
Drivetrain
Cassette
ER SINGLE SPEED KIT
Crank
SAMOX 110MM DIRECT MOUNT, NQF
Bottom Bracket
SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE BEARING
Chain
KMC X10
Pedals
ER RESIN PLATFORM, SEALED CARTRIDGE BEARING
Wheels
Front Hub
STRAIGHT PULL DISC, 12x100MM THRU AXLE, 24H
Rear Hub
STRAIGHT PULL DISC, 12x142 THRU AXLE, 24H
Rims
16 x 24H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE
Tires
Front: VEE CROWN GEM 16x2.25", 27TPI WB, SKINWALL, Rear: VEE CROWN GEM 16x2.25", 27TPI WB, SKINWALL
Brakes
Brakes
PROMAX DSK926 HYDRAULIC JR, 140MM ROTORS
Cockpit
Stem
RITCHEY OS FORGED AL6061, 35MM REACH
Handlebar
480MM RITCHEY OS AL6061, 18MM RISE
Grips
ER SOFT TOUCH MUSHROOM 100MM
Headset
1 1/8” CARTRIDGE BEARING, CONVENTIONAL
Seat
Saddle
ER WINGED, RAILED
Seatpost
RITCHEY 27.2MM x 185MM
Fit data
Geometry
