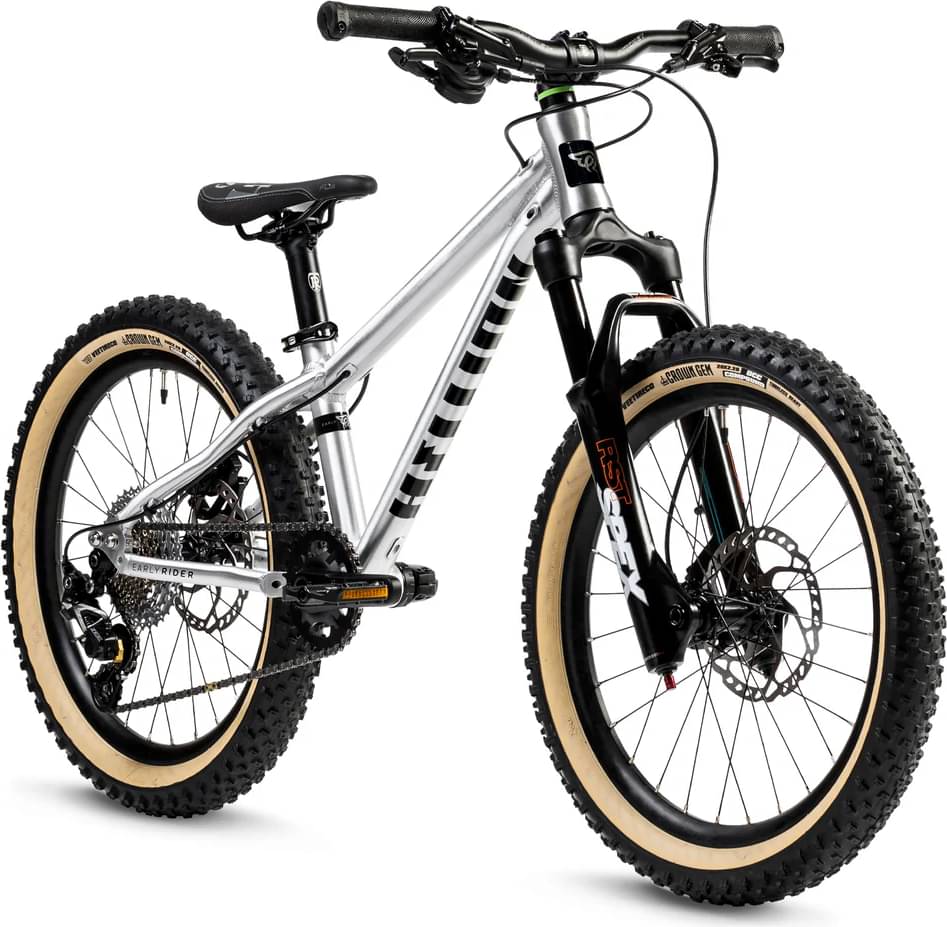

Early Rider Hellion 20 2024
2024 Youth
Estimate price |
1,628$
Weight | 9.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork RST SPEX
-
Groupset GX -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRIPLE BUTTED AL6061, INTERNAL CABLING, DROPPER READY
Suspension Fork
RST SPEX, 80MM TRAVEL, 15mm THRU AXLE
Drivetrain
Rear Derailleur
SRAM GX 10SPD SHORT CAGE
Shift Levers
SRAM GX TRIGGER RH 10SPD
Cassette
SRAM PG1020 11-36T, 10SPD
Crank
SAMOX 127MM DIRECT MOUNT, NARROW Q FACTOR
Bottom Bracket
ER EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING
Chain
KMC X10
Pedals
ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING
Wheels
Front Hub
CNC'D STRAIGHT PULL AL6061, 15x100MM THRU AXLE
Rear Hub
CNC'D STRAIGHT PULL AL6061, 12x142 THRU AXLE
Rims
20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE
Tires
Front: VEE CROWN GEM SKINWALL 20x2.25", 72TPI FOLDING, Rear: VEE CROWN GEM SKINWALL 20x2.25", 72TPI FOLDING
Brakes
Brakes
SHIMANO DEORE BR-MT500, 160MM ROTORS
Cockpit
Stem
RITCHEY OS FORGED AL6061, 35MM REACH
Handlebar
560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE
Grips
ER LOCK ON KRATON 92MM
Headset
SEMI INTEGRATED, 1 1/8” CARTRIDGE BEARING
Seat
Saddle
ER WINGED, RAILED
Seatpost
RITCHEY, 30.9MM x 225MM, AL2014
Fit data
Geometry
