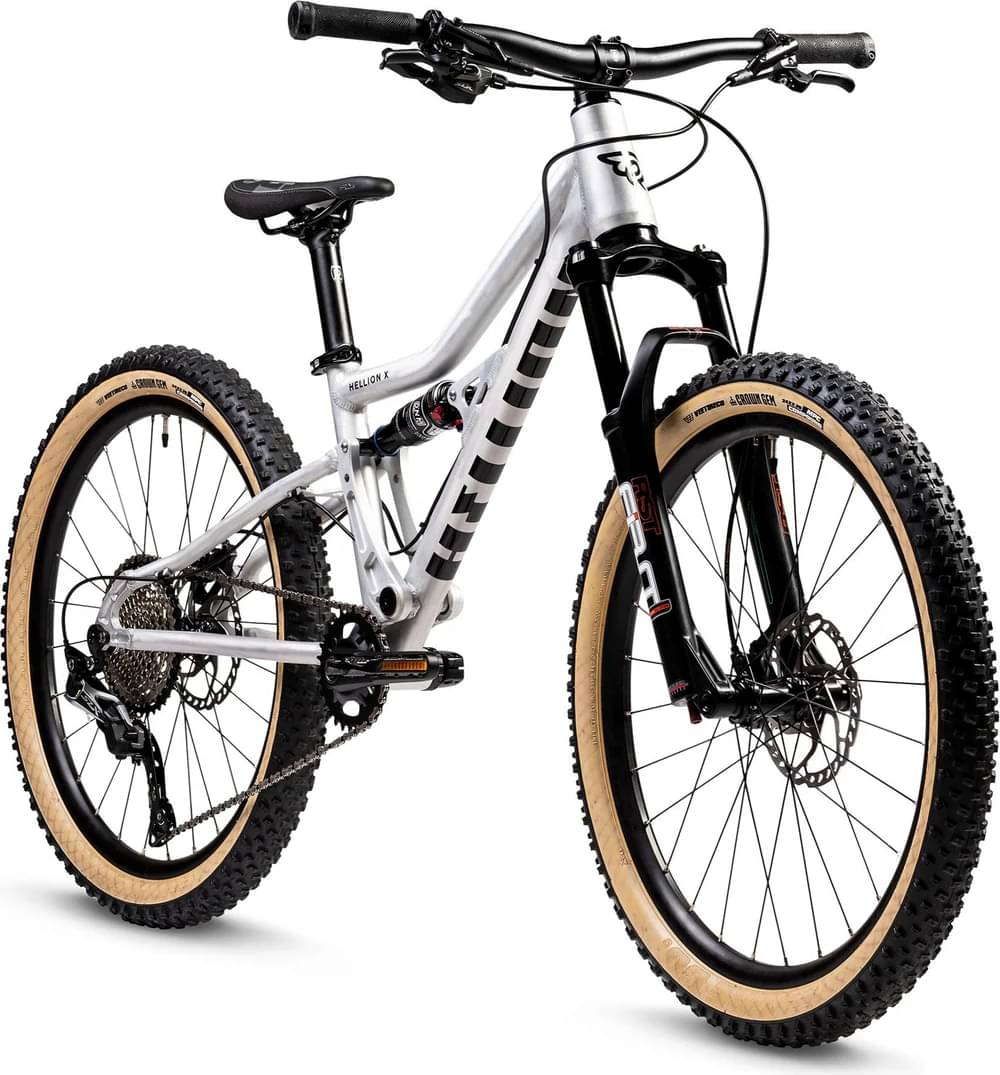

Early Rider Hellion X24 2024
2024 Youth
Estimate price |
2,326$
Weight | 11.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 125mm -
Fork RST
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BUTTED ALLOY FRAME, 100/125MM TRAVEL, DROPPER READY
Suspension Fork
RST FIRST AIR 15, 120MM TRAVEL, 15MM THRU AXLE, PM DISC MOUNT
Rear Shock
DNM AO-38RC, 165X38MM REBOUND ADJUST, PEDAL PLATFORM
Drivetrain
Rear Derailleur
SHIMANO RD-M5100, DEORE,SGS 11-SPEED
Shift Levers
SHIMANO SL-M5100-IR, DEORE, RIGHT,11-SPEEDRAPIDFIRE
Cassette
SHIMANO CS-M5100-11, DEORE, 11-SPEED 11-51T
Crank
SAMOX 150MM DIRECT MOUNT
Bottom Bracket
SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE BEARING
Chain
KMC X10
Pedals
SDG SLATER 90 PEDALS, BLACK
Wheels
Front Hub
CNC’D STRAIGHT PULL AL6061, 15MM THRU AXLE
Rear Hub
CNC'D STRAIGHT PULL AL6061, 12x142 (1.0) THRU AXLE
Rims
24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE
Tires
Front: VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING, Rear: VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING
Brakes
Brakes
SHIMANO DEORE BL-MT6000, 160MM ROTORS
Cockpit
Stem
RITCHEY OS FORGED AL6061, 35MM REACH
Handlebar
640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE
Grips
ER LOCK ON KRATON 120MM
Headset
SEMI INTEGRATED, TAPERED 1 1/8” - 1 1/5" CARTRIDGE BEARING
Seat
Saddle
SDG FLY JR, BLACK
Seatpost
RITCHEY, 30.9MM x 350MM, AL6061
Fit data
Geometry
