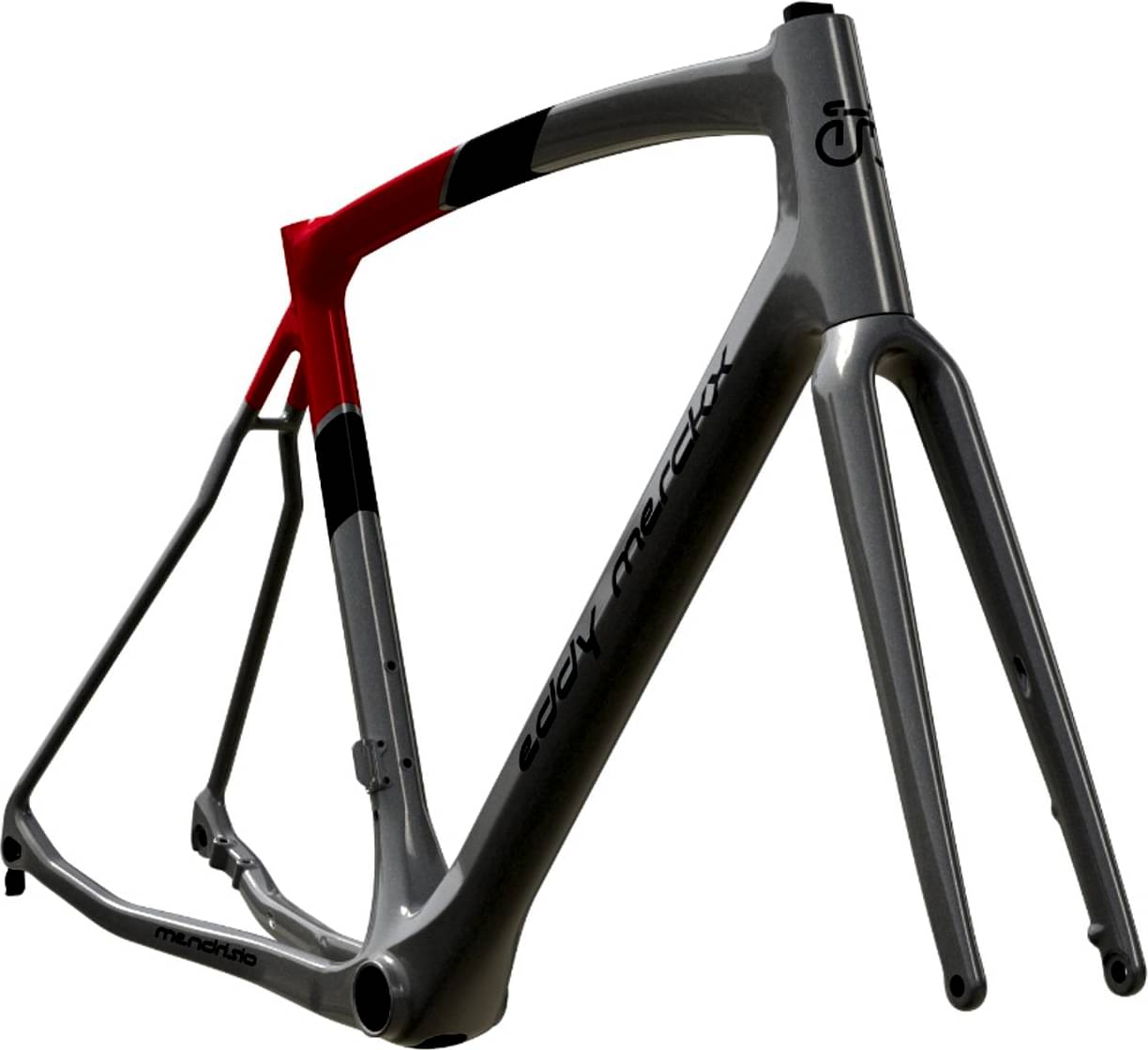

Eddy Merckx Mendrisio Frameset 2024
2024 Road
Estimate price |
2,326$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mendrisio Disc 7E7/size M/MEN02Bs
Suspension Fork
Mendrisio, 24-30T, Full Carbon, D-Shape steerer, TA 12x100mm
Drivetrain
Rear Derailleur
Frameset
Cockpit
Handlebar
Forza Cirrus Pro Integrated, 110mm - 400mm (cc shifters) - 420mm (cc drops), Stealth Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.474 mm | 1.508 mm | 1.539 mm |
| Bottom Bracket Height | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 580 mm | 581 mm | 591 mm | 605 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm |
| Trail | 65 mm | 56 mm | 53 mm | 55 mm | 52 mm |
| Stack | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 375 mm | 382 mm | 390 mm | 398 mm | 406 mm |
| Top Tube Length | 525 mm | 545 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 485 mm | 510 mm | 535 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 127 mm | 150 mm | 175 mm | 205 mm | 230 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 415 mm | 415 mm |
| Wheelbase | 980 mm | 982 mm | 992 mm | 1012 mm | 1022 mm |
| Bottom Bracket Drop | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
