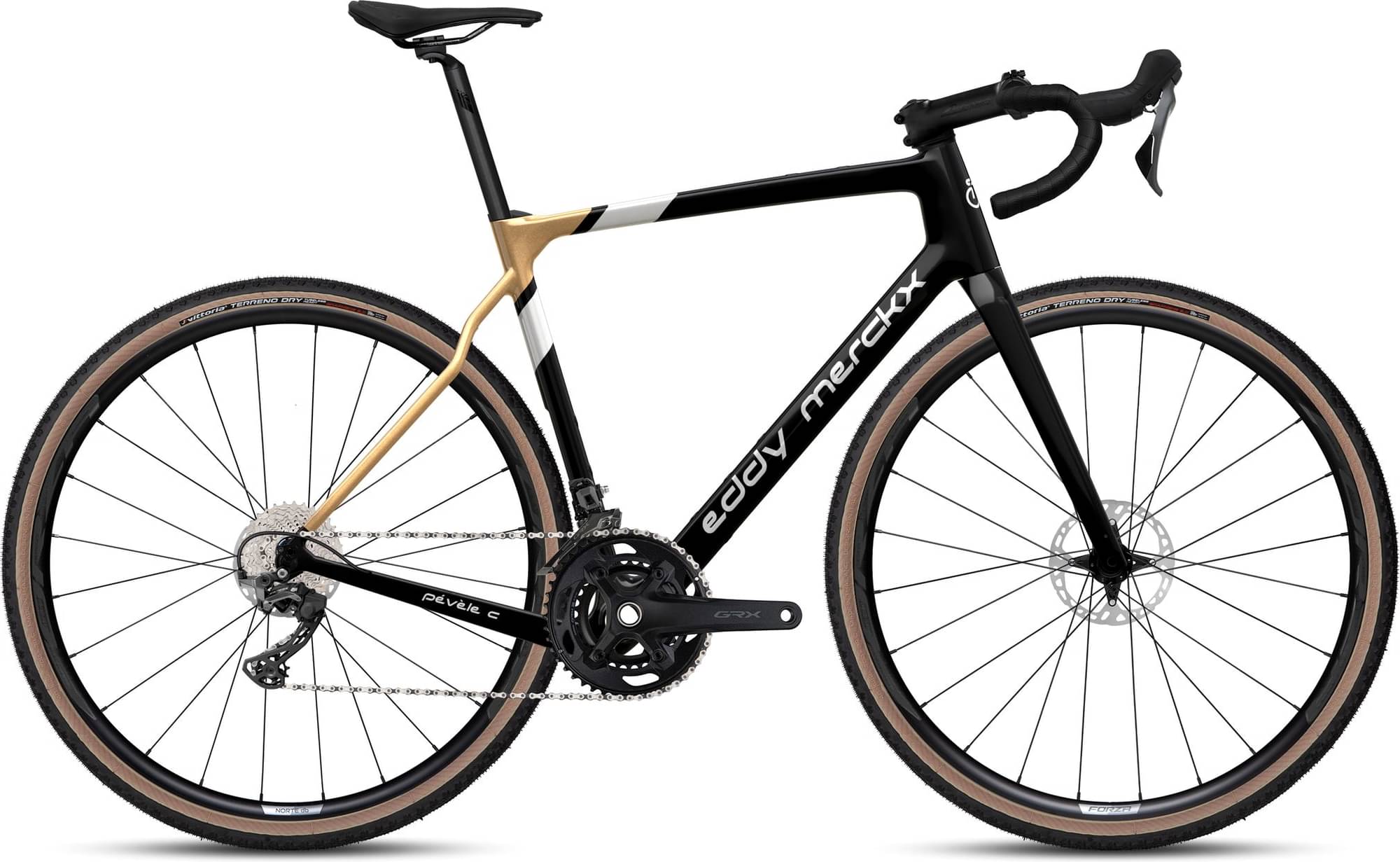

Eddy Merckx Pévèle Carbon Shimano GRX800 2x12sp 2024
2024 Road
Estimate price |
4,536$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Pévèle C 7E7/size M/PEC01Cm
Suspension Fork
4ZA AllRoad 7E7/PEC01Cm
Drivetrain
Rear Derailleur
Shimano GRX 800, 12sp, Medium Cage (36T)
Front Derailleur
Shimano GRX 800, Braze-On
Cassette
Shimano Ultegra, 11-34
Crank
172,5, 46-30
Pedals
Not included **
Wheels
Rims
Front: 4ZA Norte G DB F 24TL -3BF V2- NO STI, Rear: 4ZA Norte G DB R 24TL -3BF V2 SHI- NO STI
Tires
Vittoria Terreno Dry TLR, 700x38c, Folding-TLR, Tan Wall
Brakes
Brakes
Rim
Cockpit
Stem
Forza Stratos, 110 mm, Black Glossy
Handlebar
Ritchey Butano II Comp, 420 mm
Seat
Saddle
Selle Italia Model Y, Black
Seatpost
Forza Cirrus, Carbon-Alloy, 10mm Offset, 350mm, 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.501 mm | 1.524 mm | 1.536 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 265 mm | 265 mm |
| Front Center | 584 mm | 596 mm | 612 mm | 633 mm | 648 mm |
| Rake | 46 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 64 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Stack | 540 mm | 563 mm | 587 mm | 614 mm | 633 mm |
| Reach | 375 mm | 383 mm | 391 mm | 403 mm | 412 mm |
| Top Tube Length | 525 mm | 545 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 545 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 140 mm | 165 mm | 195 mm | 215 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 993 mm | 1005 mm | 1021 mm | 1043 mm | 1058 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 71 mm | 71 mm |
| Standover Height | 478 mm | 509 mm | 535 mm | 562 mm | 578 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
