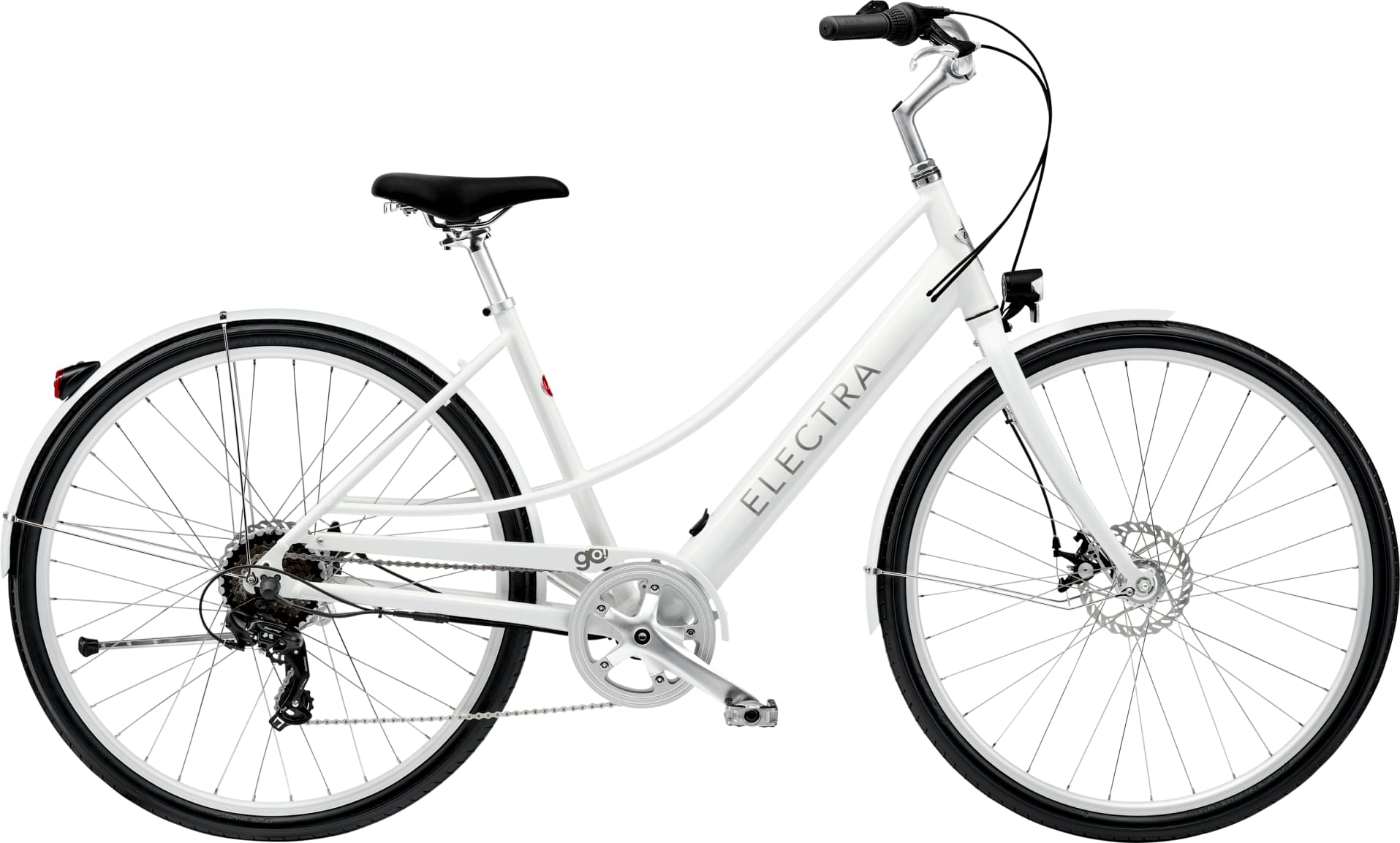

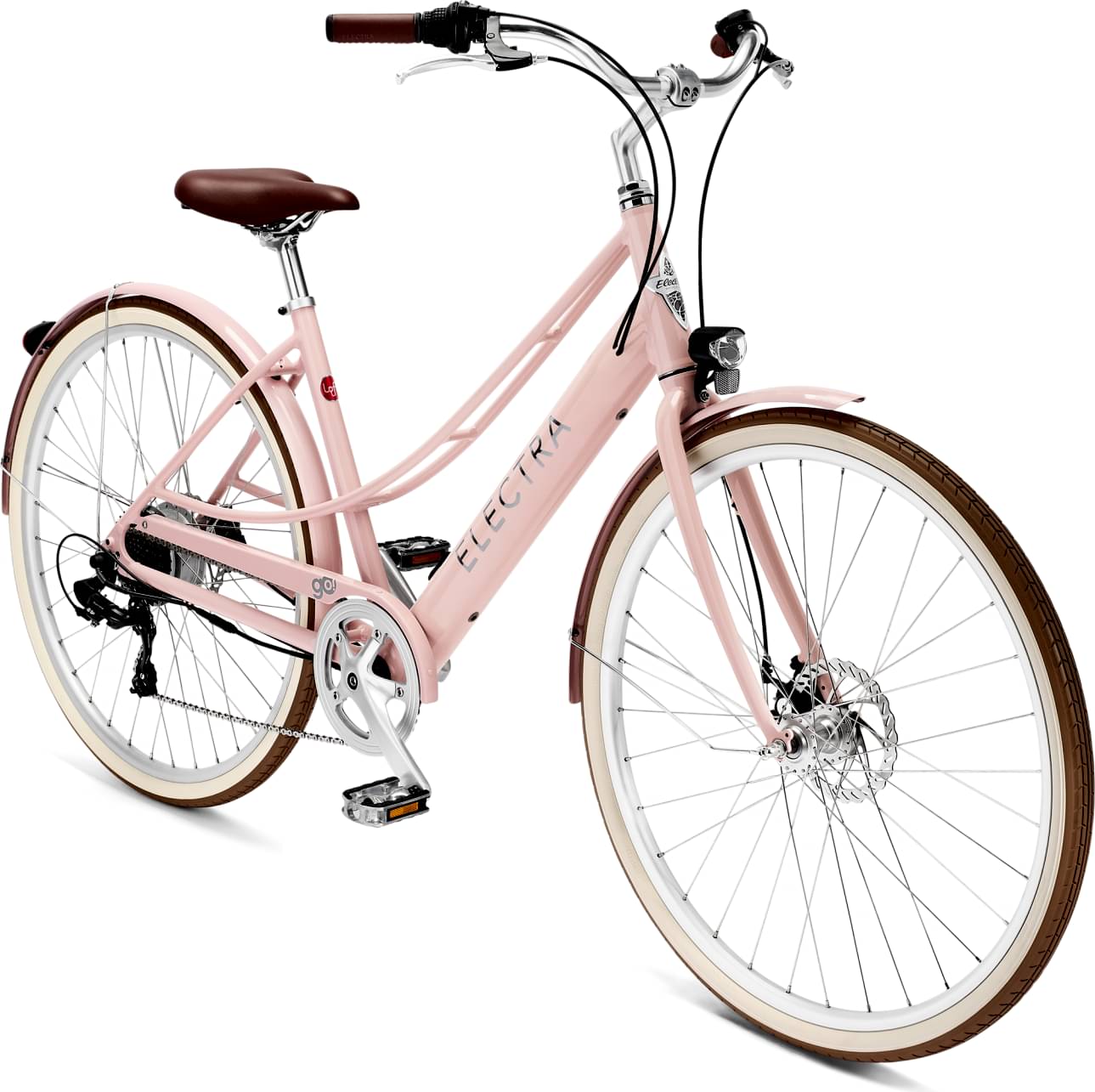

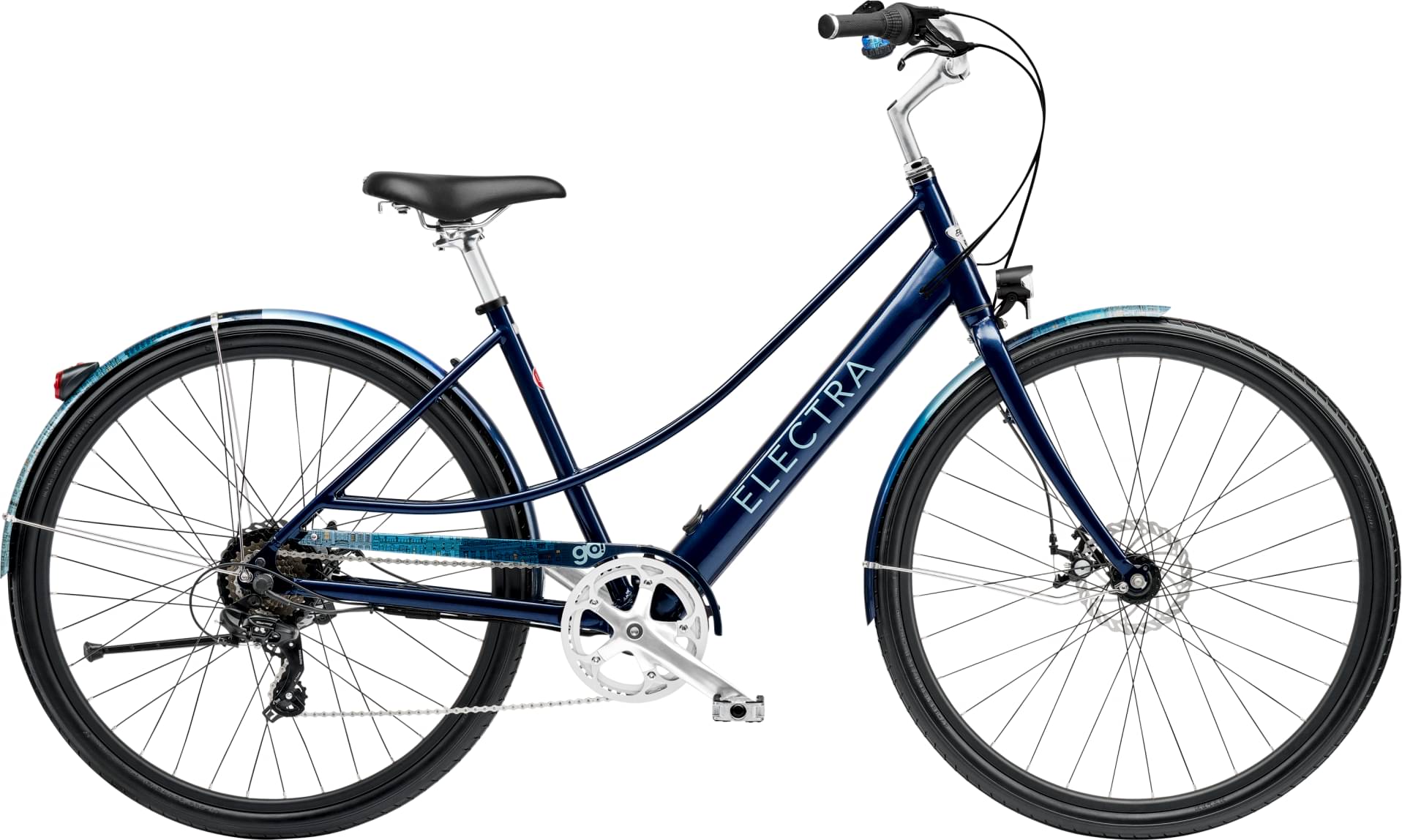

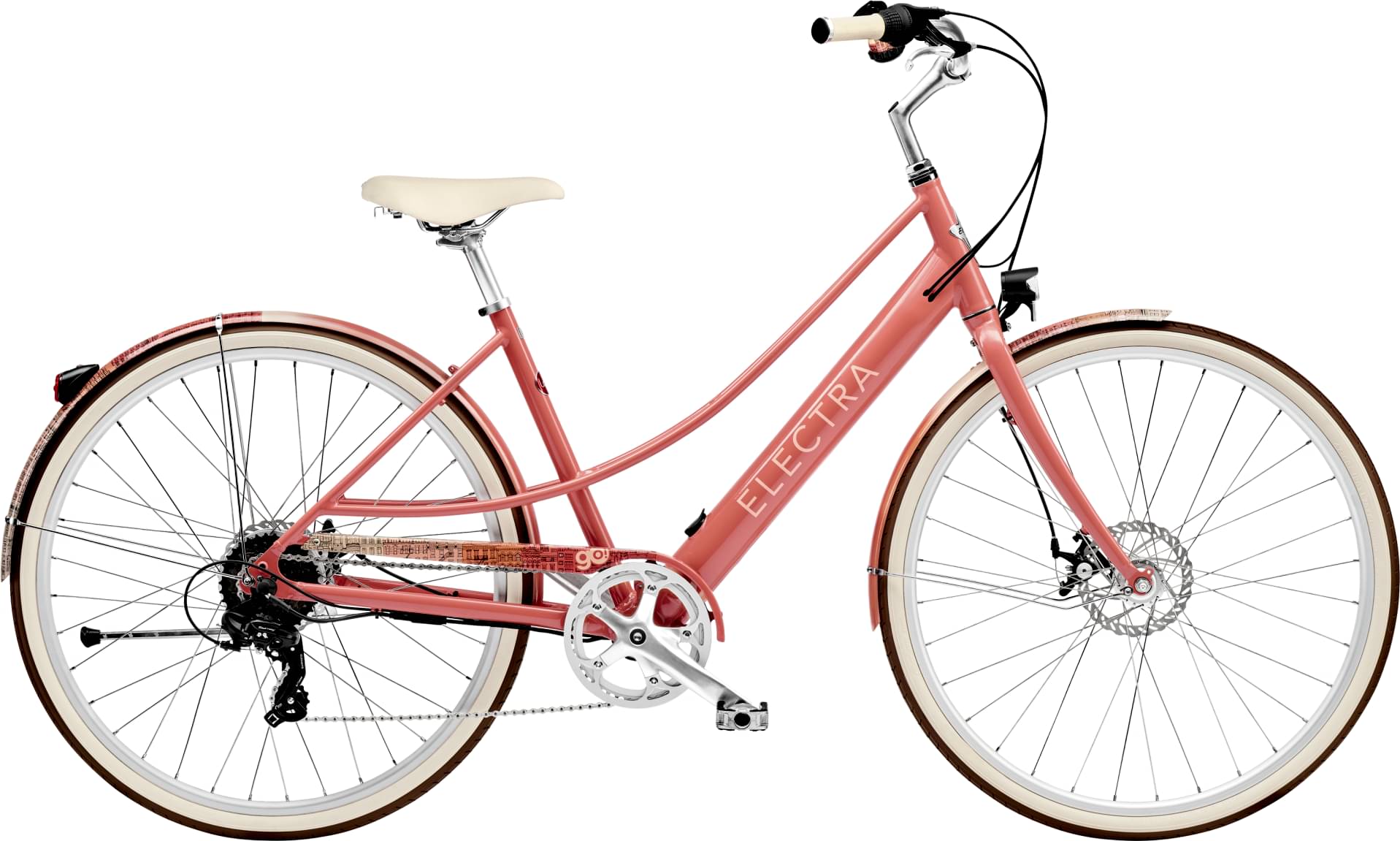

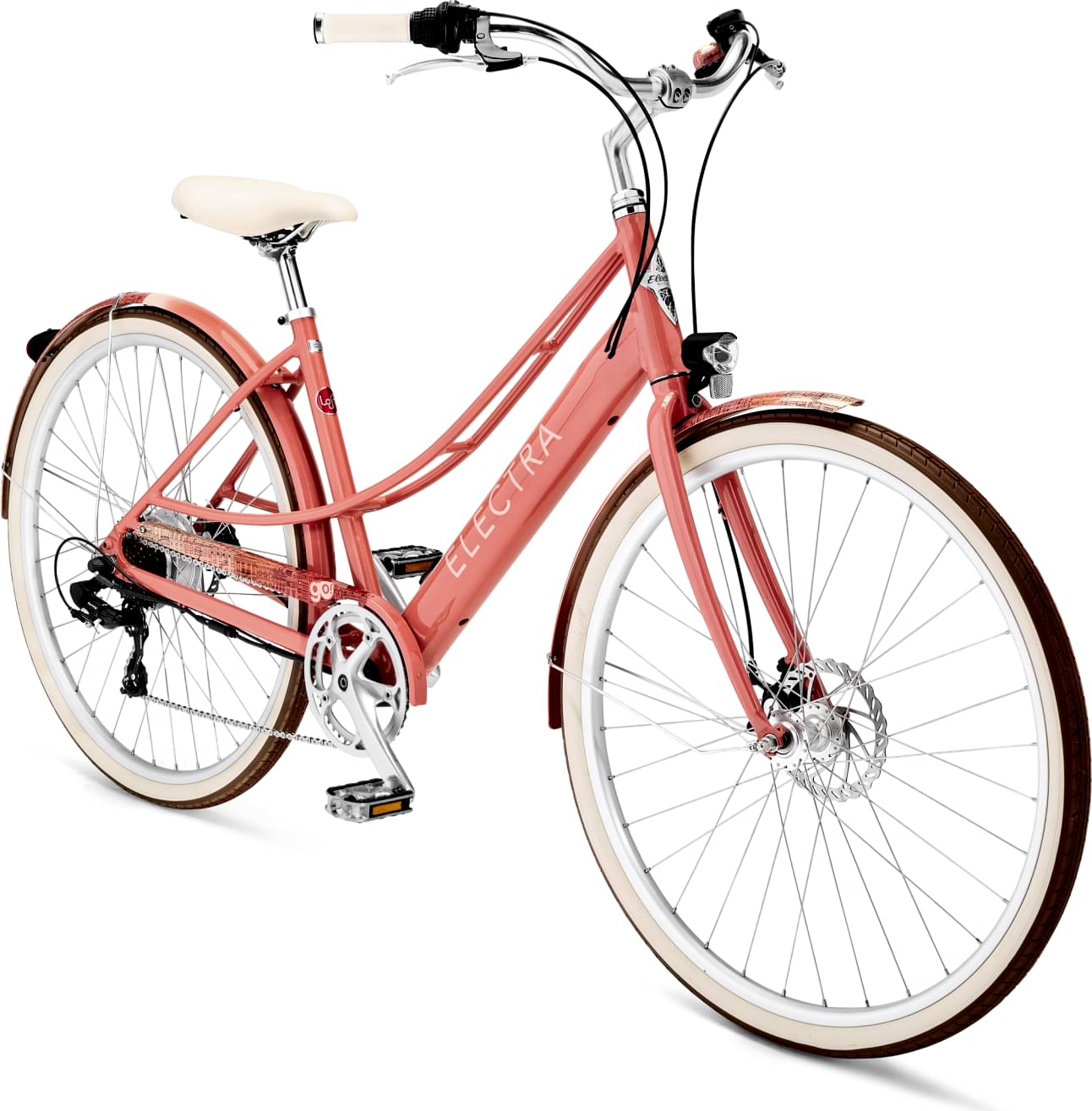

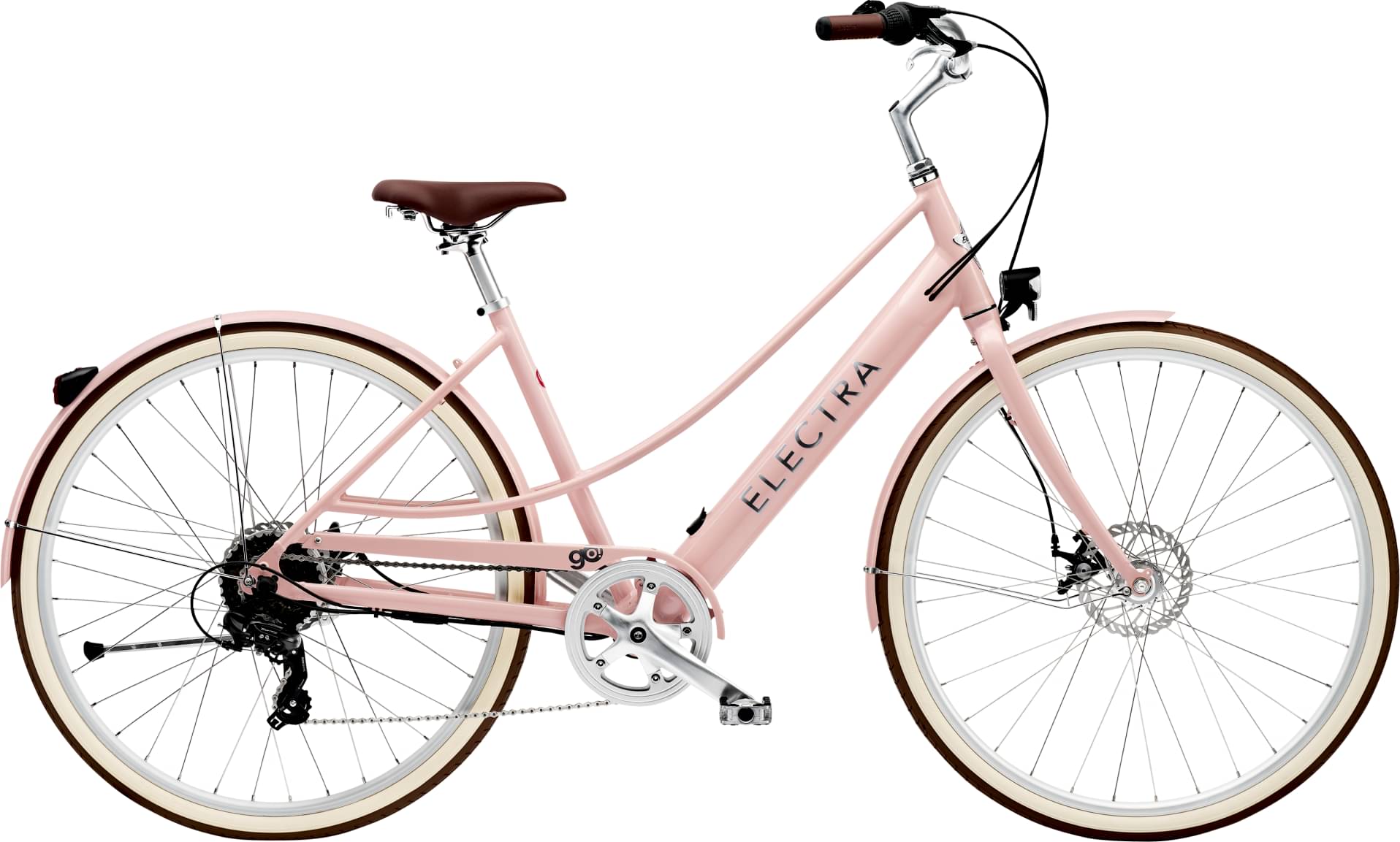

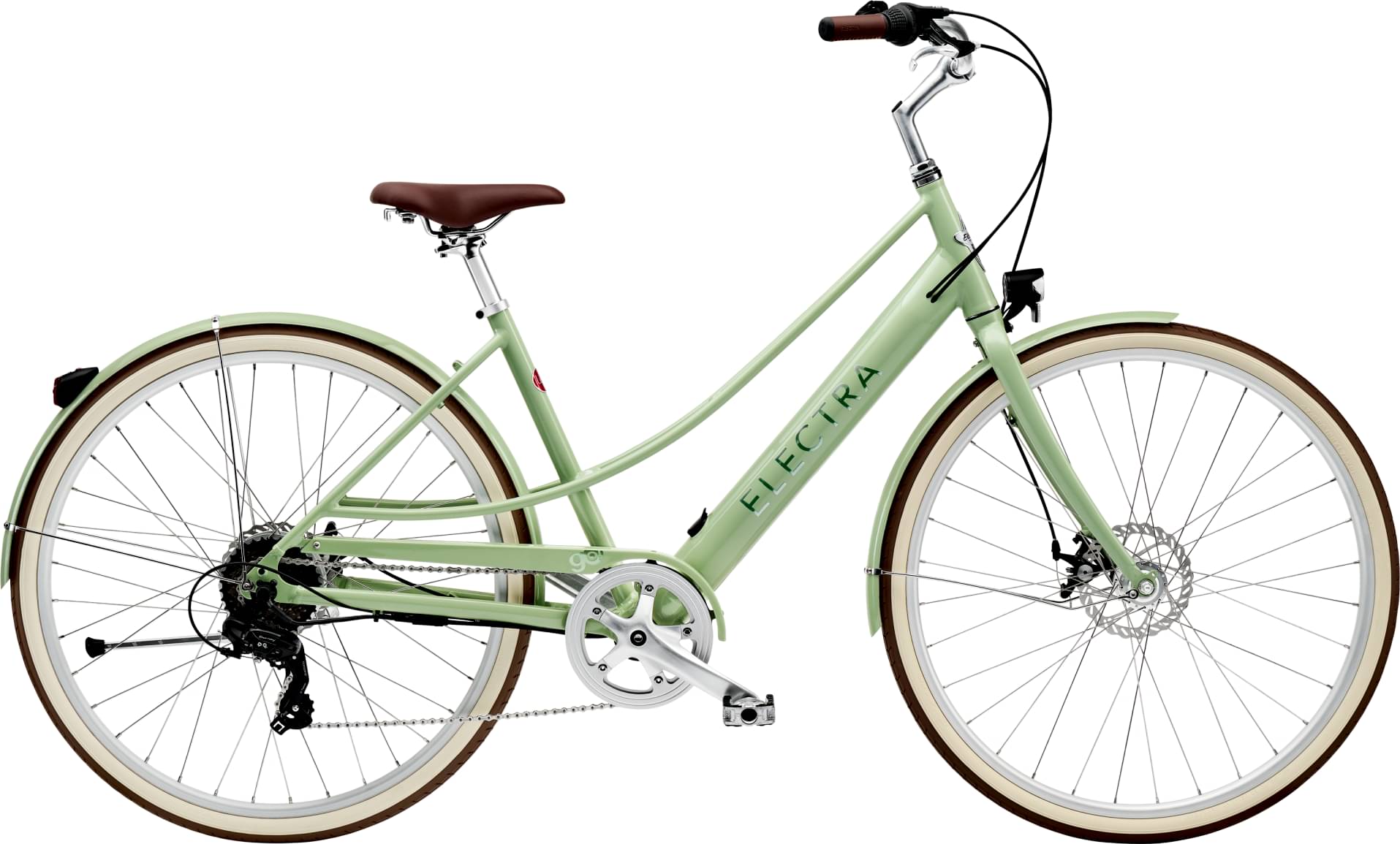

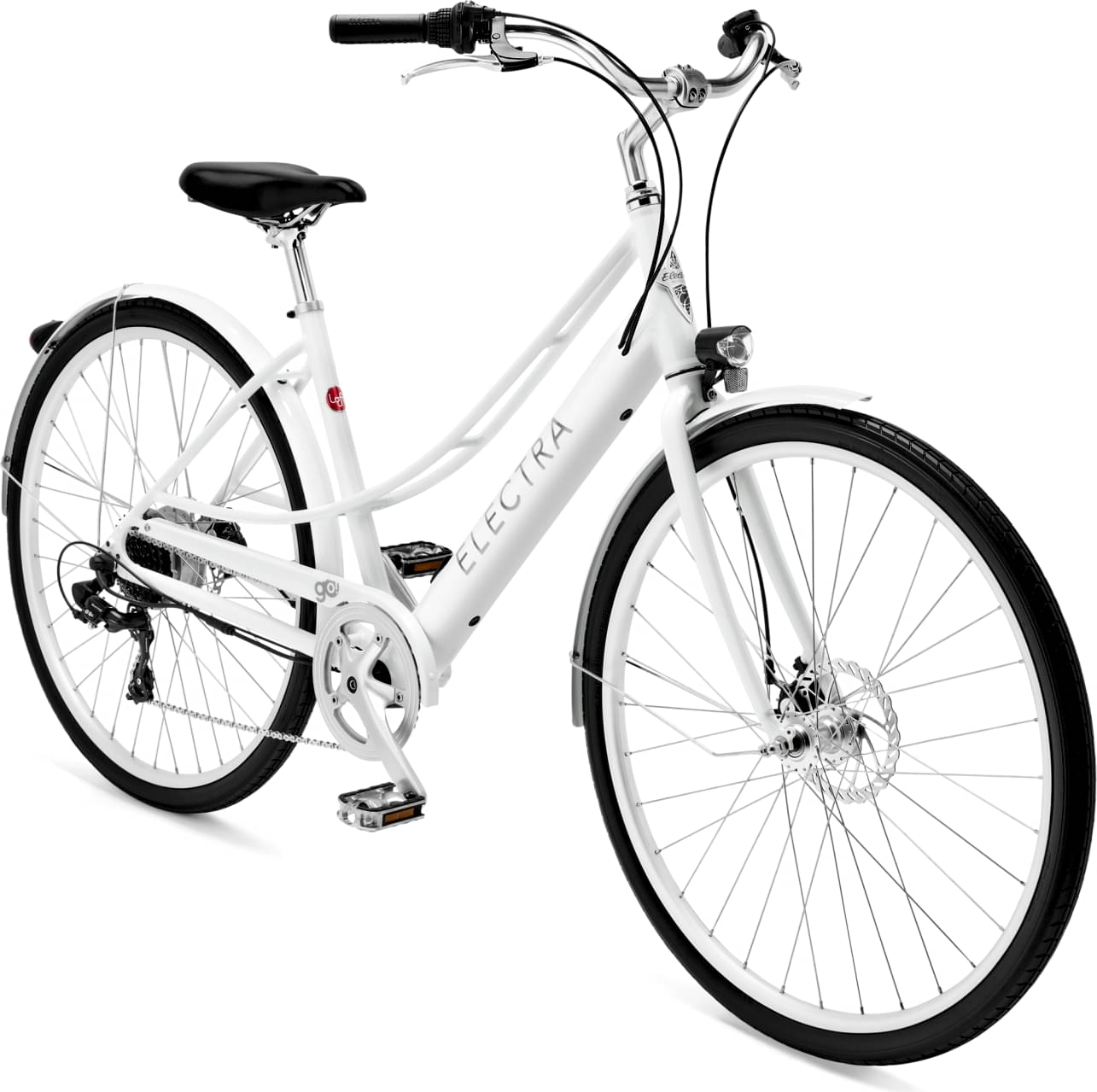

Electra Loft Go! 7D EQ Step-Thru 2025
2025 E-bike
Estimate price |
1,860$
Weight | 21 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Motor hub-drive -
Battery 250Wh, integrated in down tube -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

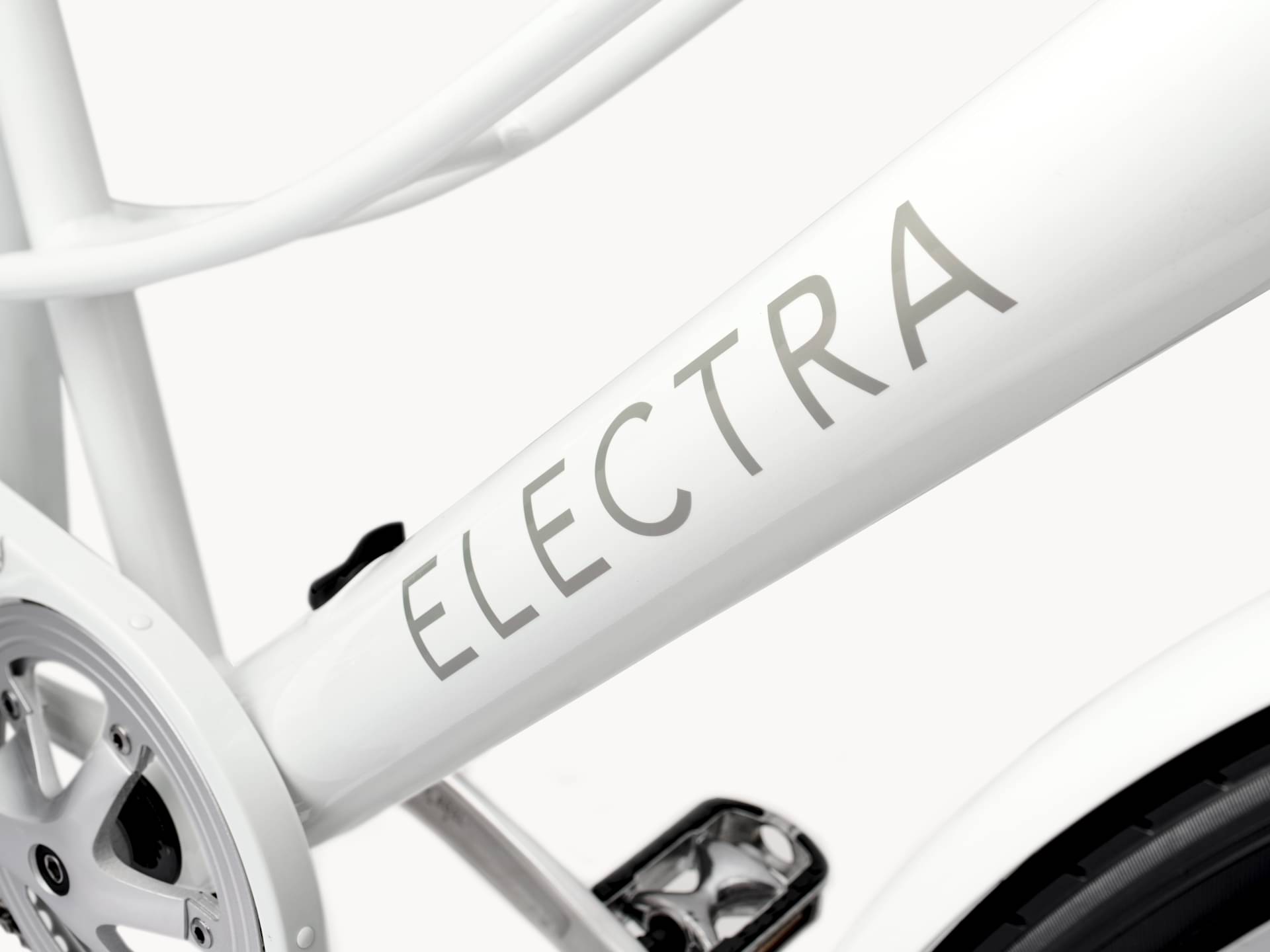

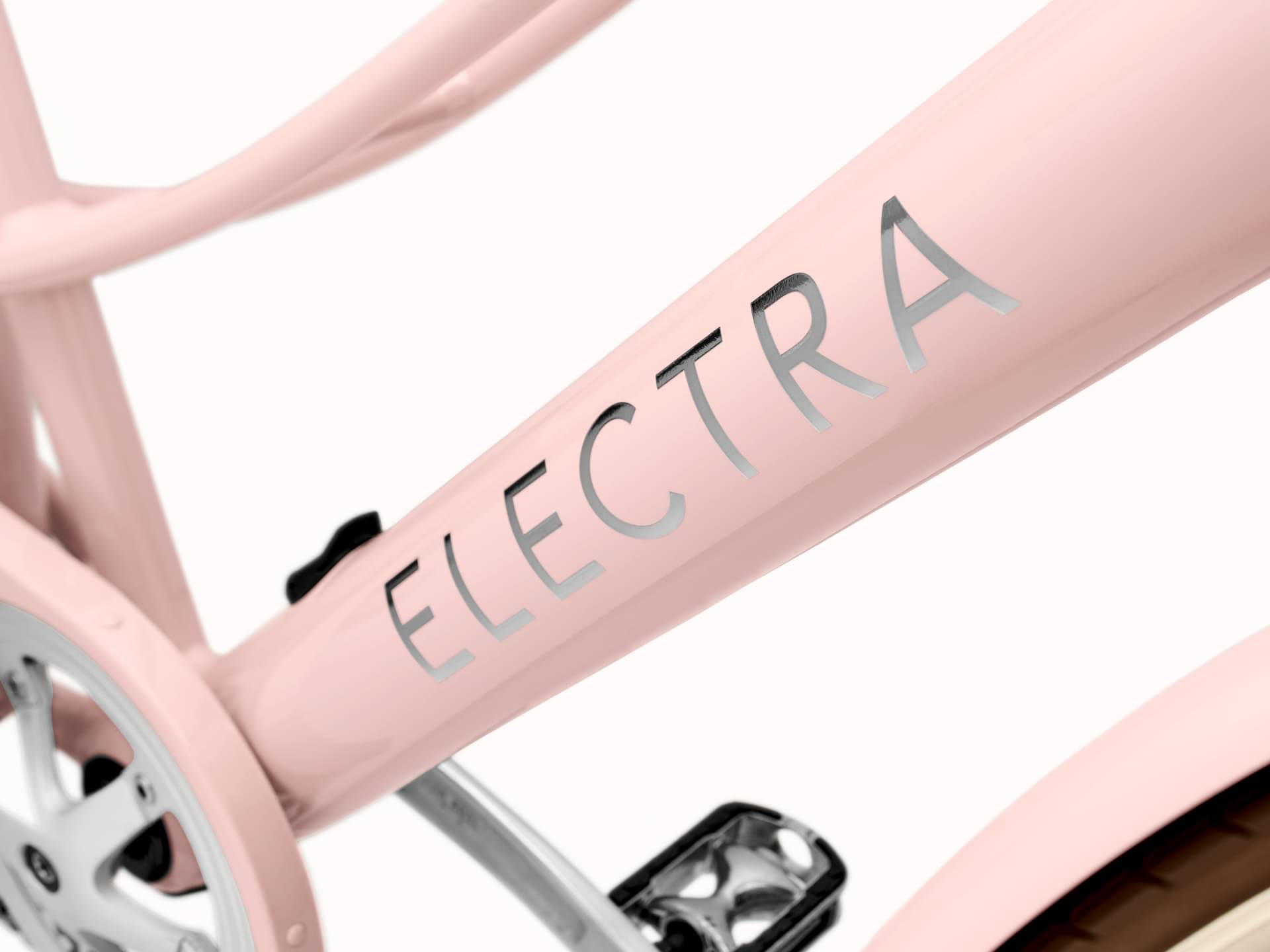

Frame

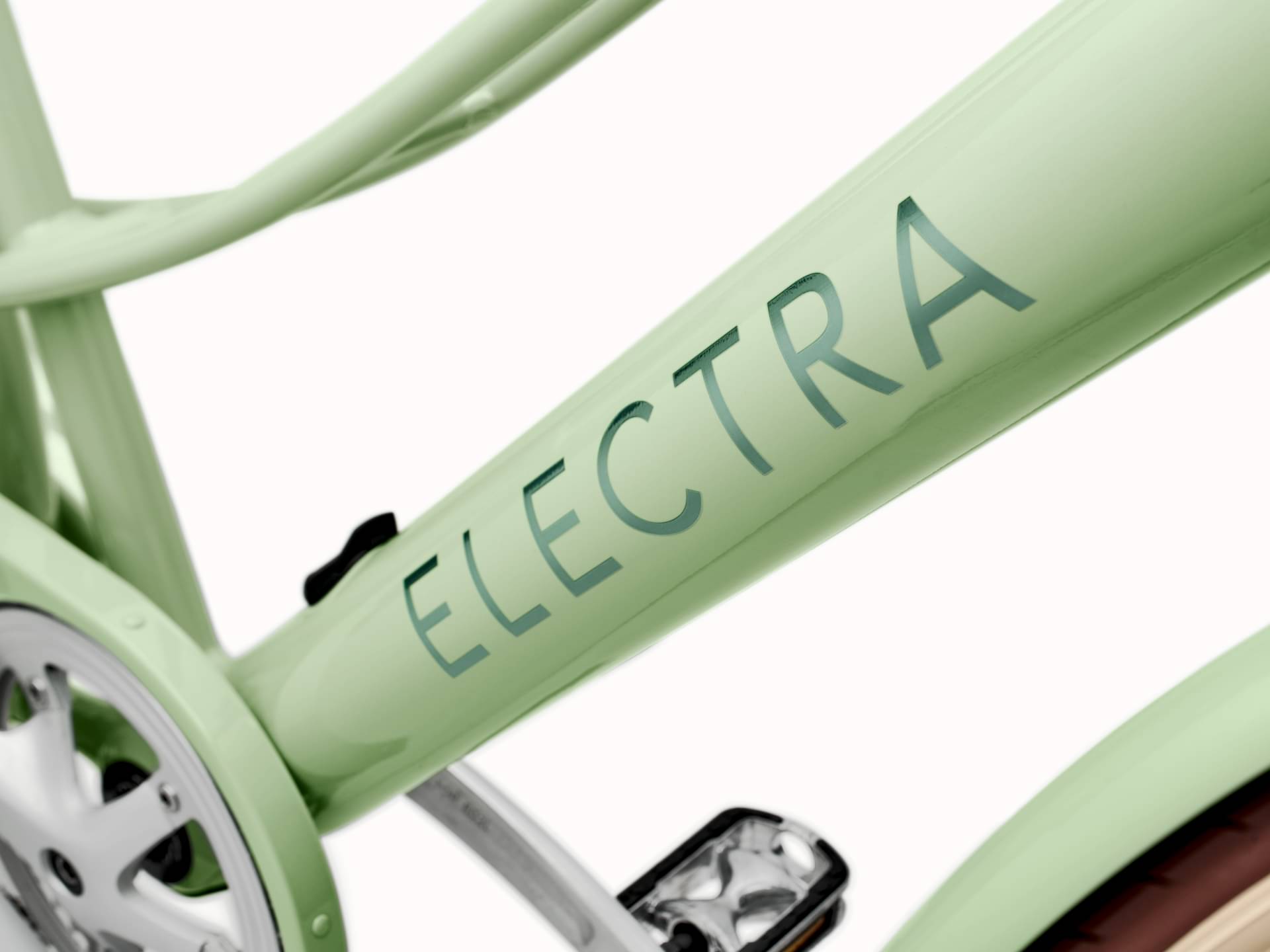

6061-T6 aluminum
Suspension Fork
Hi-ten steel unicrown, straight/tapered leg
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Shift Levers
Shimano Tourney Revo 7-speed twist with optical gear display
Cassette
7-speed freewheel 14-34t

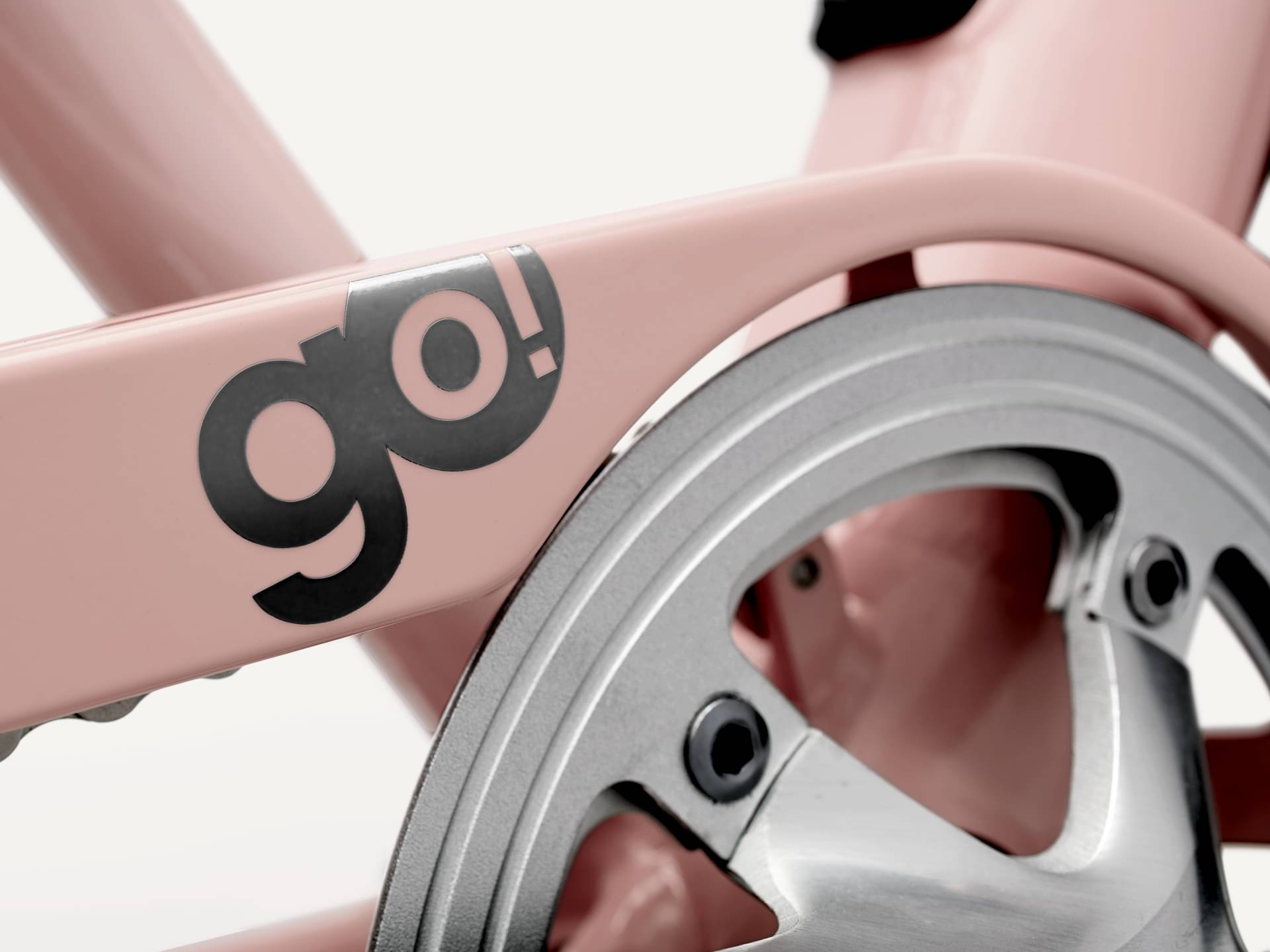

Crank

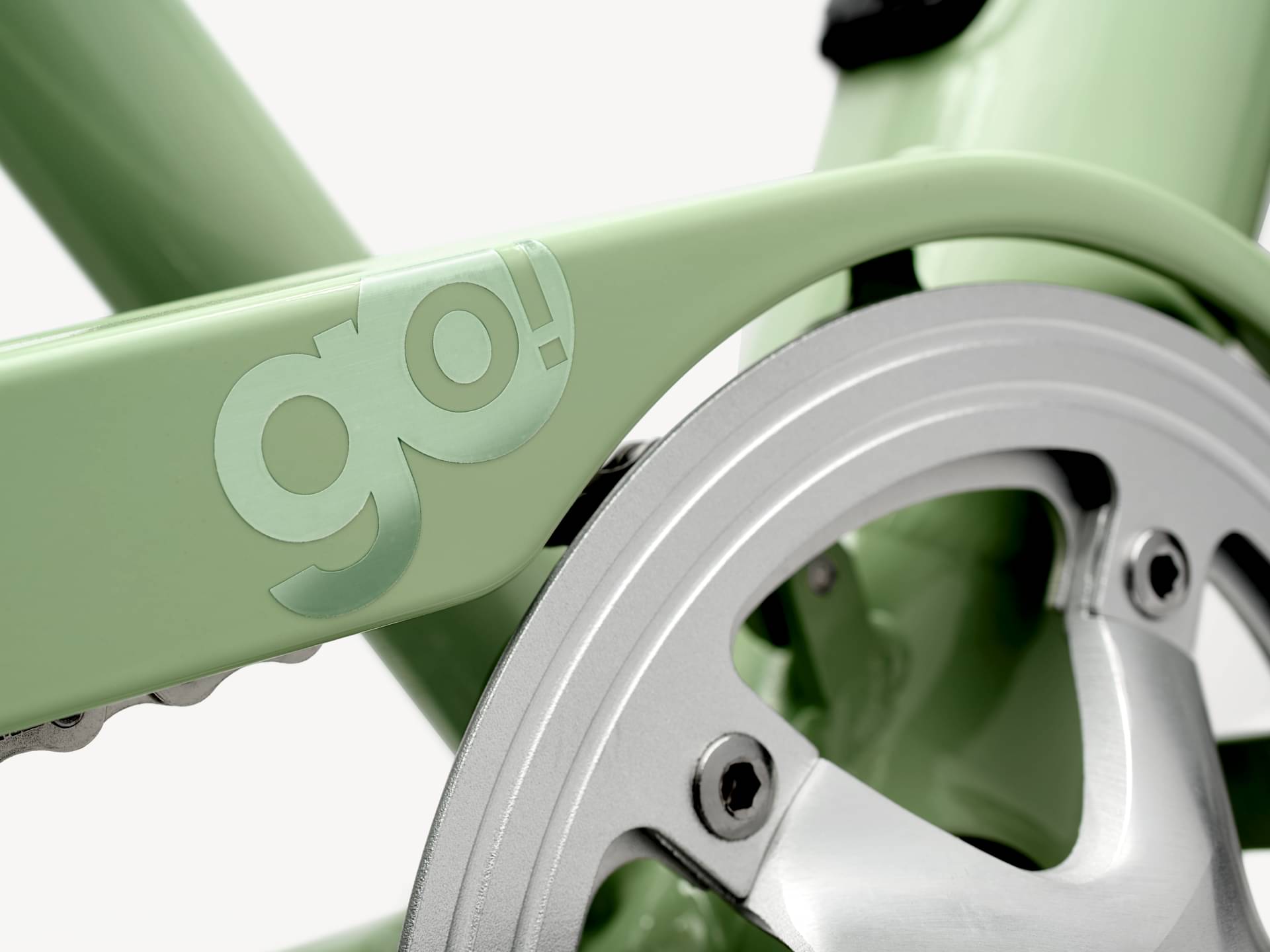

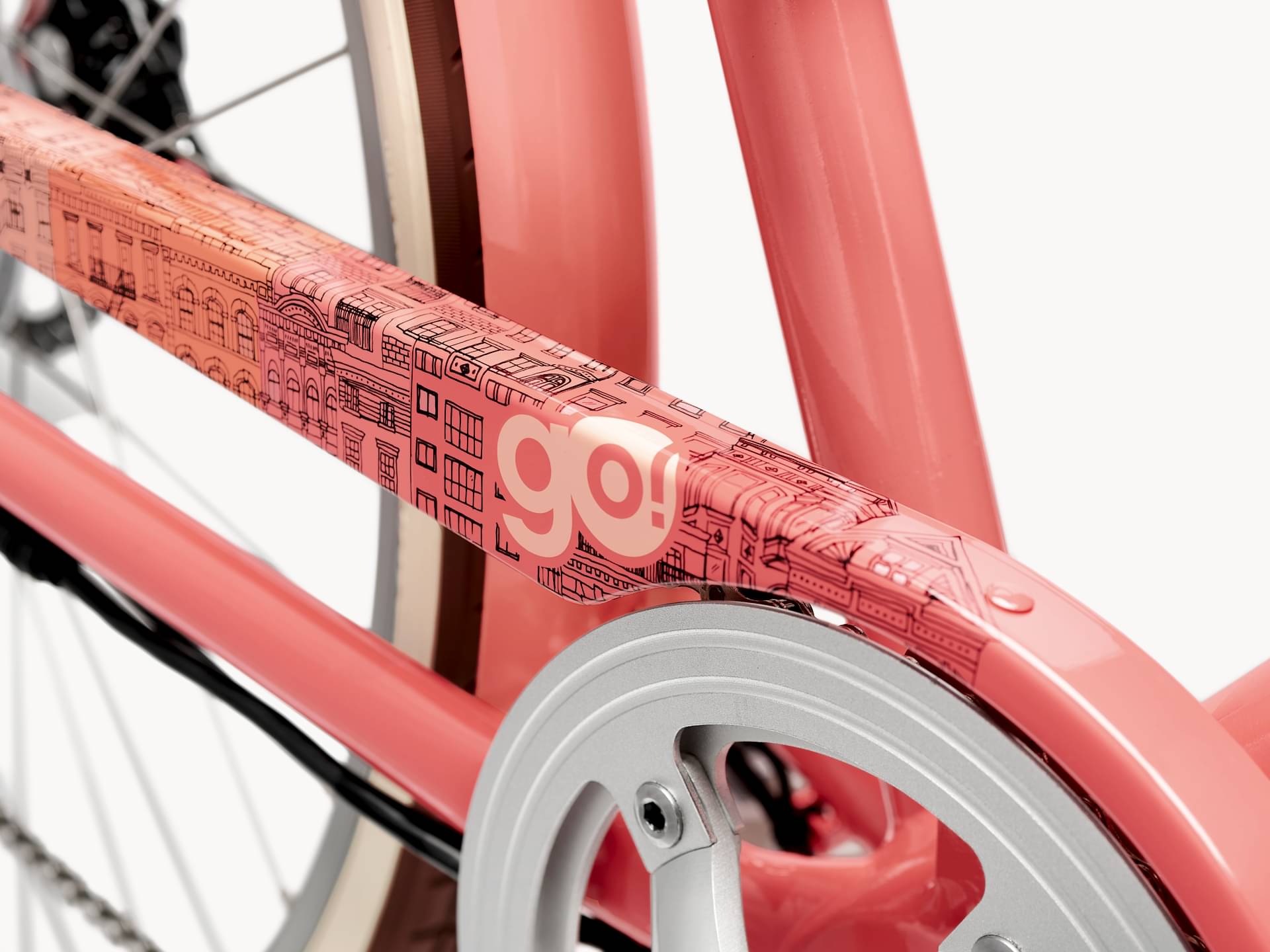

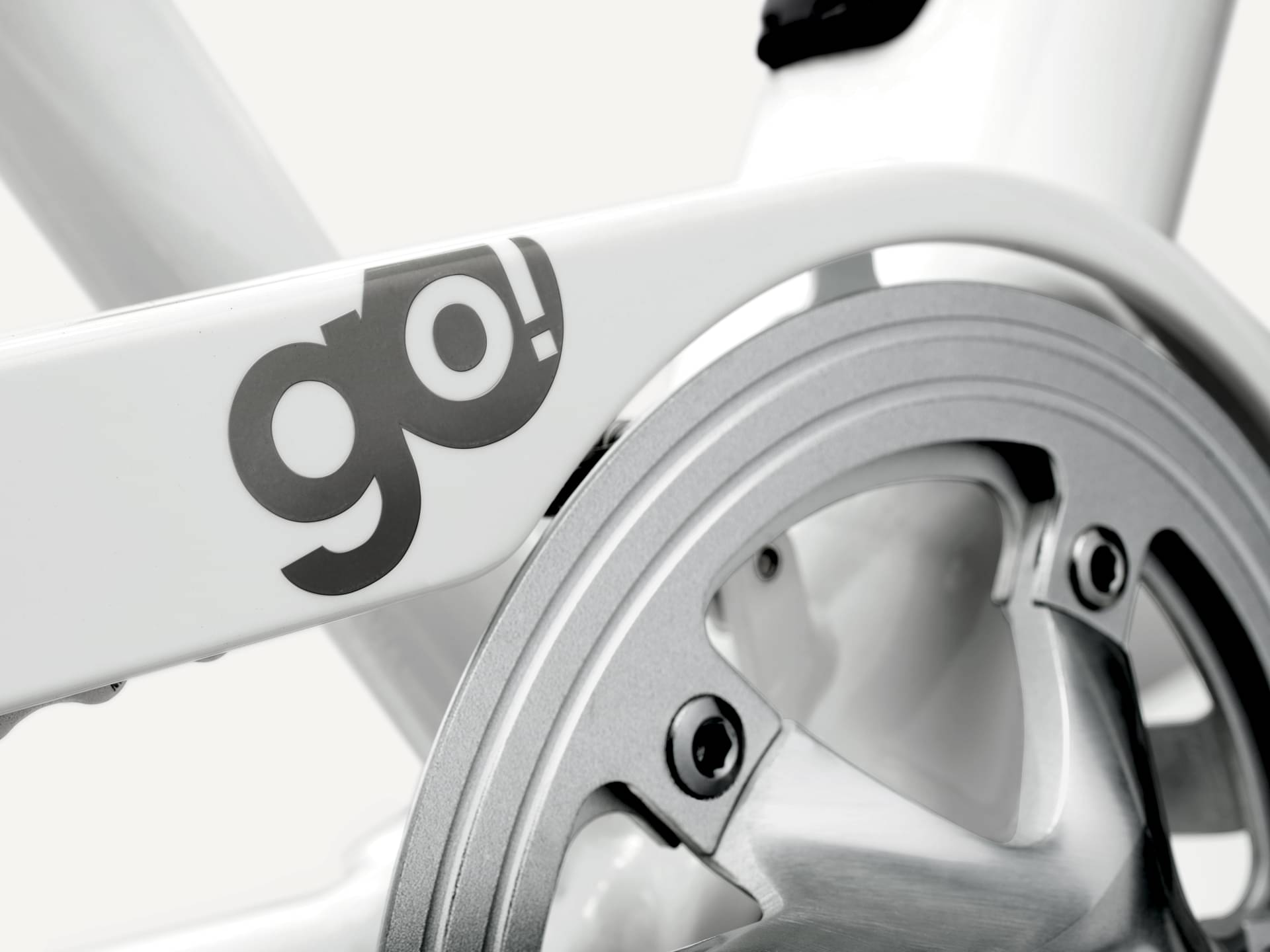

Forged alloy 170mm, 44t chainring w/chainguard
Bottom Bracket
Torque sensor, threaded, 122.5mm spindle
Chain
KMC Z7, 7 speed
Pedals
Alloy platform w/non-slip rubber tread
Wheels
Front Hub
Alloy low-flange w/6-bolt disc, 32h, nutted

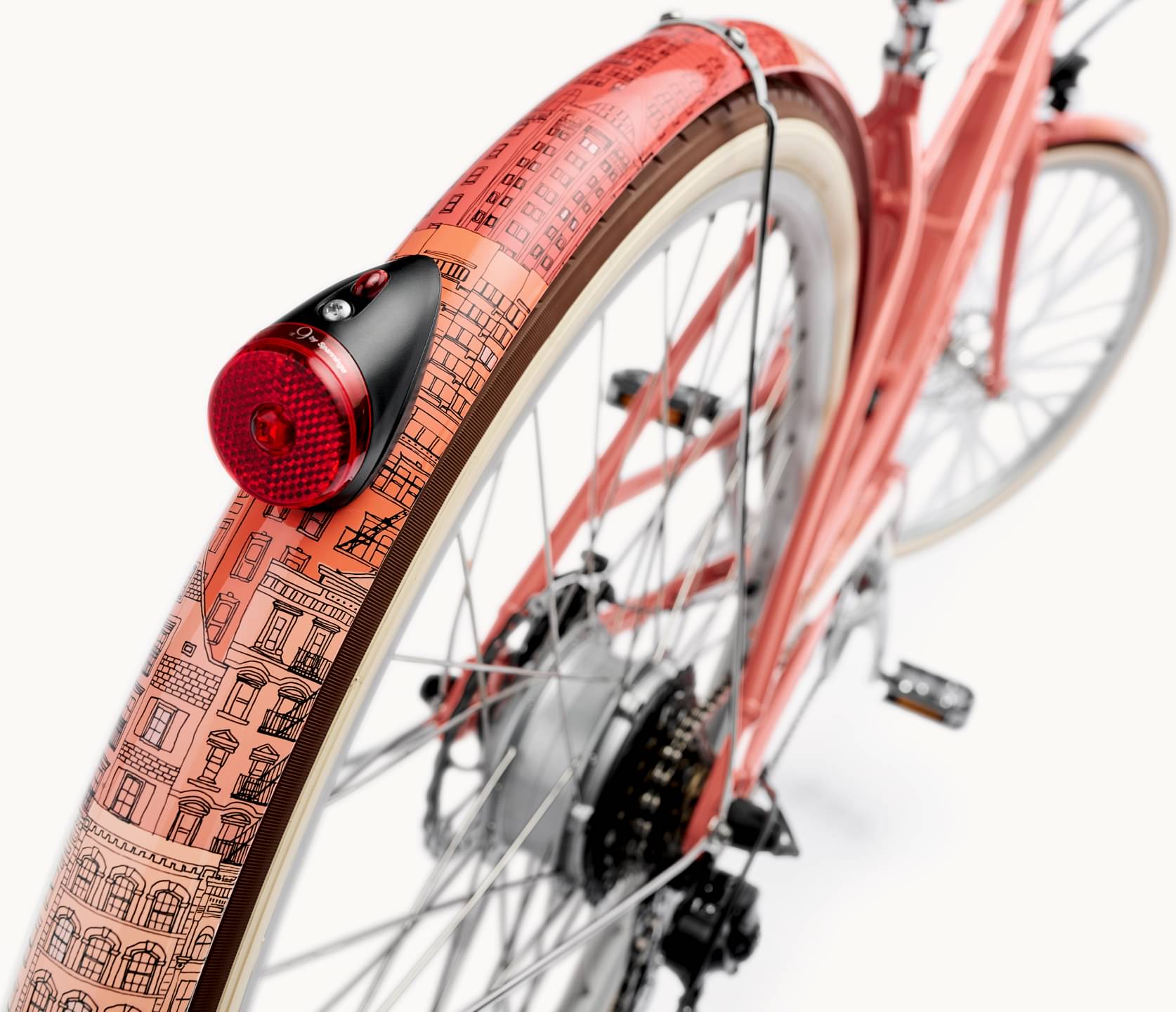

Rear Hub

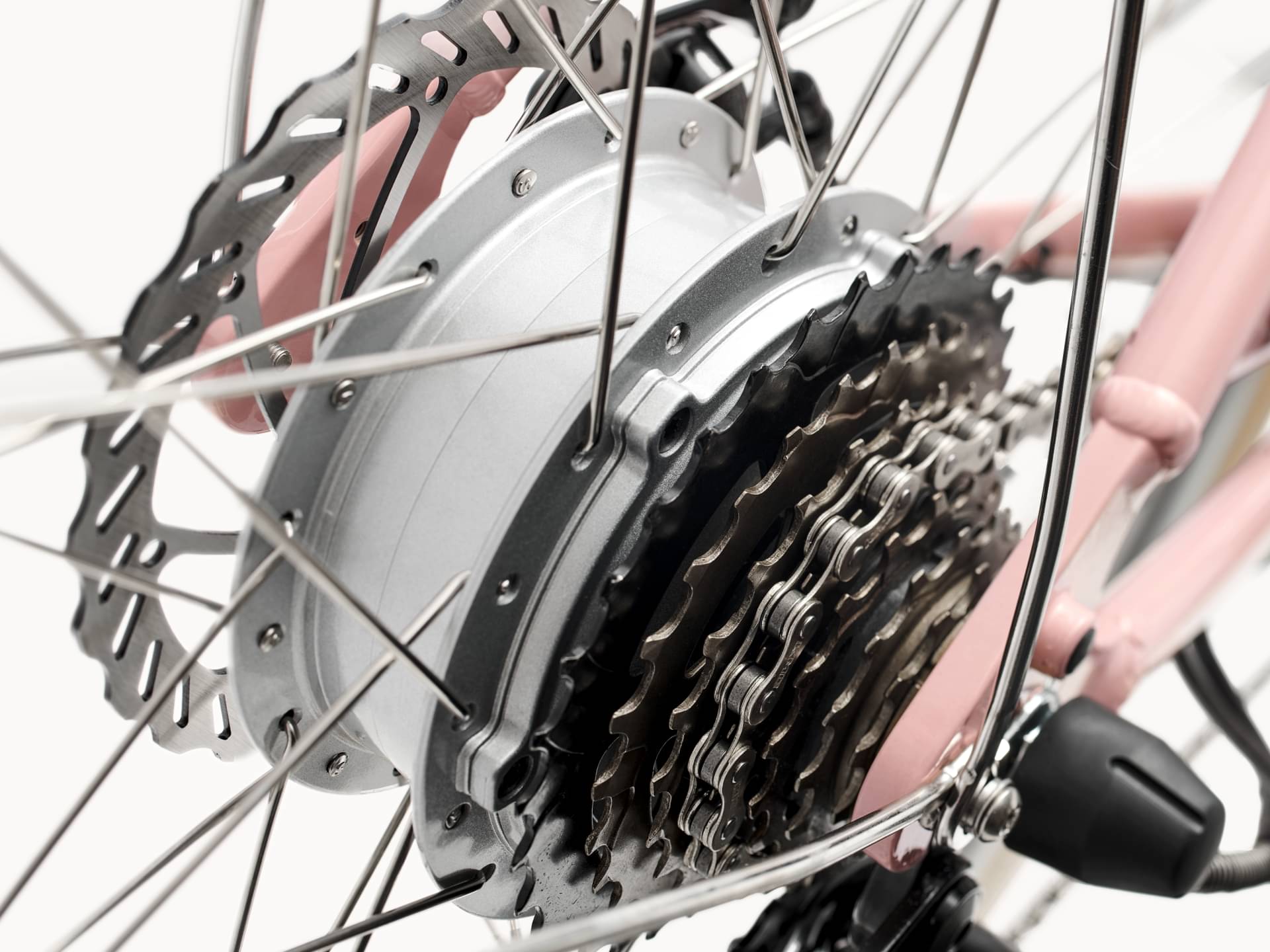

Hyena hub motor w/6-bolt disc, 36h, nutted
Rims
Size: S, M, Alloy double walled 700x32h; Size: S, M, Alloy double walled 700x36h
Spokes
Size: S, M, 14g stainless steel; Size: S, M, 13g stainless steel, silver; Size: S, M, 14g stainless steel, black; Size: S, M, 13g stainless steel, black
Tires
700x40mm city tread
Brakes

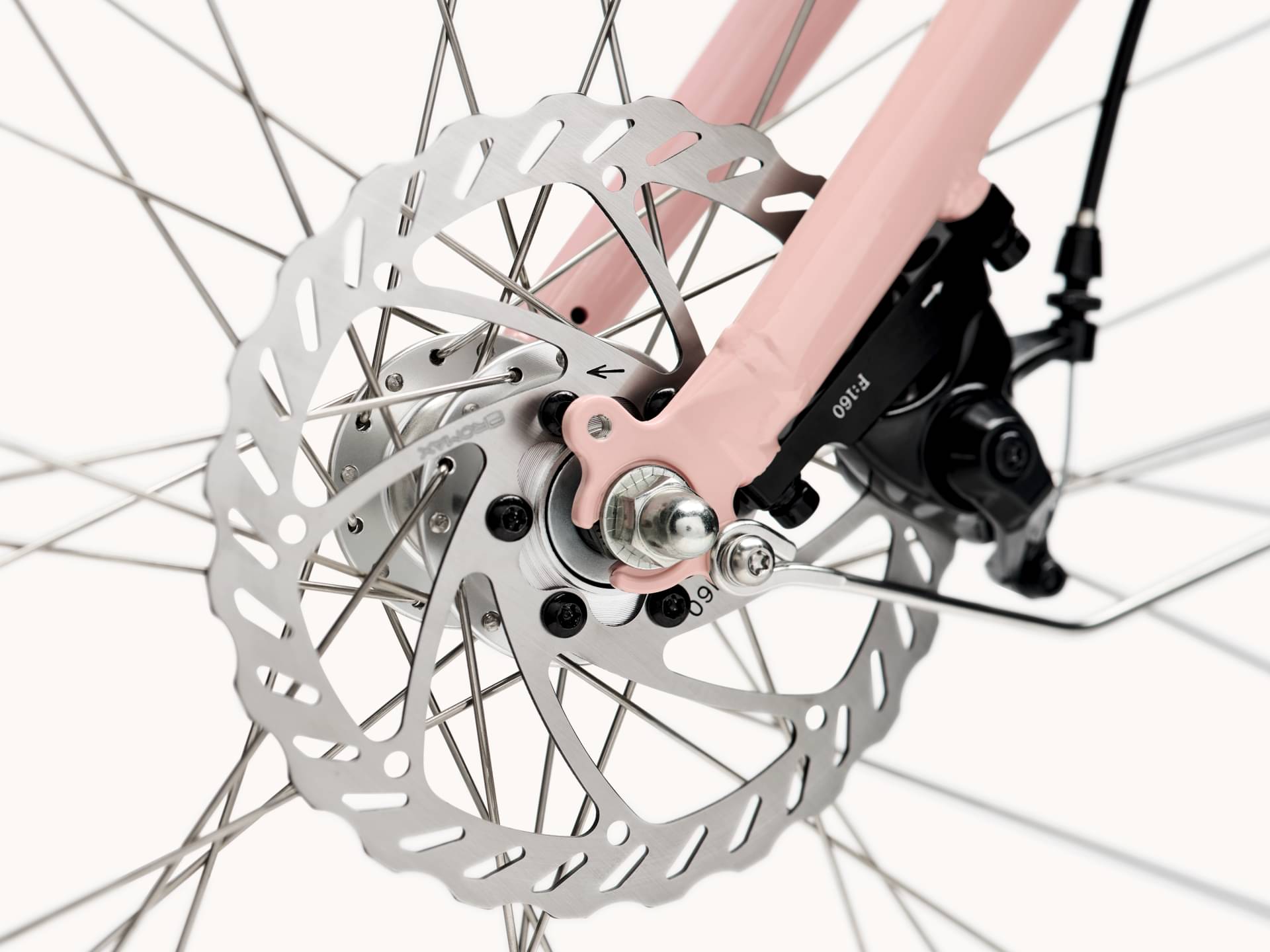

Brakes

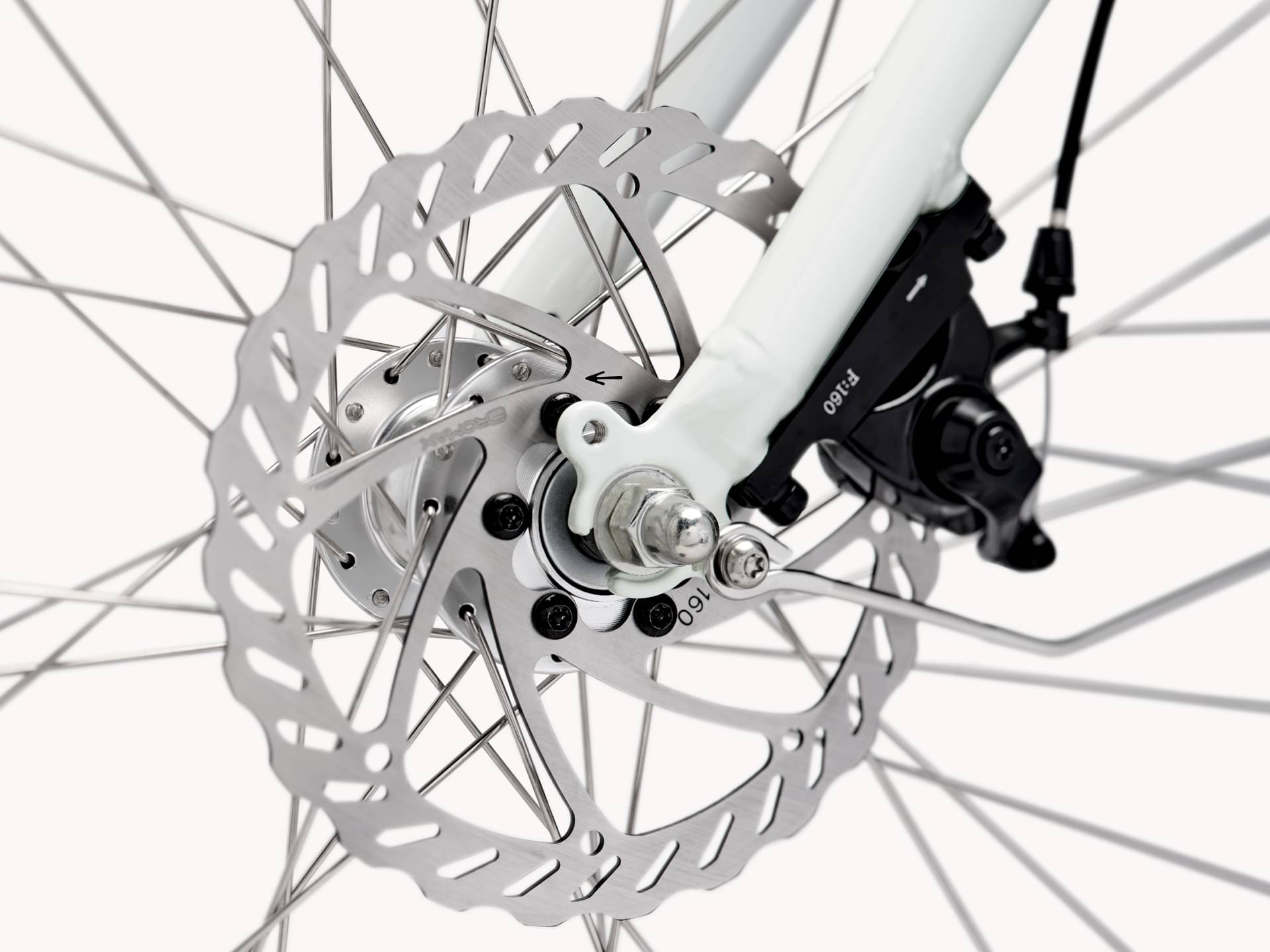

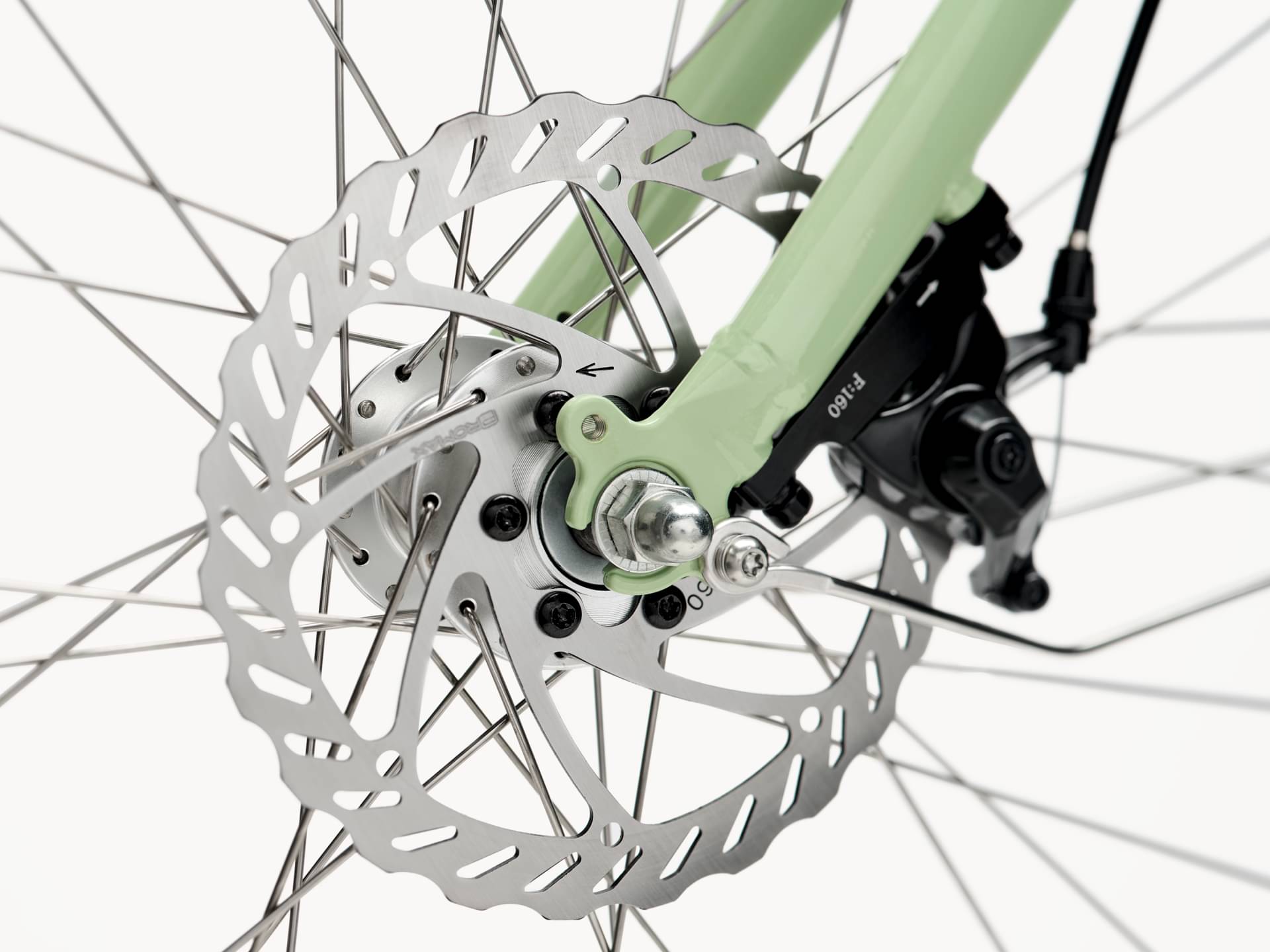

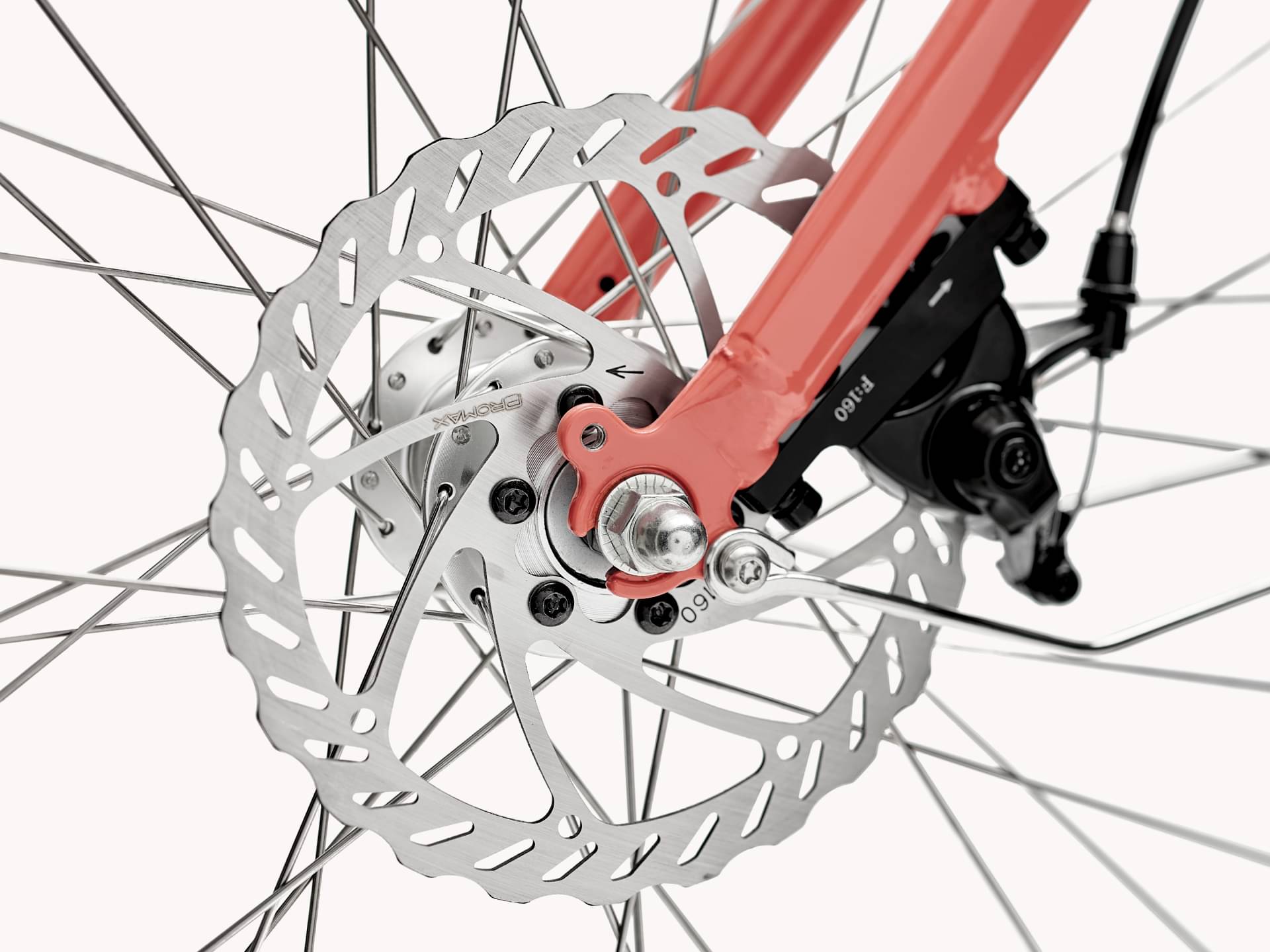

Mechanical disc, 160mm rotor, flat-mount
Brake Levers
Alloy, 3-finger
Cockpit
Stem
Cast alloy 25.4mm quill, 92mm extension
Handlebar
Alloy custom bend low-rise, 640mm width
Grips
Size: S, M, Electra custom hand-stitched; Size: S, M, Brooks Cambium
Headset
1 1/8'' steel threaded
Seat

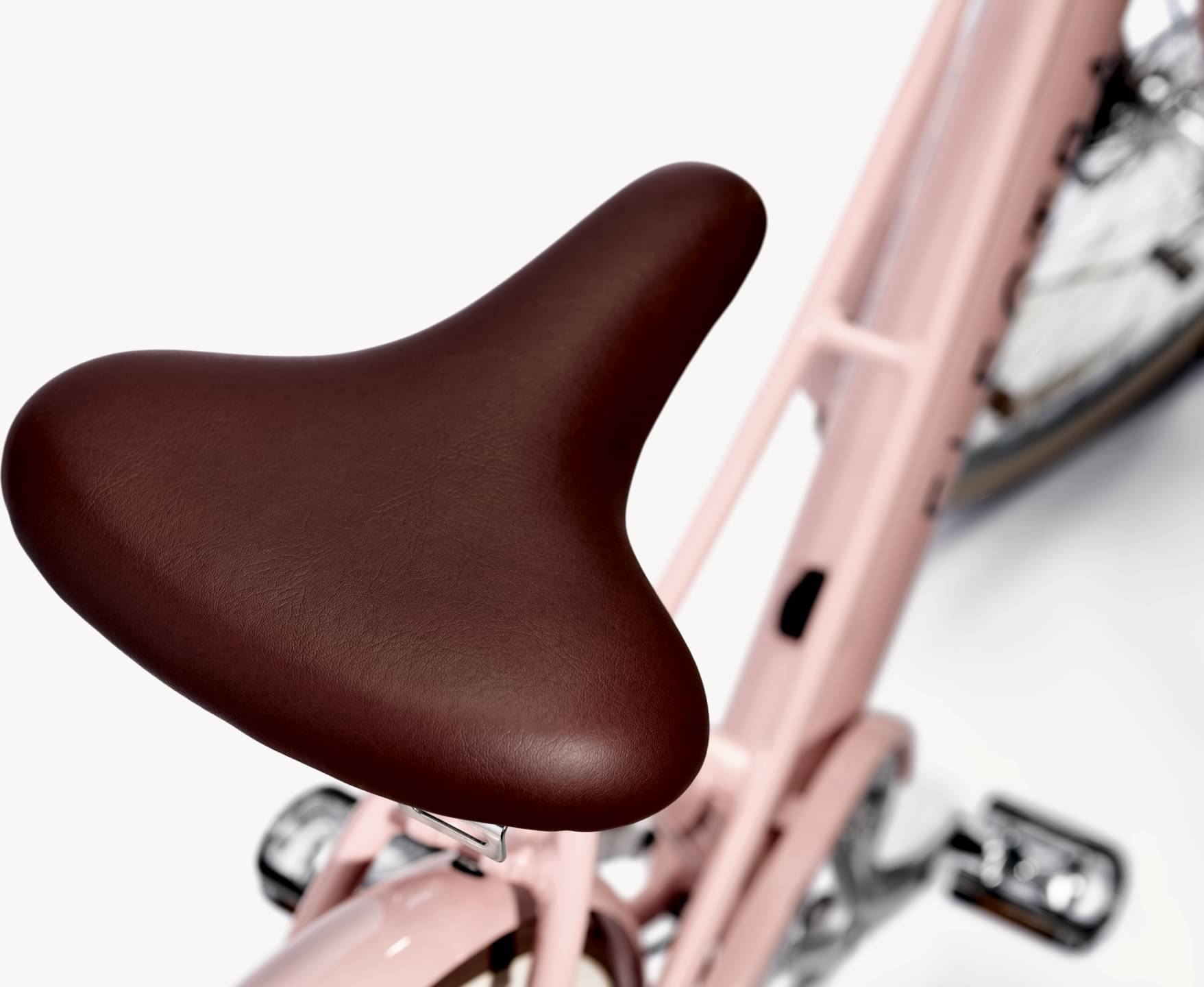

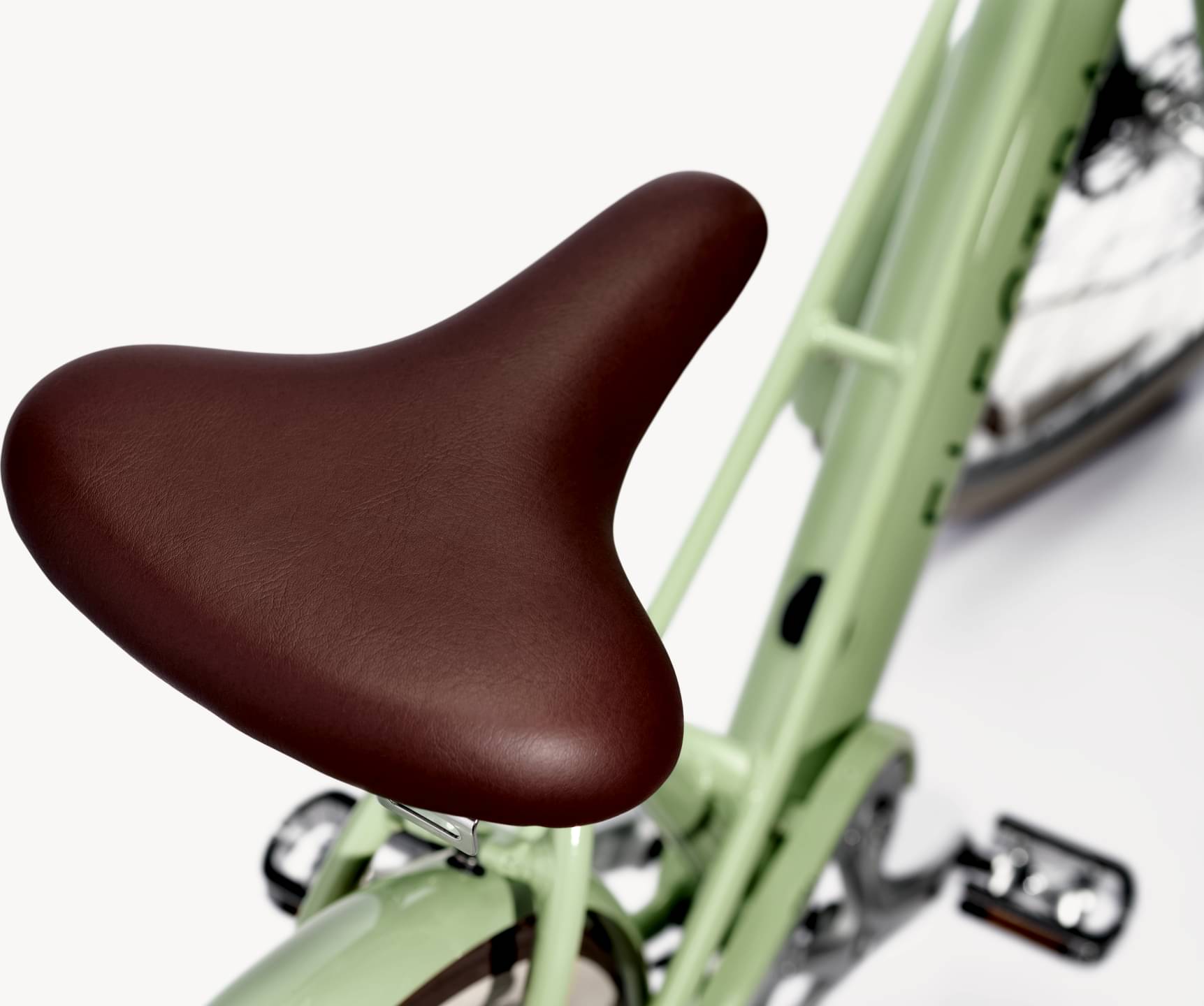

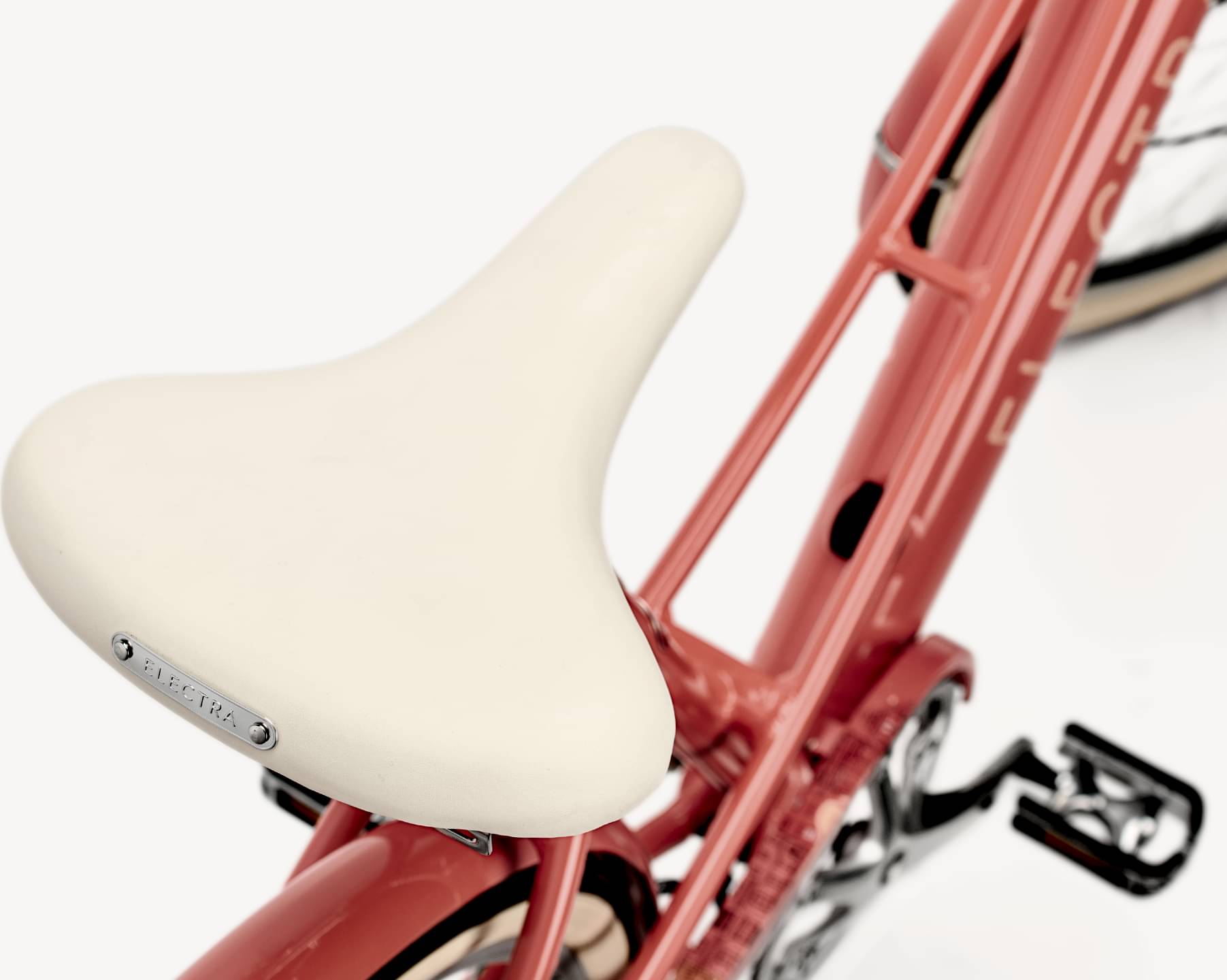

Saddle

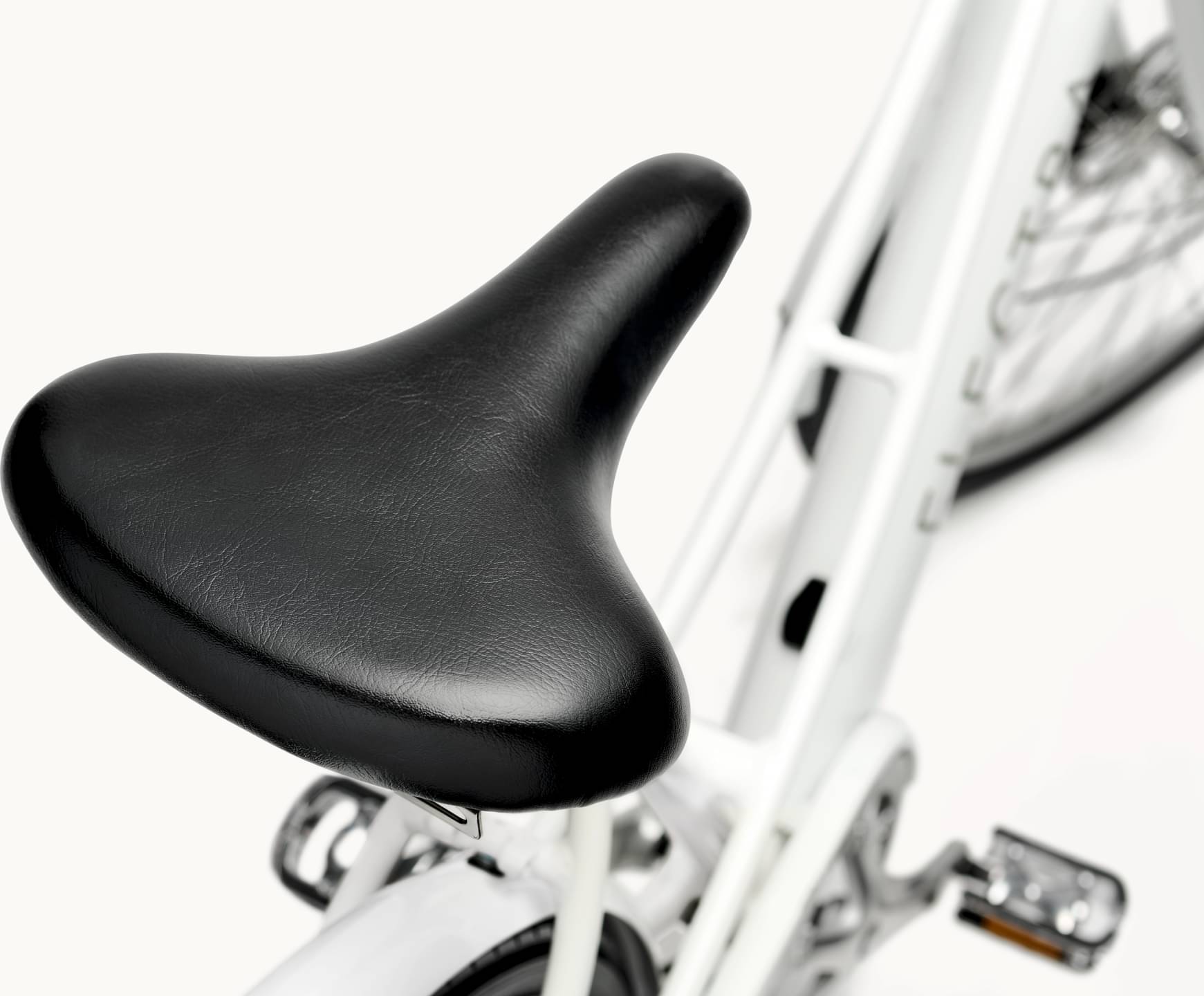

Size: S, M, Retro leatherette w/dual spring; Size: S, M, Brooks Cambium C19 Special
Seatpost
Size: S, Alloy micro-adjust 27.2x350mm; Size: M, Alloy micro-adjust 27.2x400mm
Motor & Battery

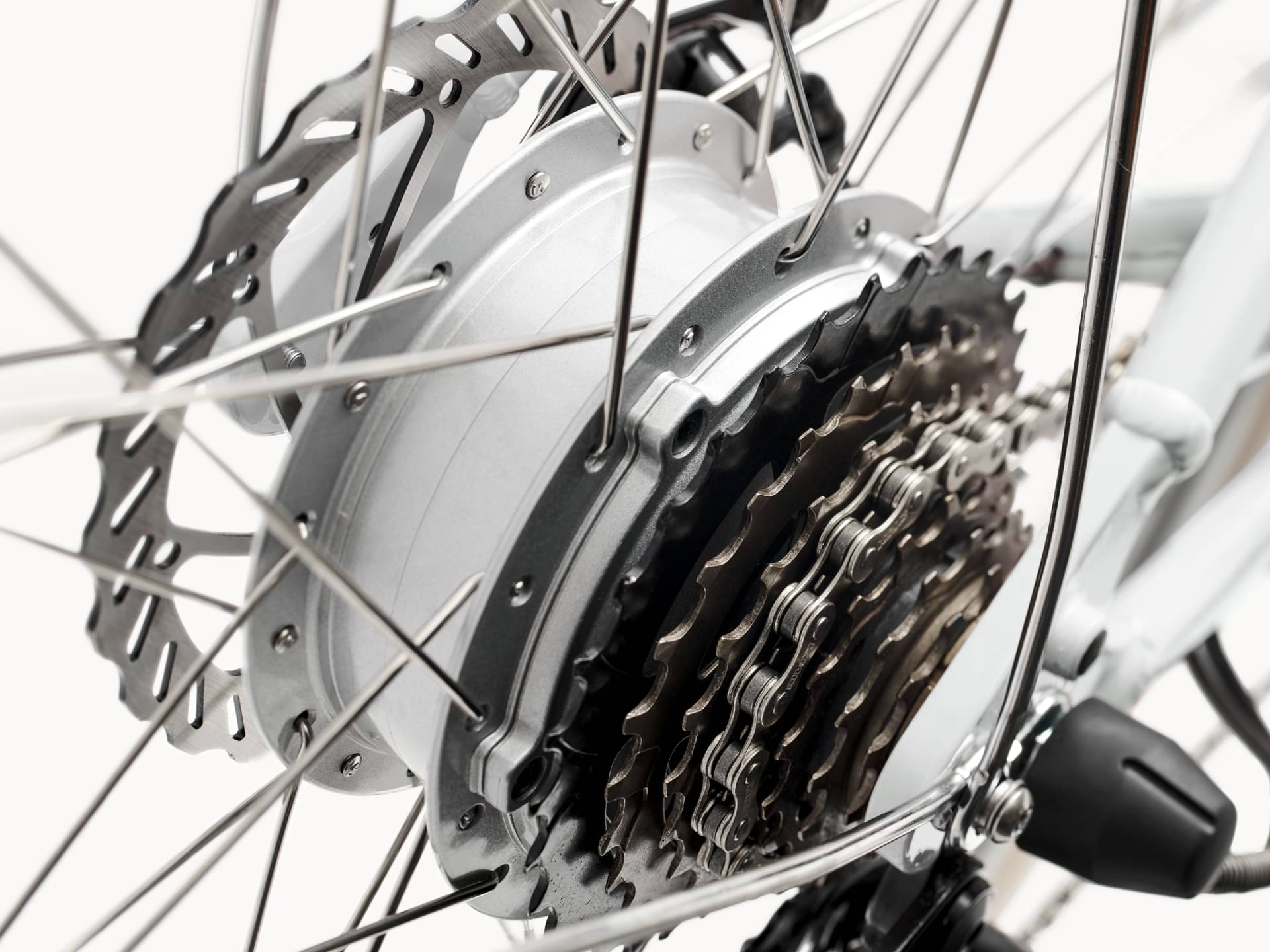

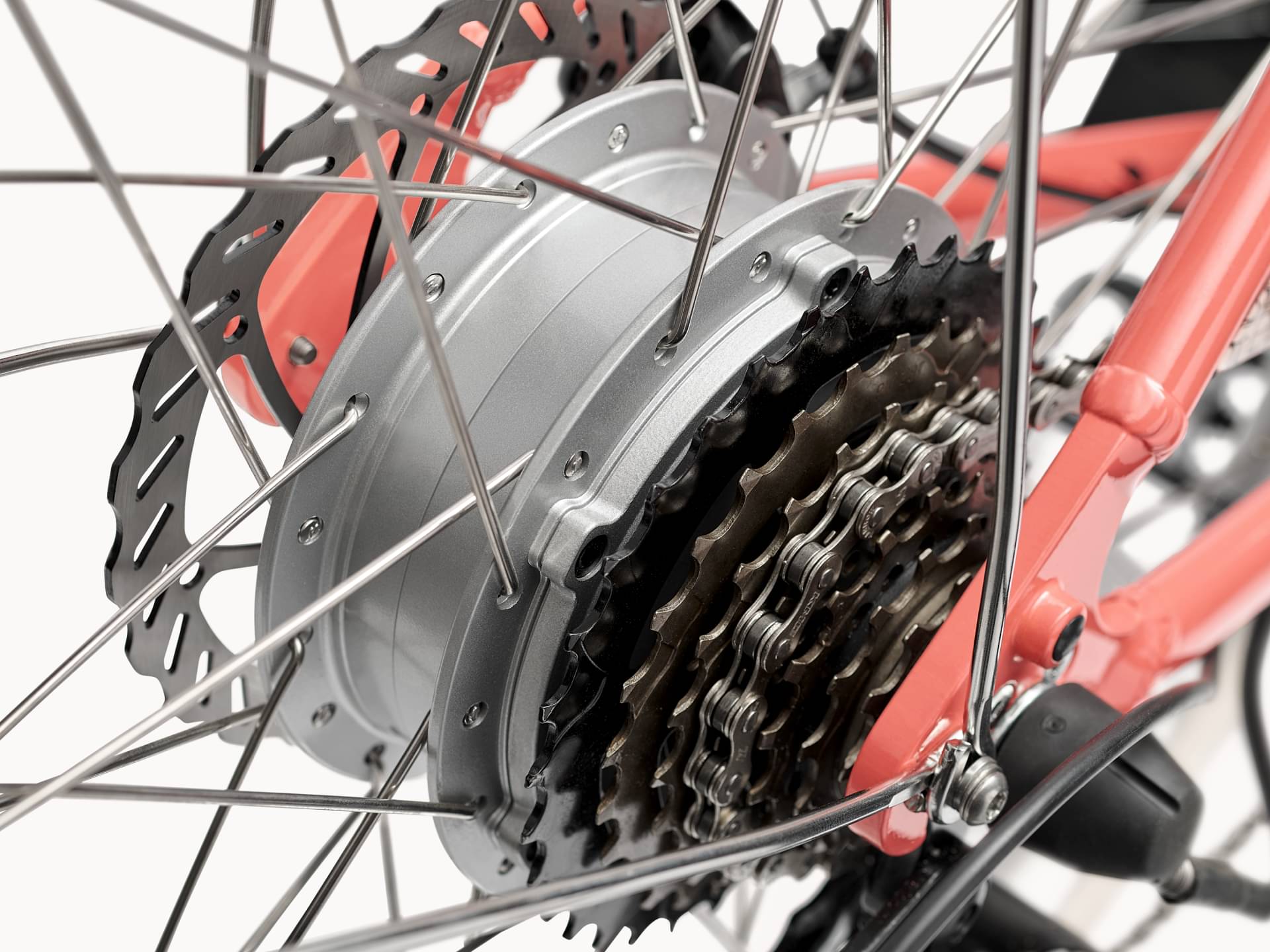

Motor
Hyena hub motor w/6-bolt disc, 36h, nutted
Battery
250Wh, integrated in down tube

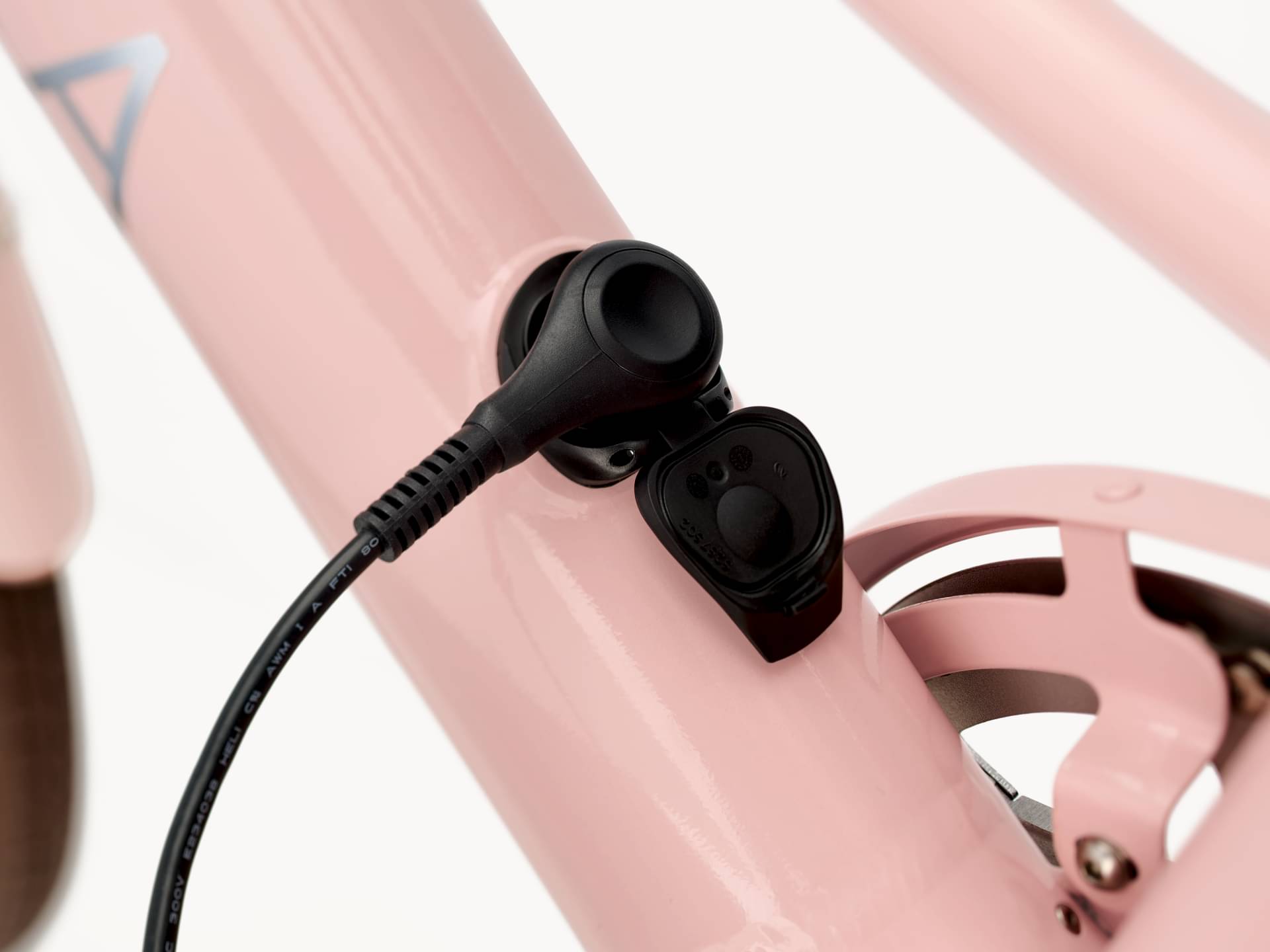

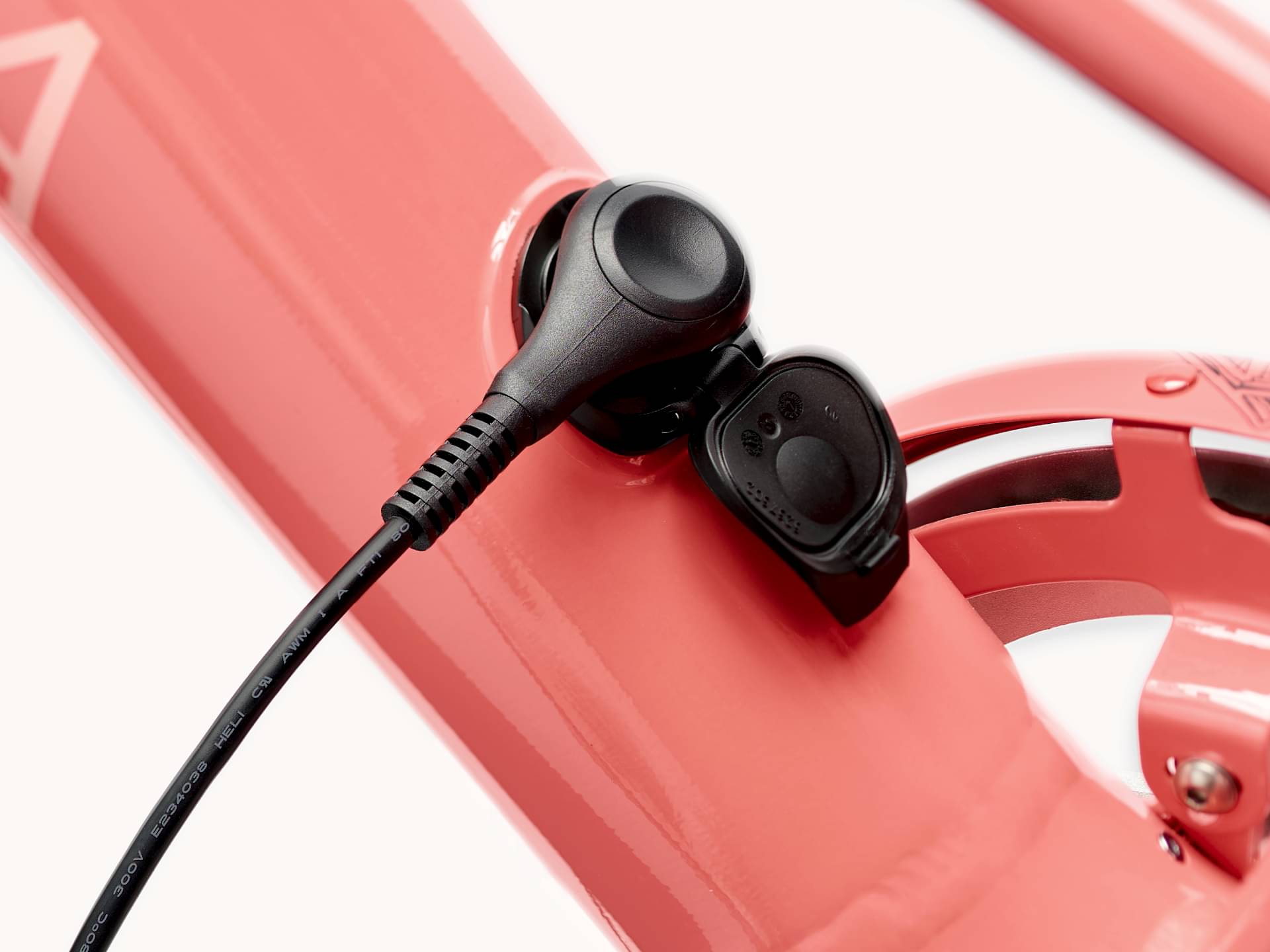

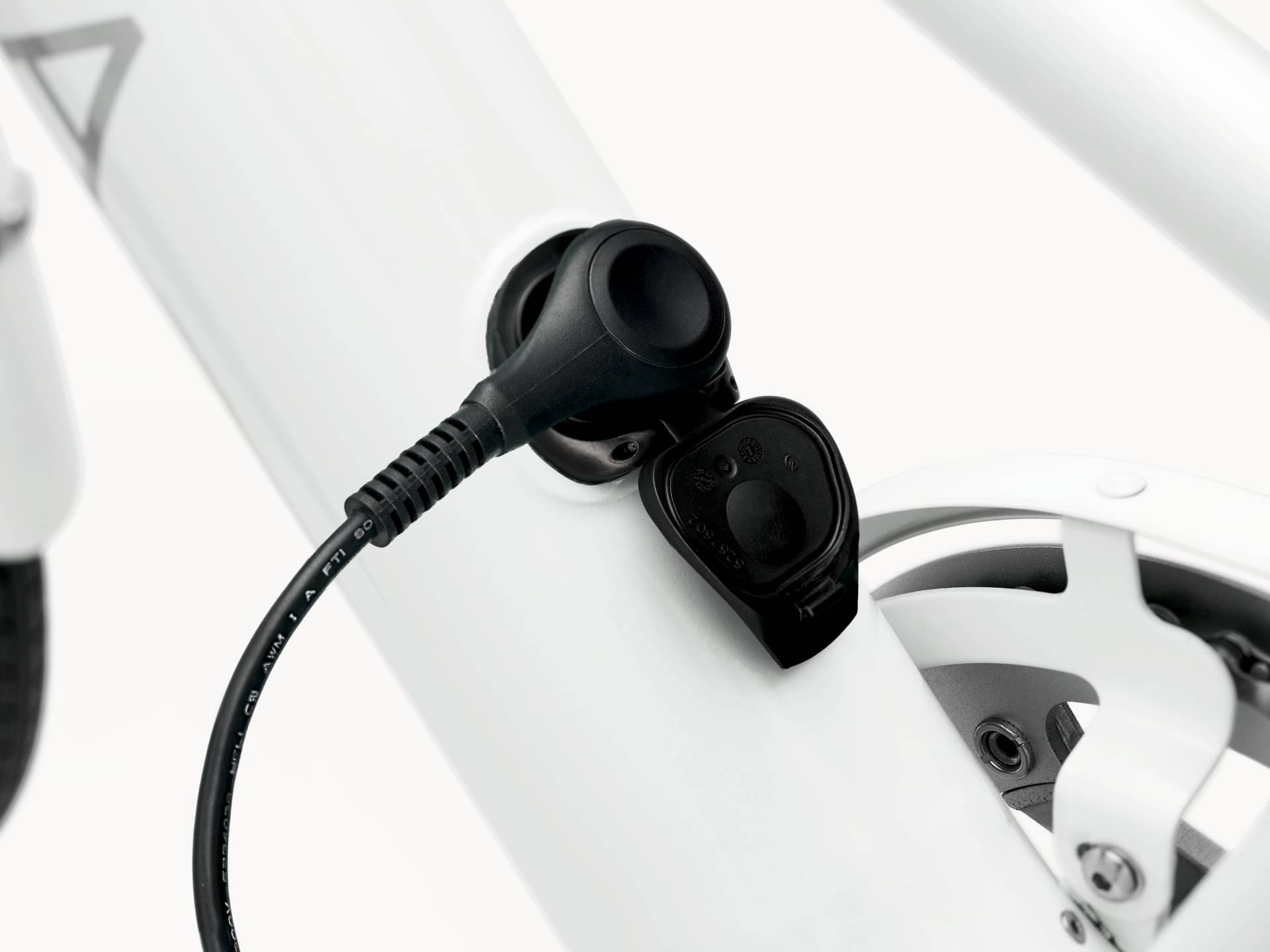

Charger
2A, 42V output, 100V-240V AC input
Fit data
Geometry
