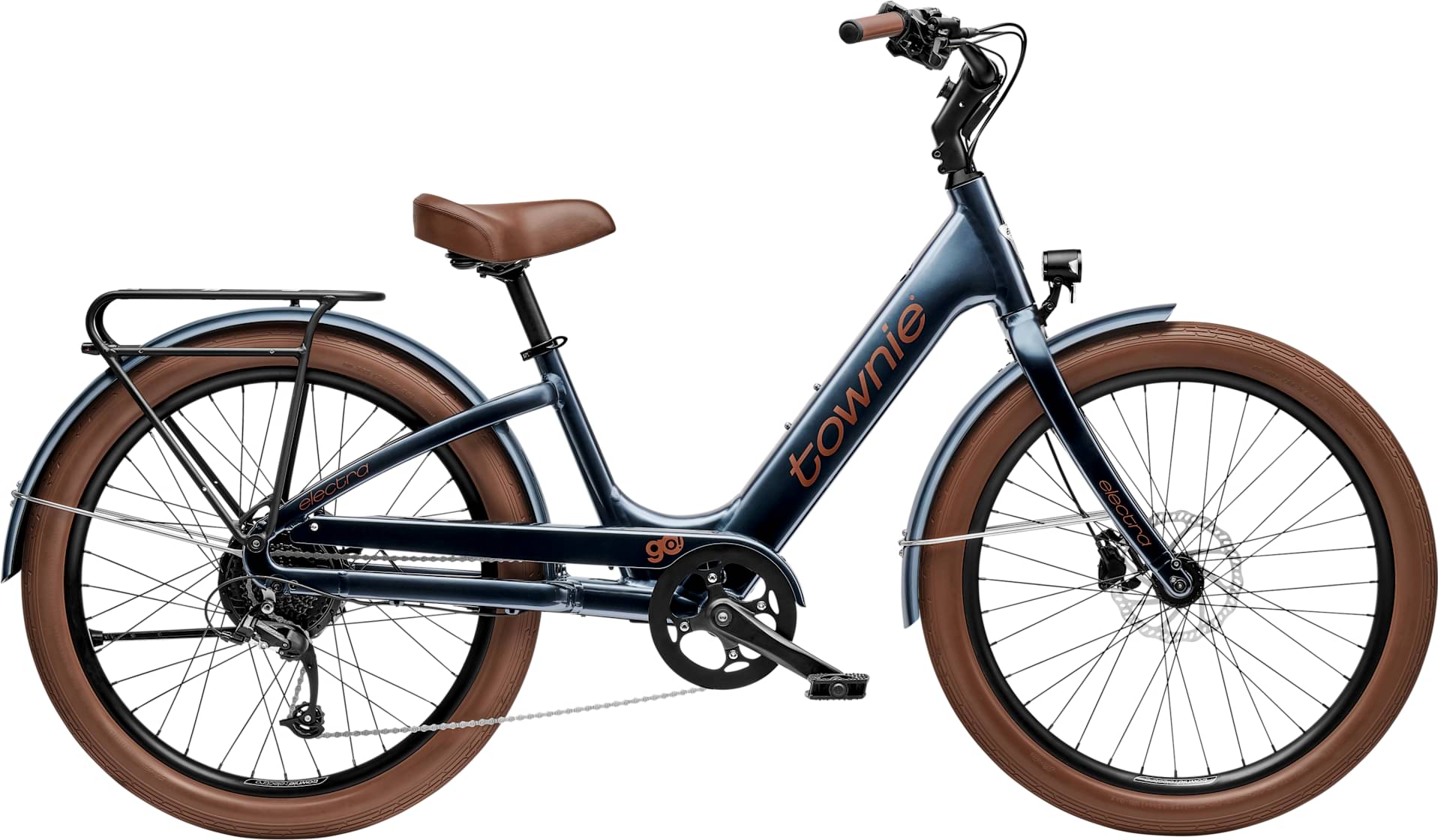

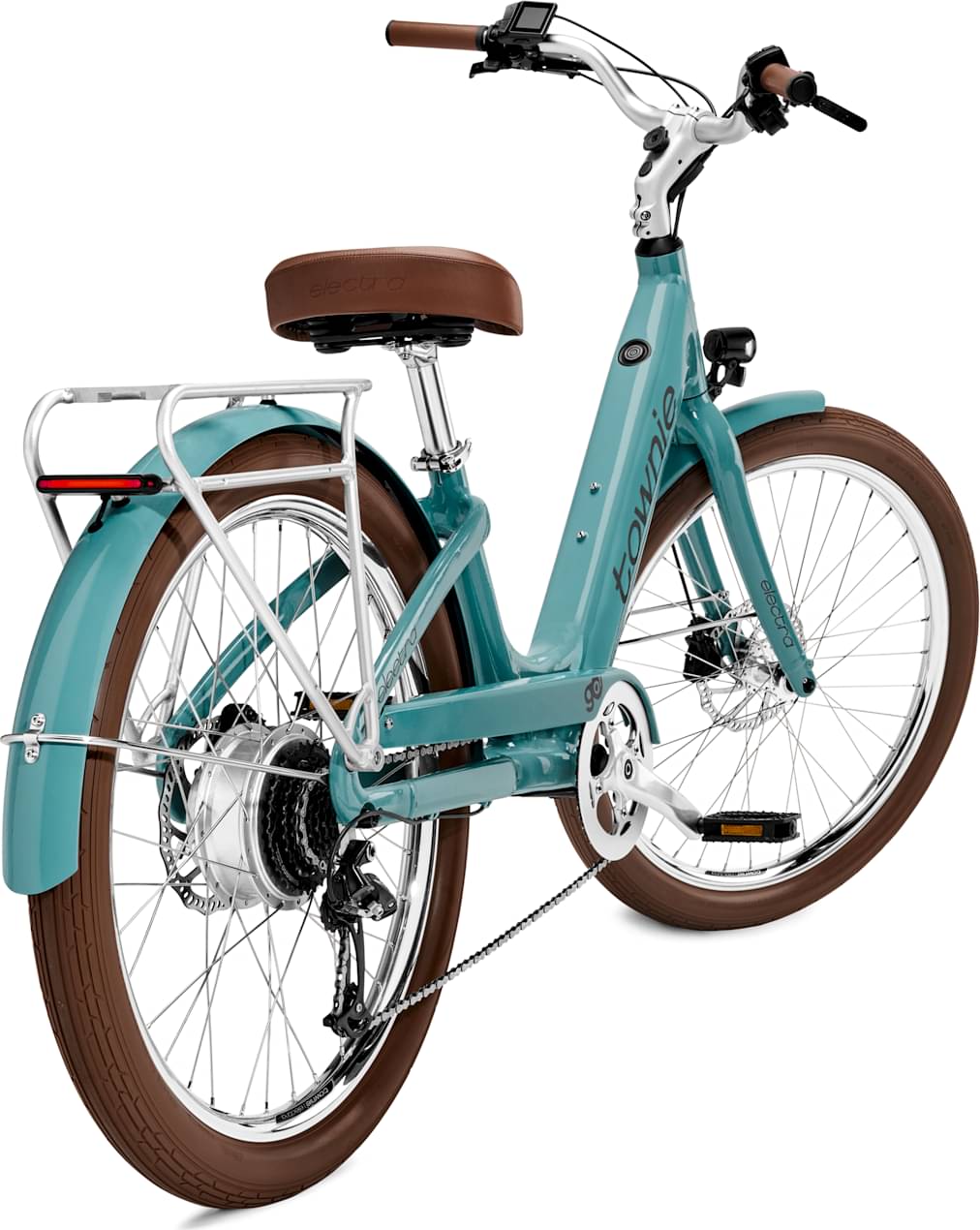

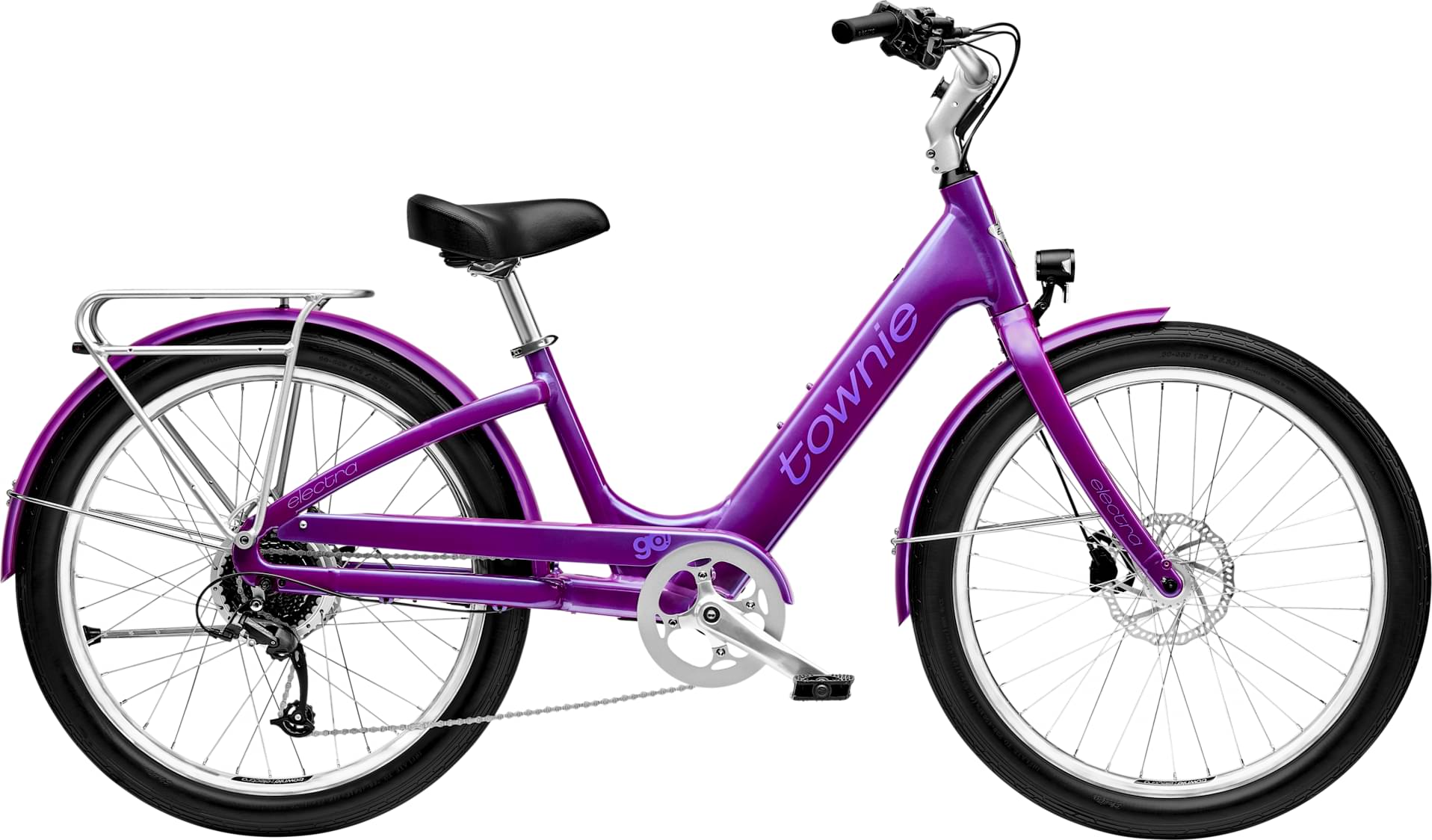

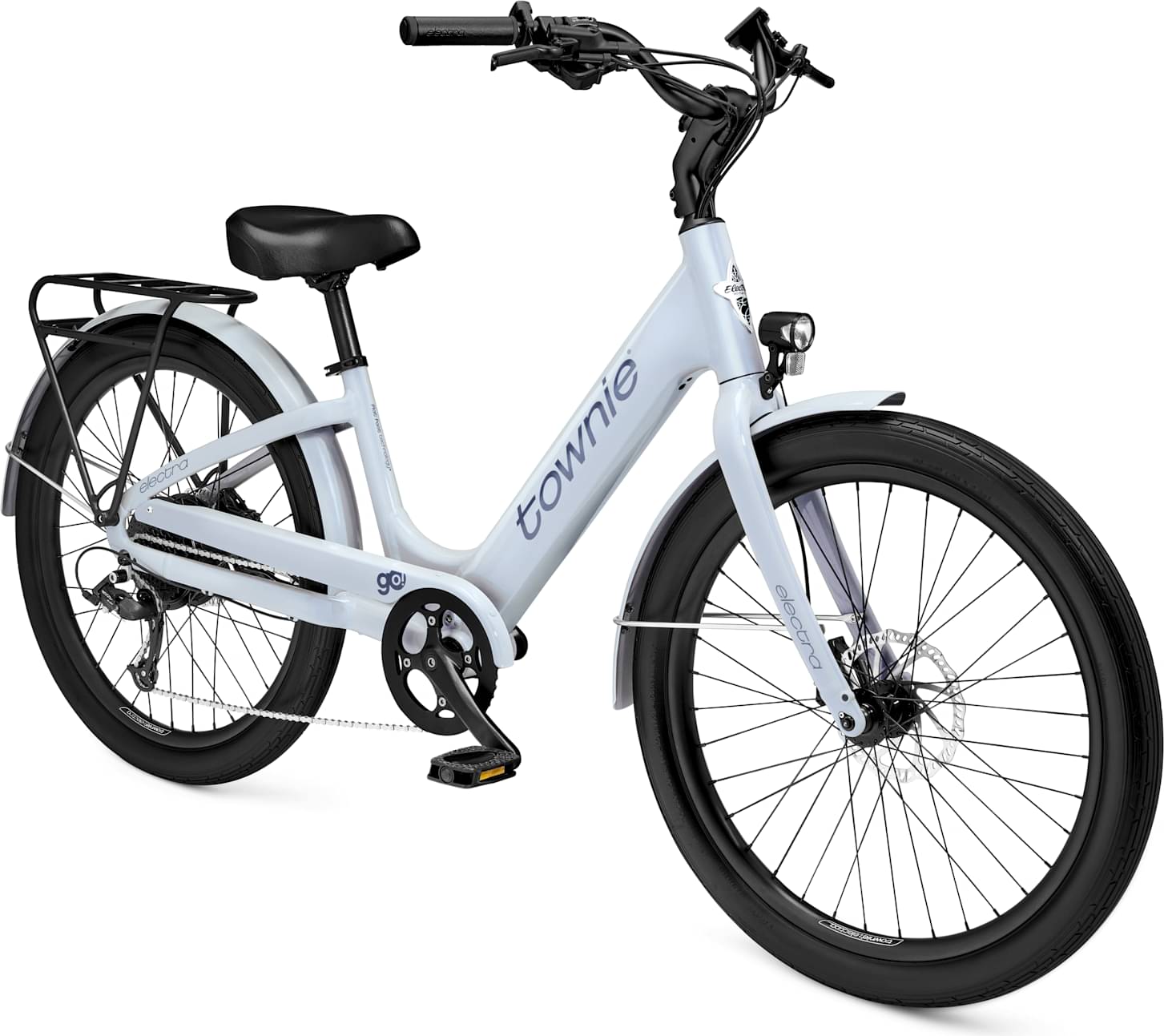

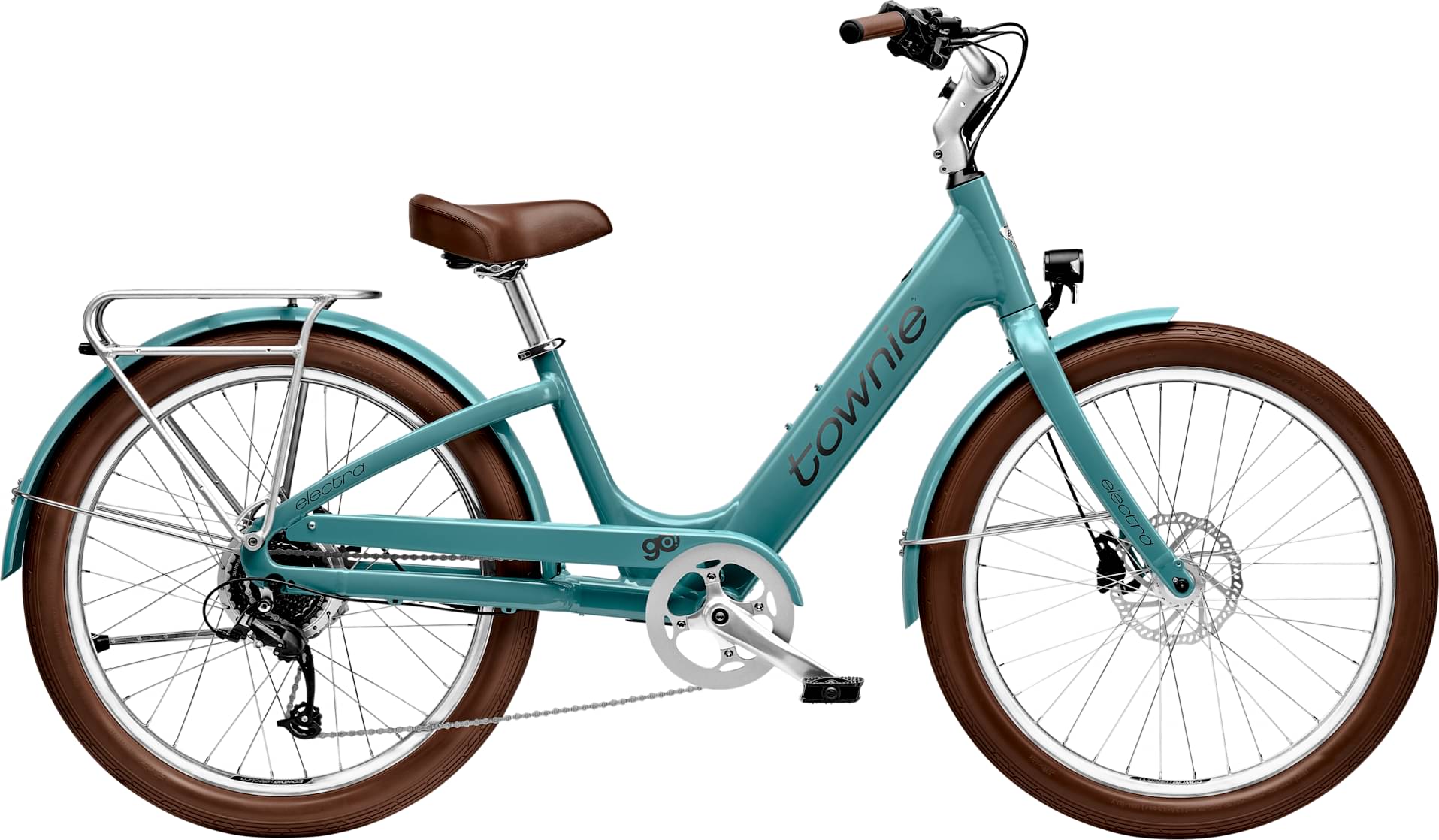

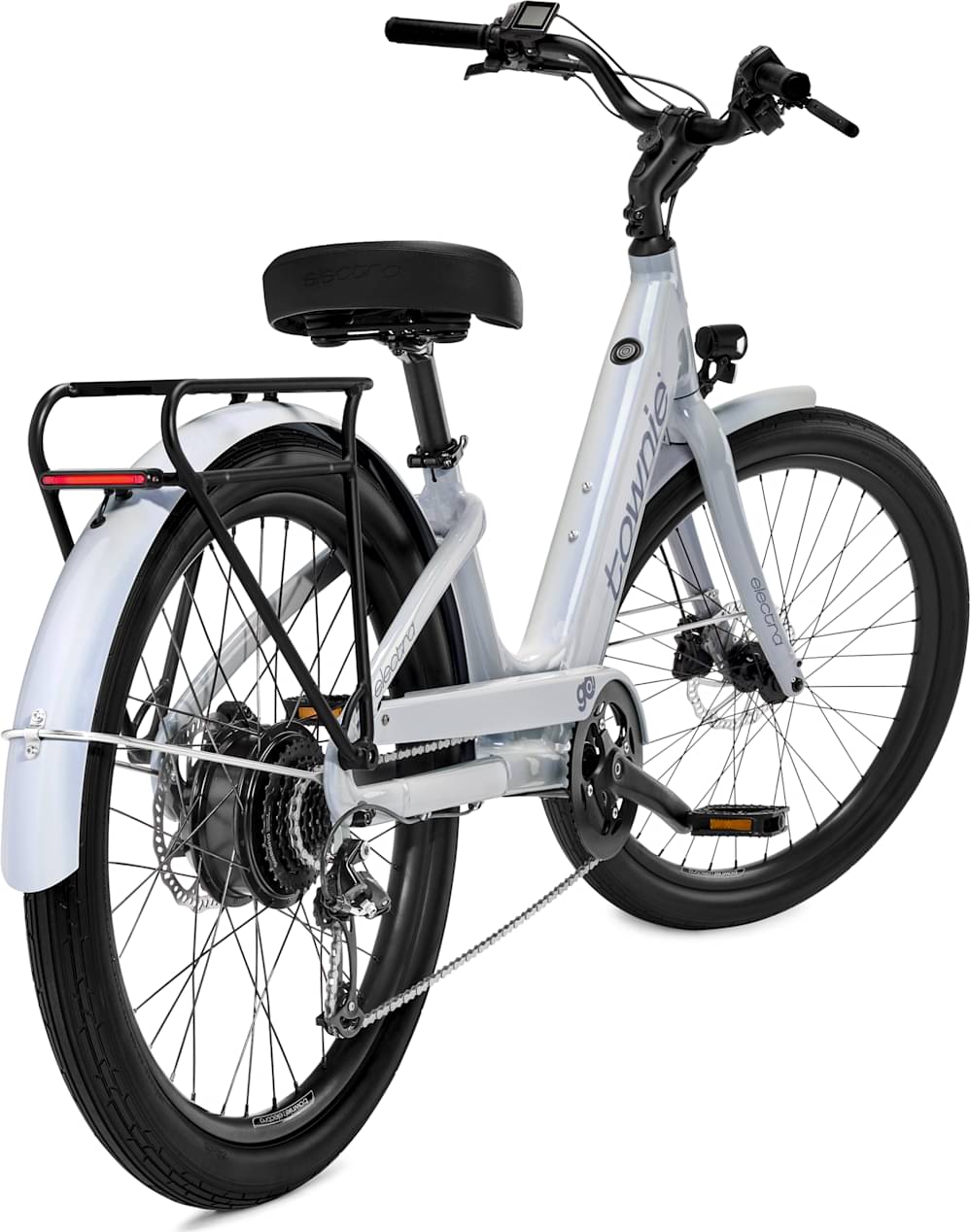

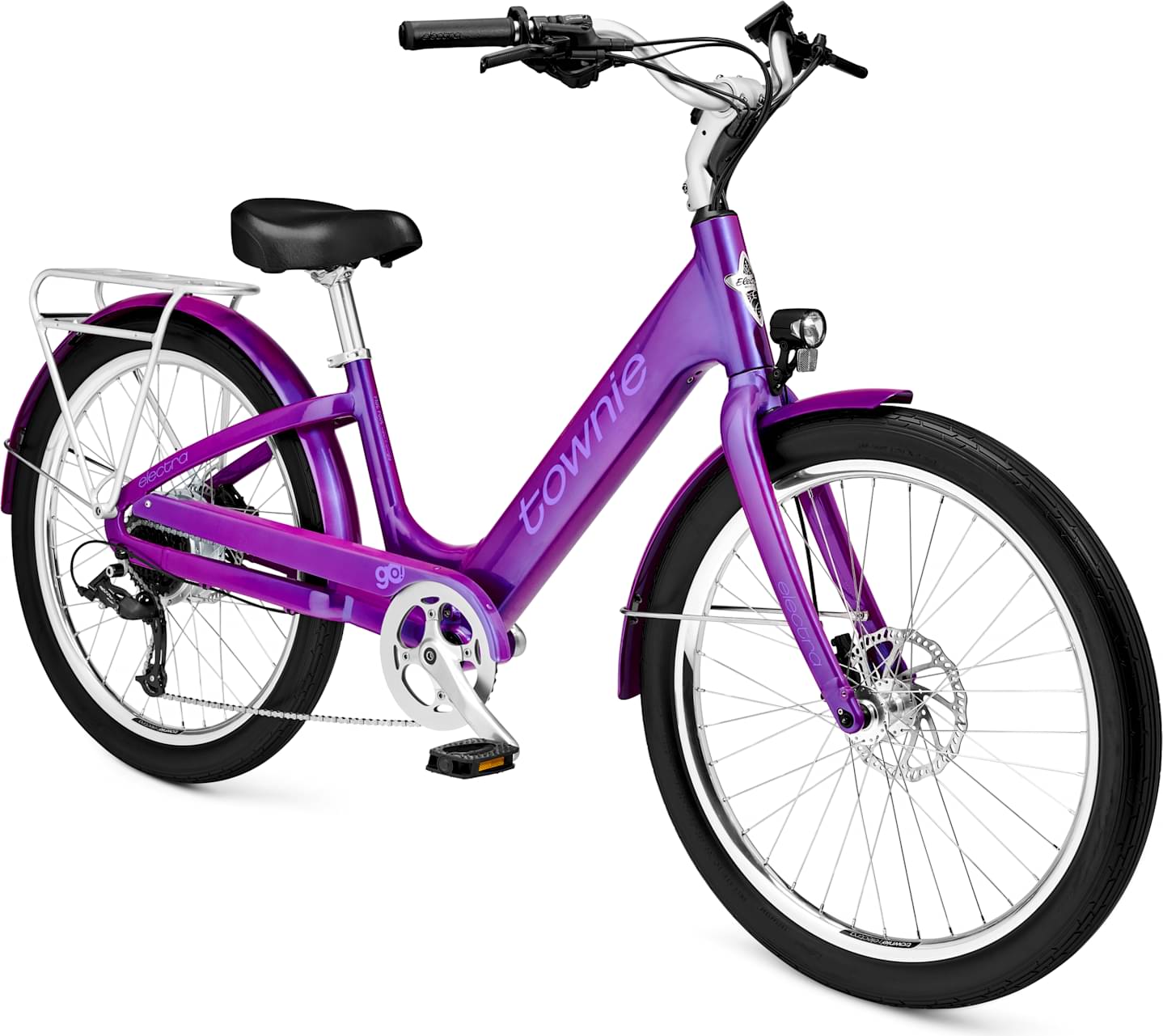

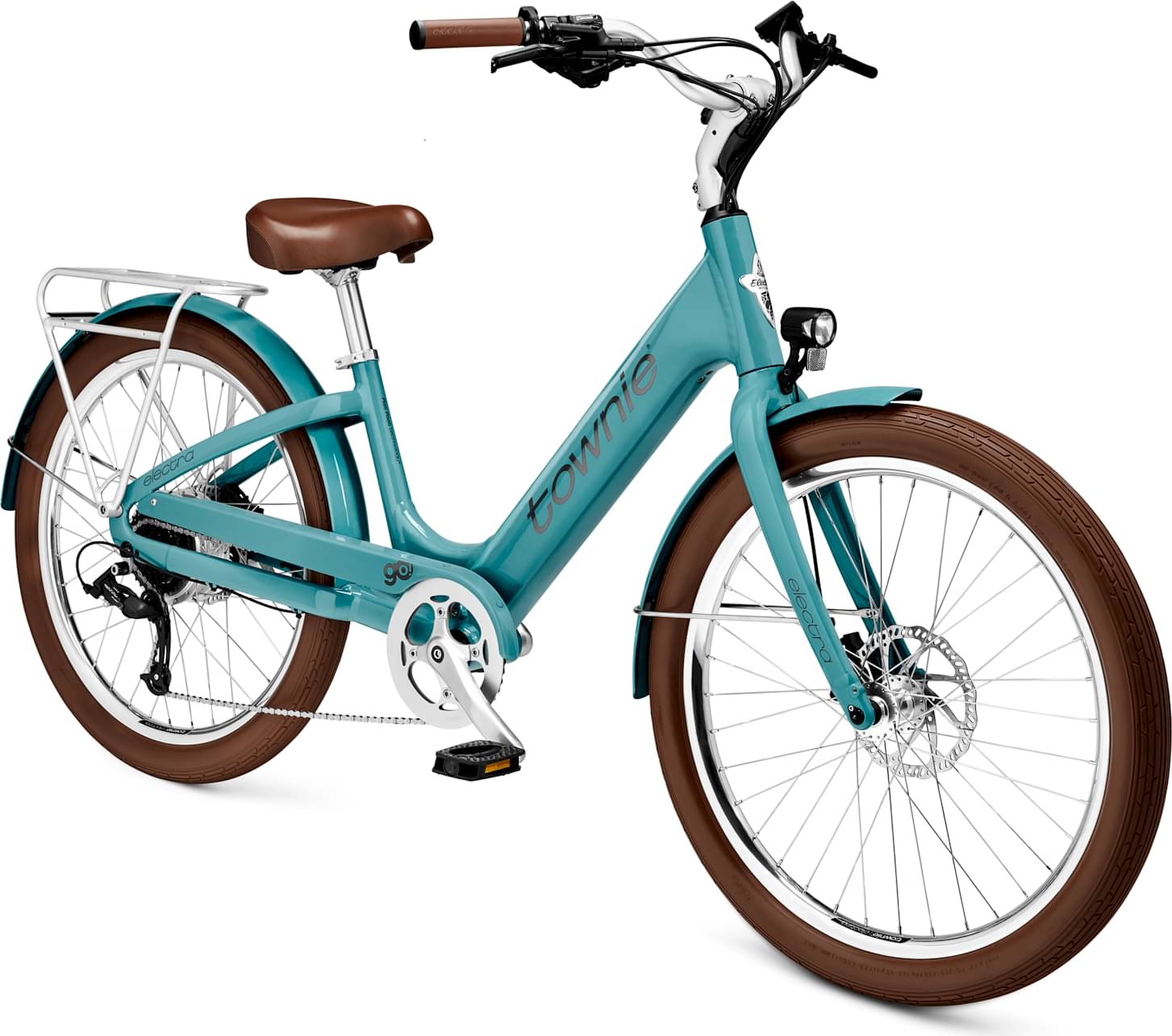

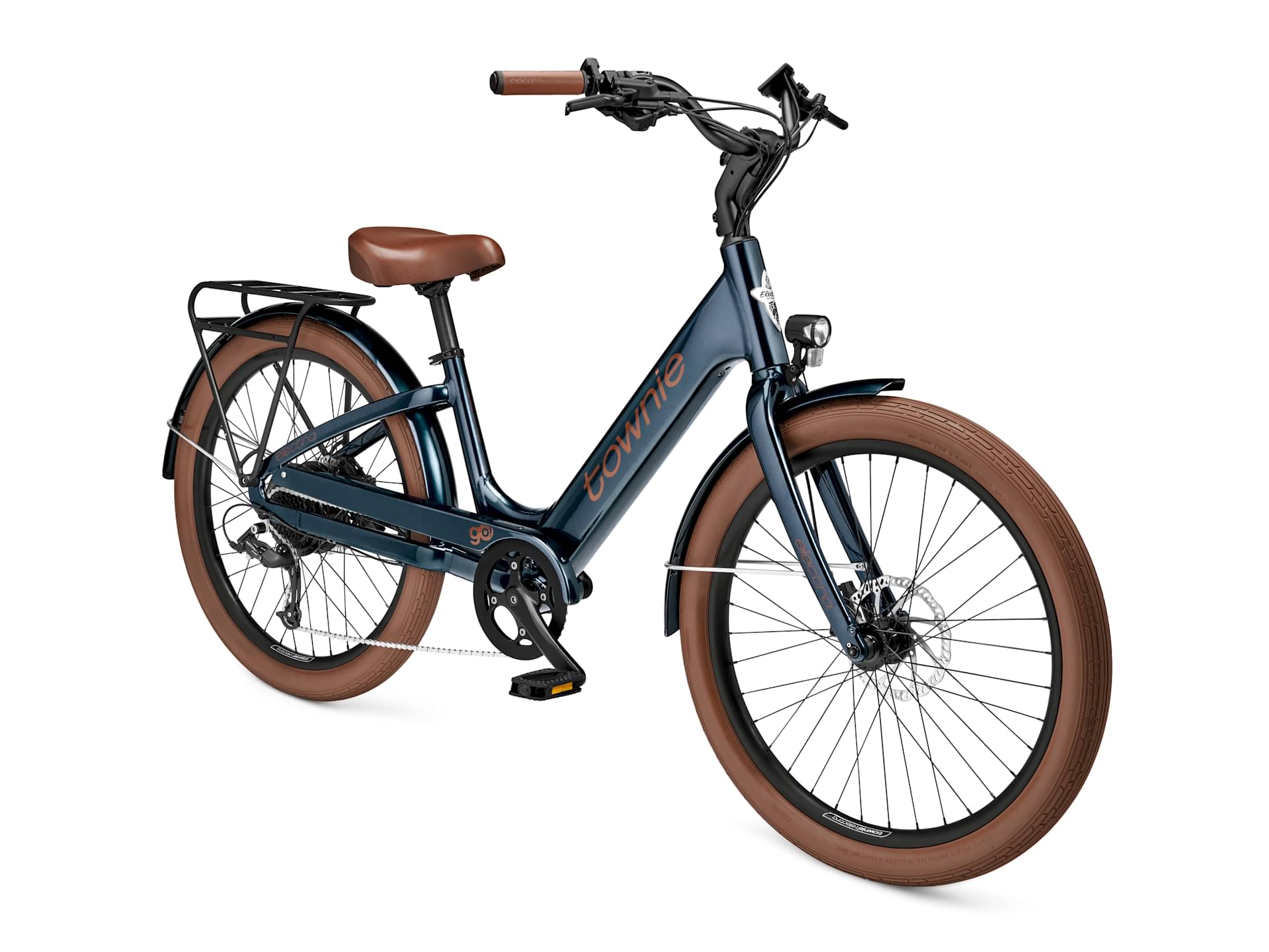

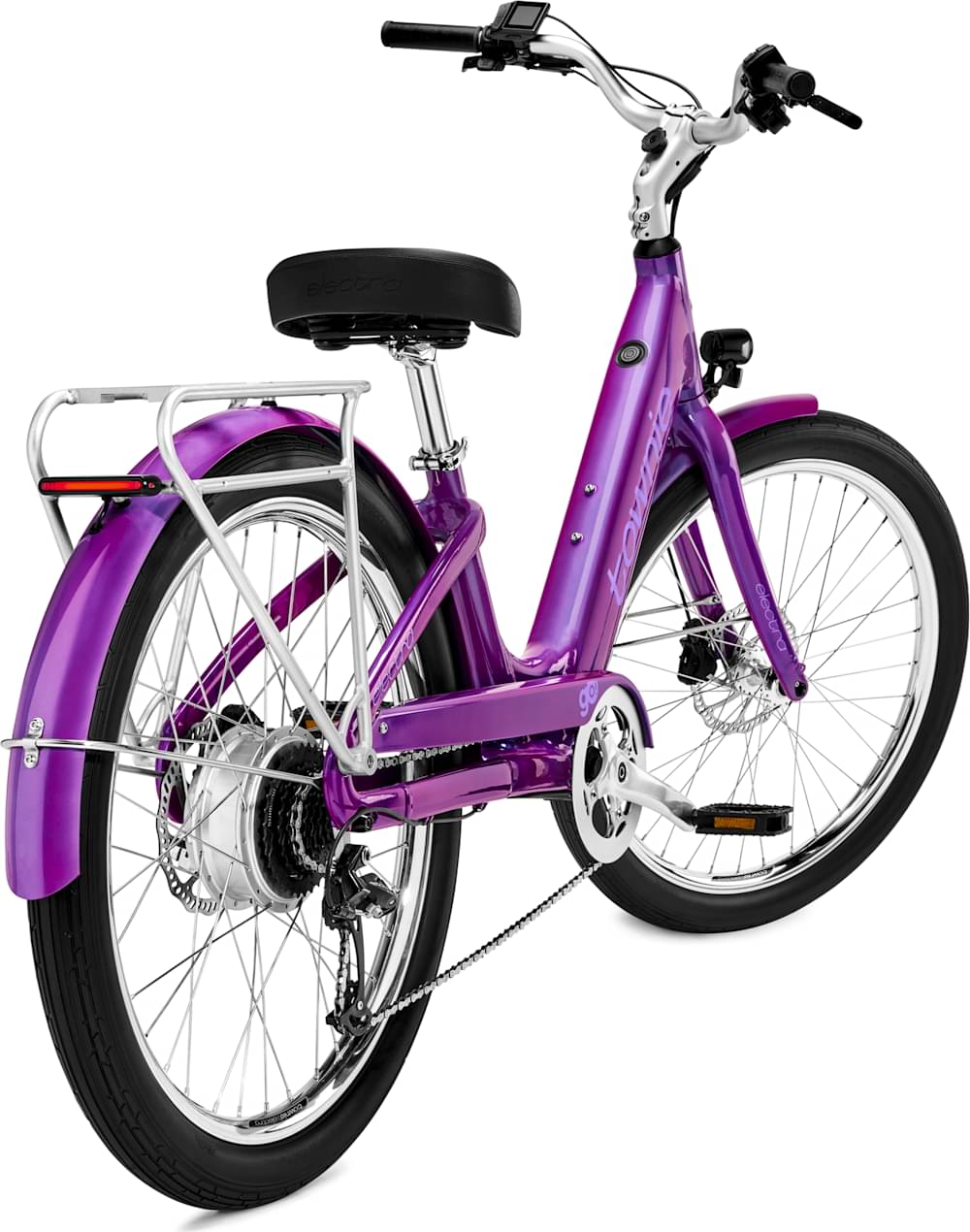

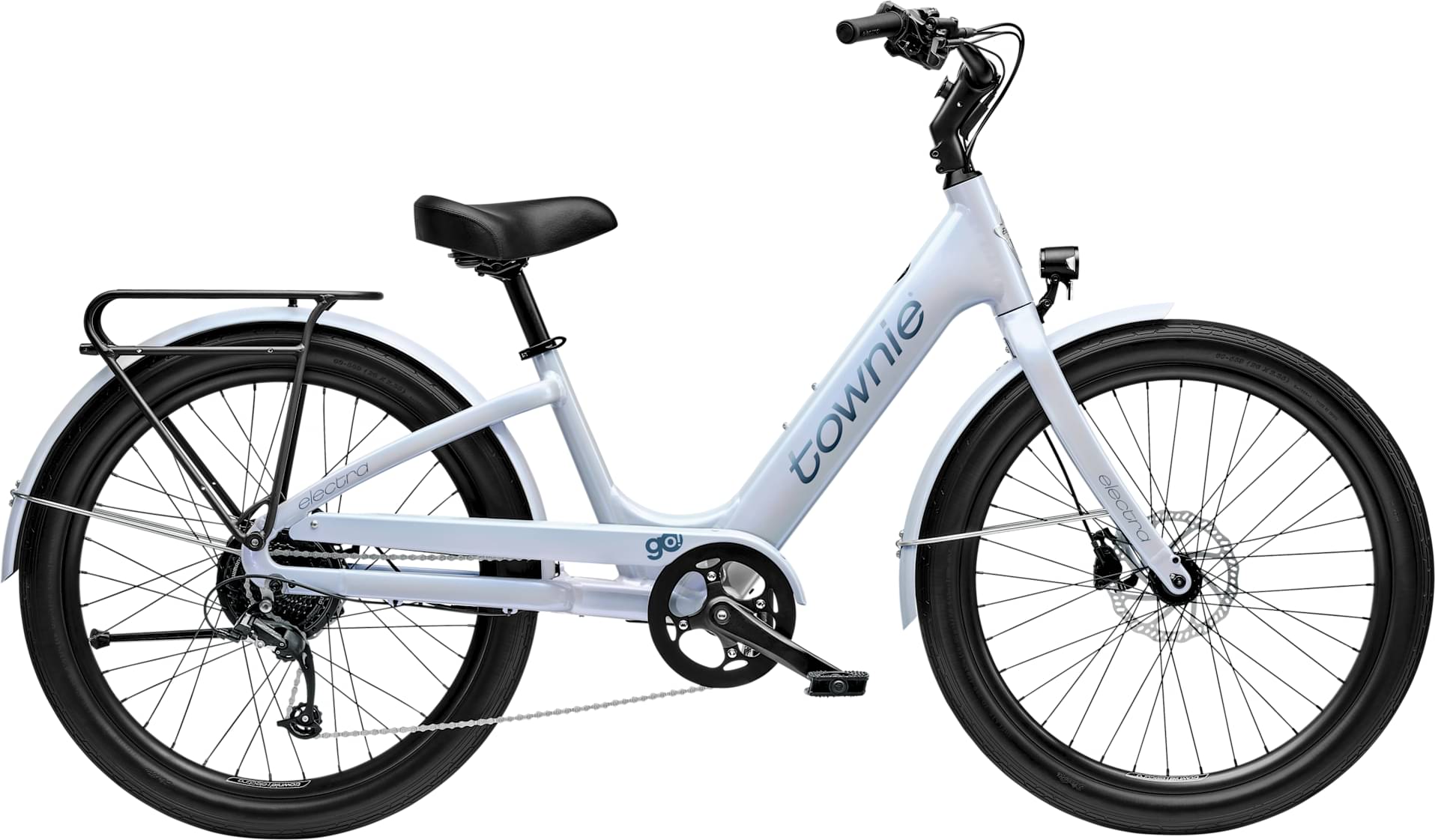

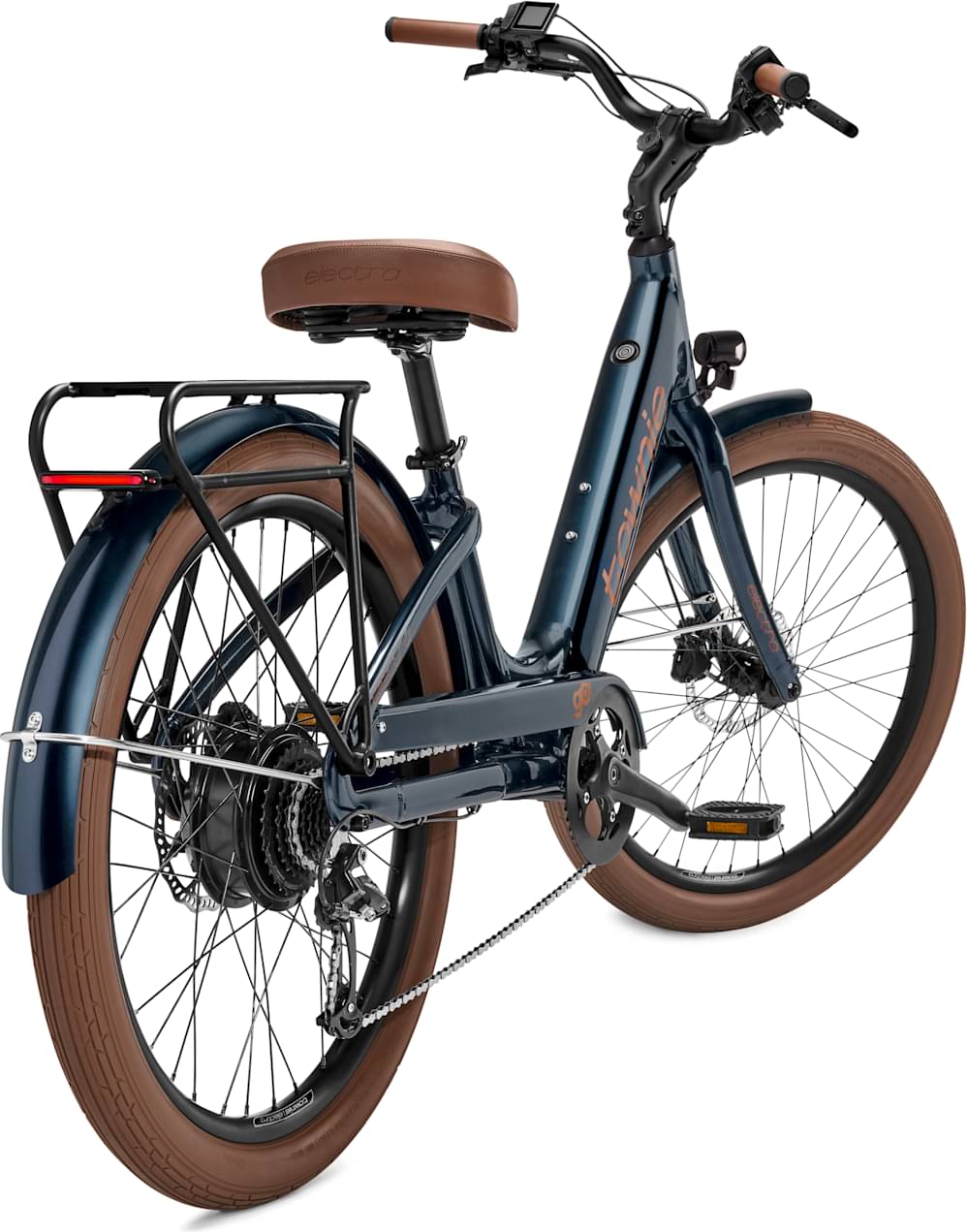

Electra Townie Go! S 2026
2026 E-bike
Estimate price |
1,999$
Weight | 26.19 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Mezzo -
Suspension Rigid -
Motor 500W 60Nm hub-drive -
Battery 520Wh, integrated in down tube -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 173cm
MD/LG
165cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 aluminum low-step with Flat Foot Technology
Suspension Fork
Size: SM, 26" Alloy unicrown, curved tapered leg with internal brake routing and ThruSkew 5mm bolt-on skewer; Size: ML, 27.5" Alloy unicrown, curved tapered leg with internal brake routing and ThruSkew 5mm bolt-on skewer
Drivetrain
Rear Derailleur
MicroShift Mezzo, 8-speed

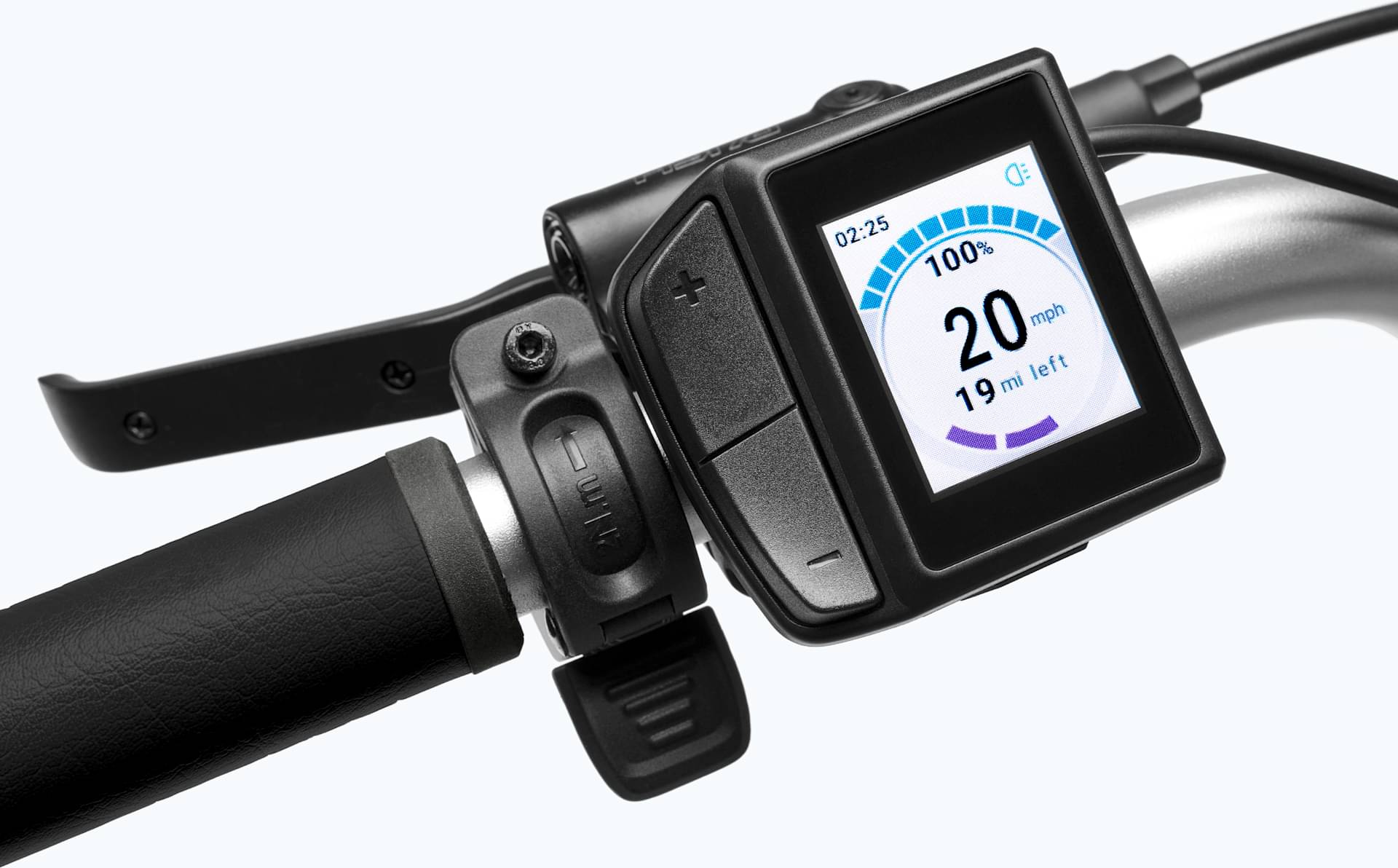

Shift Levers
MicroShift trigger, w/optical gear indicator, 8-speed
Cassette
Shimano HG31, 11-34, 8 speed

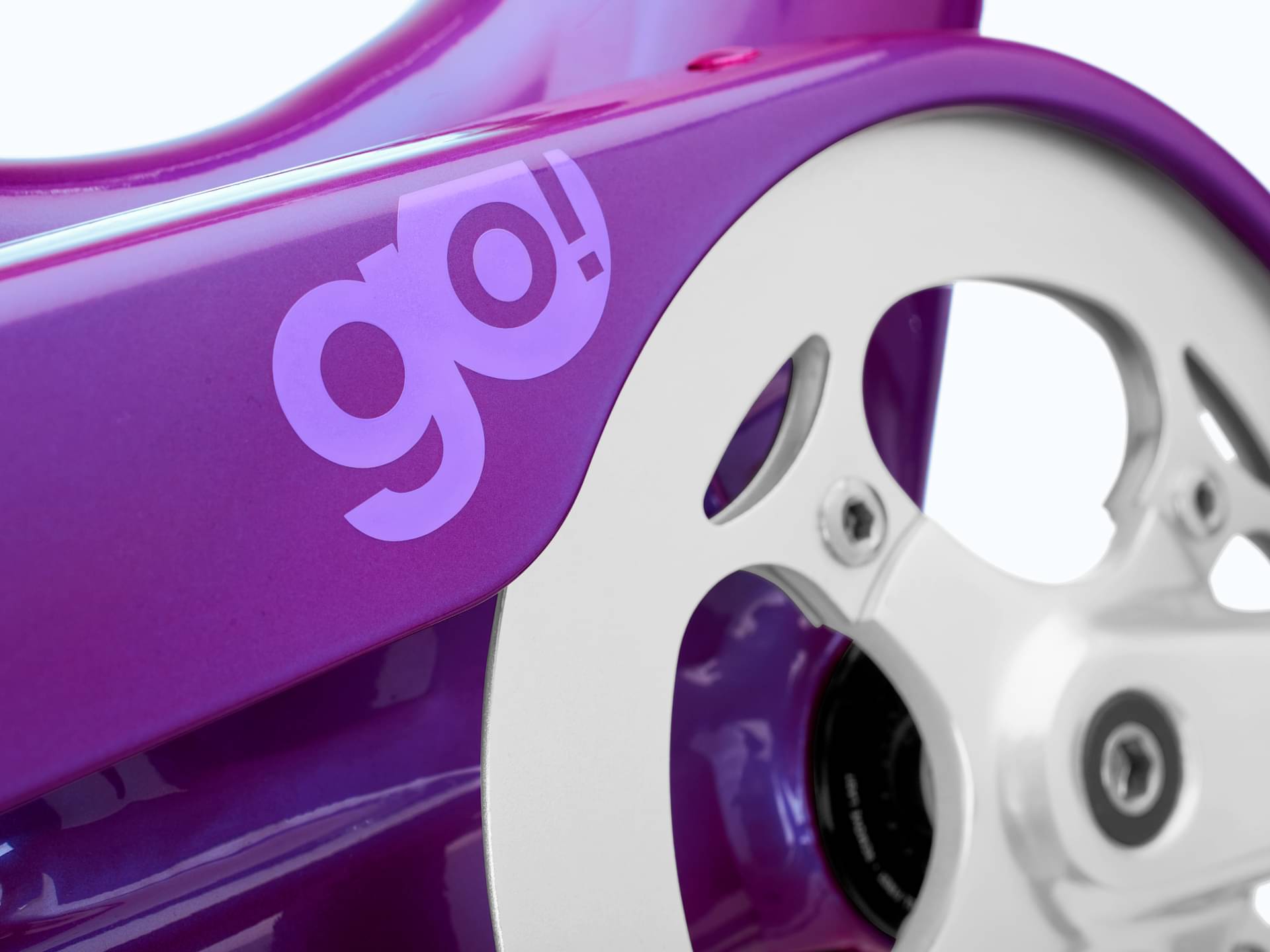

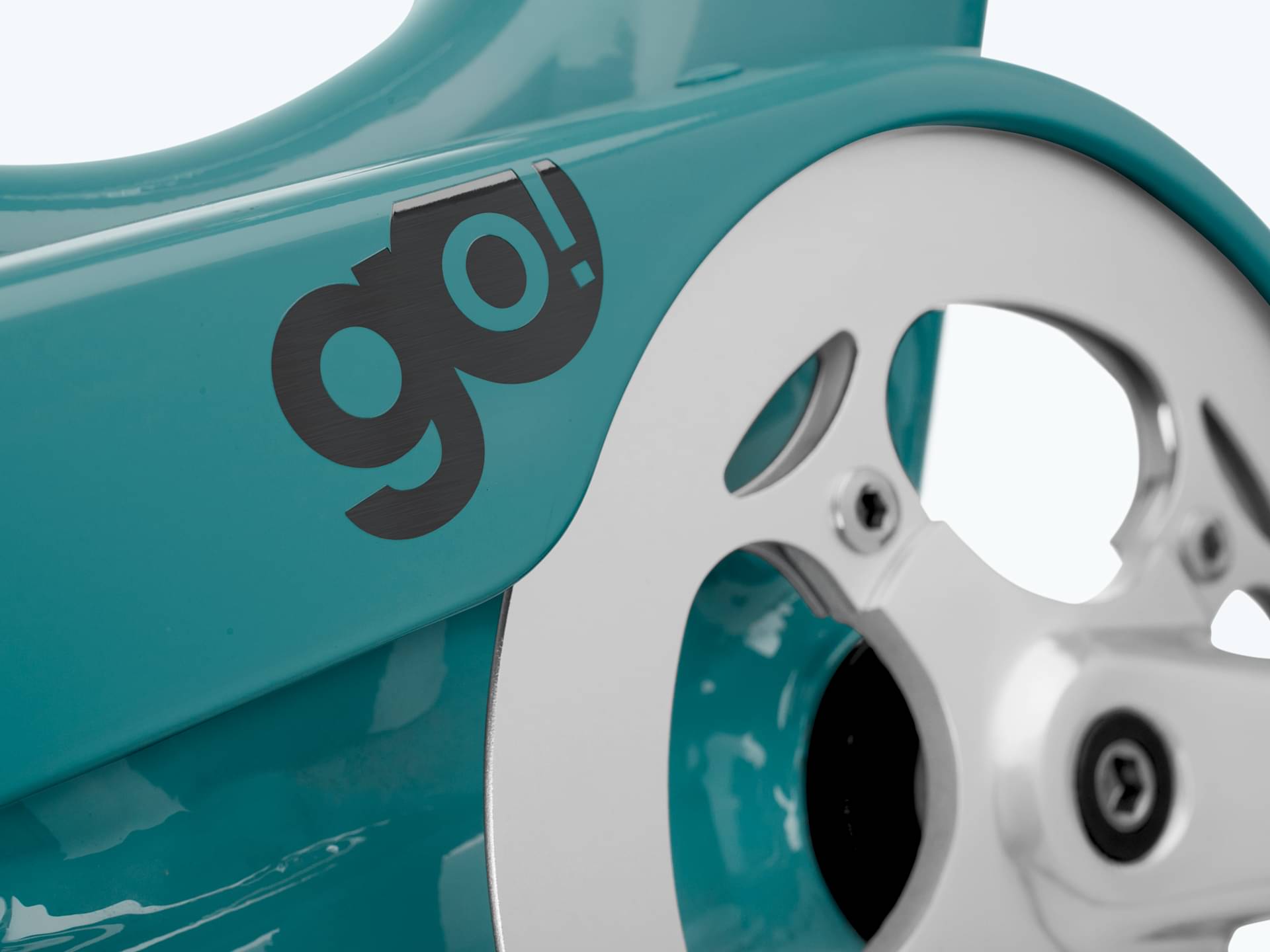

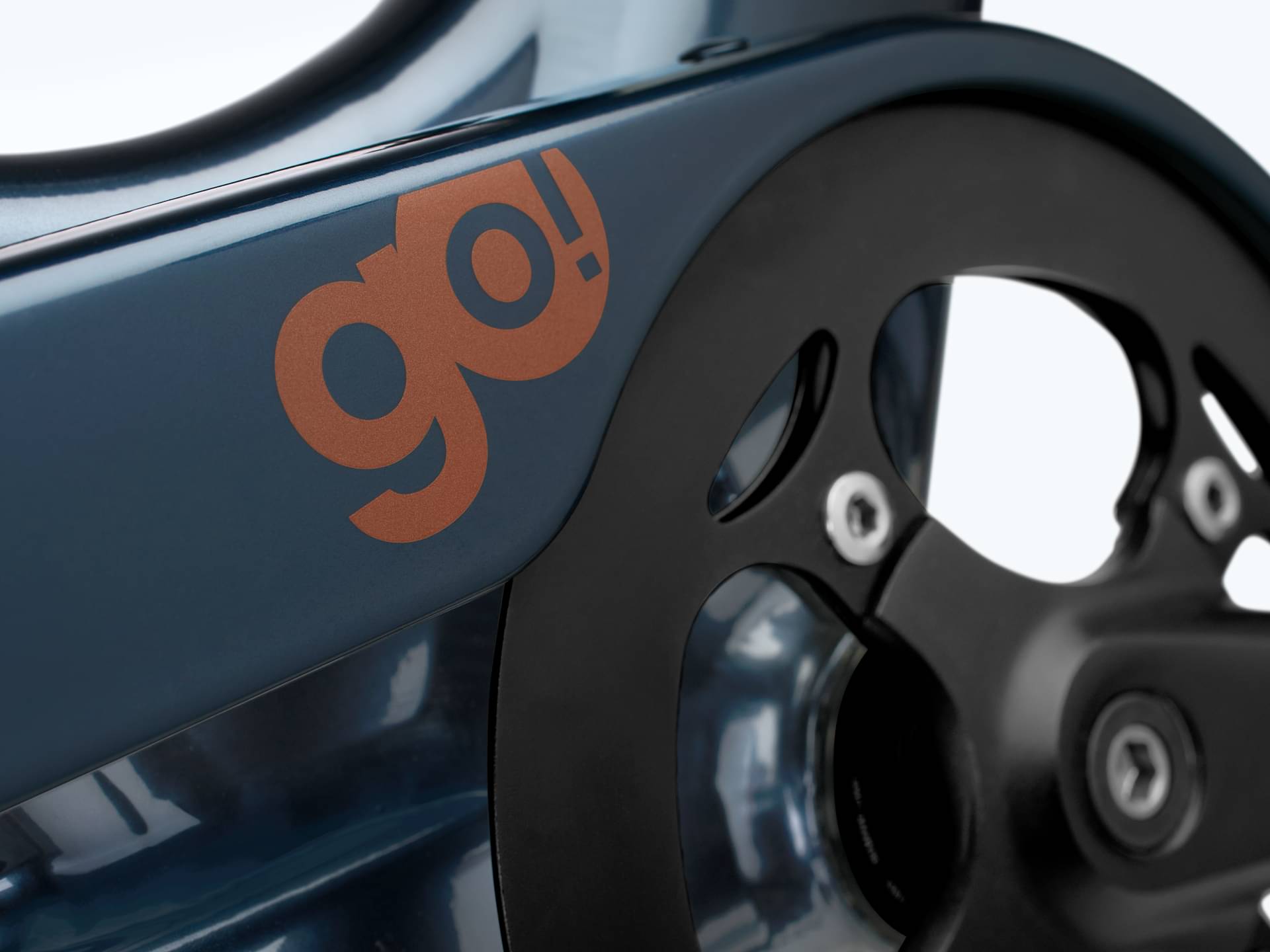

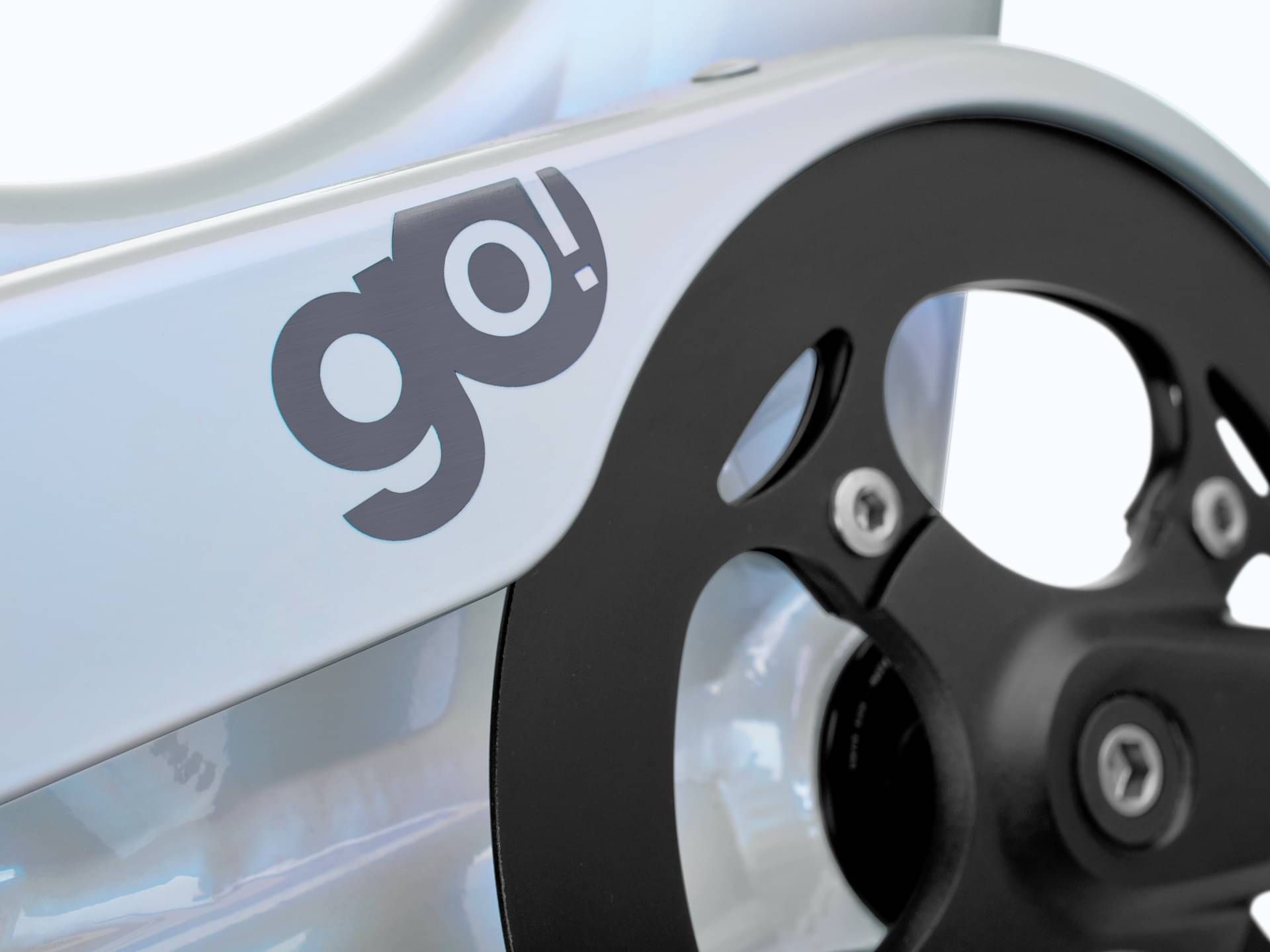

Crank
Forged alloy, 44T, chainguard, 170mm length
Chain
KMC Z8.3 RB, rust resistant
Pedals
Resin platform w/non-slip tread
Wheels
Front Hub
Alloy low-flange w/6-bolt disc, 36h, w/QR
Rims
Size: SM, Alloy double wall, 26''x36h; Size: ML, Alloy double wall, 27.5''x36h; Size: ML, Alloy double wall, 27.5"x36h
Spokes
Size: SM, ML, 14g stainless steel, black; Size: SM, ML, Sapim Strong, 13G stainless; Size: SM, ML, 14g stainless steel, silver
Tires
Size: SM, 26x2.35'' balloon; Size: SM, 26x2.35" balloon; Size: ML, 27.5x2.35" balloon
Brakes
Brakes

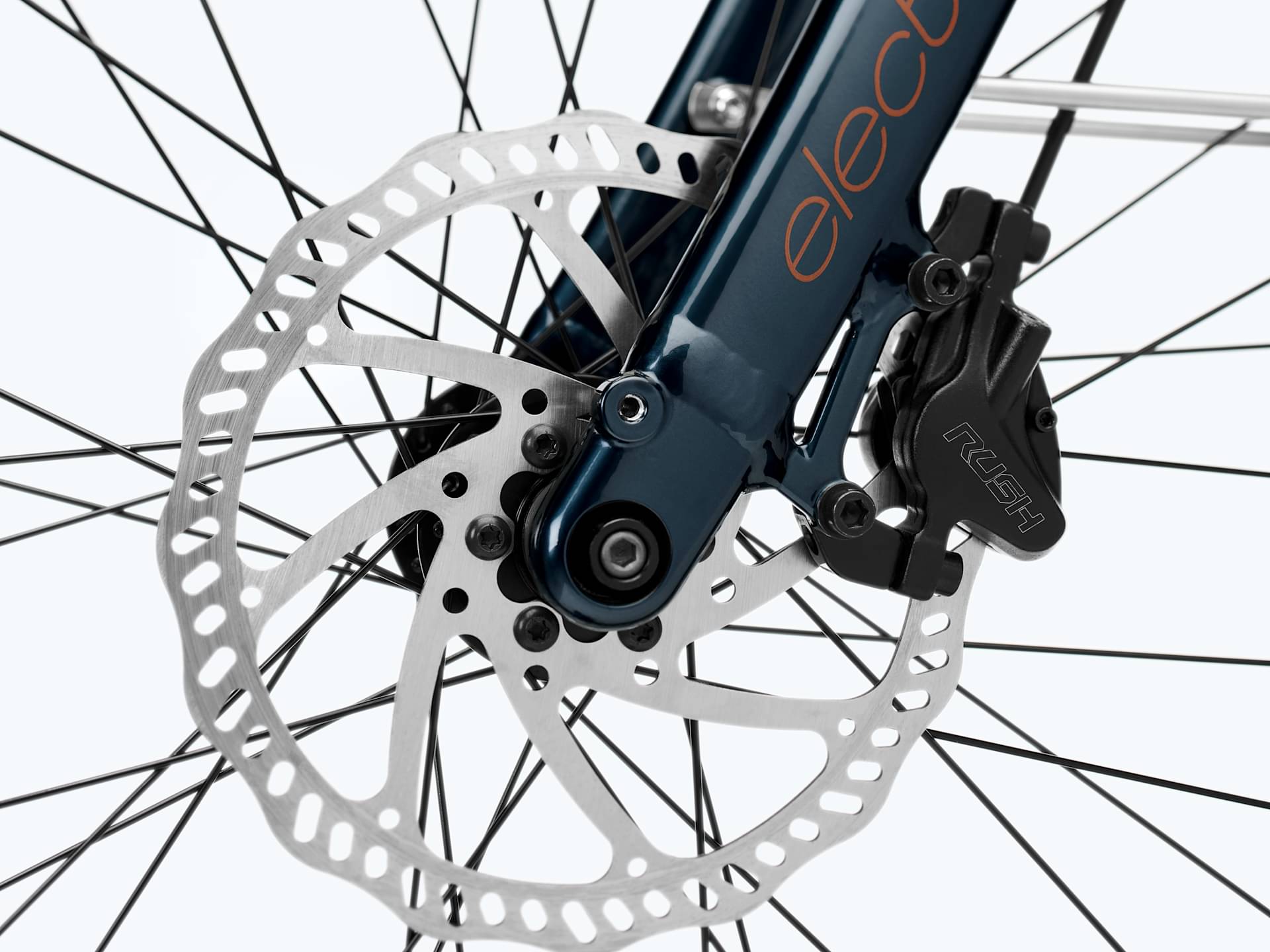

Rush hydraulic disc, 180mm rotor, brake switching
Cockpit
Stem
Alloy custom stem, QR basket mount, Quad-Lock mount
Handlebar
Alloy custom bend, 700mm wide, 100mm rise
Grips
Comfort Kraton rubber
Headset
Sealed cartridge bearing, internal cable routing
Seat
Saddle
Ergonomic w/shock-absorbing elastomers
Seatpost
Size: SM, Alloy 31.6mmx330mm, black; Size: SM, Alloy 31.6mmx330mm, silver; Size: ML, Alloy 31.6mmx400mm, black; Size: ML, Alloy 31.6mmx400mm, silver
Motor & Battery

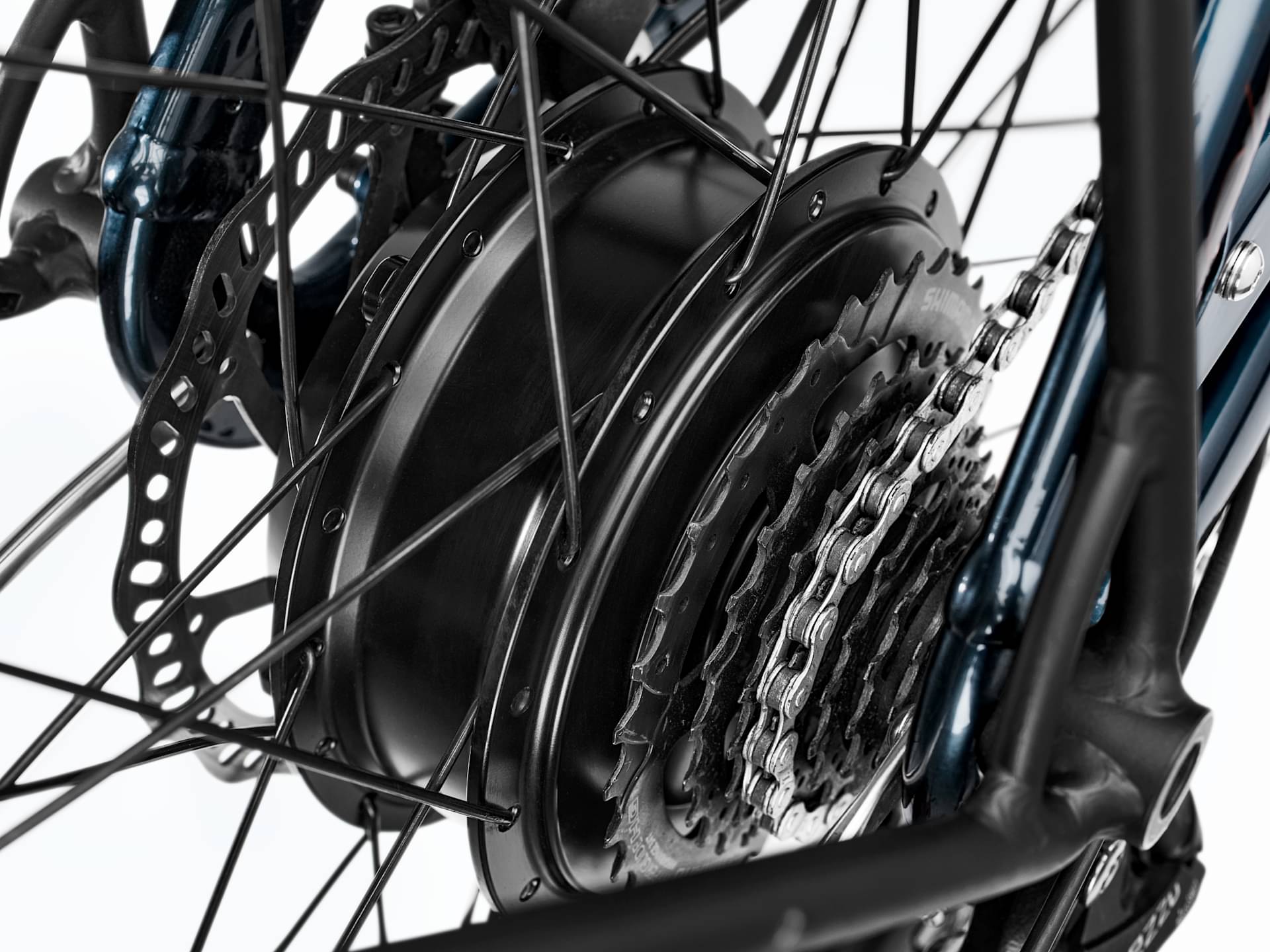

Motor
Size: SM, ML, Hub drive motor, 60 Nm, 500W, 36H, black; Size: SM, ML, Hub drive motor, 60 Nm, 500W, 36H, silver
Battery
520Wh, integrated in down tube

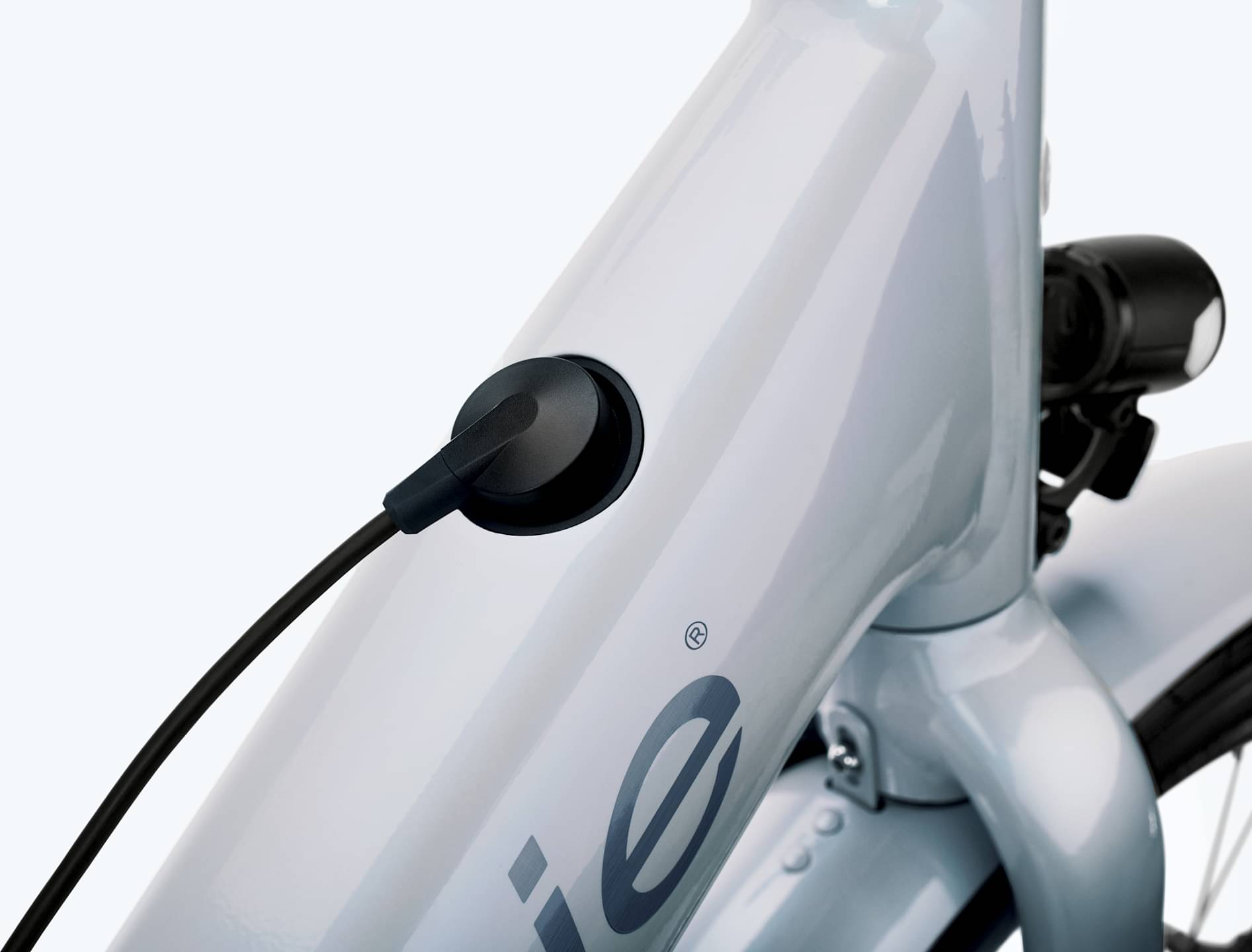

Charger
Custom magnetic charger, 3A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.766 mm | 1.814 mm |
| Stack | 567 mm | 595 mm |
| Reach | 321 mm | 328 mm |
| Seat Tube Angle | 67 ° | 67 ° |
| Seat Tube Length | 372 mm | 444 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 180 mm | 185 mm |
| Wheelbase | 1180 mm | 1205 mm |
| Standover Height | 437 mm | 436 mm |
| Wheels | 26" | 650 |
| Rider Min Height | 150 cm | 165 cm |
| Rider Max Height | 173 cm | 193 cm |
