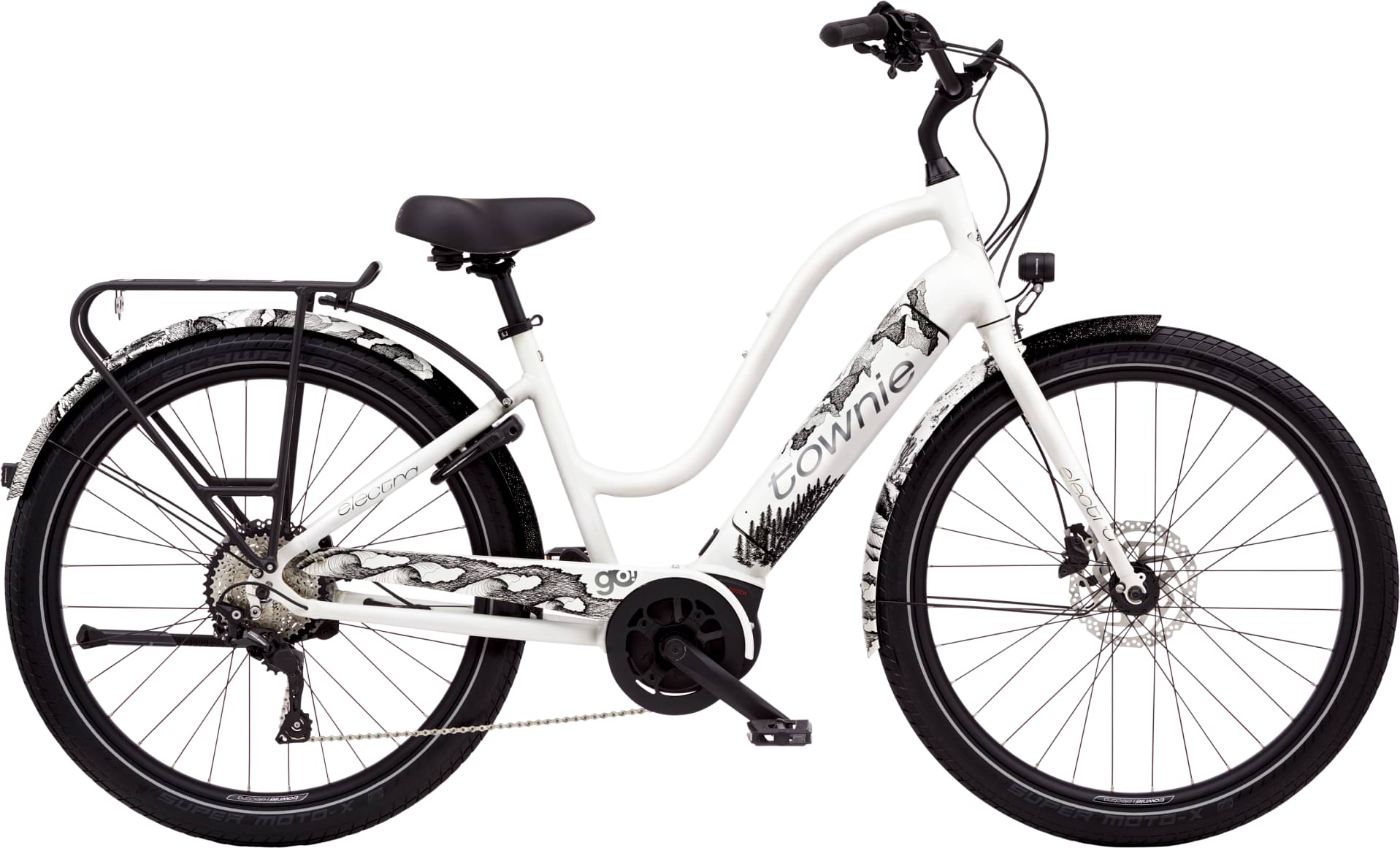

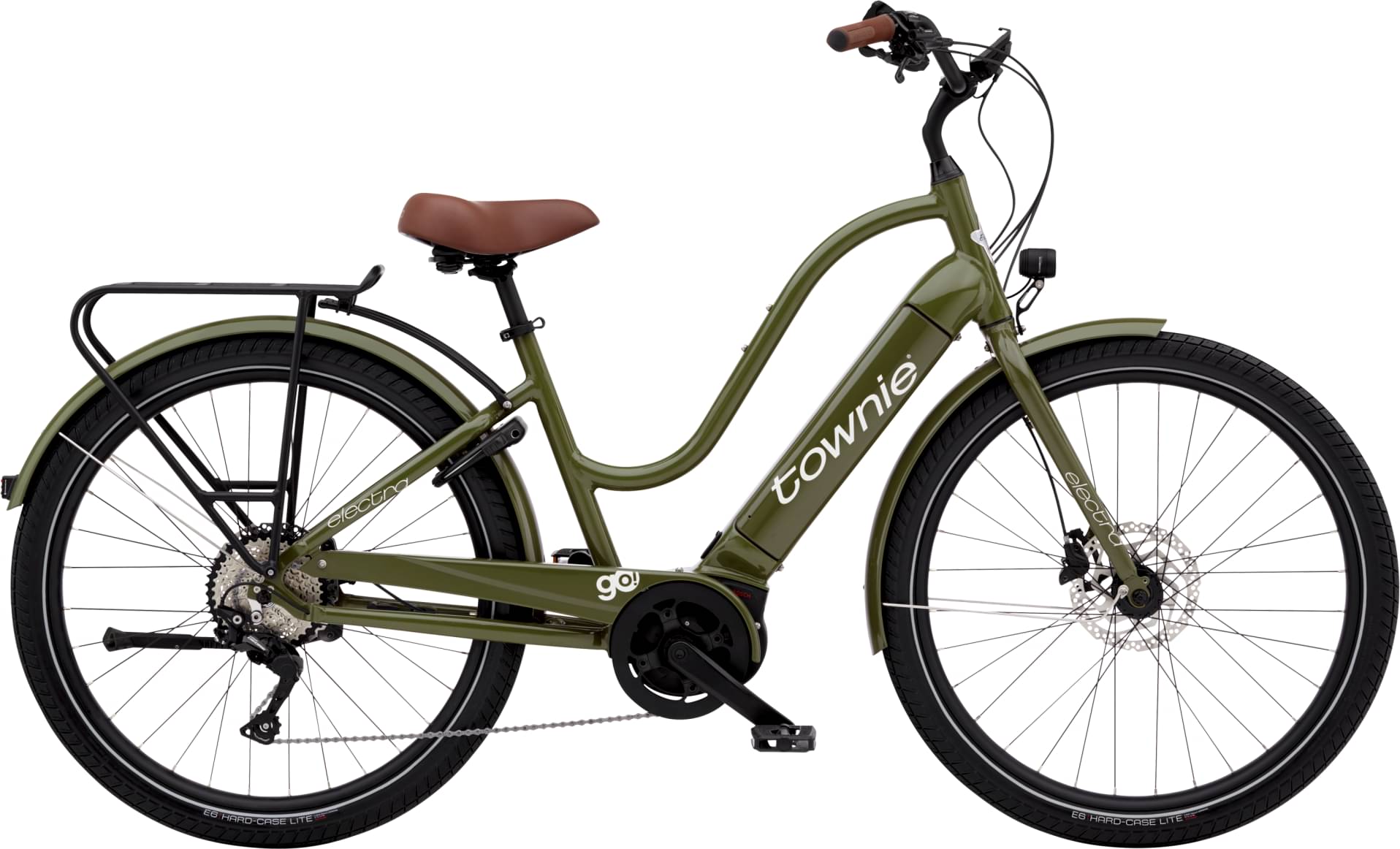

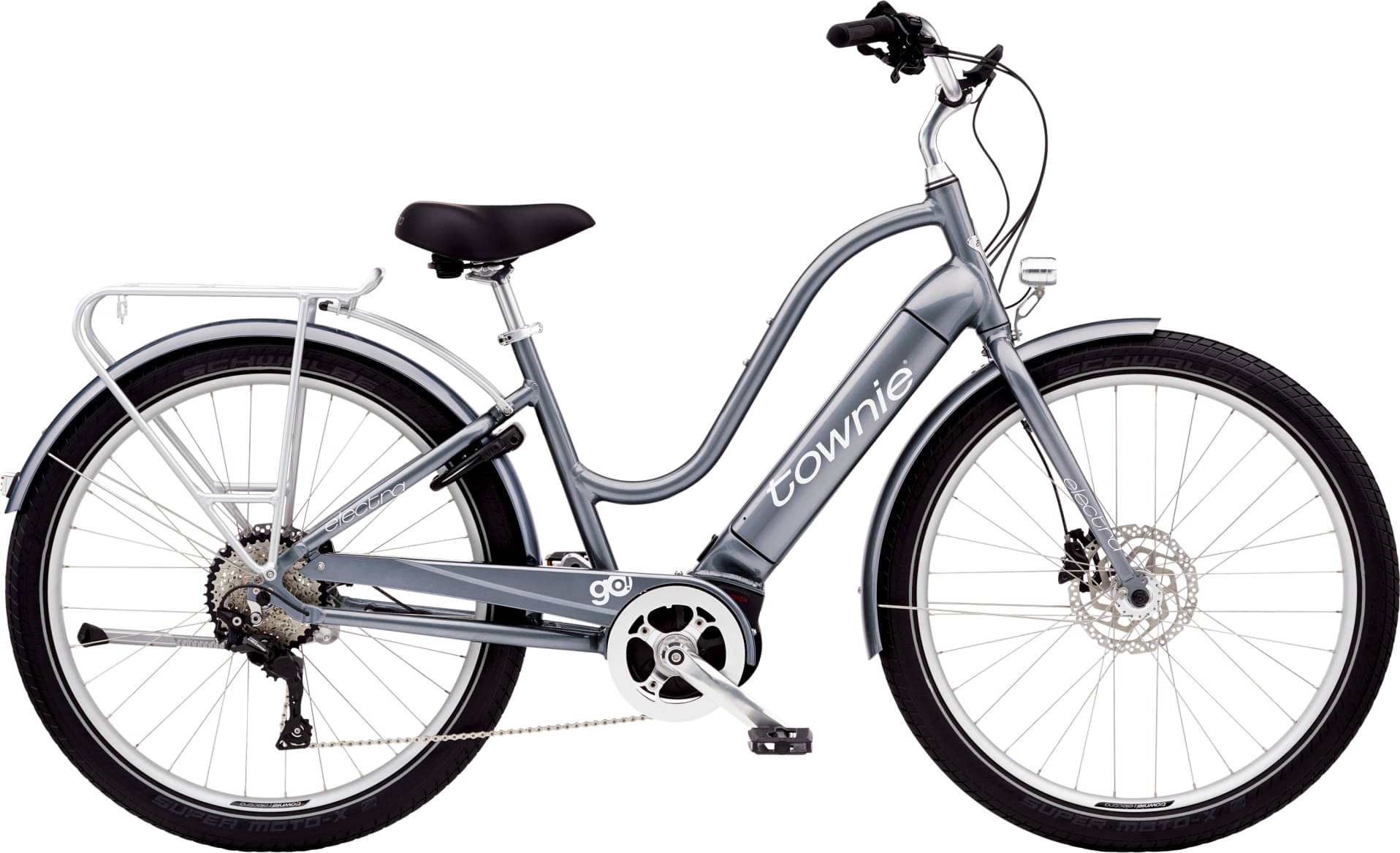

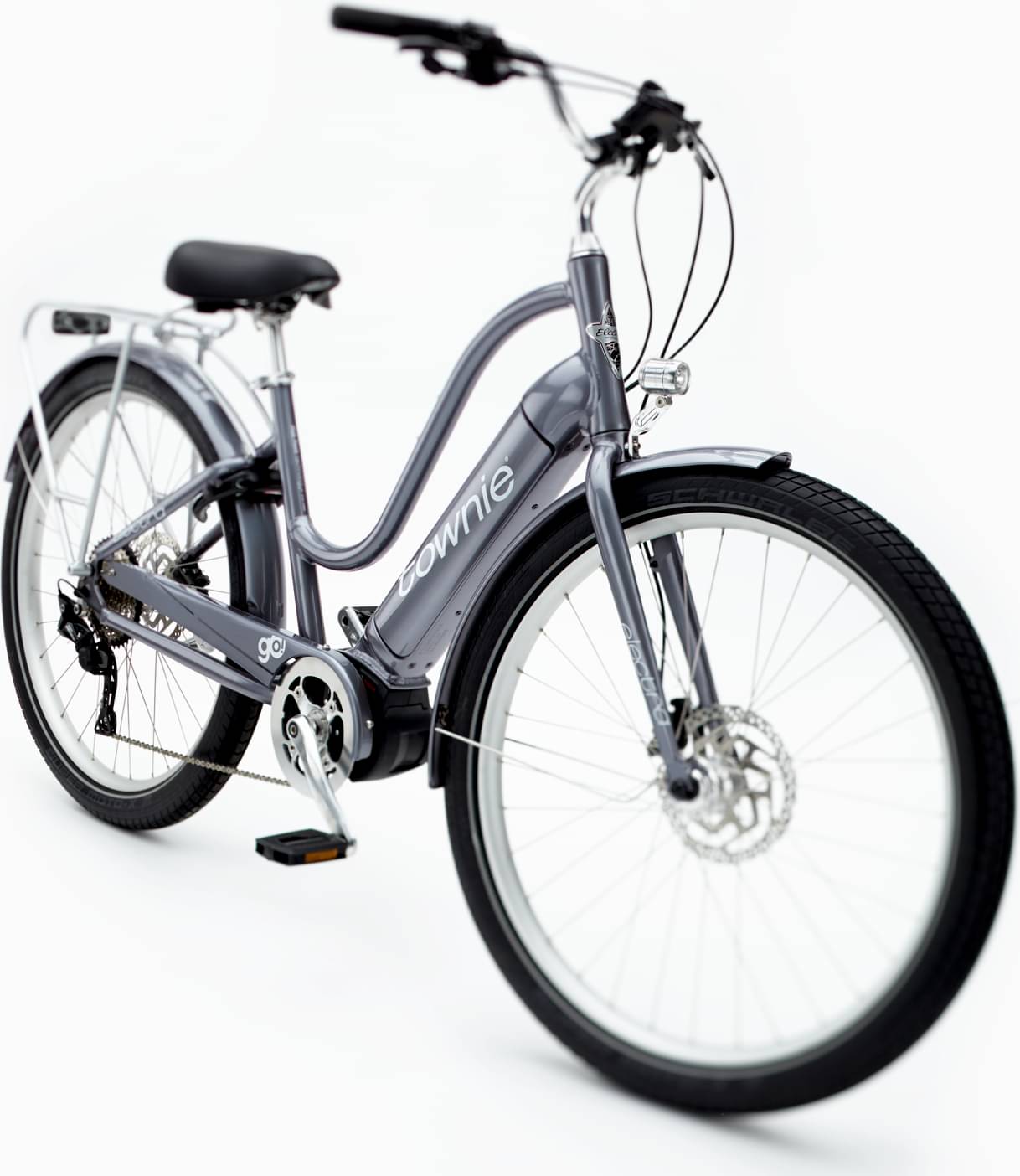

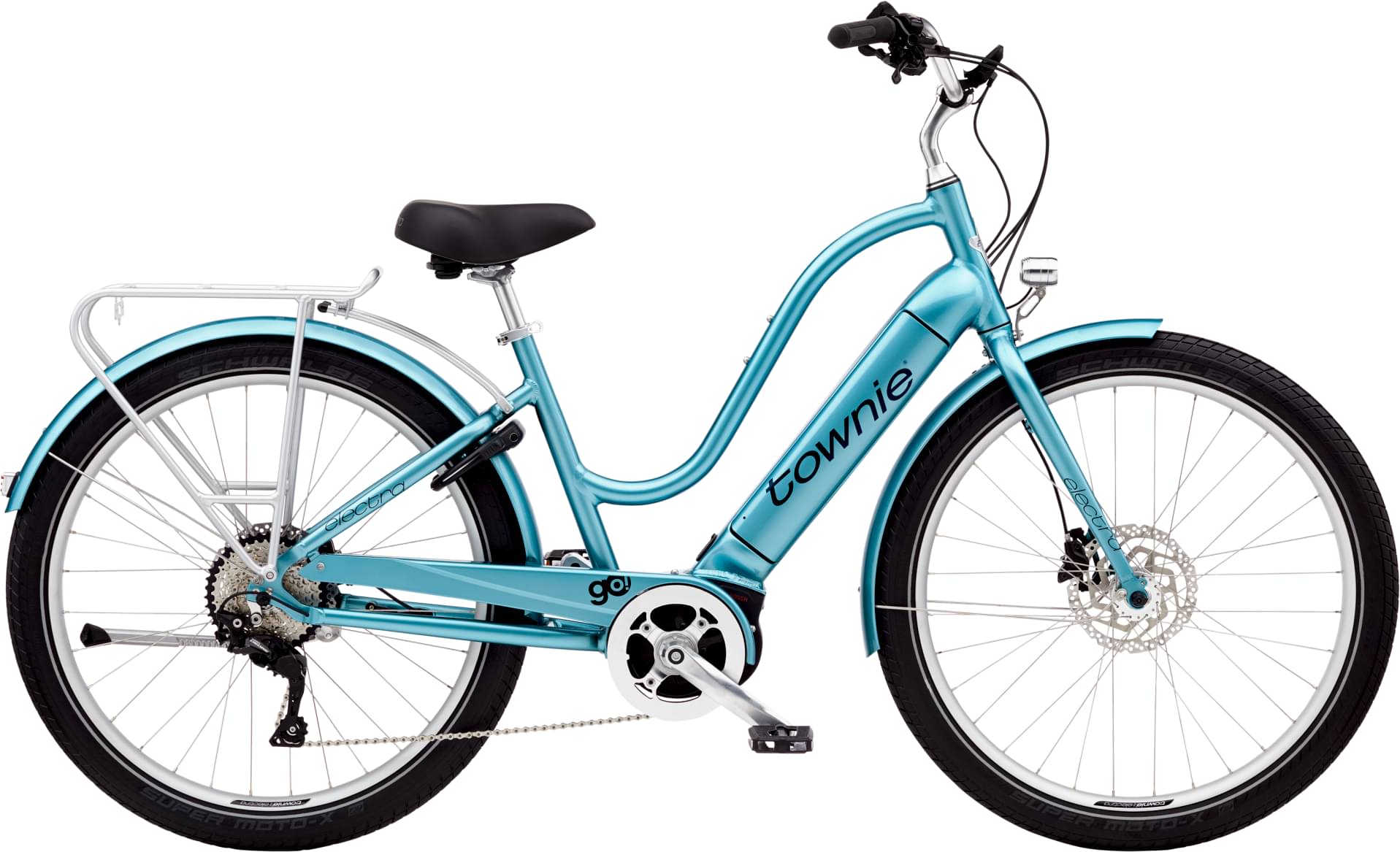

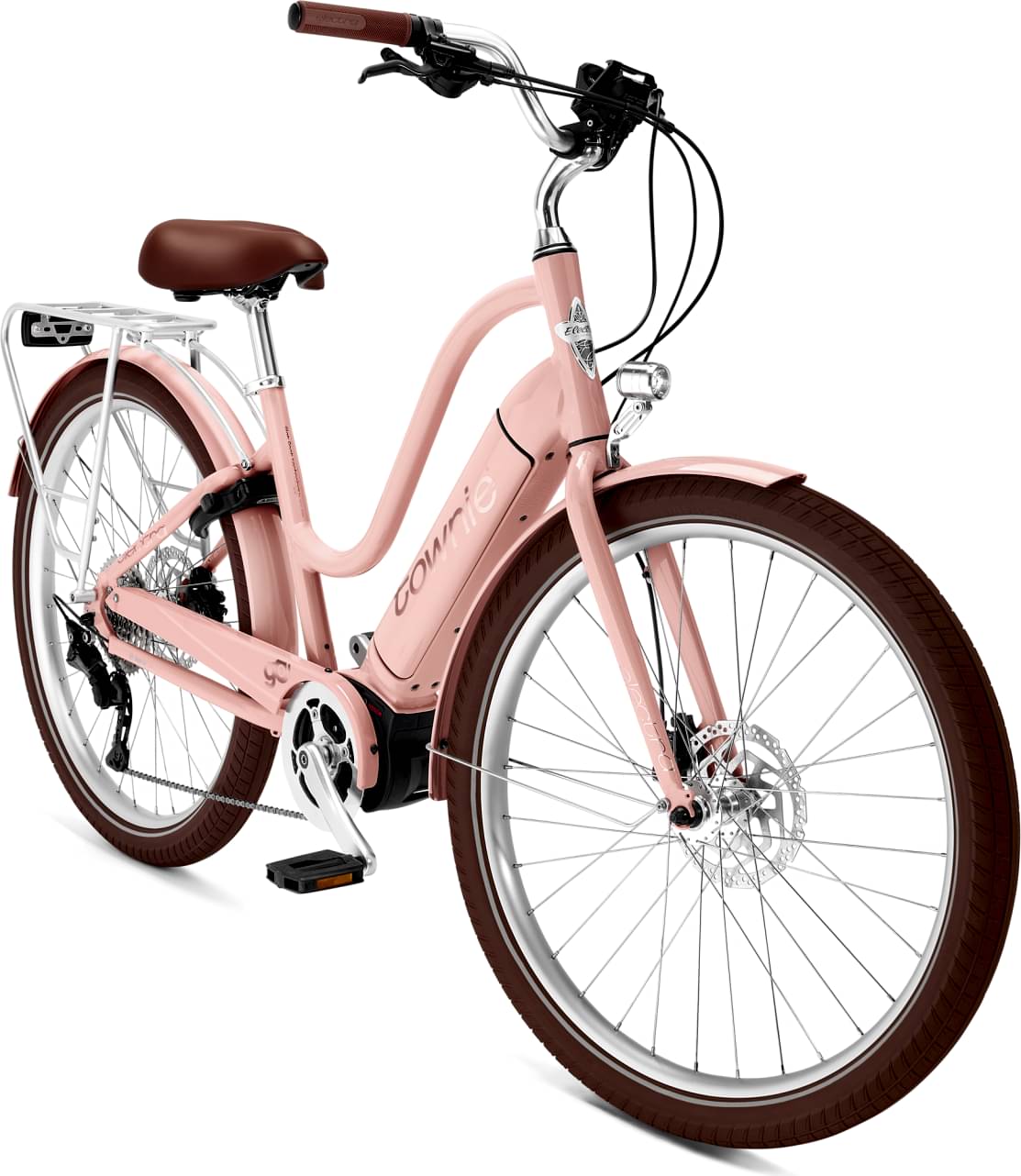

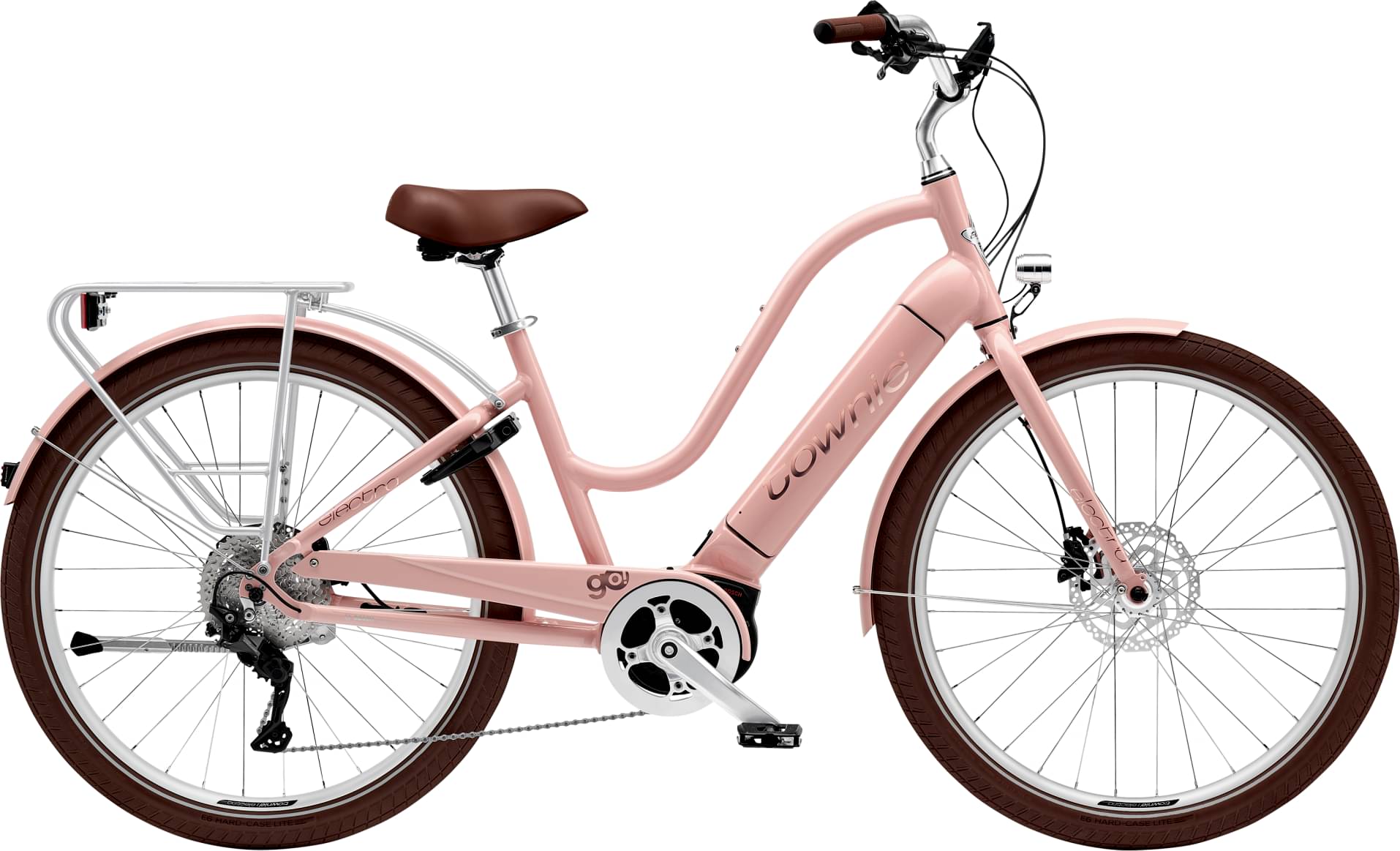

Electra Townie Path Go! 10D EQ Step-Thru 2025
2025 E-bike
Estimate price |
3,256$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

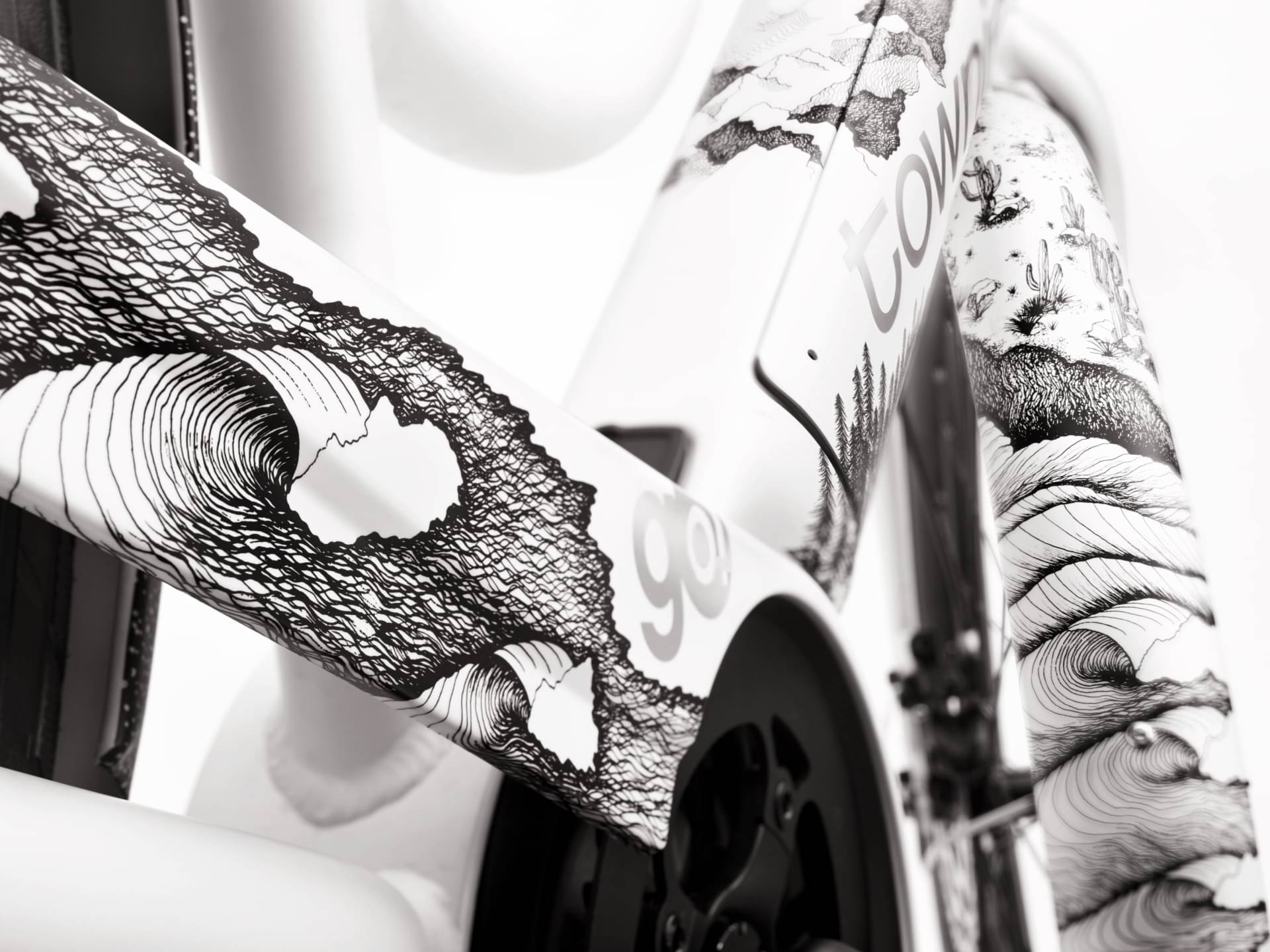

Frame

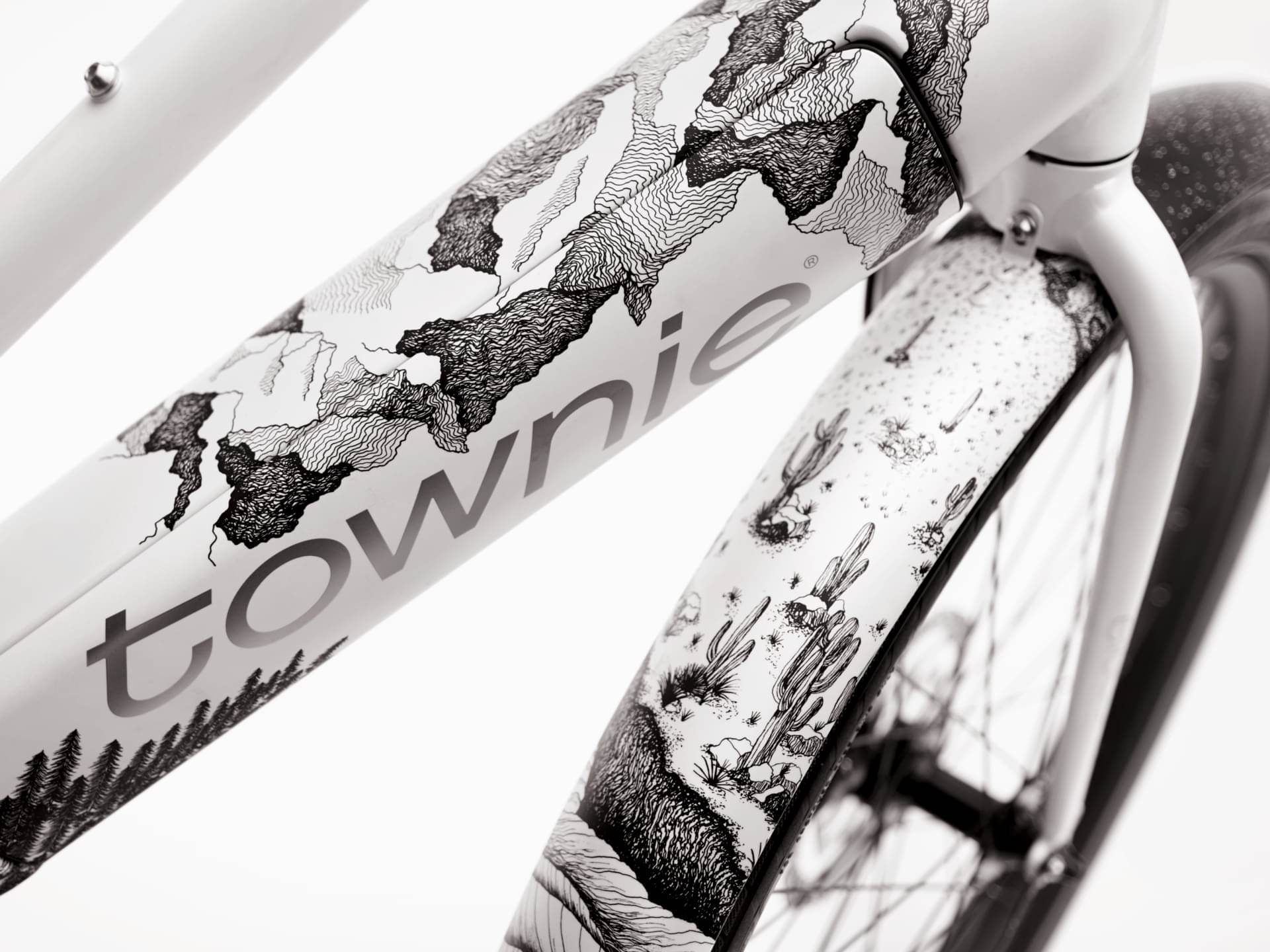

6061-T6 aluminium with patented Flat Foot Technology®
Drivetrain

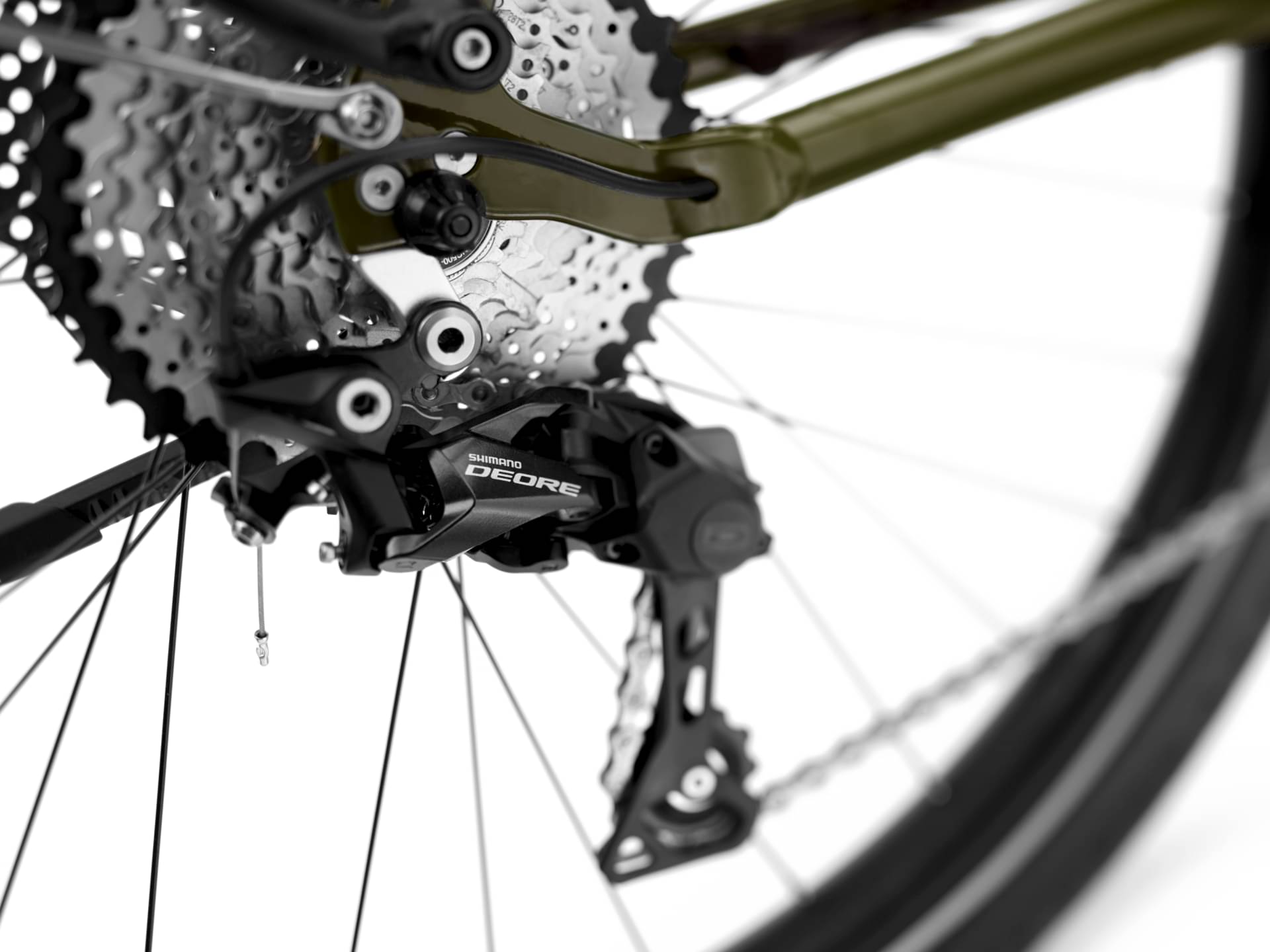

Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10-speed
Cassette
Shimano Deore M4100, 11-42, 10-speed
Crank
Size: M, ProWheel alloy, 170 mm length; Size: M, Forged alloy 170 mm; Size: M, Forged alloy 170 mm, Bosch type
Bottom Bracket
Bosch, press-fit
Chain
KMC E10T EPT anti-rust
Pedals
Resin platform w/grip tape tread
Wheels
Front Hub
Size: M, Formula DC-20, alloy, 6-bolt, 5x100 mm QR; Size: M, Alloy low-flange w/6-bolt disc, 32h, w/QR
Rear Hub
Size: M, Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR; Size: M, Alloy low-flange w/6-bolt disc, 32h, w/QR
Rims
Size: M, Alloy double-walled 27.5"x32h; Size: M, Alloy double-walled 700x32h
Spokes
14 g stainless steel, black
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Brakes

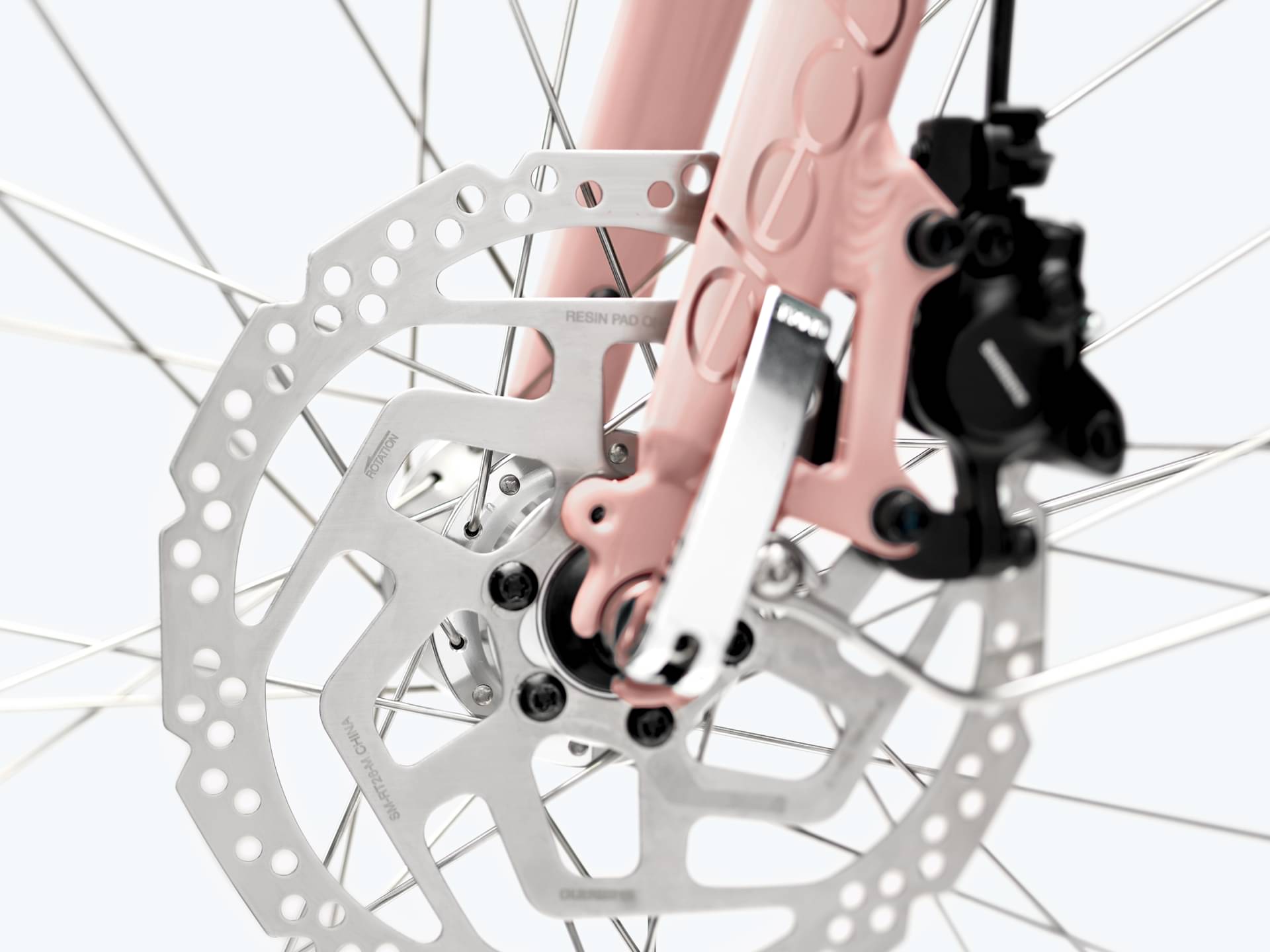

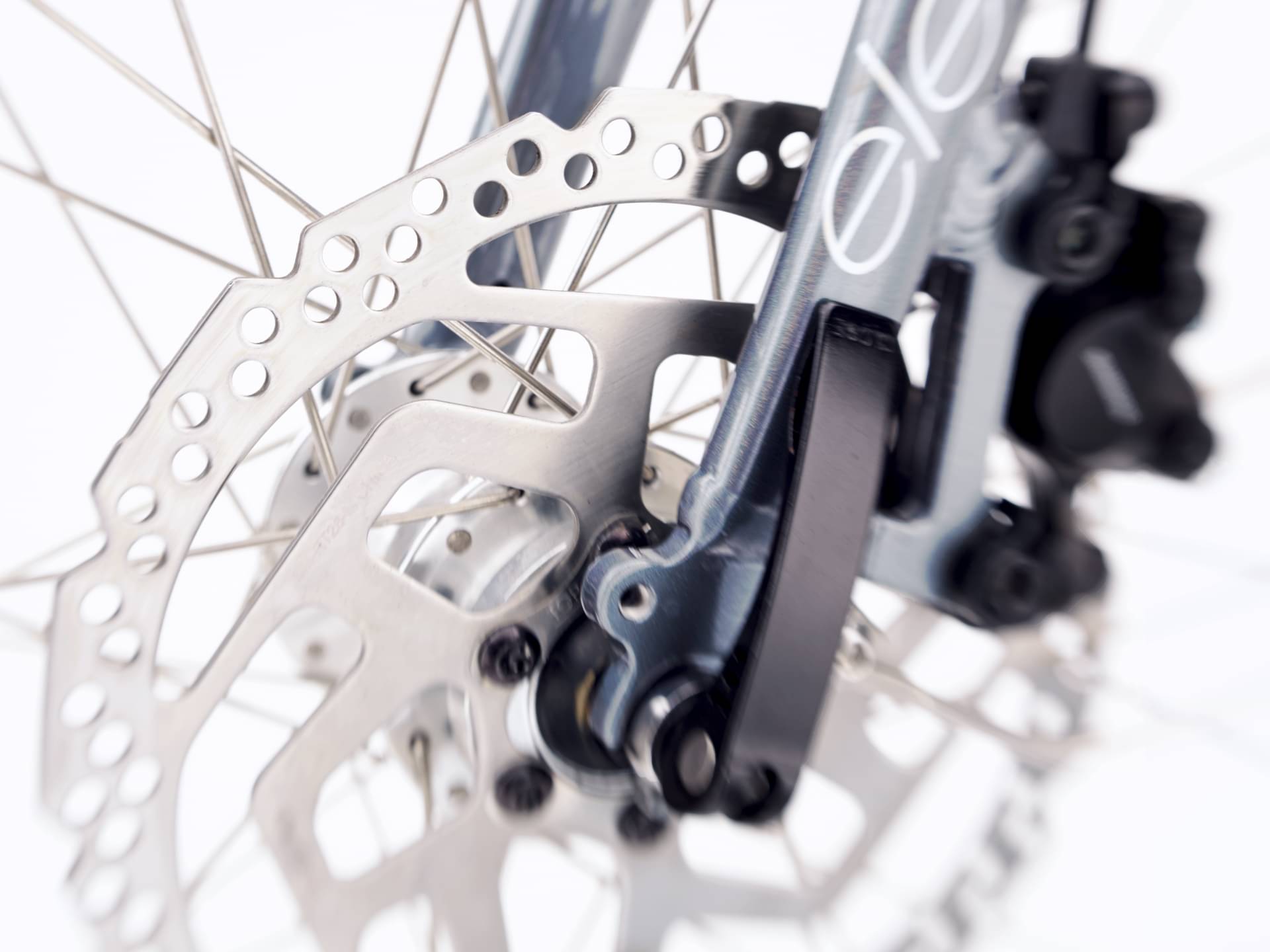

Brakes

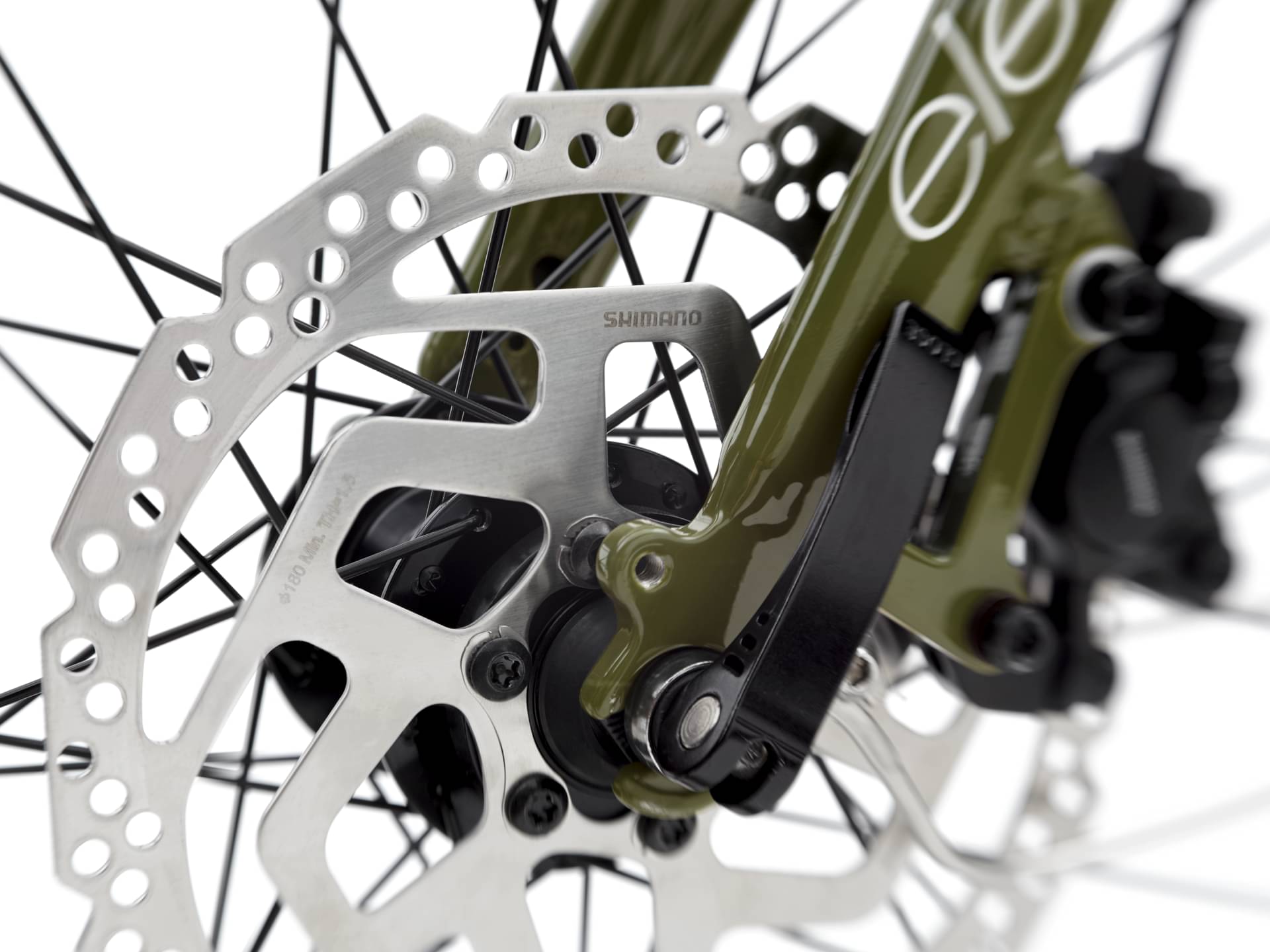

Size: M, Tektro hydraulic disc brakes; Size: M, Shimano MT-200 hydraulic disc
Cockpit
Stem
Forged alloy 25.4 mm quill, 80 mm extension
Handlebar
Alloy custom bend 25.9" width/4" rise
Grips
Electra Townie custom ergo Kraton w/locking collars
Seat

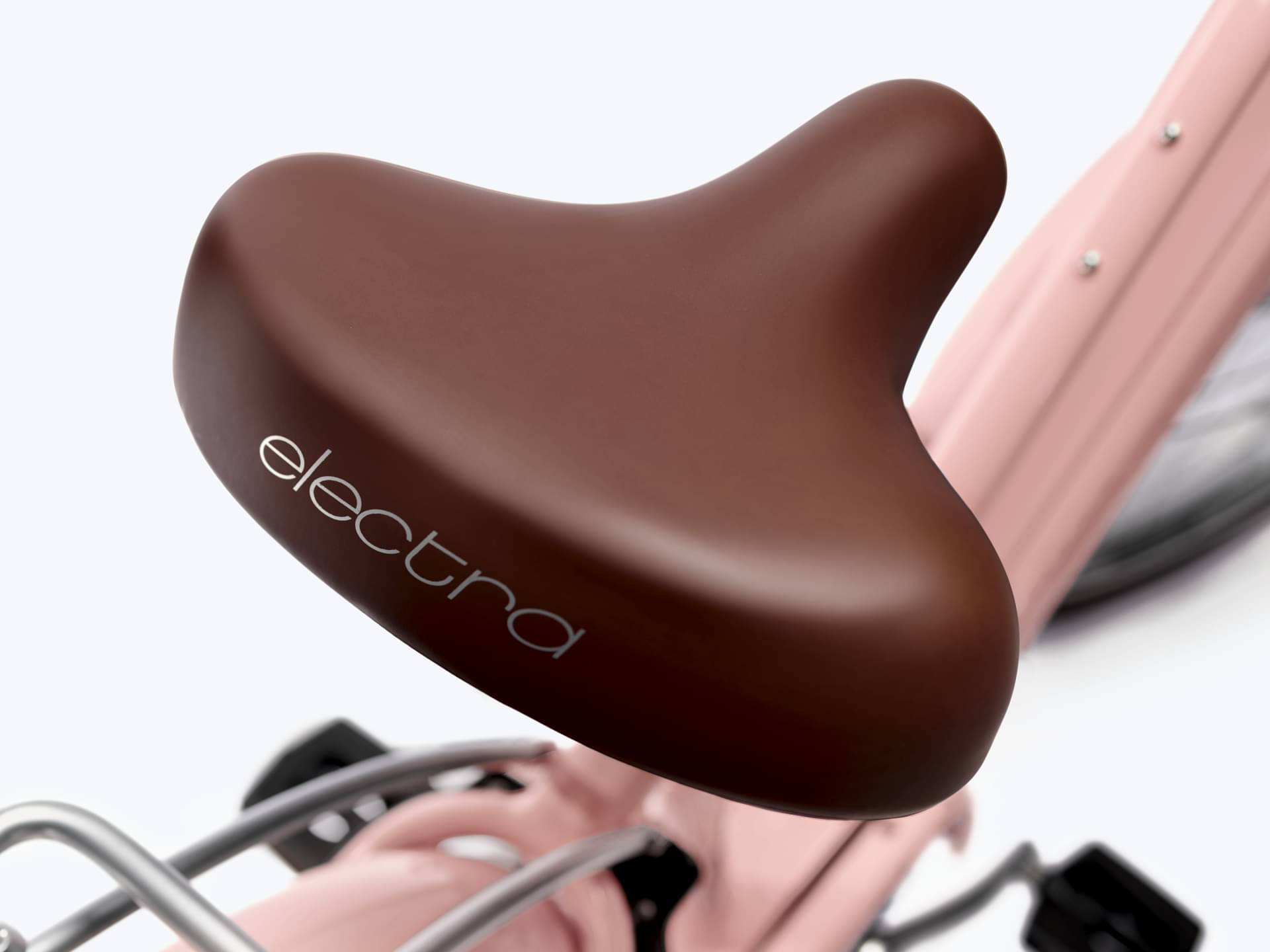

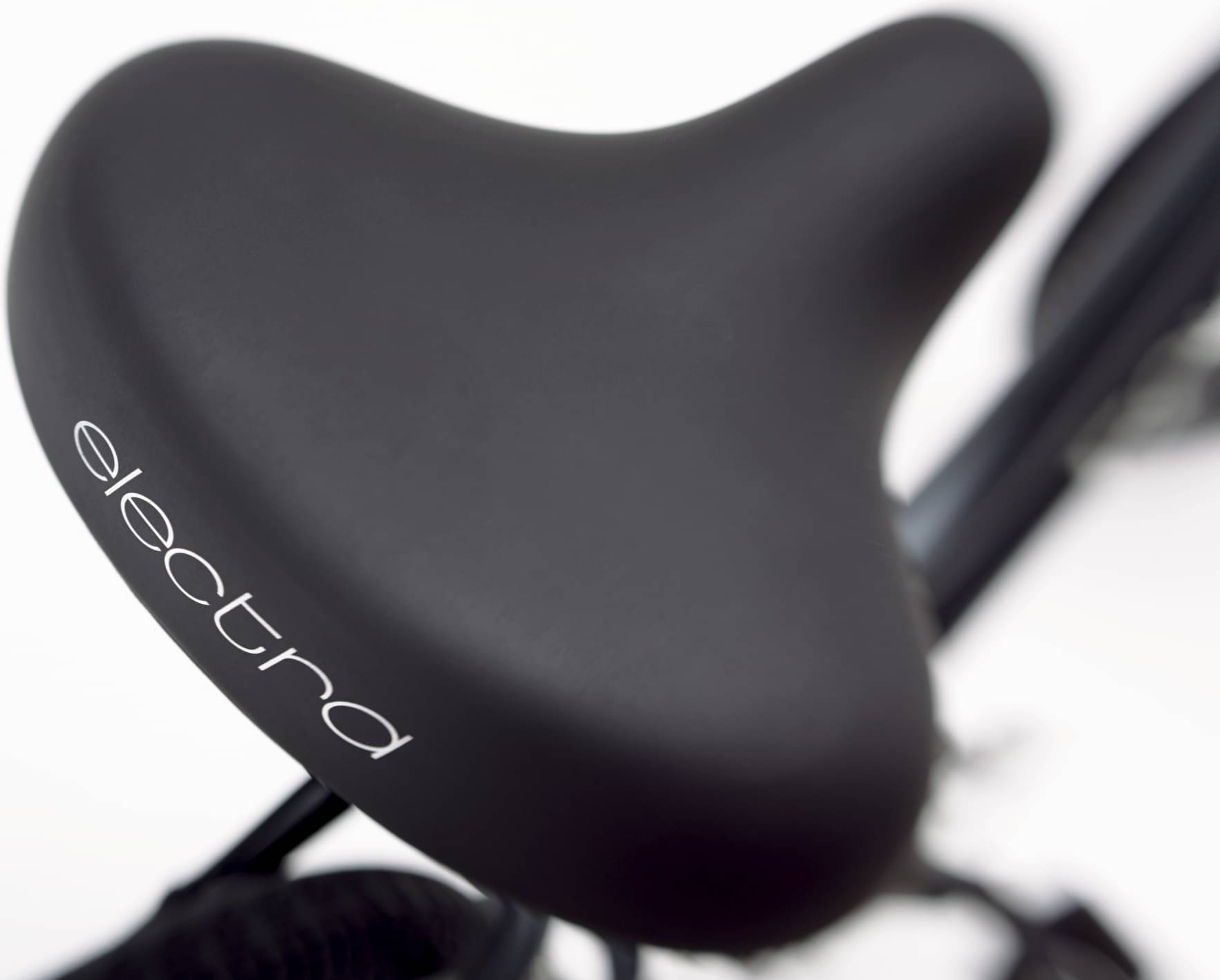

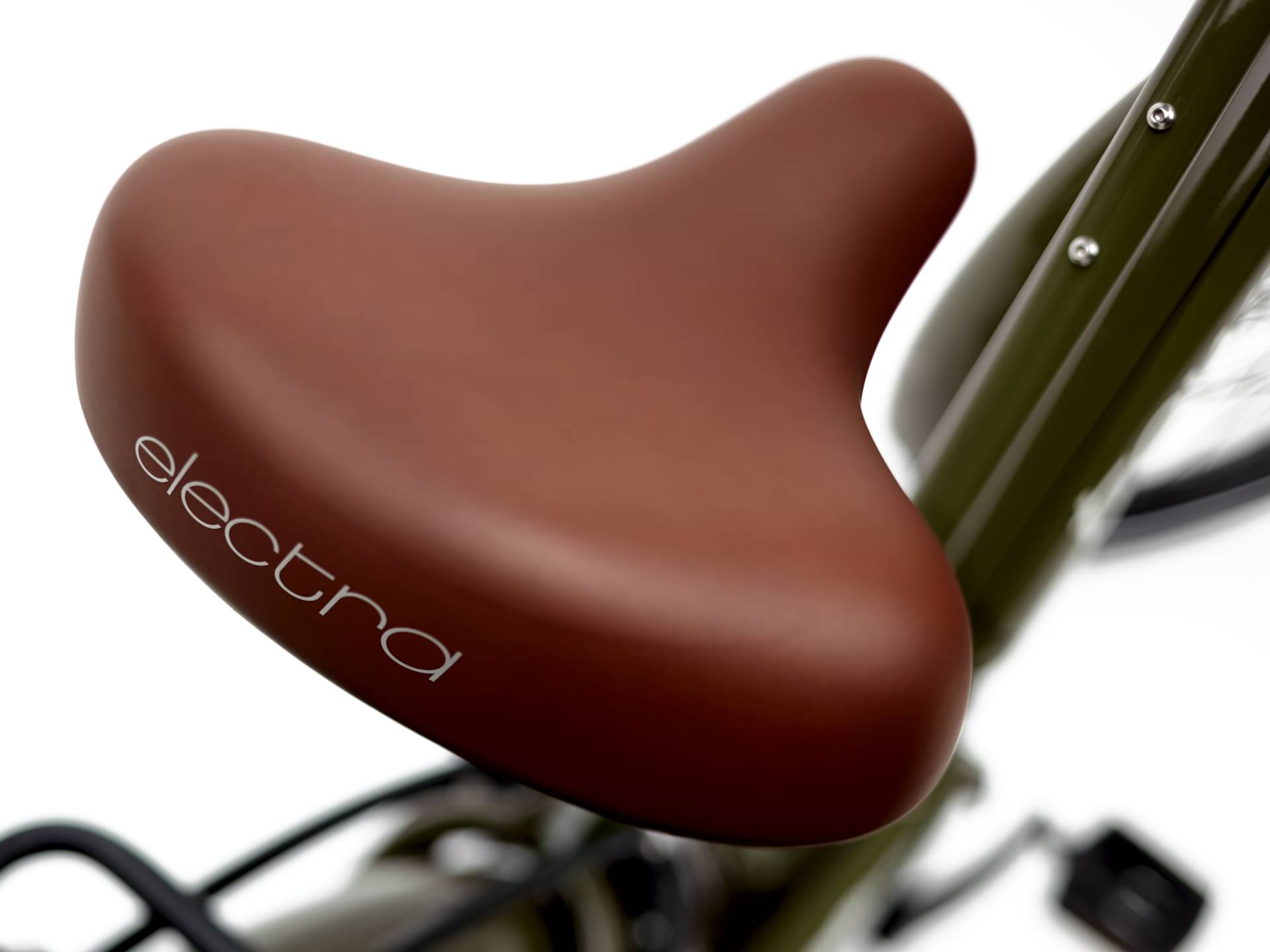

Saddle
Selle Royal Electra gel comfort saddle w/shock-absorbing elastomers
Seatpost
Alloy micro-adjust 27.2x400 mm
Motor & Battery
Motor

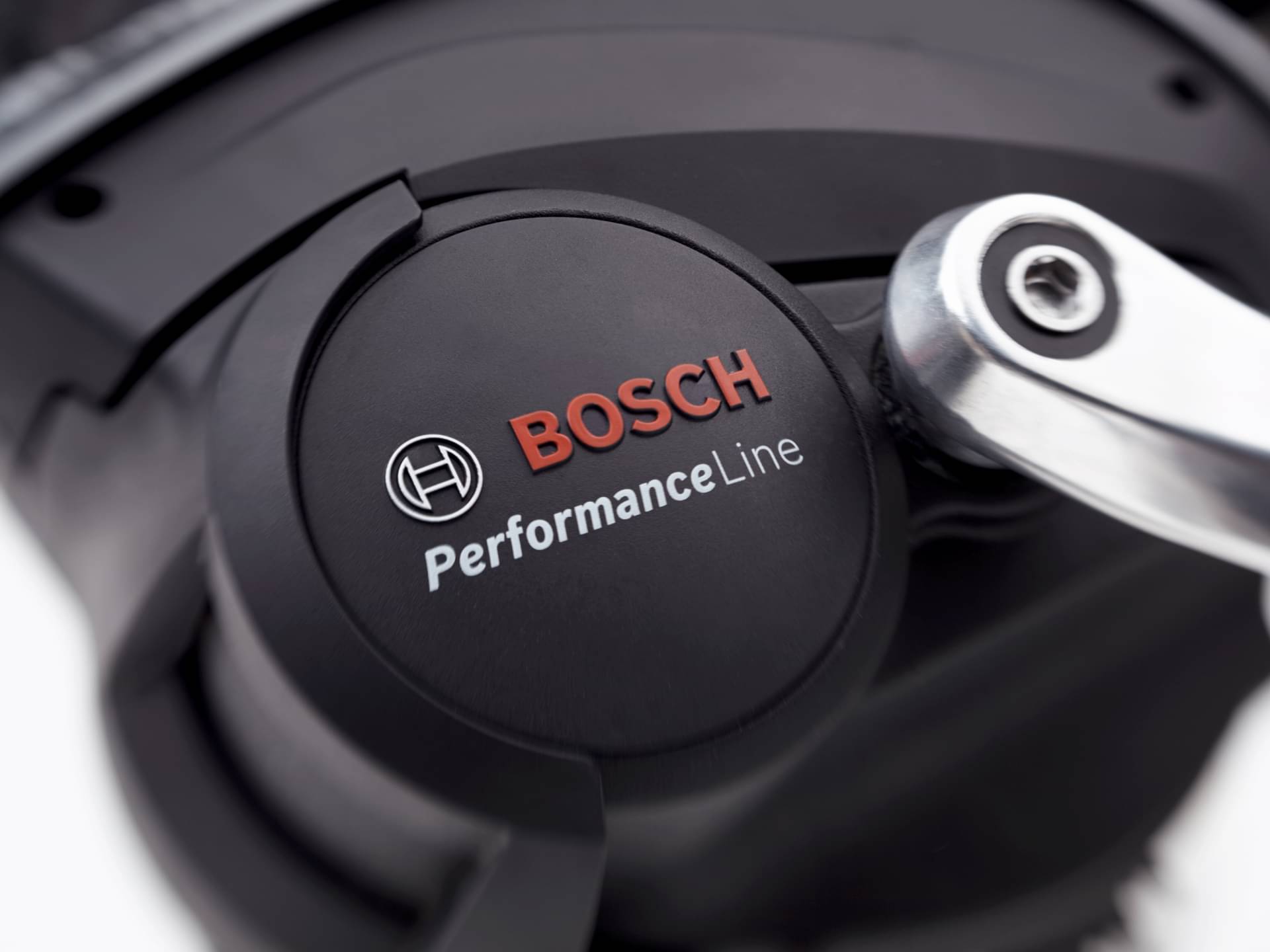

Bosch Performance Line Cruise, 250 watt, 65 Nm, 20 mph (25 km/h in Europe)

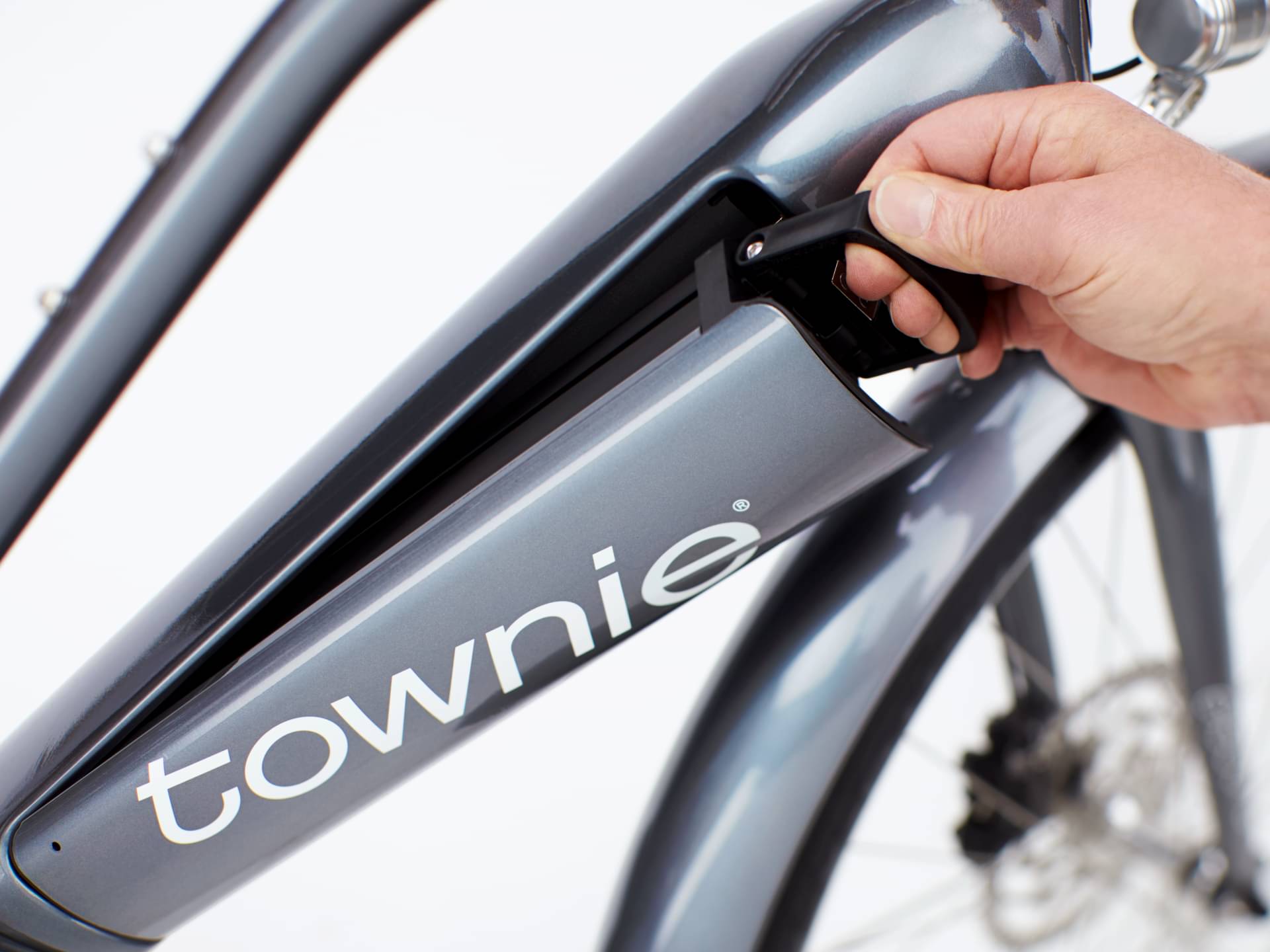

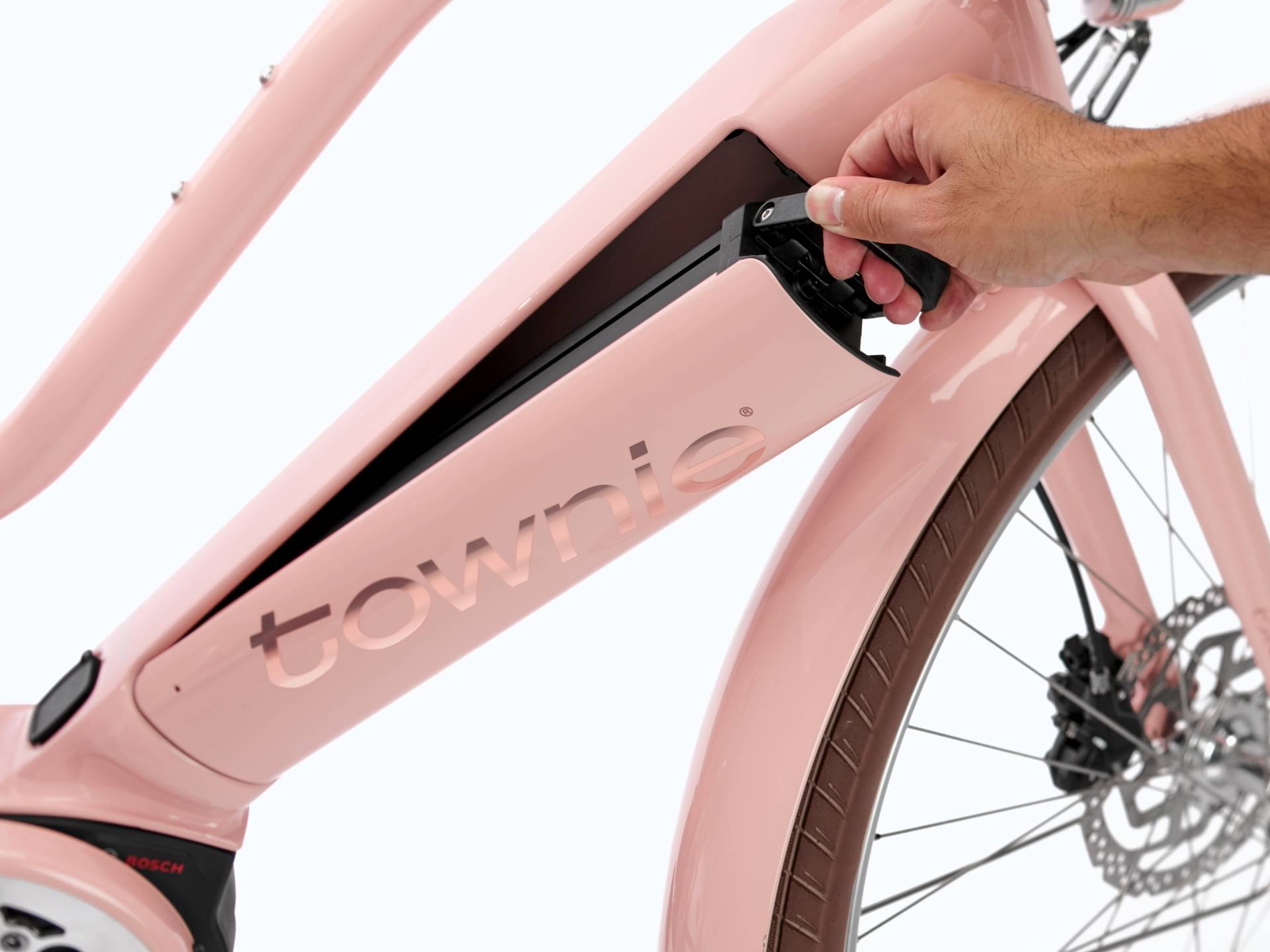

Battery

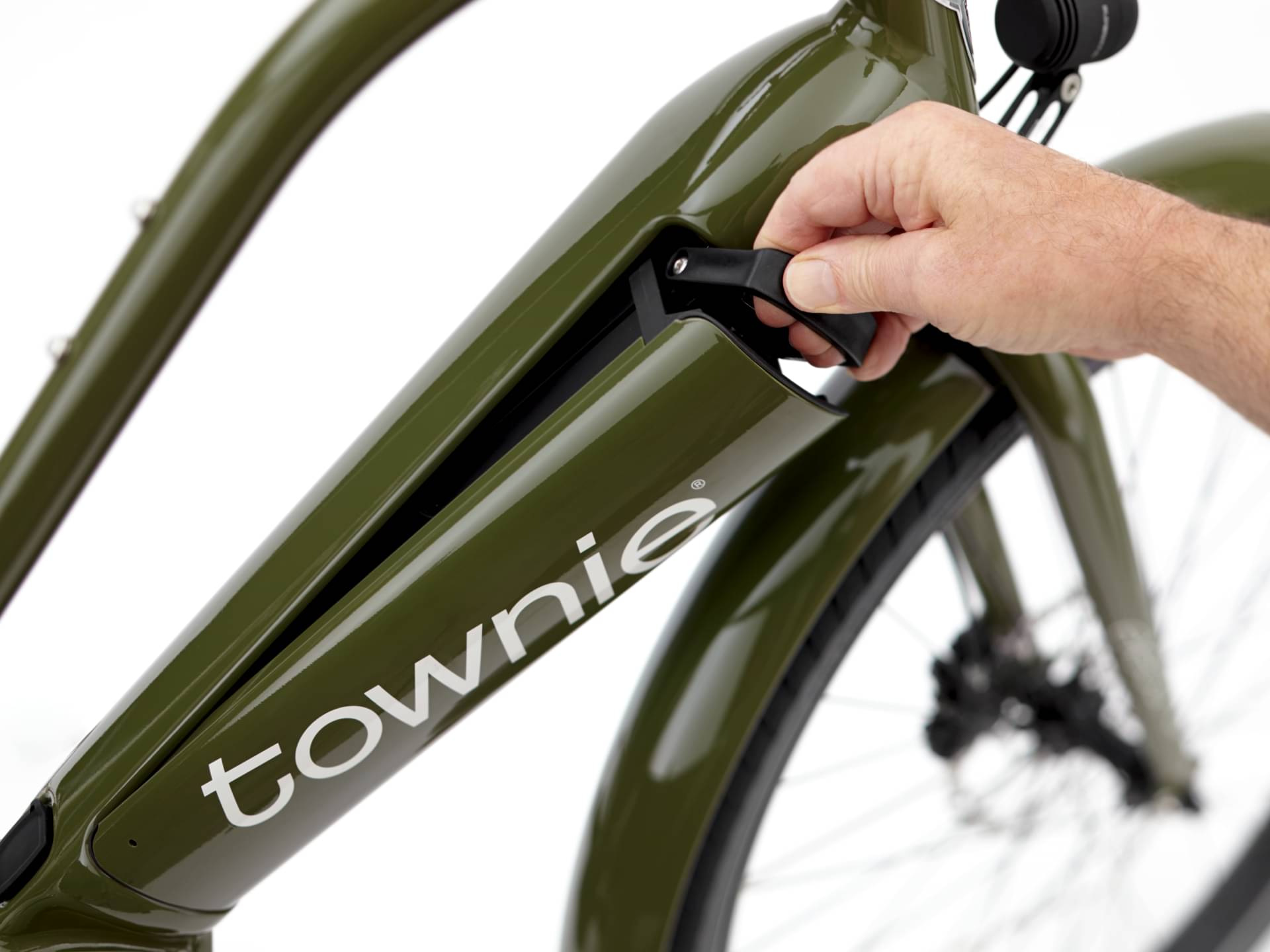

Bosch PowerTube 500 Wh
Charger
Bosch standard 4A, 220-240 V
