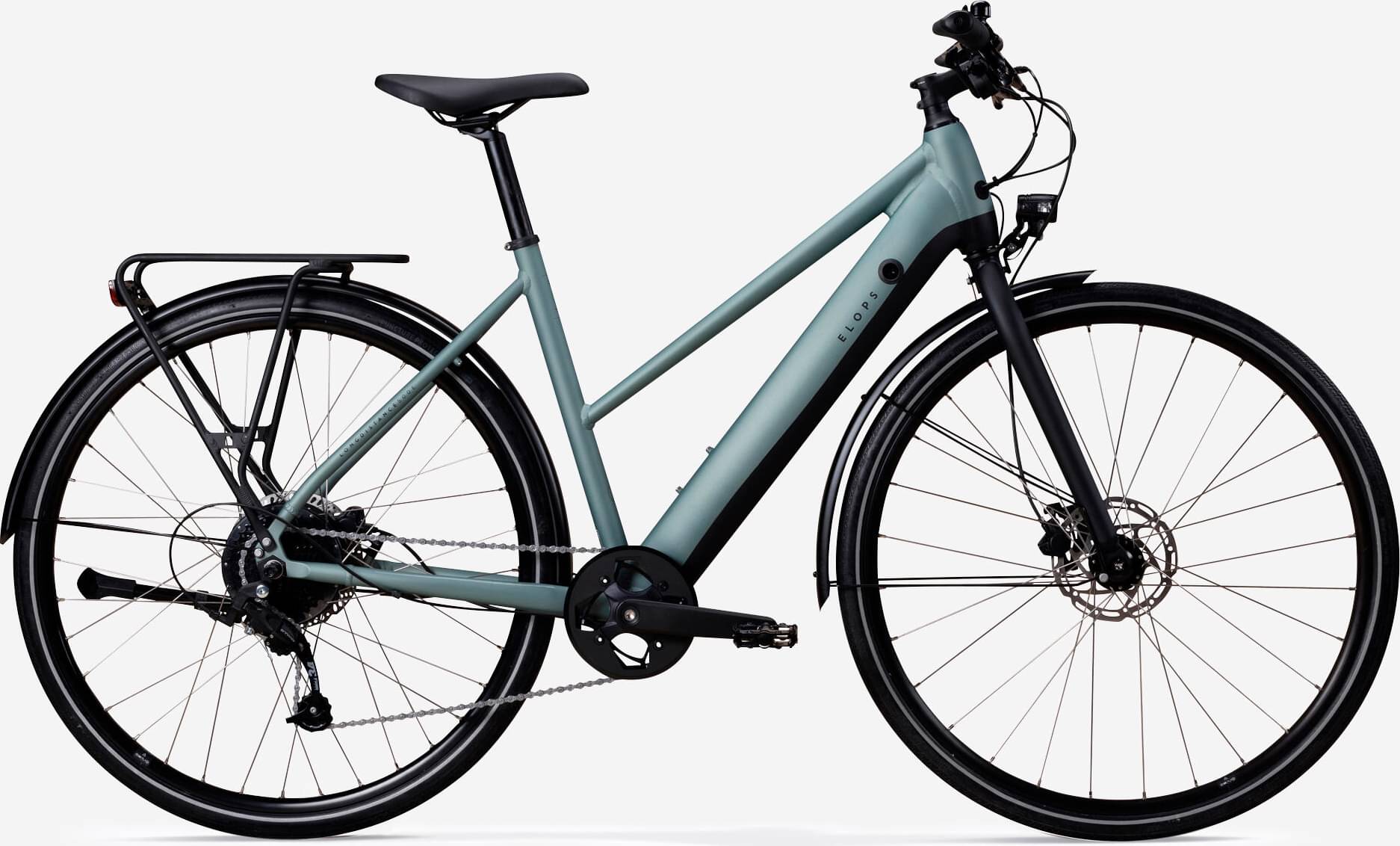

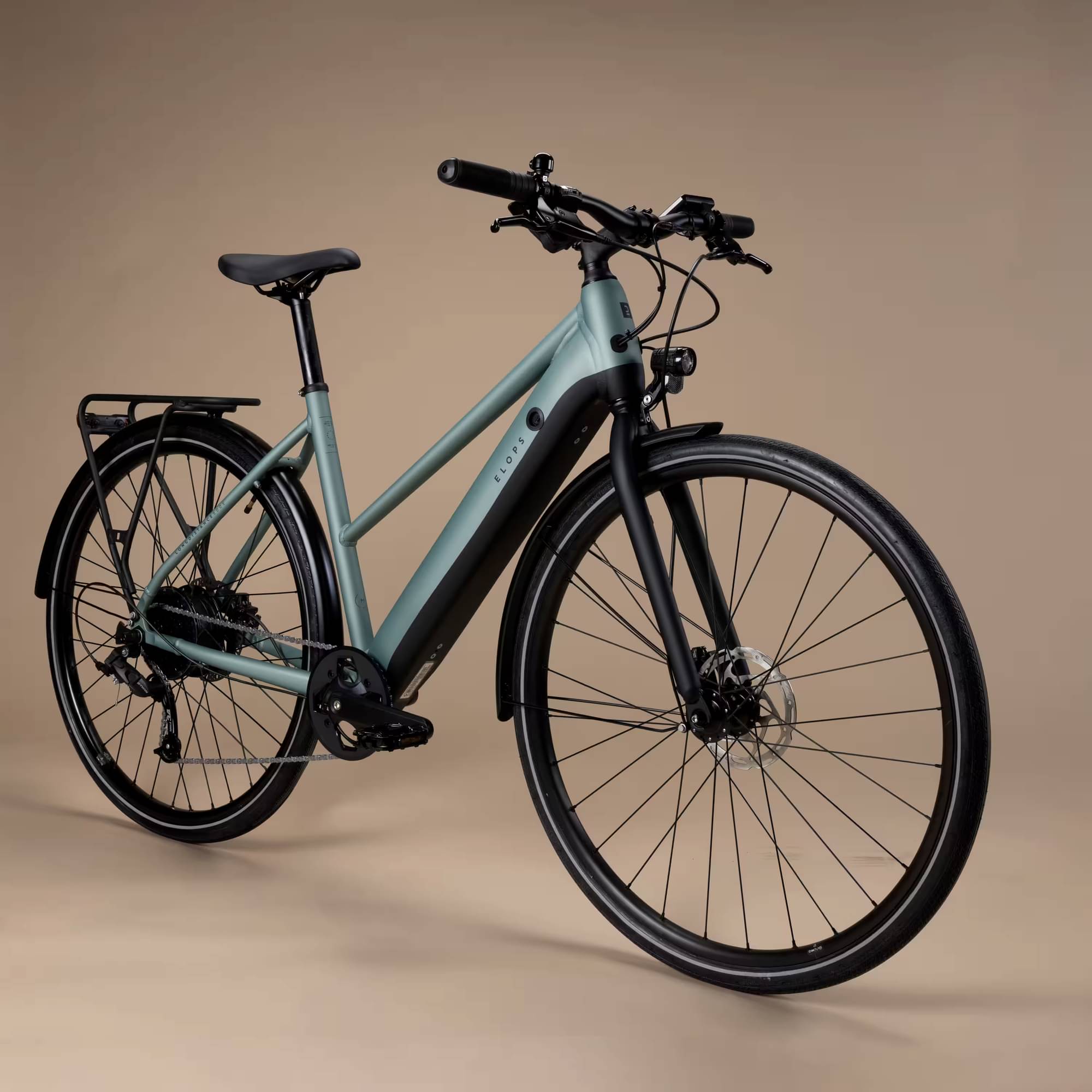

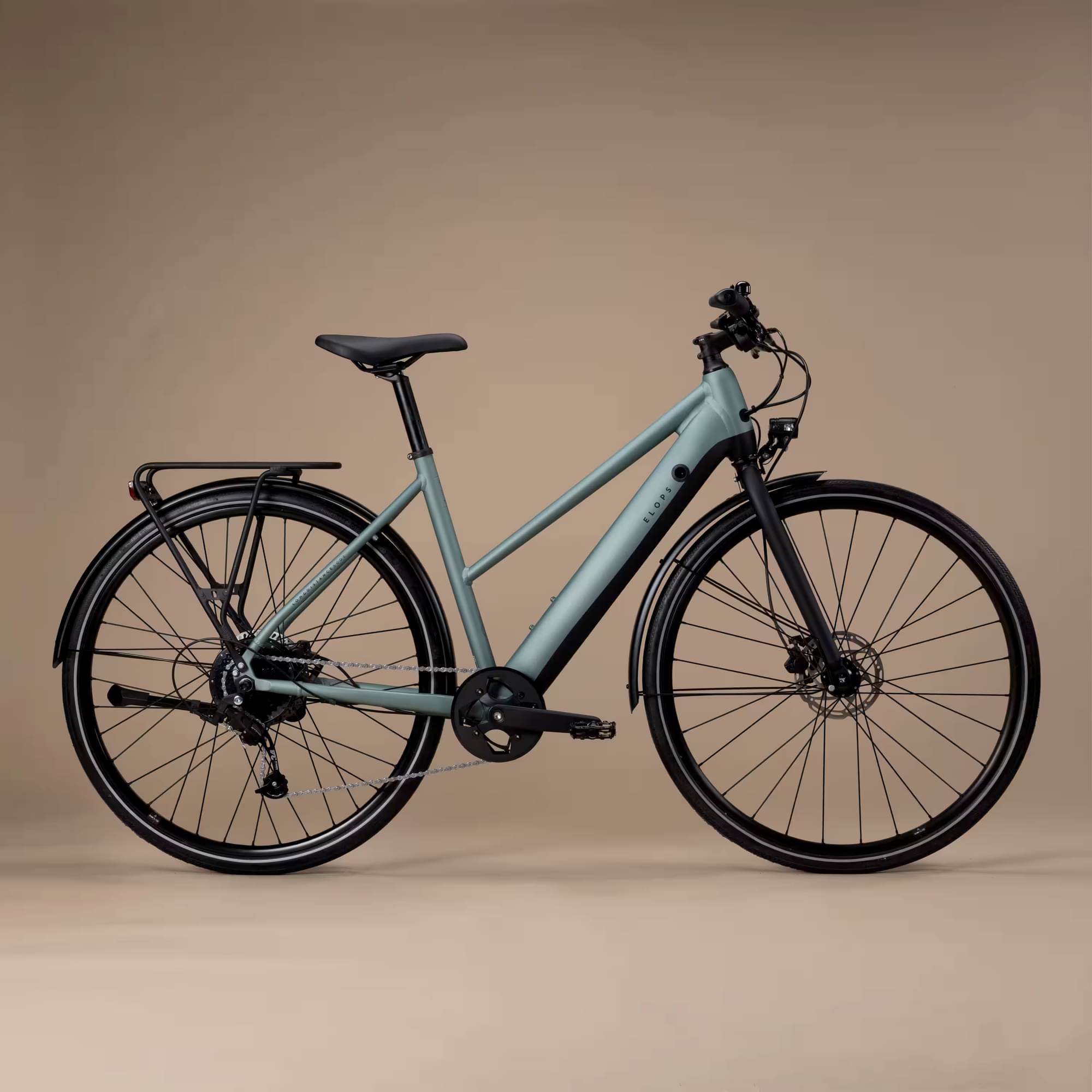

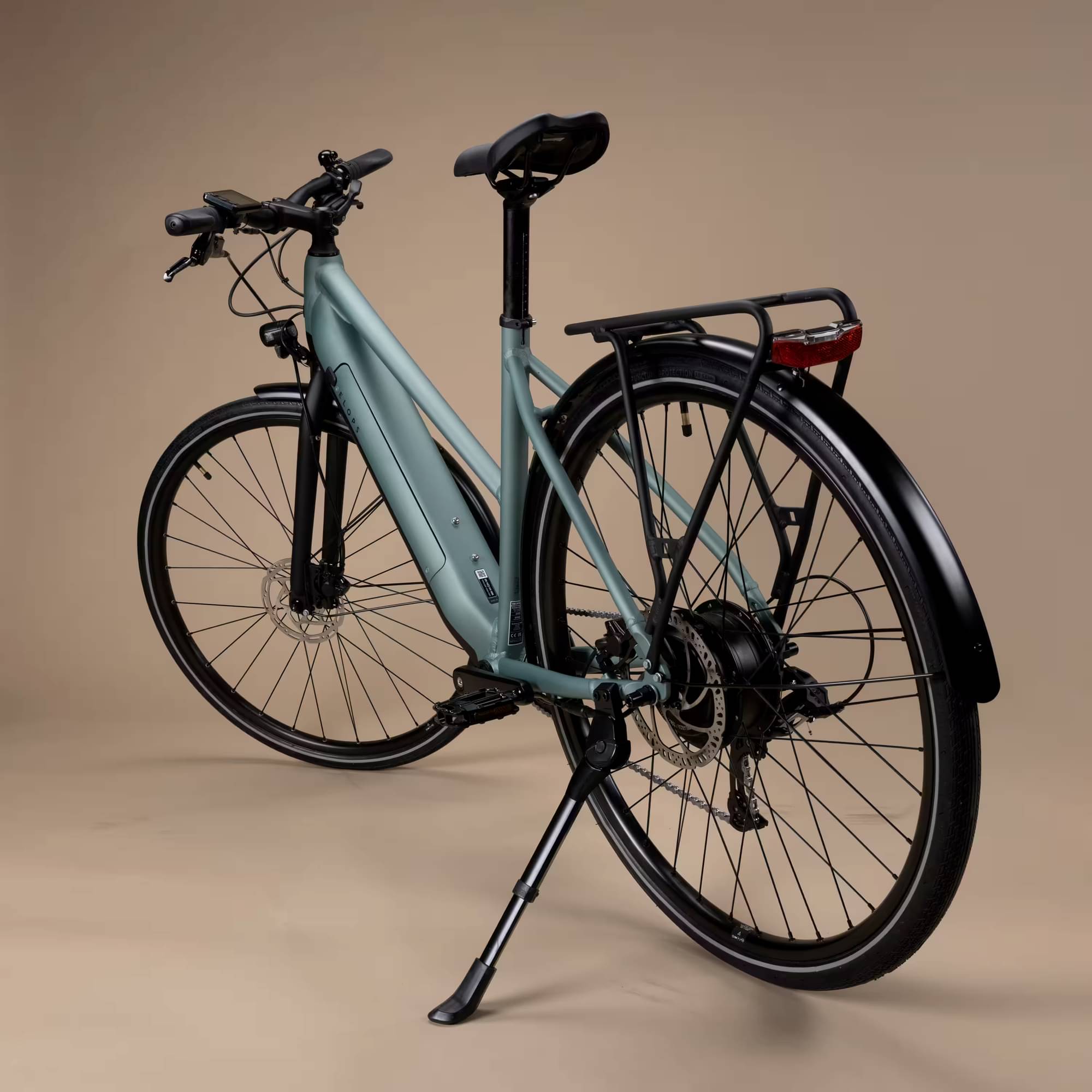

ELOPS Long Distance 500 Electric Assist City Bike Step-Through Frame 2024
2024 E-bike
Estimate price |
2,166$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Groupset microSHIFT Mezzo -
Motor hub-drive -
Battery Lithium-ion 36v 14Ah (504Wh) battery in watertight case (IPX5) locked inside the bike frame for better integration and increased protection. Quick release with key (3 keys included) to recharge it. Built-in carry handle.Made with Samsung SDI battery cells, known for their high reliability and safety. Weight: 3.1 kgComes with a 2A charging unit that delivers a full charge in 7 hours. 500 charge cycles guaranteed without loss of battery life. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
steel fork
Drivetrain

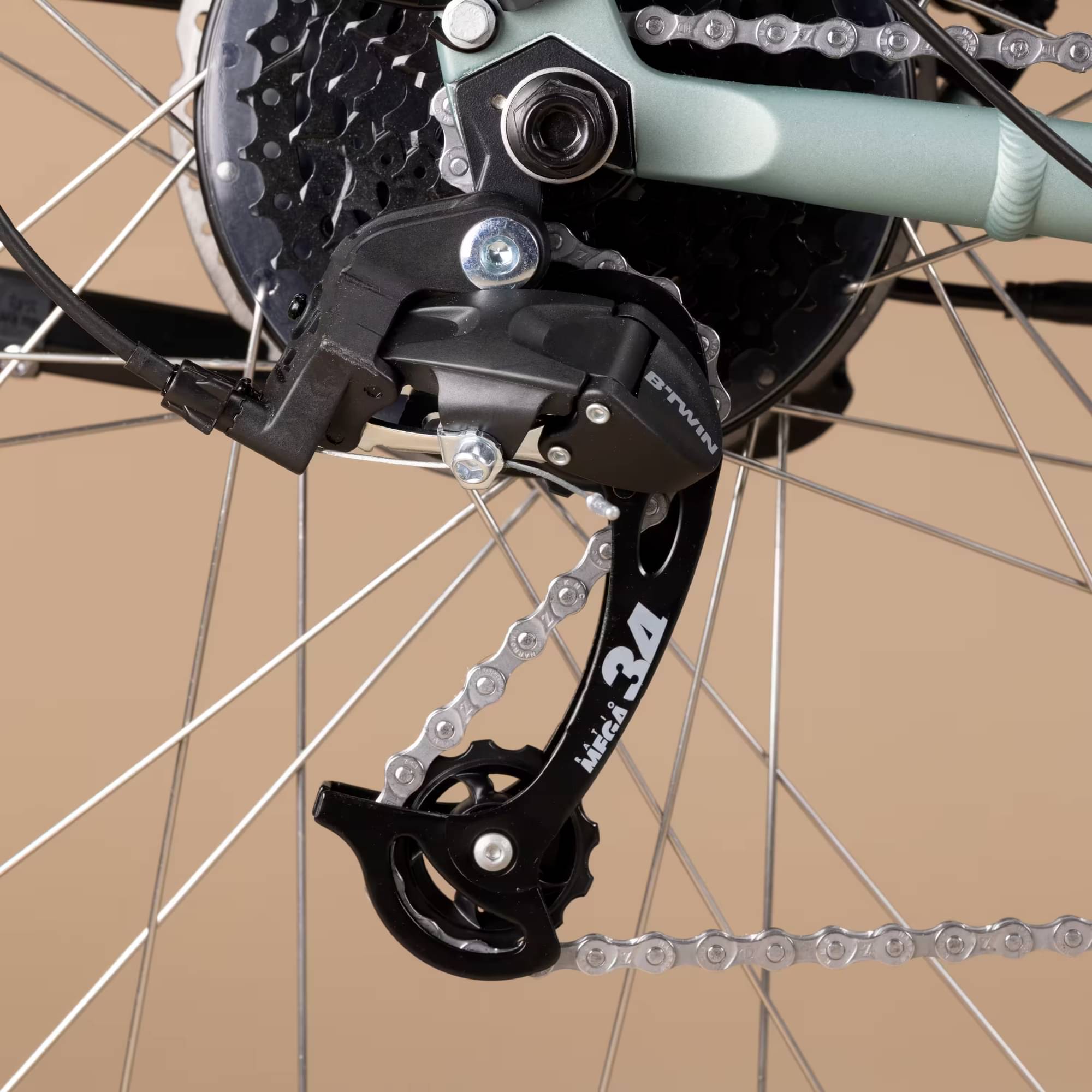

Rear Derailleur

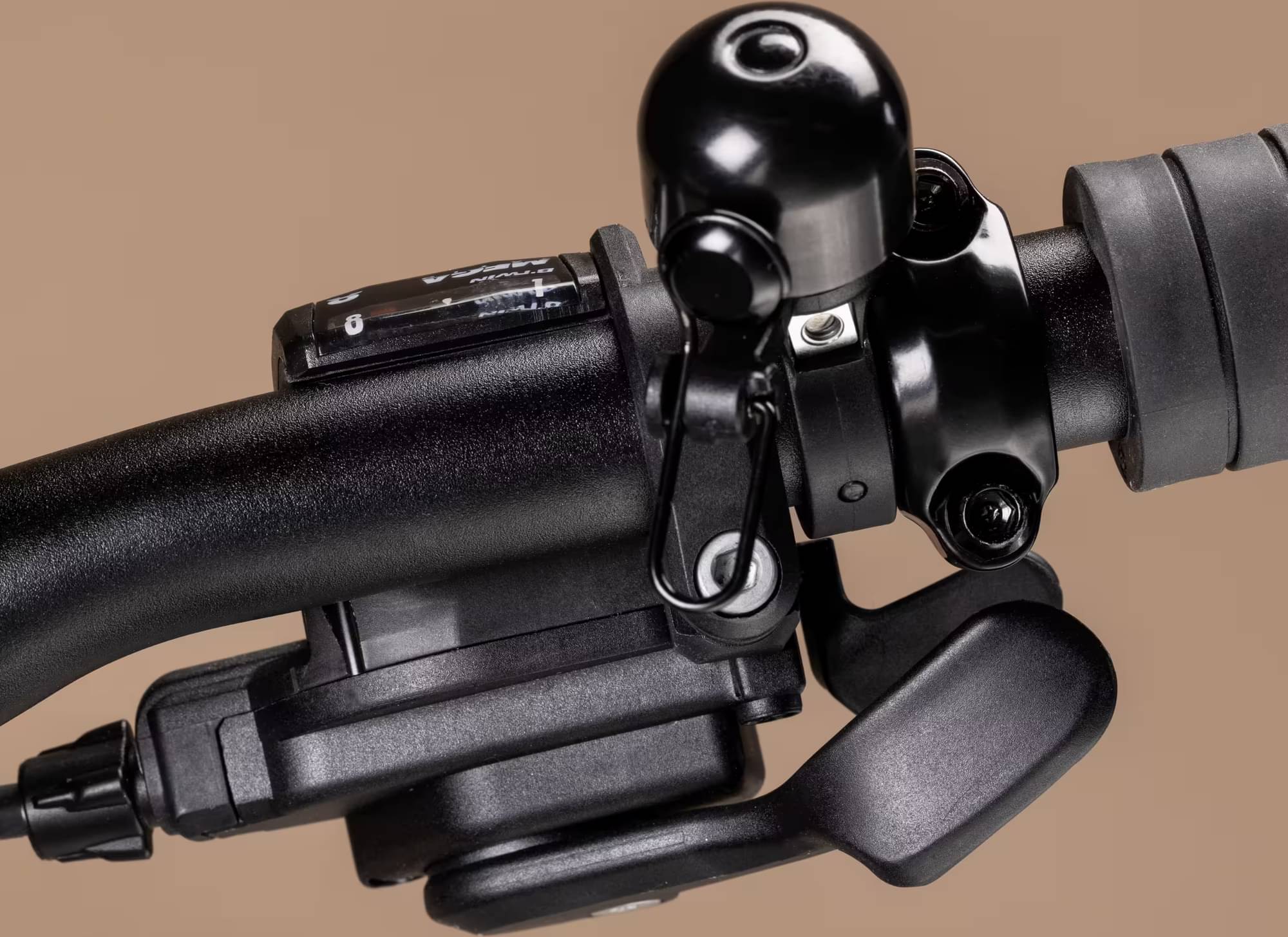

Our 1 x 8-speed indexed drivetrain reduces the weight and helps you shift with just one hand. - BTWIN by MICROSHIFT TS39 trigger shifters. - 8-speed Microshift H081 11/36 cassette. - Single chainring: 38 teeth - KMC 8.3 EPT chain with quick release and anti-rust coating - Rear derailleur: B'TWIN BY MICROSHIFT RD M25

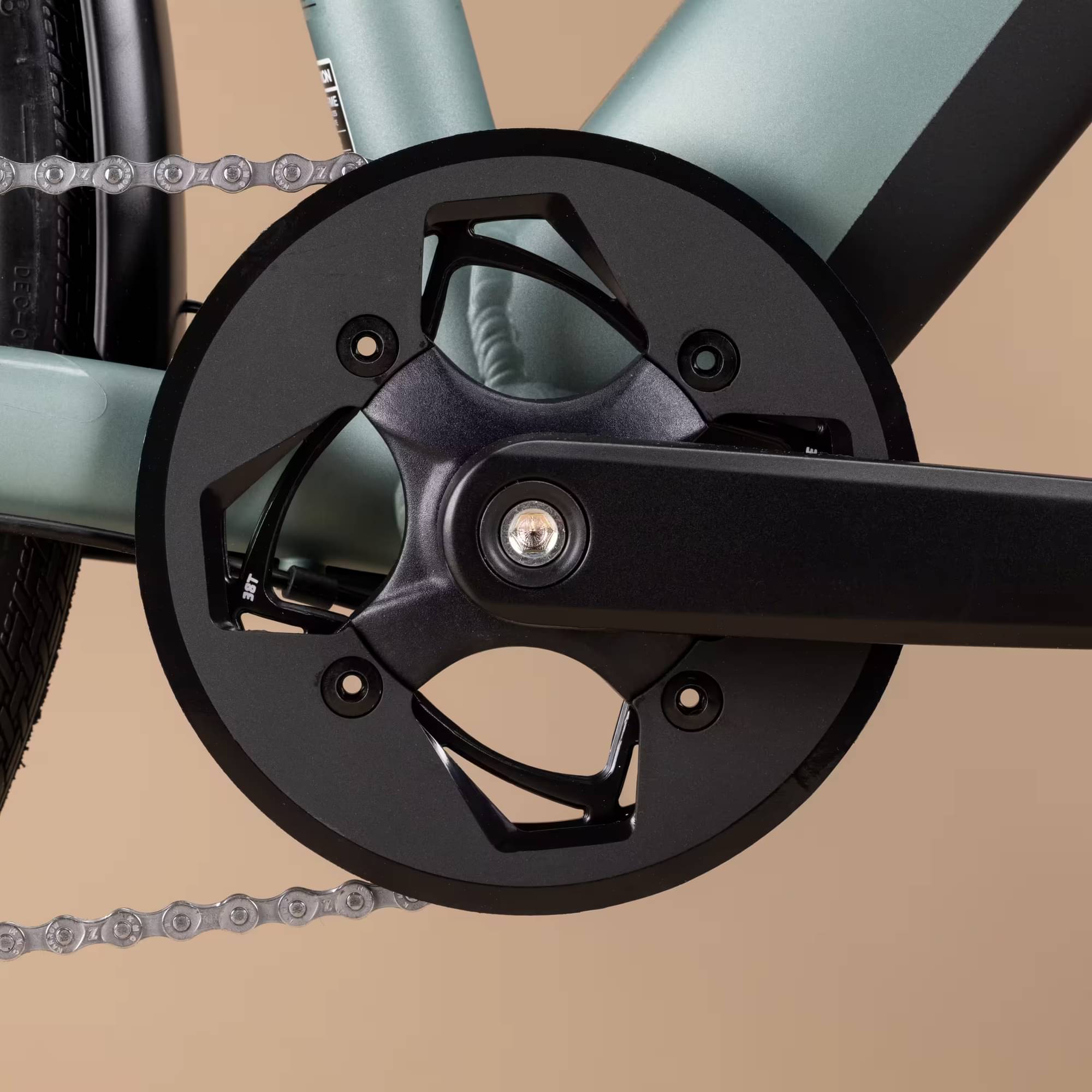

Crank
single chainring
Bottom Bracket
Flat pedals with a metal axle and aluminium body. Wide underfoot surface designed for comfort and grip. 170mm-long aluminium cranks. Internal bottom bracket houses a torque sensor, providing a natural pedalling sensation.
Chain Guide
partial chain guard
Wheels
Tires

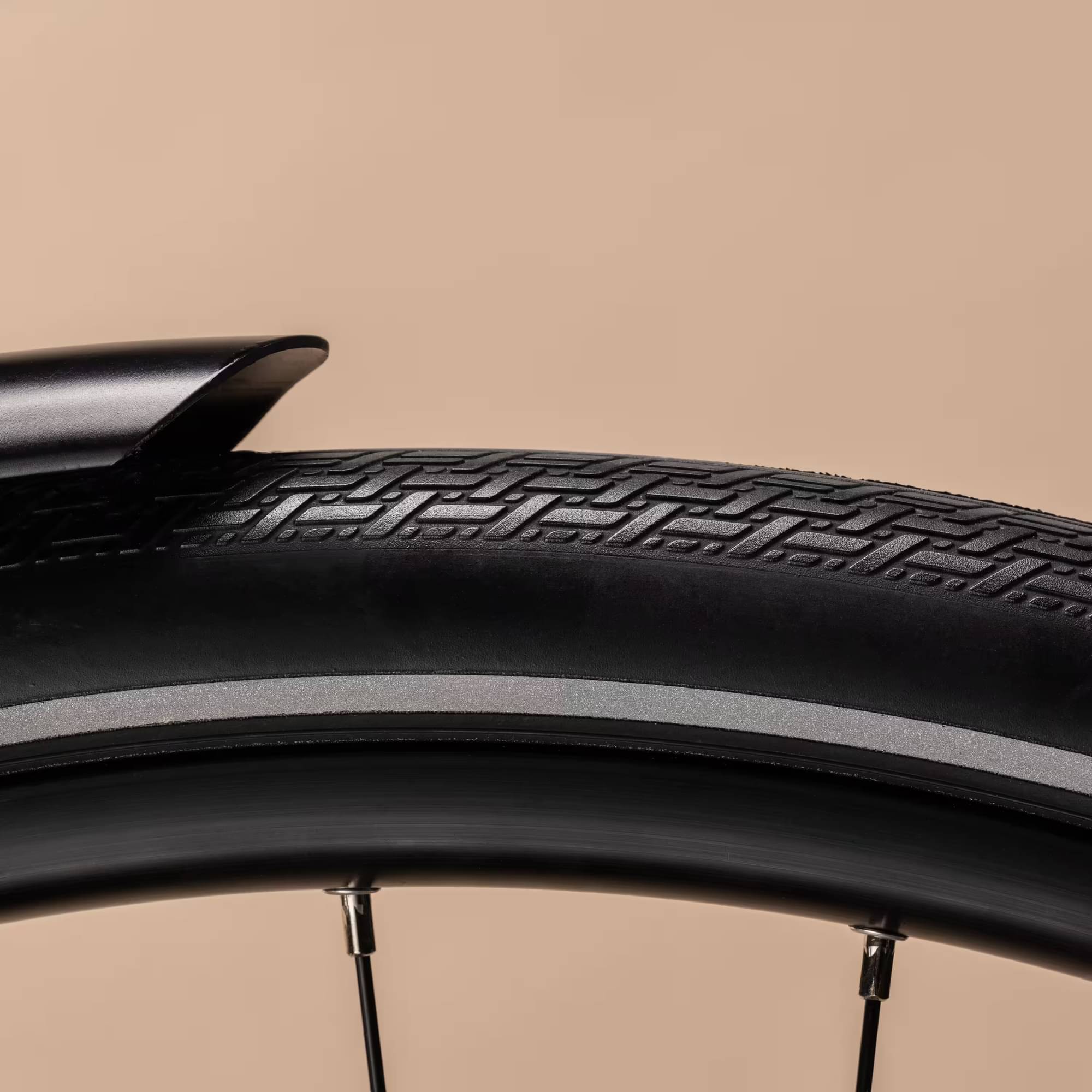

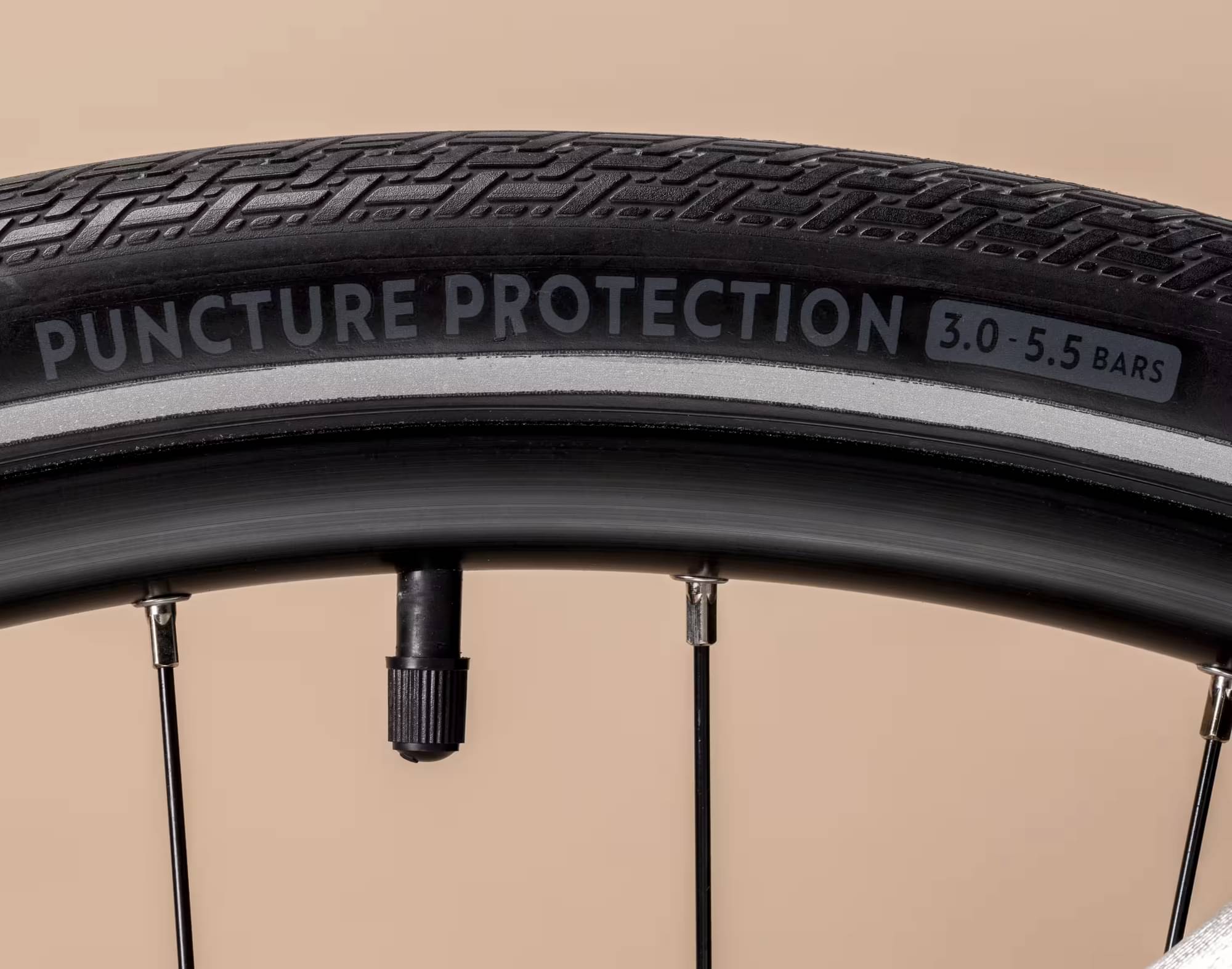

The long-distance city tyres have an exclusive tread design that makes them both fast and grippy on dry and wet roads. A high density puncture-proof "bead to bead" nylon tyre liner plus an additional 3mm rubber liner provide excellent protection from punctures and pinching. Tyre dimensions: 38-622 / 700 x 38C Weight: 960 g.
Brakes
Brakes

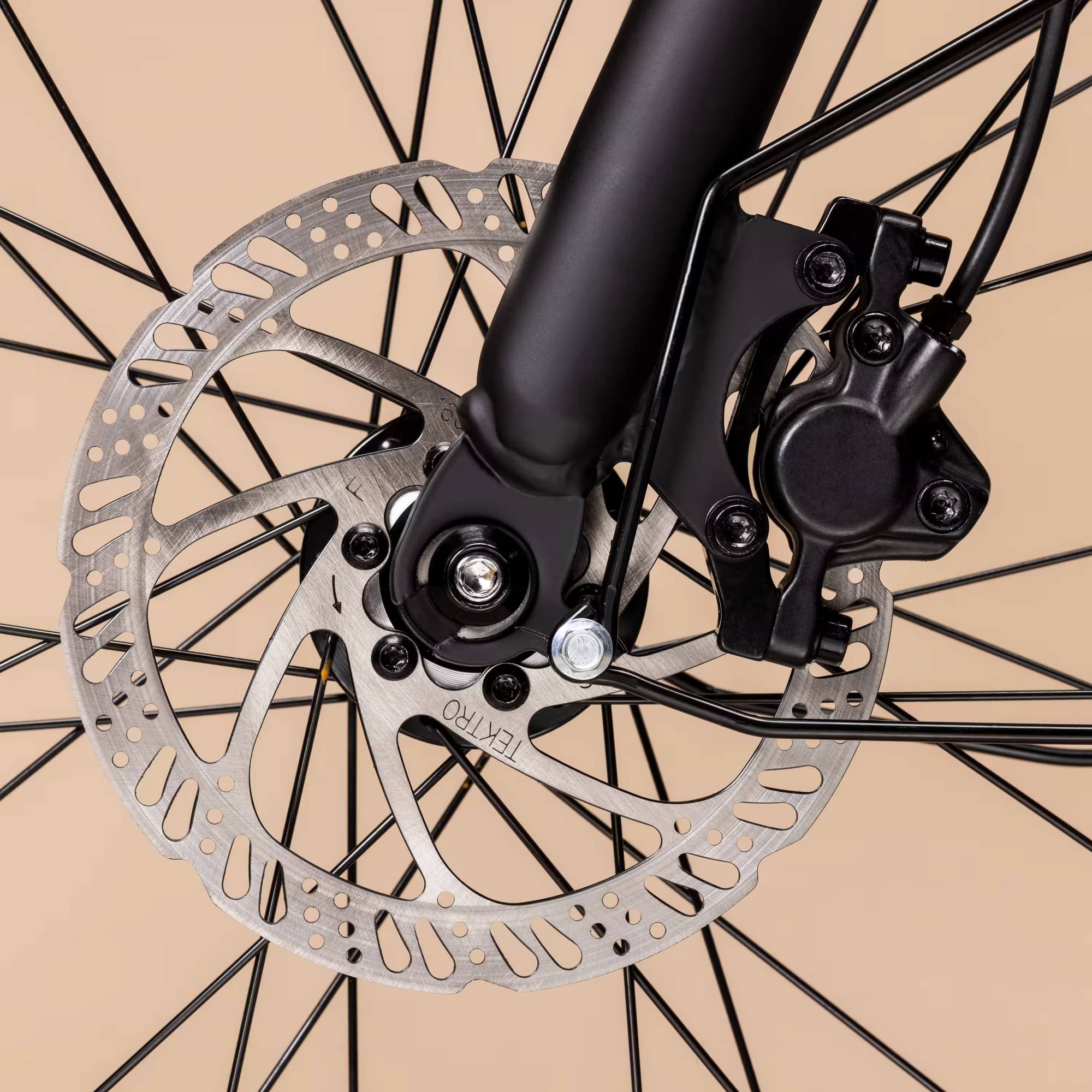

hydraulic disc brakes
Motor & Battery

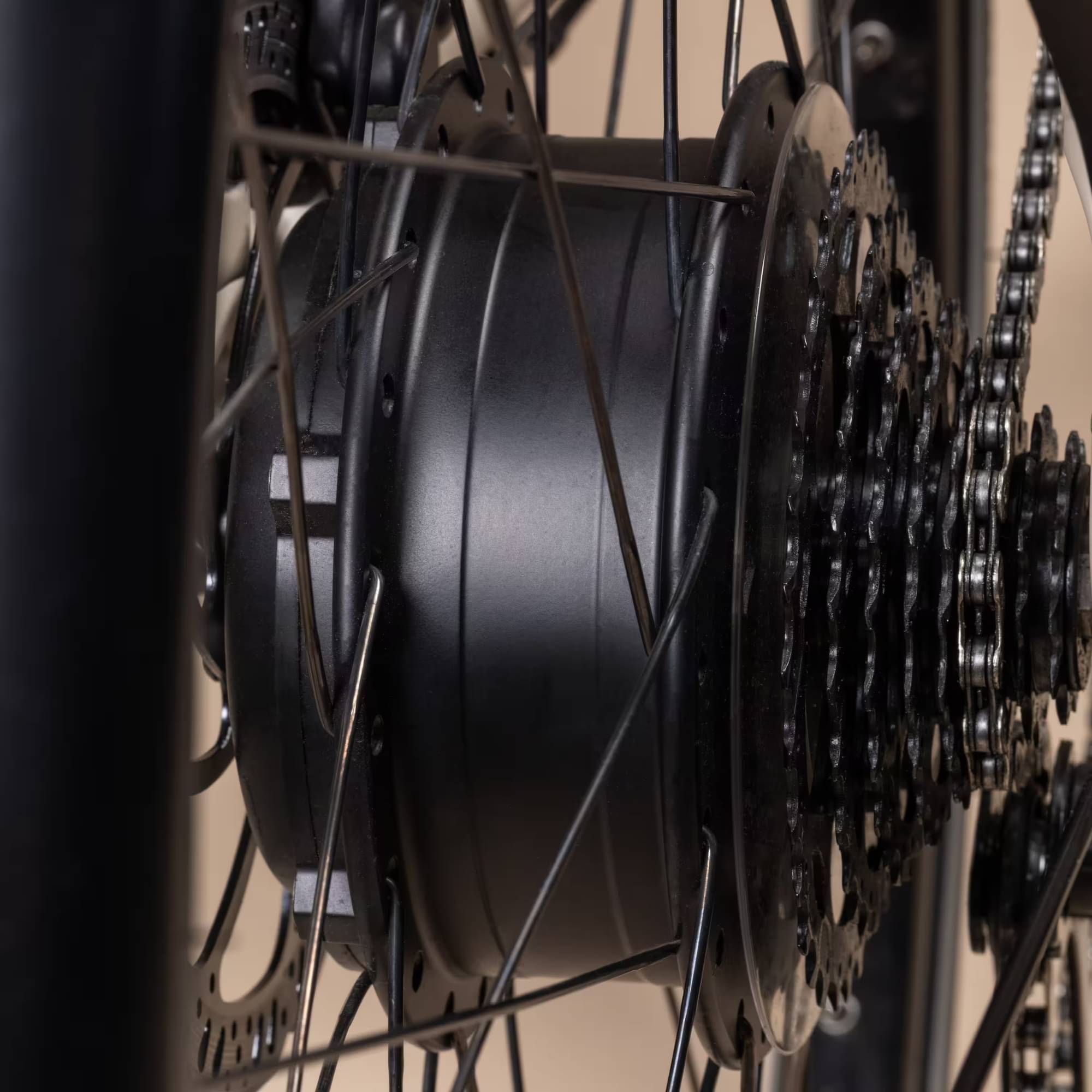

Motor
wheel motor (hub), rear position
Battery

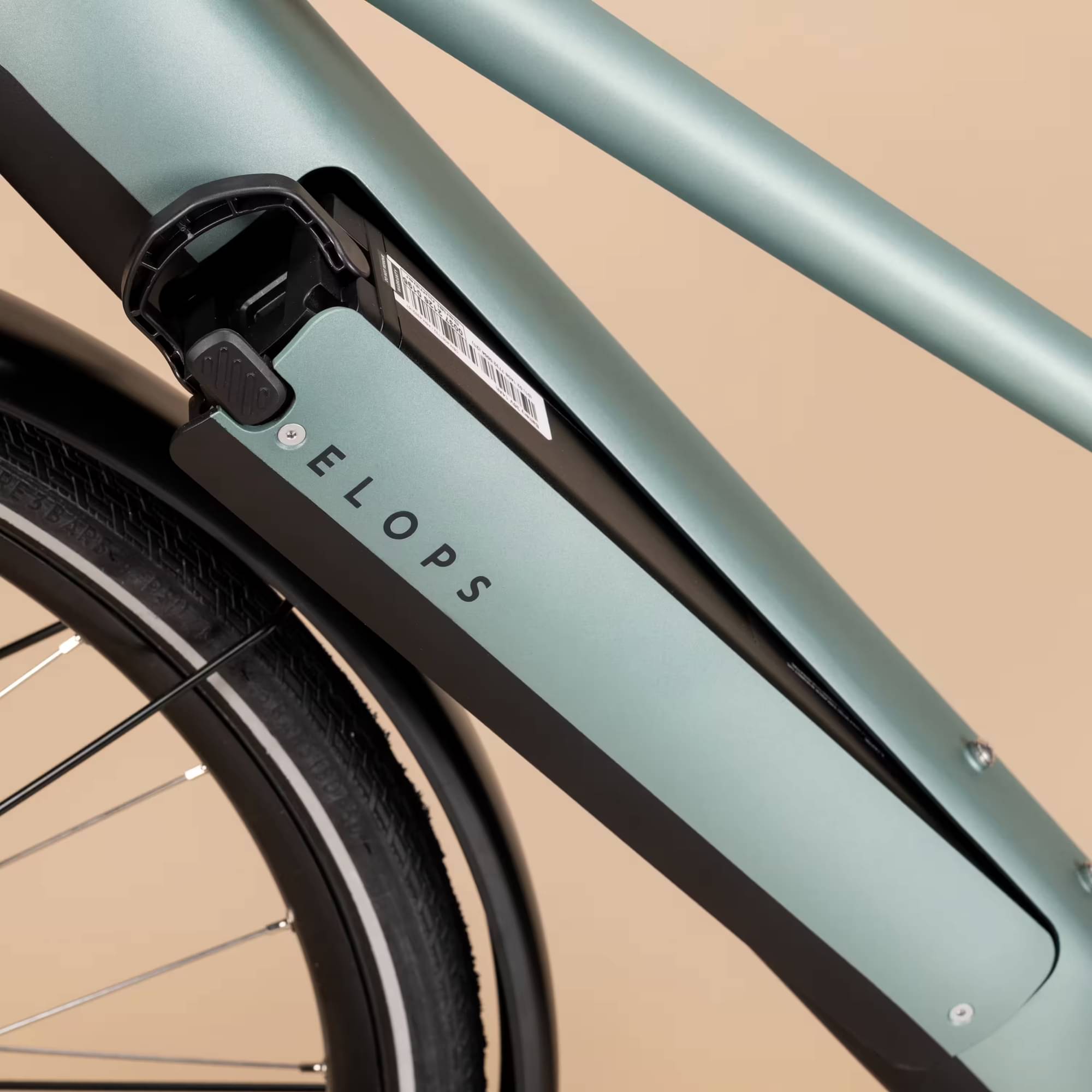

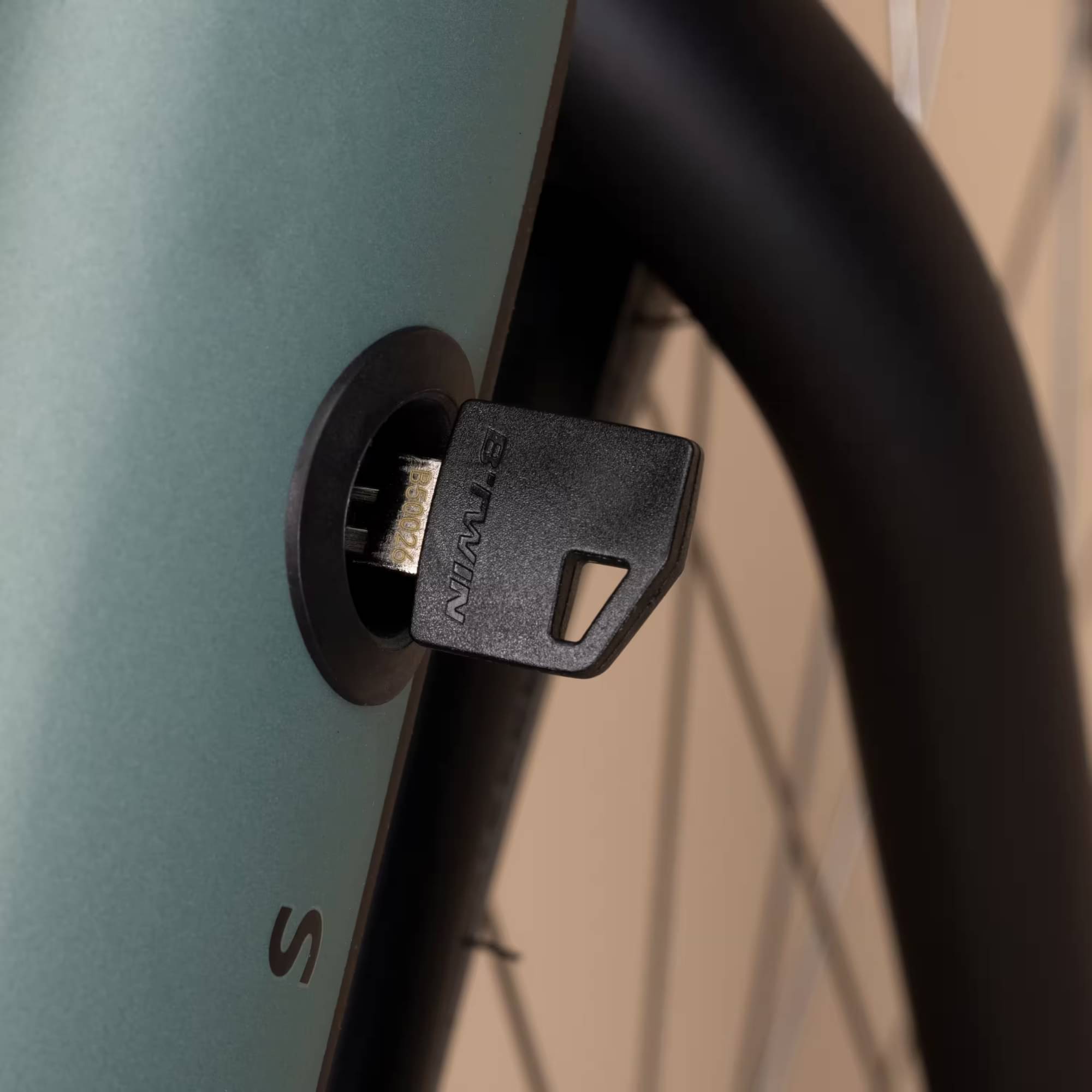

Lithium-ion 36v 14Ah (504Wh) battery in watertight case (IPX5) locked inside the bike frame for better integration and increased protection. Quick release with key (3 keys included) to recharge it. Built-in carry handle.Made with Samsung SDI battery cells, known for their high reliability and safety. Weight: 3.1 kgComes with a 2A charging unit that delivers a full charge in 7 hours. 500 charge cycles guaranteed without loss of battery life.
Charger
sector
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
