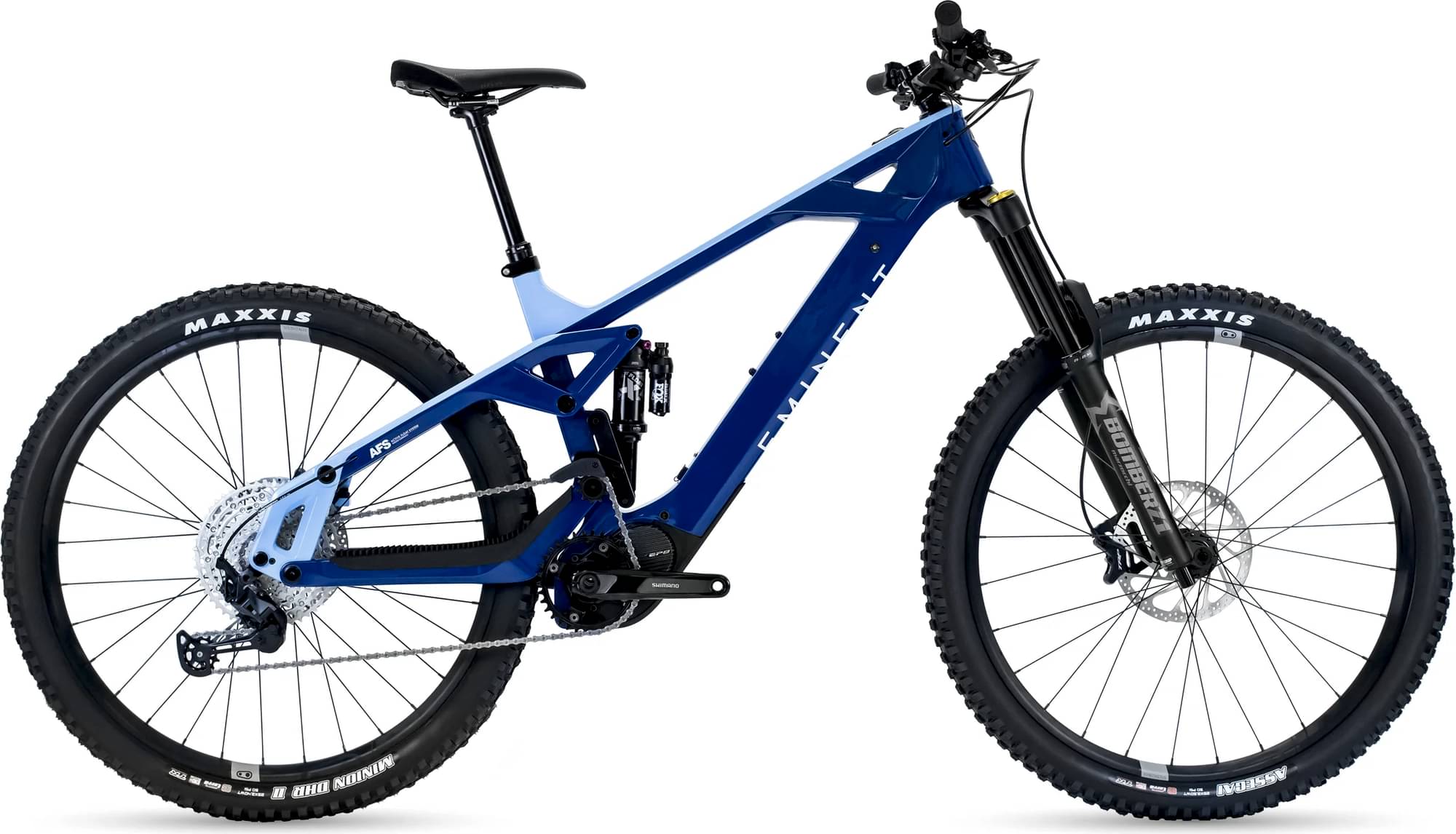

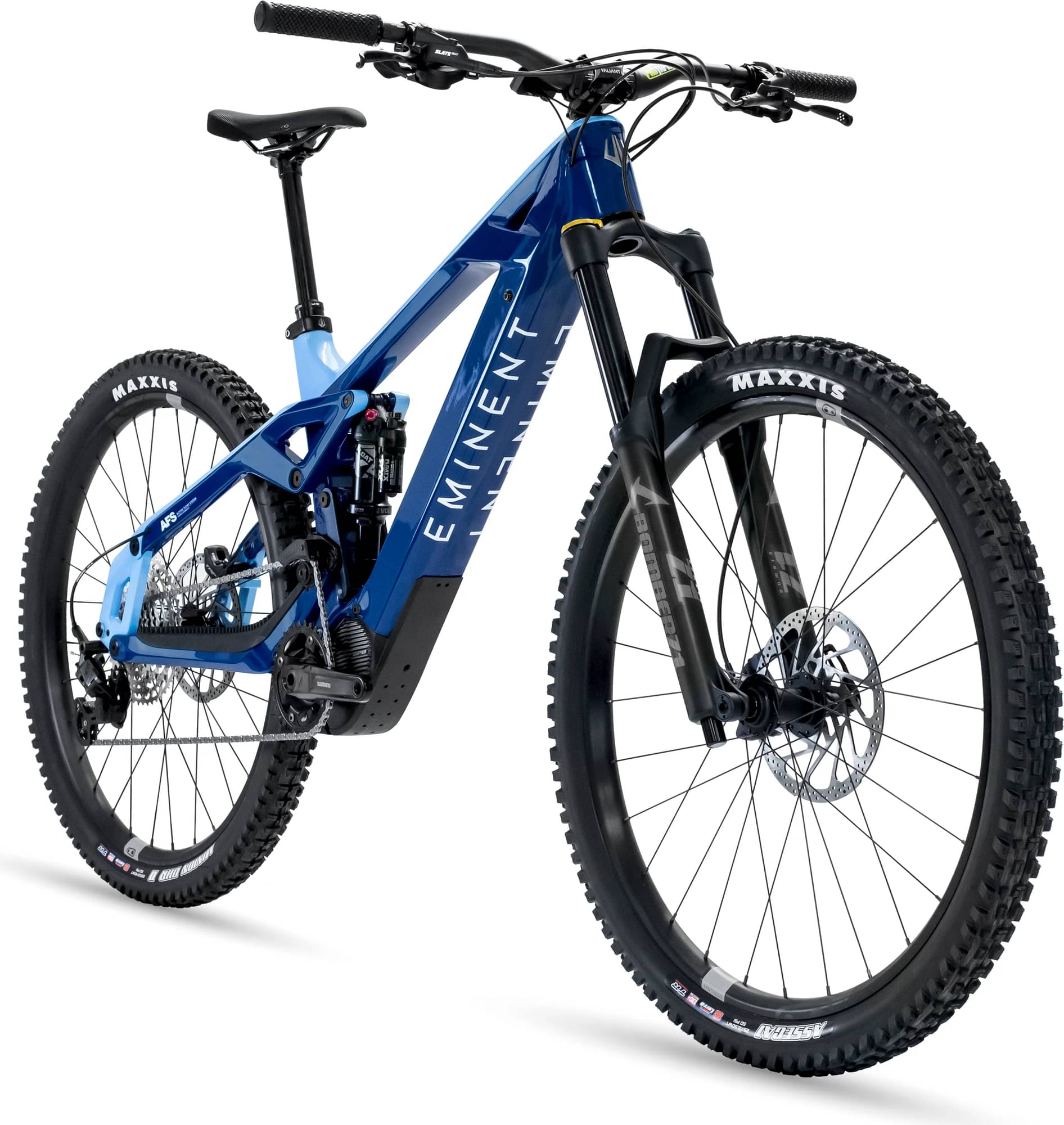

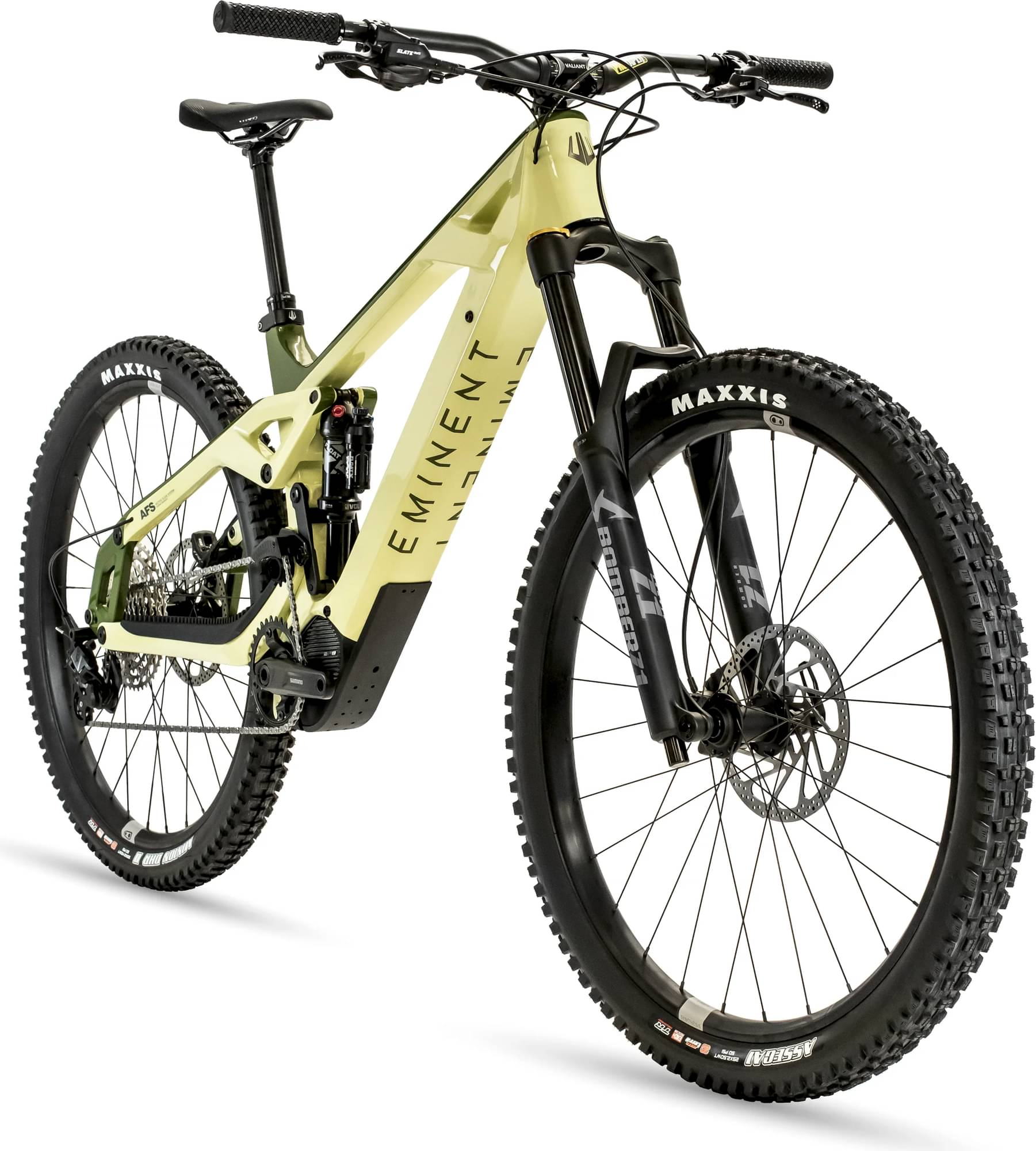

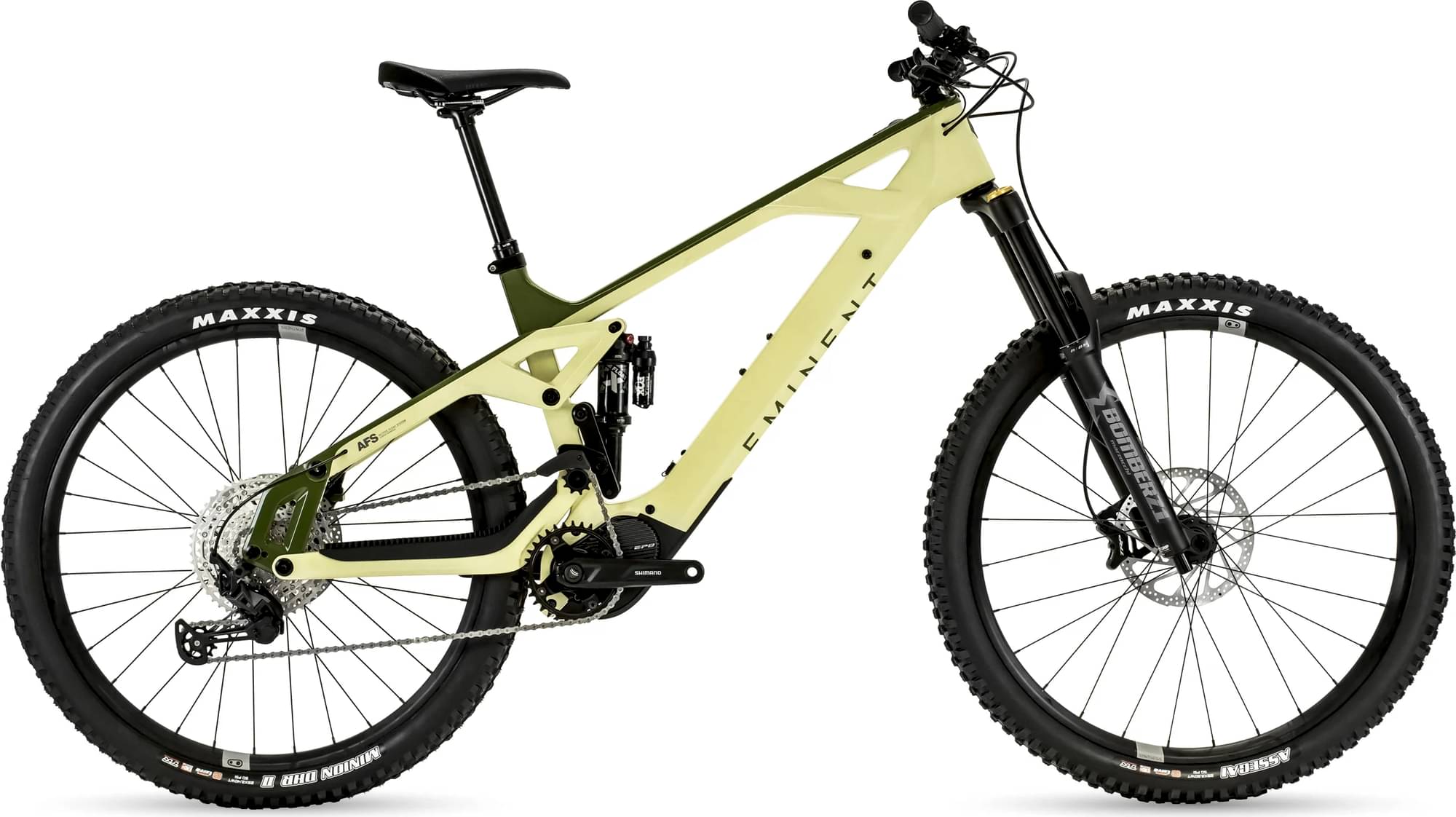

Eminent Drive MT Comp 2024
2024 E-bike
Estimate price |
9,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1
-
Groupset SLX, Deore -
Suspension Full -
Motor Shimano 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Eminent Drive (160mm)
Suspension Fork
Marzocchi Bomber Z1 Grip 170, 44mm offset
Rear Shock
Fox Float X Performance 230 x 60

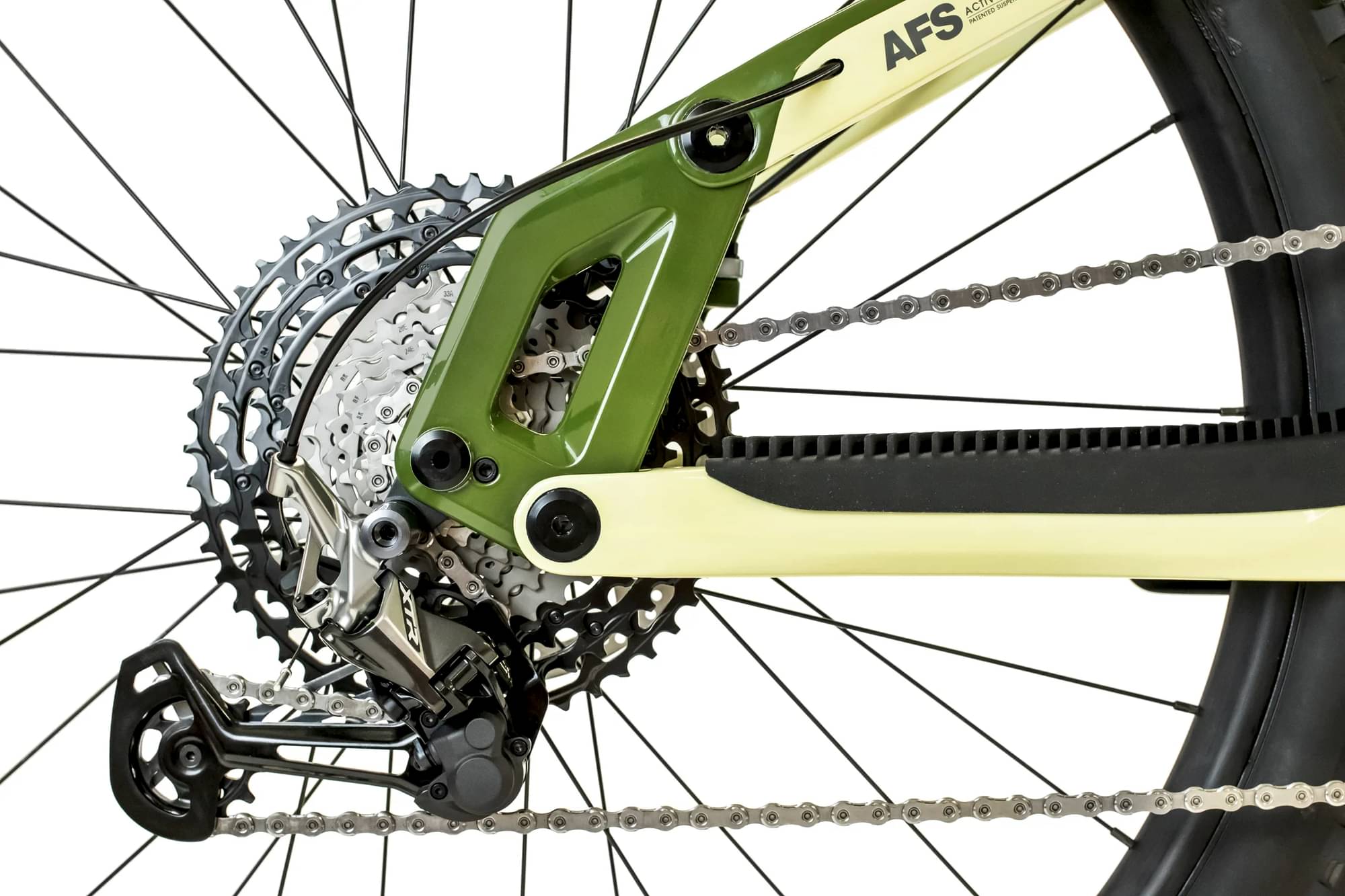

Drivetrain
Rear Derailleur
SLX M7100 - 12 spd rear derailleur
Shift Levers
SLX M7100 - 12 spd shifter
Cassette
Deore M6100 - 12 spd cassette
Crank
Deore 6100 - Front Crank w/34T chainring
Bottom Bracket
Shimano BB92
Chain
Deore M6100 - 12 spd chain
Chain Guide
Integrated Top Guide
Wheels
Rims
Sun Ringle Duroc SD37 Expert Aluminum
Tires
Maxxis
Brakes
Brakes
TRP Slate 4 Piston - F & R

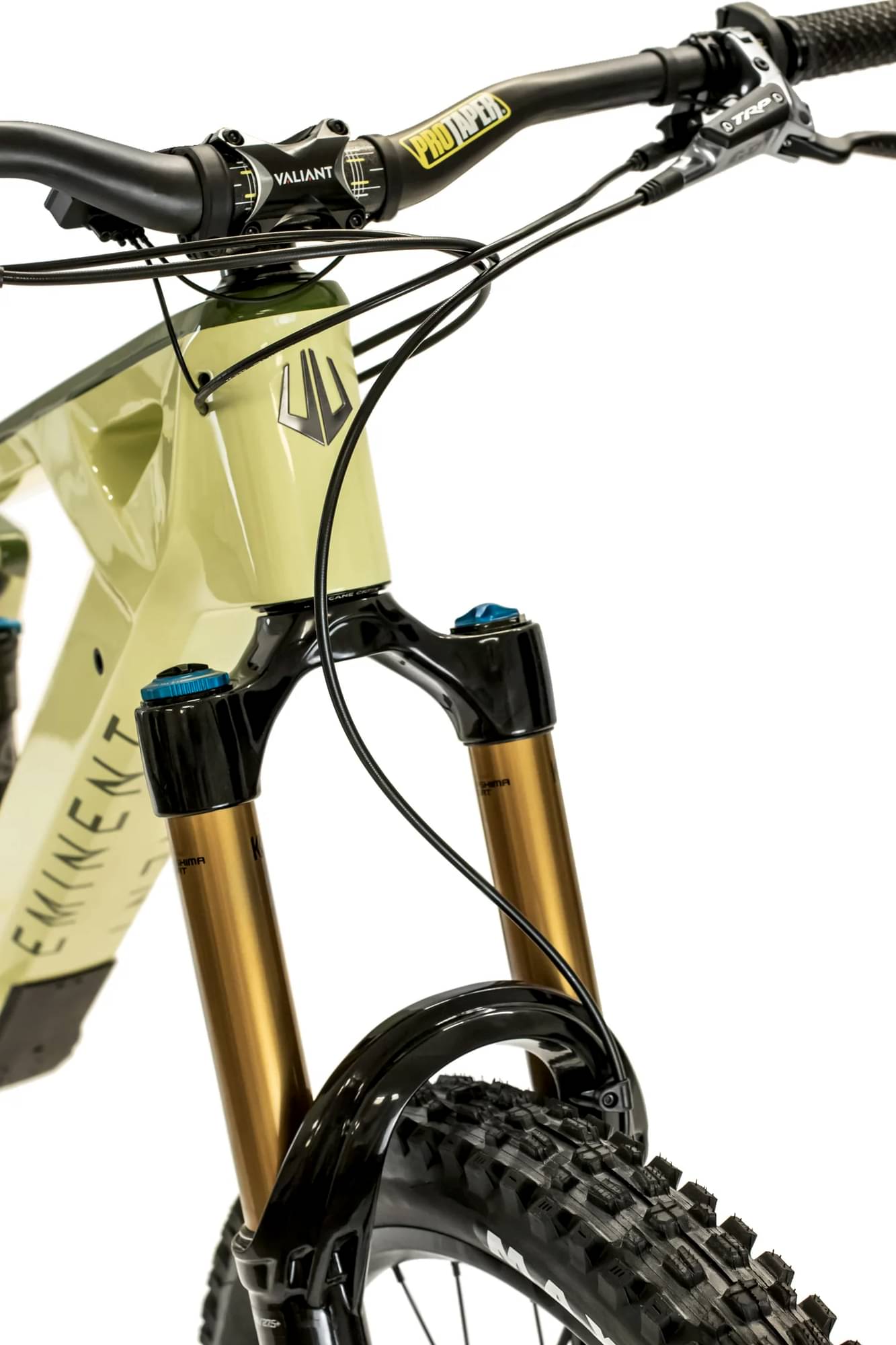

Cockpit
Stem
Raceface Turbine 40mm x 35mm dia.
Handlebar
Pro Taper Aluminum 810mm 25mm rise x 35mm dia.
Headset
FSA
Seat
Saddle
WTB Volt Comp
Seatpost
KS Rage 34.9

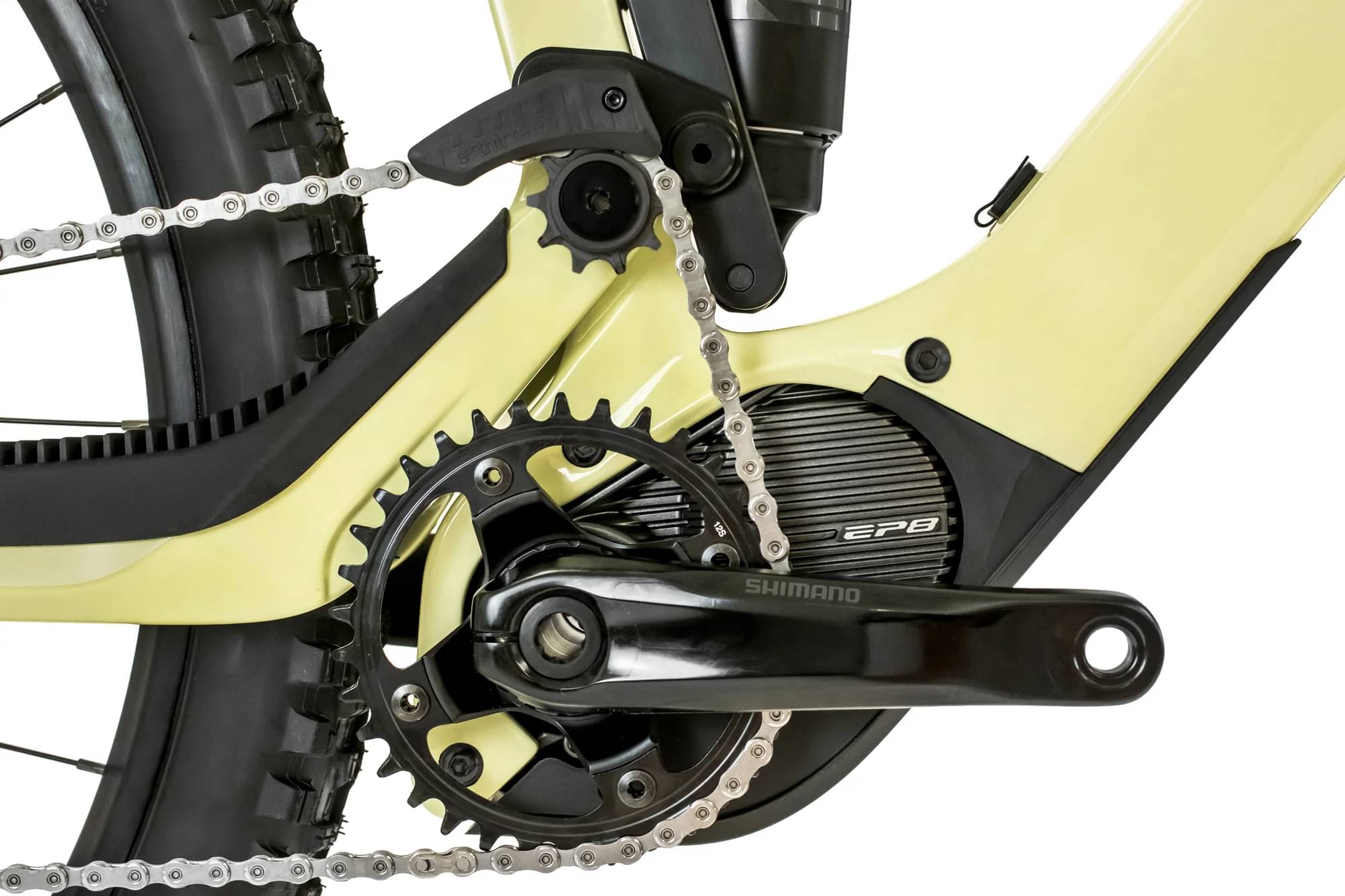

Motor & Battery
Motor
Shimano EP8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.353 mm | 1.291 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 789 mm | 823 mm | 858 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 136 mm | 135 mm |
| Stack | 634 mm | 644 mm | 653 mm |
| Reach | 446 mm | 476 mm | 506 mm |
| Top Tube Length | 599 mm | 634 mm | 666 mm |
| Seat Tube Angle | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 430 mm | 450 mm | 450 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1227 mm | 1261 mm | 1296 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Standover Height | 726 mm | 726 mm | 726 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
